2009 Hyundai Santa Fe Owner's Manual

1FEATURES OF YOUR HYUNDAI86
!
CAUTION:
o Use the power outlets only when the
engine is running. Remove the plug
from the power outlet after using the
electric device. Using the power out-
lets when the engine stops or keeping
the electric device plugged in for many
hours may cause the battery to dis-
charge.
o Do not use the power outlet to connect
electric accessories or equipment
that are not designed to operate on 12
volts.
o Some electronic devices can cause
electronic interference when plugged
into the power outlet. These devices
may cause excessive audio noise
and malfunctions in other electronic
systems or devices in your vehicle. The power outlets are designed to provide
power for mobile telephones or other de-
vices designed to operate with vehicle
electrical systems. The devices should
draw less than 10 amps with the engine
running.
OCM052123
POWER OUTLETSB500D01TG-AAT
OCM052121OCM052122L
(If installed)
(If installed)

1
FEATURES OF YOUR HYUNDAI
87
B505A01CM-AATAC Inverter (If installed)
OCM052124A
CAUTION:
o When not using the AC Inverter, make
sure that the switch is turned off, and
is closed the AC Inverter cover.
o Only use when the engine is running,
and remove the plug from the AC
Inverter after using the accessory.
Using when the engine is not running
or leaving the accessory plugged in
for long time may cause the battery to
discharge.
o Do not use the electric accessories
or equipment with maximum electric
power consumption greater than
150W (115VAC).
o Some electronic devices can cause
electronic interference when plugged
into the AC Inverter. These devices
may cause excessive audio noise
and malfunctions in other electronic
systems or devices used in your ve-
hicle.
o Do not use broken electric accesso-
ries or equipment, as they may dam-
age the AC Inverter and vehicle's elec-
trical system.
o Do not use two or more electric ac-
cessories or equipment at the same
time.
o When input voltage is under 11V, the
outlet LED and indicator will blink, and
will automatically turn off.
!
These supply 115VAC/150W electric
power to operate electric accessories or
equipment when the key is in the "ON"
position or engine is running. The AC
Inverter is turned on by pushing in the
switch. To turn the AC Inverter off, push the
switch a second time.NOTE:When pushing the AC inverter switch,
the switch indicator illumination is de-
layed momentarily while the system
conducts a self-check.
OCM036305A

1FEATURES OF YOUR HYUNDAI88
OCM052132

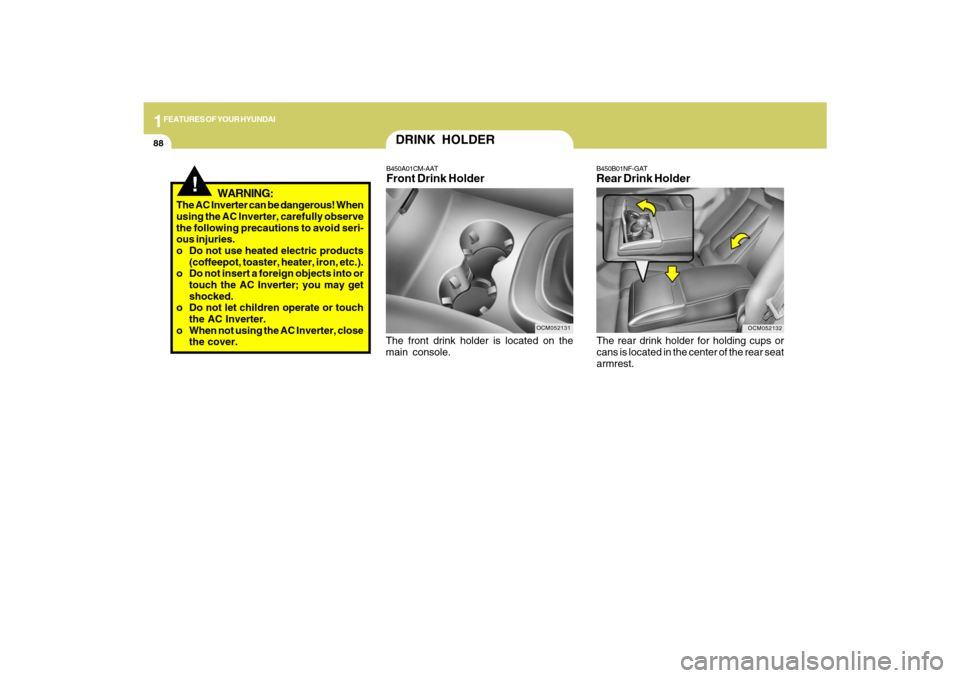

B450B01NF-GATRear Drink HolderThe rear drink holder for holding cups or
cans is located in the center of the rear seat
armrest.
OCM052131
DRINK HOLDERB450A01CM-AATFront Drink HolderThe front drink holder is located on the
main console.
!
WARNING:
The AC Inverter can be dangerous! When
using the AC Inverter, carefully observe
the following precautions to avoid seri-
ous injuries.
o Do not use heated electric products
(coffeepot, toaster, heater, iron, etc.).
o Do not insert a foreign objects into or
touch the AC Inverter; you may get
shocked.
o Do not let children operate or touch
the AC Inverter.
o When not using the AC Inverter, close
the cover.

1
FEATURES OF YOUR HYUNDAI
89
!
!
WARNING:
o Use caution when using the drink hold-
ers. A spilled beverage that is very
hot can injure you or your passen-
gers. Spilled liquids can damage inte-
rior trim and electrical components.
o Do not place objects other than cups
or cans in the drink holder. These
objects can be thrown out in the event
of a sudden stop or an accident, pos-
sibly injuring the passengers in the
vehicle.
!
CAUTION:
Place the drink holder in its closed posi-
tion when not in use.
SEATBACK POCKETB540B02E-AAT(If Installed)
OCM051022L
The seatback pockets for holding papers
are located on the backside of the front
seats.
!SUNROOFB460A03Y-AAT(If Installed)
Sun Shade
OCM051023L
Your vehicle is equipped with a sliding
sunshade which you can manually adjust
to let in light with the sunroof closed, or to
block sunlight.
WARNING:
Never adjust the sunshade while driv-
ing. This could result in loss of control
and an accident that may cause death,
serious injury, or property damage.
WARNING:
To avoid injury, do not place large or hard
objects in the seat back pockets.

1FEATURES OF YOUR HYUNDAI90
!

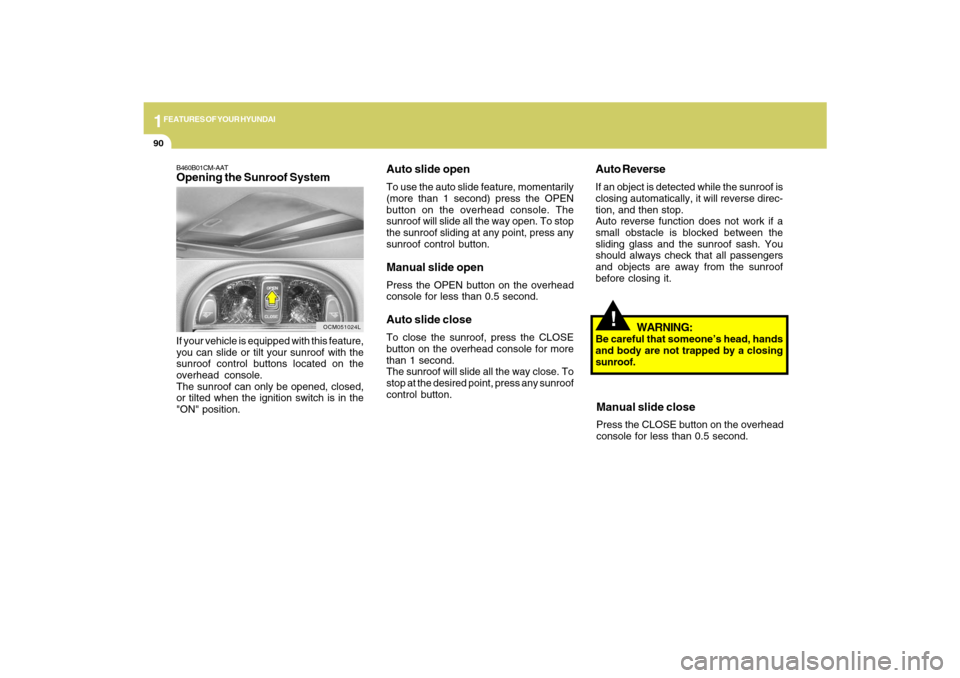

Auto ReverseIf an object is detected while the sunroof is
closing automatically, it will reverse direc-
tion, and then stop.
Auto reverse function does not work if a
small obstacle is blocked between the
sliding glass and the sunroof sash. You
should always check that all passengers
and objects are away from the sunroof
before closing it.
WARNING:
Be careful that someone’s head, hands
and body are not trapped by a closing
sunroof.Manual slide closePress the CLOSE button on the overhead
console for less than 0.5 second.
Auto slide openTo use the auto slide feature, momentarily
(more than 1 second) press the OPEN
button on the overhead console. The
sunroof will slide all the way open. To stop
the sunroof sliding at any point, press any
sunroof control button.Manual slide openPress the OPEN button on the overhead
console for less than 0.5 second.Auto slide closeTo close the sunroof, press the CLOSE
button on the overhead console for more
than 1 second.
The sunroof will slide all the way close. To
stop at the desired point, press any sunroof
control button.
B460B01CM-AATOpening the Sunroof SystemIf your vehicle is equipped with this feature,
you can slide or tilt your sunroof with the
sunroof control buttons located on the
overhead console.
The sunroof can only be opened, closed,
or tilted when the ignition switch is in the
"ON" position.
OCM051024L

1
FEATURES OF YOUR HYUNDAI
91

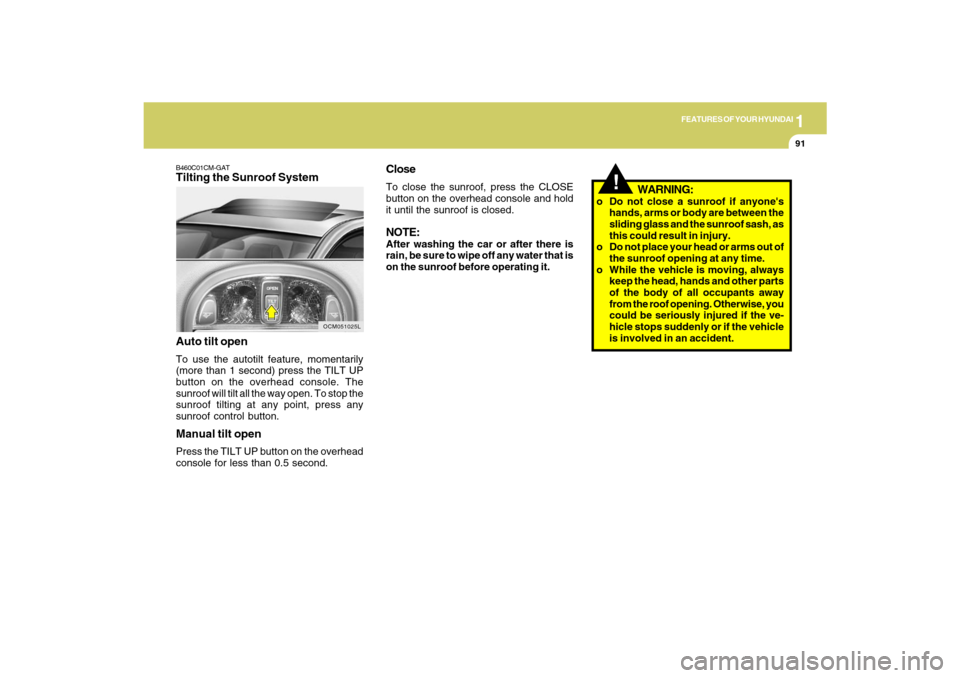

B460C01CM-GATTilting the Sunroof SystemClose
To close the sunroof, press the CLOSE
button on the overhead console and hold
it until the sunroof is closed.NOTE:After washing the car or after there is
rain, be sure to wipe off any water that is
on the sunroof before operating it.
!
Auto tilt openTo use the autotilt feature, momentarily
(more than 1 second) press the TILT UP
button on the overhead console. The
sunroof will tilt all the way open. To stop the
sunroof tilting at any point, press any
sunroof control button.Manual tilt openPress the TILT UP button on the overhead
console for less than 0.5 second.
OCM051025L
WARNING:
o Do not close a sunroof if anyone's
hands, arms or body are between the
sliding glass and the sunroof sash, as
this could result in injury.
o Do not place your head or arms out of
the sunroof opening at any time.
o While the vehicle is moving, always
keep the head, hands and other parts
of the body of all occupants away
from the roof opening. Otherwise, you
could be seriously injured if the ve-
hicle stops suddenly or if the vehicle
is involved in an accident.

1FEATURES OF YOUR HYUNDAI92
CAUTION:
o Do not open the sunroof in severely
cold temperature or when it is cov-
ered with ice or snow.
o Periodically remove any dirt that may
have accumulated on the guide rails.
o Do not press any sunroof control but-
ton longer than necessary.
Damage to the motor or system com-
ponents could occur.
!

1
FEATURES OF YOUR HYUNDAI
93
INTERIOR LIGHT
B490A01CM-AATInterior LightThe interior courtesy light has two buttons.
The two buttons are:o DOORThe courtesy light turns on when a door is
opened or when a door is unlocked by the
transmitter (if installed). The interior light
goes out slowly after 30 seconds after the
door is closed. However if the ignition
switch is ON or all vehicle doors are locked
when the door is closed, interior light will
turn off even within 30 seconds.
OCM052079L
B480B01CM-AATMap LightThe light comes on when any door is
opened regardless of the ignition switch
position.
If a door is opened with the ignition switch
in the ACC or LOCK position, the light stays
on for about 20 minutes. However, if a door
is opened with the ignition switch in the ON
position, the light stays on continuously.
When doors are unlocked by the transmit-
ter, the light comes on for approximately 30
seconds as long as any door is not open.
The light goes out gradually after approxi-
mately 30 seconds if the door is closed.
However, if the ignition switch is ON or all
doors are locked, the light will turn off
immediately.
OCM052077A

: Push in the map light switch to turn
the light on or off. This light pro-
duces a spot beam for convenient
use as a map light at night or as a
personal light for the driver and
the passenger.
