2009 Hyundai Accent Owner's Manual

1
FEATURES OF YOUR HYUNDAI
231
FEATURES OF YOUR HYUNDAI
23
!
B150B03A-AATInfant or Small ChildAll 50 states have child restraint laws.
You should be aware of the specific re-
quirements in your state. Child and/or
infant safety seats must be properly placed
and installed in the rear seat. Information
about the use of these restraints begins
on page 1-31.
WARNING:
Every person in your vehicle needs to be
properly restrained at all times, includ-
ing infants and children. Never hold a
child in your arms or lap when riding in a
vehicle. The violent forces created dur-
ing a crash will tear the child from your
arms and throw the child against the
interior. Always use a child restraint
appropriate for your child's height and
weight, see page 1-31.
NOTE:Small children are best protected from
injury in an accident when properly re-
strained in the rear seat by a child re-
straint system that meets the require-
ments of the Federal Motor Vehicle
Safety Standards. Before buying any
child restraint system, make sure that it
has a label certifying that it meets Fed-
eral Motor Vehicle Safety Standard 213.
The restraint must be appropriate for
your child's height and weight. Check
the label on the child restraint for this
information. See page 1-31.
B150C02A-AATLarger ChildrenChildren who are too large for child re-
straint systems should always occupy the
rear seat and use the available lap/
shoulder belts. The lap portion should be
fastened snug on the hips and as low as
possible. Check belt fit periodically. A
child's squirming could put the belt out of
position. Children are afforded the most
safety in the event of an accident when
they are restrained by a proper restraint
system in the rear seat. If a larger child
(over age 13) must be seated in the front
seat, the child should be securely re-
strained by the available lap/shoulder
belt and the seat should be placed in the
rearmost position. Children under the age
of 13 should be restrained securely in the
rear seat. NEVER place a child under
the age of 13 in the front seat. NEVER
place a rear facing child seat in the front
seat of a vehicle.

1FEATURES OF YOUR HYUNDAI24
!
B150F01A-AATOne Person Per BeltTwo people (including children) should
never attempt to use a single seat belt.
This could increase the severity of inju-
ries in case of an accident.B150G02A-AATDo Not Lie DownTo reduce the chance of injuries in the
event of an accident and to achieve maxi-
mum effectiveness of the restraint sys-
tem, all passengers should be sitting up
and the front seats should be in an up-
right position when the car is moving. A
seat belt cannot provide proper protec-
tion if the person is lying down in the rear
seat or if the front seat is in a reclined
position.

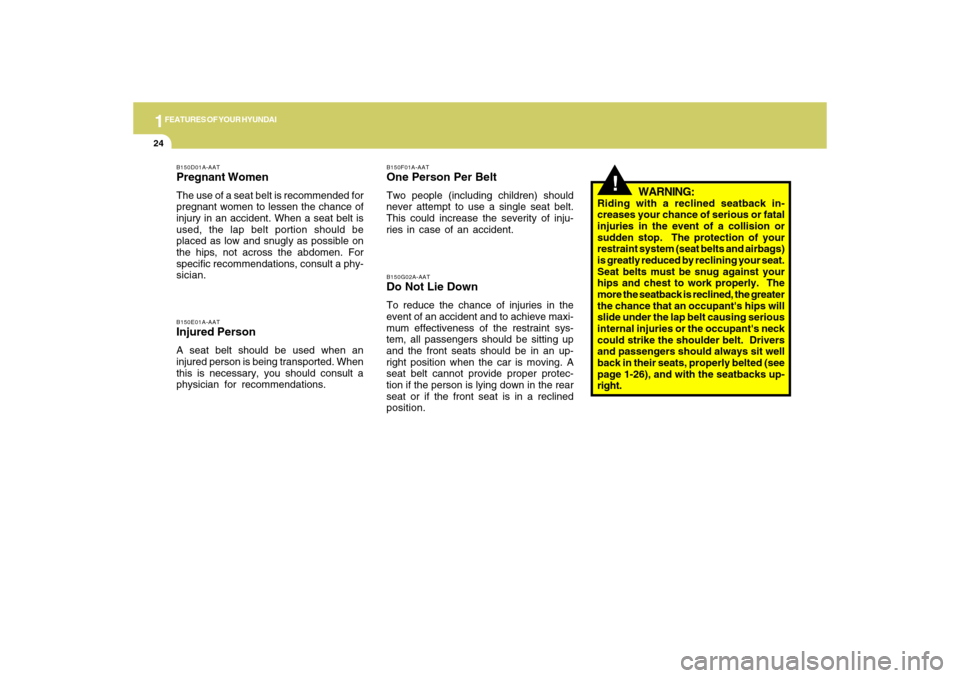

WARNING:
Riding with a reclined seatback in-
creases your chance of serious or fatal
injuries in the event of a collision or
sudden stop. The protection of your
restraint system (seat belts and airbags)
is greatly reduced by reclining your seat.
Seat belts must be snug against your
hips and chest to work properly. The
more the seatback is reclined, the greater
the chance that an occupant's hips will
slide under the lap belt causing serious
internal injuries or the occupant's neck
could strike the shoulder belt. Drivers
and passengers should always sit well
back in their seats, properly belted (see
page 1-26), and with the seatbacks up-
right.
B150D01A-AATPregnant WomenThe use of a seat belt is recommended for
pregnant women to lessen the chance of
injury in an accident. When a seat belt is
used, the lap belt portion should be
placed as low and snugly as possible on
the hips, not across the abdomen. For
specific recommendations, consult a phy-
sician.B150E01A-AATInjured PersonA seat belt should be used when an
injured person is being transported. When
this is necessary, you should consult a
physician for recommendations.

1
FEATURES OF YOUR HYUNDAI
251
FEATURES OF YOUR HYUNDAI
25
!
B160A02A-AATCARE OF SEAT BELTSSeat belt systems should never be disas-
sembled or modified. In addition, care
should be taken to assure that seat belts
and belt hardware are not damaged by
seat hinges, doors or other abuse.
WARNING:
When you return the rear seatback to its
upright position after the rear seatback
was folded down, be careful not to dam-
age the seat belt webbing or buckle. Be
sure that the webbing or buckle does not
get caught or pinched in the rear seat. A
seat belt with damaged webbing or buckle
will not be as strong and could possibly
fail during a collision or sudden stop,
resulting in serious injury.
B160D01A-AATWhen to Replace Seat BeltsEntire in-use seat belt assemblies should
be replaced if the vehicle has been in-
volved in an accident. This should be
done even if no damage is visible. Addi-
tional questions concerning seat belt
operation should be directed to your
Hyundai Dealer.B160C01A-AATKeep Belts Clean and DrySeat belts should be kept clean and dry.
If belts become dirty, they can be cleaned
by using a mild soap solution and warm
water. Bleach, dye, strong detergents or
abrasives should not be used because
they may damage and weaken the fabric.
B170A02MC-AATHEIGHT ADJUSTABLE FRONT SEAT
SHOULDER BELT
B170A01MC
You can adjust the height of the shoulder
belt anchor to one of the 4 positions for
maximum comfort and safety.
If the height of the adjusting seat belt is
too near your neck, you will not be getting
the most effective protection. The shoul-
der portion should be adjusted so that it
lies across your chest and midway over
your shoulder nearest the door and not
your neck. To adjust the height of the seat
belt anchor, lower or raise the height
adjuster into an appropriate position. To
raise the height adjuster, pull it up.
B160B01A-AATPeriodic InspectionIt is recommended that all seat belts be
inspected periodically for wear or dam-
age of any kind. Parts of the system that
are damaged should be replaced as soon
as possible.

1FEATURES OF YOUR HYUNDAI26
To fasten your seat belt, pull it out of the
retractor and insert the metal tab into the
buckle. There will be an audible "click"
when the tab locks into the buckle.
The seat belt automatically adjusts to the
proper length only after the lap belt is
adjusted manually so that it fits snugly
around your hips. If you lean forward in a
slow, easy motion, the belt will extend
and let you move around. If there is a
sudden stop or impact, however, the belt
will lock into position. It will also lock if you
try to lean forward too quickly.B180A01MC-AATSEAT BELT-Driver's 3-Point System
with Emergency Locking Retractor
To Fasten Your Belt
B180A01NF
!
WARNING:
o Verify the shoulder belt anchor is
locked into position at the appropri-
ate height. Never position the shoul-
der belt across your neck or face.
Improperly positioned seat belts can
cause serious injuries in an acci-
dent.
o Failure to replace seat belts after an
accident could leave you with dam-
aged seat belts that will not provide
protection in the event of another
collision leading to personal injury or
death. Replace your seat belts after
being in an accident as soon as pos-
sible. To lower it, push it down while pressing
the height adjuster button. Release the
button to lock the anchor into position. Try
sliding the height adjuster to make sure
that it has locked into the position.
OMC025042-1
!
CAUTION:
o Adjust the shoulder belt height when
you sit well back in the seat.
o When adjusting the shoulder belt
height, grip the height adjuster but-
ton securely and slide the height
adjuster up or down.
o If the shoulder belt anchor is not
moved, grasp the shoulder part of
the belt and pull forward to the full.

1
FEATURES OF YOUR HYUNDAI
271
FEATURES OF YOUR HYUNDAI
27
NOTE:If the seat belt is not fastened when the
ignition key is turned from the "OFF"
position to the "ON" position, the seat
belt warning will activate to remind the
driver to fasten the seat belt as follows.The driver's seat belt warning light and
chime will activate to the following table
when the ignition switch is in "ON" posi-
tion.
B265E01MC-AAT
Seat Belt Warning Light
and ChimeConditions Warning Pattern
Seat BeltVehicle SpeedLight-Blink Chime-SoundUnbuckled
Buckled
Buckled
→ →→ →
→ Unbuckled
UnbuckledAbove 6mph
(10 km/h)
↓
Below 3mph
(5 km/h)6 seconds
6 seconds
6 seconds *1)
↓Stop *2)
6 secondsNone
B190A03A-AATSEAT BELTS-Front Passenger and
Rear Seat 3-Point System with Com-
bination Locking Retractor :
To Fasten Your BeltCombination retractor type seat belts are
installed in the rear seat outboard and
center positions to help accommodate
the installation of child restraint systems.
Hyundai strongly recommends that chil-
dren always be seated in the rear seat.
NEVER place any infant restraint system
in the front seat of the vehicle.
This type of seat belt combines the fea-
tures of both an emergency locking re-
tractor seat belt and an automatic locking
retractor seat belt. To fasten your seat
belt, pull it out of the retractor and insert
the metal tab into the buckle. There will
be an audible "click" when the tab locks
into the buckle. When not securing a child
restraint, the seat belt operates in the
same way as the driver's seat belt (Emer-
gency Locking Retractor Type). It auto-
matically adjusts to the proper length only
after the lap belt portion of the seat belt is
adjusted manually so that it fits snugly
around your hips. *1) Warning pattern repeats 11 times with
an interval of 24 seconds. If the driver's
seat belt is buckled, the light will stop
within 6 seconds and chime will stop
immediately.
*2) The light will stop within 6 seconds
and chime will stop immediately.

1FEATURES OF YOUR HYUNDAI28
!
WARNING:
!
B200A01A-AATAdjusting Your Seat Belt
WARNING:You should place the lap belt portion as
low as possible and snugly across your
hips, not on your waist. If the lap belt is
located too high on your waist, it may
increase the chance of injury in the event
of a collision. Both arms should not be
under or over the belt. Rather, one should
be over and the other under, as shown in
the illustration.
Never wear the seat belt under the arm
nearest the door.
B200A01NF
o Children age 12 and younger must
always be properly restrained in the
rear seat. Never allow children to
ride in the front passenger seat. If a
child over 13 must be seated in the
front seat, he/she must be properly
belted and the seat should be moved
as far back as possible.
o Never wear the shoulder belt under
your arm or behind your back. An
improperly positioned shoulder belt
can cause serious injuries in a crash.
The shoulder belt should be posi-
tioned midway over your shoulder
across your collarbone.
o Avoid wearing twisted seat belts. A
twisted belt can't do its job as well. In
a collision, it could even cut into you.
Be sure the belt webbing is straight
and not twisted.
o Be careful not to damage the belt
webbing or hardware. If the belt web-
bing or hardware is damaged, re-
place it. When the seat belt is fully extended from
the retractor to allow the installation of a
child restraint system, the seat belt opera-
tion changes to allow the belt to retract,
but not to extend (Automatic Locking
Retractor Type). See page 1-38.
NOTE:Although the combination retractor pro-
vides the same level of protection for
seated passengers in either emergency
or automatic locking modes, it is recom-
mended that seated passengers use the
emergency locking feature for improved
convenience. The automatic locking
function is intended to facilitate child
restraint installation. To convert from
the automatic locking feature to the
emergency locking operation mode, al-
low the unbuckled seat belt to fully re-
tract.
!
WARNING:
o For maximum restraint system pro-
tection, seat belts must always be
used whenever the car is moving.
o Seat belts are most effective when
seatbacks are in the upright posi-
tion.

1
FEATURES OF YOUR HYUNDAI
291
FEATURES OF YOUR HYUNDAI
29
B210A01A-AATTo Release the Seat BeltThe seat belt is released by pressing the
release button in the locking buckle. When
it is released, the belt should automati-
cally draw back into the retractor.
If this does not happen, check the belt to
be sure it is not twisted, then try again.
B210A01NF
B220D02MC-AATSEAT BELTS - Rear Seat Center 3-
Point System With Emergency Lock-
ing Retractor1. Before fastening the rear seat center
belt, confirm the metal tab (A) and
buckle (B) are latched together.
B220D01MC
2. After confirming that (A) and (B) are
latched, pull the seat belt out of the
retractor and insert the metal tab (C)
into the buckle (D).
B220D02MC

1FEATURES OF YOUR HYUNDAI30
!
WARNING:
o Never let anyone ride in the rear
center seat without fastening all
metal tabs and buckles as described
in this section. This seat belt is
designed to function as a typical 3-
point restraint (lap/shoulder belt).
Using only the shoulder portion or
lap portion of the belt can result in
serious or fatal injuries in the event
of a collision or sudden stop.
o Never unlock the metal tab (A) and
the buckle (B) with the following ex-
ceptions.
(1) In case of folding rear seatbacks
down.
(2) If transporting an object on the
rear seat may cause damage to
the rear seat center belt.
B220D04MC
There will be an audible "click" when the
tab locks in the buckle. The seat belt
automatically adjusts to the proper length
only after the lap belt is adjusted manu-
ally so that it fits snugly around your hips.
If you lean forward in a slow, easy motion,
the belt will extend and let you move
around. If there is a sudden stop or im-
pact, the belt will lock into position. It will
also lock if you try to lean forward too
quickly.
NOTE:Confirm the metal tab and the buckle
marked "CENTER" are latched together.
B220D03MC
