2009 Hyundai Accent Owner's Manual

F9
1. Hood Release Lever ...................................................1-93
2. Front Fog Light Switch (If Installed) ............................1-82
3. Panel Brightness Control Knob (Rheostat Switch) ....1-80
4. Instrument Cluster .......................................................1-60
5. Multi-Function Light Switch .........................................1-76
6. Cruise Control (If Installed) .......................................1-101
7. Horn and Driver's Front Airbag ........................ 1-101, 1-42
8. Windshield Wiper/Washer Switch ..............................1-78
9. Hazard Warning Light Switch .....................................1-81
10. Digital Clock ................................................................1-82
11. "PASSENGER AIR BAG OFF" Indicator .....................1-49
12. Rear Window Defroster Switch ...................................1-81
13. Audio System (If Installed) ........................................1-12014. Passenger's Front Airbag ...........................................1-42
15. Glove Box ....................................................................1-88
16. Heating/Air Conditioning Control Panel (If Installed)1-107
17. Multi Box .....................................................................1-89
18. Cigarette Lighter .........................................................1-82
19. AUX Outlet ................................................................1-105
20. Power Outlet ...............................................................1-83
21. Ashtray........................................................................1-83
22. Shift Lever ..................................................................... 2-9
23. Parking Brake Lever ...................................................1-91
24. Front Drink Holder ......................................................1-84
25. Trunk Lid Release Lever (If Installed) ........................1-97
26. Fuel Filler Lid Release Lever .....................................1-94
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster
nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas
(Instrument cluster, instrument panel or air ventilator), it may damage these parts. If the liquid from the air
freshener does leak onto these areas, wash them with water immediately.
!

YOUR VEHICLE AT A GLANCE
F10
High Beam Indicator Light
Parking Brake/Low Brake Fluid Level
Warning Light
Door Ajar Warning Light and Chime O/D OFF Indicator
(Automatic transaxle only)
B255A03MC-AATINDICATOR SYMBOLS ON THE INSTRUMENT PANEL
* More detailed explanations of these items will be found begining
on page 1-64.
SRS (Airbag) Warning Light
ABS Service Reminder Indicator (If Installed)
Turn Signal Indicator Lights
Low Oil Pressure Warning Light
Charging System Warning LightLow Fuel Level Warning Light
Malfunction Indicator Light
Seat Belt Warning Light and Chime
Trunk Lid / Tail Gate Open Warning Light
Check Fuel Filler Cap Warning LightEngine Coolant Temperature Warning LightLow Tire Pressure Telltale (If Installed)TPMS (Tire Pressure Monitoring System) Malfunction
Indicator (If Installed)Cruise Indicator Light (If Installed)Cruise SET Indicator Light (If Installed)

FEATURES OF YOUR HYUNDAI
1
Fuel Recommendations ................................................ 1-2
Breaking in Your New Hyundai .................................... 1-3
Keys.............................................................................. 1-4
Door Locks ................................................................... 1-4
Theft-Alarm System ...................................................... 1-8
Window Glass ............................................................1-11
Seats...........................................................................1-13
Seat Belts...................................................................1-22
Child Restraint System...............................................1-31
Advanced Supplemental Restraint (AIRBAG)
System......................................................................1-41
Instrument Cluster and Indicator Lights .....................1-60
Warning and Indicator Lights ......................................1-64
Trip Computer.............................................................1-73
Multi-Function Light Switch .........................................1-76
Windshield Wiper and Washer Switch.......................1-78
Sunroof.......................................................................1-84
Mirror...........................................................................1-89
Hood Release.............................................................1-93
Cruise Control System.............................................1-101
Heating and Cooling Control.................................... 1-106
Stereo Sound System..............................................1-117
Antenna.....................................................................1-119
Audio System...........................................................1-120
1

1FEATURES OF YOUR HYUNDAI2
!FUEL RECOMMENDATIONS
UNLEADED
FUEL ONLY
B010A01MC-A B010A02MC-AAT
Use Unleaded GasolineUnleaded gasoline with a Pump Octane
Rating of 87 (Research Octane Number
91) or higher must be used in your
Hyundai.
B010B01A-AATWhat About Gasohol?Gasohol (a mixture of 90% unleaded
gasoline and 10% ethanol or grain alco-
hol) may be used in your Hyundai. How-
ever, if your engine develops driveability
problems, the use of 100% unleaded
gasoline is recommended. Fuels with
unspecified quantities of alcohol, or
alcohols other than ethanol, should not
be used.B010C01A-AATUse of MTBEHyundai recommends that fuels contain-
ing MTBE (Methyl Tertiary Butyl Ether)
over 15.0% vol. (Oxygen Content 2.7%
weight) should not be used in your
Hyundai.
Fuel containing MTBE over 15.0% vol.
(Oxygen Content 2.7% weight) may re-
duce vehicle performance and produce
vapor lock or hard starting.
B010D01A-AATDo Not Use MethanolFuels containing methanol (wood alco-
hol) should not be used in your Hyundai.
This type of fuel can reduce vehicle per-
formance and damage components of
the fuel system.
CAUTION:
Your Hyundai's New Vehicle Limited War-
ranty may not cover damage to the fuel
system and any performance problems
that are caused by the use of fuels con-
taining methanol or fuels containing
MTBE (Methyl Tertiary Butyl Ether) over
15.0% vol. (Oxygen Content 2.7% weight.)
!
WARNING:
o Do not "top off" after the nozzle au-
tomatically shuts off when refueling.
o Tighten the cap until it clicks, other-
wise the "
" light will illuminate.
o Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.

1
FEATURES OF YOUR HYUNDAI
31
FEATURES OF YOUR HYUNDAI
3
BREAKING IN YOUR NEW
HYUNDAI
B010F01A-AATOperation in Foreign CountriesIf you are going to drive your Hyundai in
another country, be sure to:
o Observe all regulations regarding reg-
istration and insurance.
o Determine that acceptable fuel is avail-
able.B010E01A-AATGasolines for Cleaner AirTo help contribute to cleaner air, Hyundai
recommends that you use gasolines
treated with detergent additives, which
help prevent deposit formation in the
engine. These gasolines will help the
engine run cleaner and enhance perfor-
mance of the Emission Control System.
B020A01S-AATDuring the First 1200 Miles (2000
Km)No formal "break-in" procedure is required
with your new Hyundai. However, you
can contribute to the economical opera-
tion and durability of your Hyundai by
observing the following recommenda-
tions during the first 1200 miles (2000
km).
o Don't drive faster than 55 MPH (88 km/
h).
o While driving, keep your engine speed
(rpm, or revolutions per minute) be-
tween 2,000 rpm and 4,000 rpm.
o Use moderate acceleration. Don't start
quickly or depress the accelerator
pedal fully.
o For the first 200 miles (300 km), try to
avoid hard stops.
o Don't lug the engine (in other words,
don't drive so slowly in too high a gear
that the engine "bucks"-shift to a lower
gear).o Whether going fast or slow, vary your
speed from time to time.
o Don't let the engine idle longer than 3
minutes at one time.
o Don't tow a trailer during the first 1,200
miles (2,000 km) of operation.

1FEATURES OF YOUR HYUNDAI4
DOOR LOCKS!
B030B01NF-GATRecord Your Key NumberA code number is recorded on the num-
ber tag that came with the keys to your
Hyundai. This key number tag should not
be left with the keys but kept in a safe
place, not in the vehicle. The key number
should also be recorded in a place where
it can be found in an emergency.
If you need additional keys, or if you
should lose your keys, your authorized
Hyundai dealer can make new keys if you
can supply the key number.
B030B01MCB040A01A-AAT
WARNING:
o Unlocked doors can be dangerous.
Before you drive away (especially if
there are children in the car), be sure
that all the doors are securely closed
and locked so that the doors cannot
be opened from the inside. This helps
ensure that the doors will not be
opened accidentally. Also, when com-
bined with the proper use of seat
belts, locking the doors helps keep
occupants from being ejected from
the car in case of an accident.
o Before opening the door, always look
for and avoid oncoming traffic.
KEYSB030A01A-AATFor greater convenience, the same key
operates all the locks in your Hyundai.
However, because the doors can be
locked without a key, carrying a spare key
is recommended in case you accidentally
lock one key inside the car.
OMC025001

1
FEATURES OF YOUR HYUNDAI
51
FEATURES OF YOUR HYUNDAI
5
B040B02A-AATLocking and Unlocking Front Doors
with a Keyo The door can be locked or unlocked
with a key.
o Lock the door by turning the key to-
ward the front of the vehicle and un-
lock it by turning the key toward the
rear.NOTE:The driver's door can be unlocked by
turning the key once toward the rear. If
you wish to unlock all doors, turn the key
again toward the rear within 4 seconds
(With the central door locking system).
OMC025005UNLOCK
LOCK
The doors can be locked without a key.
To lock the doors, first push the inside
lock switch to the "LOCK" position so that
the red mark on the switch is not visible,
then close the door.NOTE:o When pushing the lock switch of the
passenger's door to the "LOCK" po-
sition, all doors can be locked.
o If your vehicle is equipped with the
central door locking system, the door
will not lock if the key is left in the
ignition switch when the front doors
are closed.B040C01MC-AATLocking from Outside
B040C04MC
o When locking the door from outside,
be careful not to lock the door with
the ignition key left in the vehicle.
o To protect against theft, always re-
move the ignition key, close all win-
dows, and lock all doors and the
trunk lid (4 Door) / tail gate (3 Door)
when leaving your vehicle unat-
tended.

1FEATURES OF YOUR HYUNDAI6
!

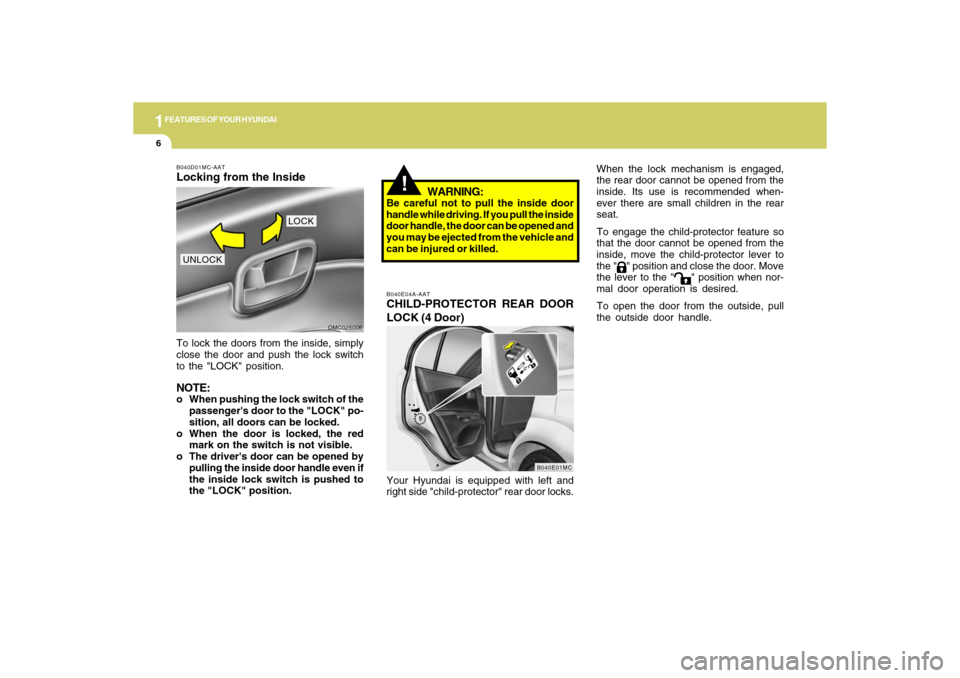

B040D01MC-AATLocking from the InsideTo lock the doors from the inside, simply
close the door and push the lock switch
to the "LOCK" position.NOTE:o When pushing the lock switch of the
passenger's door to the "LOCK" po-
sition, all doors can be locked.
o When the door is locked, the red
mark on the switch is not visible.
o The driver's door can be opened by
pulling the inside door handle even if
the inside lock switch is pushed to
the "LOCK" position.
B040E04A-AATCHILD-PROTECTOR REAR DOOR
LOCK (4 Door)Your Hyundai is equipped with left and
right side "child-protector" rear door locks.
OMC025006
UNLOCK
LOCK
B040E01MC
WARNING:
Be careful not to pull the inside door
handle while driving. If you pull the inside
door handle, the door can be opened and
you may be ejected from the vehicle and
can be injured or killed.When the lock mechanism is engaged,
the rear door cannot be opened from the
inside. Its use is recommended when-
ever there are small children in the rear
seat.
To engage the child-protector feature so
that the door cannot be opened from the
inside, move the child-protector lever to
the "
" position and close the door. Move
the lever to the "
" position when nor-
mal door operation is desired.
To open the door from the outside, pull
the outside door handle.
