2009 Hyundai Accent Owner's Manual

1
FEATURES OF YOUR HYUNDAI
71
FEATURES OF YOUR HYUNDAI
7
!
B040G01MC-AATCentral Door Locks (If Installed)The central door locking switch is lo-
cated on the driver's armrest. It is oper-
ated by depressing the door lock switch.
If any door is open when the switch is
depressed to the "LOCK" position, the
door will remain locked when closed.NOTE:o When depressing the front portion
of the door lock switch, all vehicle
doors will lock.
o When depressing the rear portion of
the switch, all vehicle doors will un-
lock.o The driver's door can be opened by
pulling the inside door handle even if
the front portion of the central door
locking switch has been depressed
to lock the doors.
o If the door is locked/unlocked mul-
tiple times in rapid succession with
either the vehicle key or door lock
switch, the system may stop operat-
ing temporarily in order to protect
the circuit and prevent damage to
system components.
o The central door locking is operated
by turning the key in the driver's
door lock toward the front or rear of
the vehicle.
WARNING:
Be careful not to pull the inside door
handle while driving. If you pull the in-
side door handle, the door can be opened
and you may be ejected from the ve-
hicle and can be injured or killed.
!
B070F03O-AATKEYLESS ENTRY SYSTEM
(If Installed)
NOTE:This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference. and (2) this device must
accept any interference received.
Including interference that may cause
undesired operation.
CAUTION:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's au-
thority to operate the equipement
OMC029047
UNLOCKLOCK

1FEATURES OF YOUR HYUNDAI8
THEFT-ALARM SYSTEMB070A01A-AAT(If Installed)This system is designed to provide pro-
tection from unauthorized entry into the
car. This system is operated in three
stages: the first is the "Armed" stage, the
second is the "Alarm" stage, and the third
is the "Disarmed" stage. If triggered, the
system provides an audible alarm with
blinking of the turn signal lights.
Locking doors1. Close all doors.
2. Push the "LOCK" button on the trans-
mitter.
3. At the same time all doors lock, the turn
signal light will blink once to indicate
that the system is armed.Unlocking doors1. Push the "UNLOCK" button on the
transmitter.
2. At the same time the driver's door
unlocks, the turn signal light will blink
twice to indicate that the system is
disarmed.NOTE:If you wish to unlock all the doors, press
the "UNLOCK" button on the transmitter
again within 4 seconds.
NOTE:The transmitter will not work if any of
following occur:
- The ignition key is in ignition switch.
- You exceed the operating distance
limit (10 m).
- The battery in the transmitter is weak.
- Other vehicles or objects may be
blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a radio
transmitter such as a radio station
or an airport which can interfere with
normal operation of the transmitter.
When the transmitter does not work
correctly, open and close the door with
the ignition key. If you have a problem
with the transmitter, contact an autho-
rized Hyundai Dealer.NOTE:Keep the transmitter away from water or
any liquid. If the keyless entry system is
inoperative due to exposure to water or
liquids, it will not be covered by your
manufacturer vehicle warranty.

1
FEATURES OF YOUR HYUNDAI
91
FEATURES OF YOUR HYUNDAI
9
!
B070B02MC-A B070B02MC-AAT
Armed StagePark the car and stop the engine. Arm the
system as described in the following para-
graph.
1) Remove the ignition key from the igni-
tion switch.
2) Make sure that all doors, tail gate (3
Door) and engine hood are closed
and latched.
3) Lock the doors using the transmitter of
the keyless entry system.
After completion of the steps above, the
turn signal lights will blink once to indi-
cate that the system is armed.The system can be armed by locking the
doors with the key from the front doors or
tail gate (3 Door). However, the hazard
warning lights are not operated.
NOTE:If any door, tail gate (3 Door) or engine
hood remains open, the system will not
be armed. If this happens, rearm the
system as described above.
CAUTION:
o Do not arm the system until all pas-
sengers have left the car. If the sys-
tem is armed while a passenger(s)
remains in the car, the alarm may be
activated when the remaining
passenger(s) leaves the car.
o If the "LOCK" button is pressed once
more within 4 seconds after pushing
the "LOCK" button on the transmit-
ter, the alarming horn will sound once
to indicate that the system is armed.
LOCK
B070C02MC-AATAlarm StageThe alarm will be activated if any of the
following occurs while the car is parked
and the system is armed.
1) Any door, tail gate (3 Door) included,
is opened without using the transmitter
or the ignition key.
2) The engine hood is opened.
The alarming horn will sound and the turn
signal lights will blink continuously for 27
seconds (This happens 3 times). To turn
off the system, unlock the door with the
transmitter or the ignition key.
CAUTION:
Avoid trying to start the engine while the
system is armed.
!

1FEATURES OF YOUR HYUNDAI10
Battery
1KMA2003 B070E01MC-AAT
Replacing the batteryWhen the transmitter's battery begins to
get weak, it may take several pushes on
the button to lock or unlock the doors, and
the LED will not light. Replace the battery
as soon as possible.
Battery type : CR2032
Replacement instructions:
1. Carefully separate the case with a
blade screwdriver.
B070E01MC-AATPanic Warning1. Push the "PANIC" button on the trans-
mitter.
2. At the same time, the alarming horn
will sound and the turn signal lights
will blink continuously for 30 seconds.
3. To turn off the system, push any button
on the transmitter or lock/unlock the
doors by turning the key.
B070E02MC-A
2. Remove the old battery from the case
and note the polarity. Make sure the
polarity of the new battery is the
same(+side facing up), then insert it in
the transmitter.
B070D02MC-AATDisarmed StageThe system will be disarmed when the
following step is taken:
The doors are unlocked by depressing
the "UNLOCK" button on the transmitter
or unlocked with the ignition key.
After depressing unlock button, the haz-
ard warning lights will blink twice to indi-
cate that the system is disarmed.
If any door, tail gate (3 Door) included, is
not opened within 30 seconds, the sys-
tem will be rearmed.
B070D02MC-A
NOTE:When the system is disarmed with the
interior light switched to "DOOR", the
interior light will illuminate for 30 sec-
onds.
UNLOCK

1
FEATURES OF YOUR HYUNDAI
111
FEATURES OF YOUR HYUNDAI
11
WINDOW GLASS!
3FDA2015 B050A01A-AAT
To raise or lower the window, turn the
window regulator handle clockwise or
counterclockwise.
WARNING:
When opening or closing the windows,
make sure your passenger's arms,
hands and body are safely out of the way.
B060A02MC-AATPOWER WINDOWS (If Installed)The power windows operate when the
ignition key is in the "ON" position. The
main switches are located on the driver's
armrest and control the front (4/3 Door)
and rear windows (4 Door) on both sides
of the vehicle. The windows may be
opened by depressing the appropriate
window switch and closed by pulling up
the switch. To open the window on the
driver's side, press the switch (1) halfway
down. The window moves as long as the
switch is operated. To fully open the
driver's window automatically, press the
switch fully down.
In automatic operation, the window will
fully open even if you let go of the switch.
To stop at the desired opening, pull up
and release the switch.4 Door
3 Door
OMC029048
OMC029049
In order to prevent operation of the pas-
senger front (4/3 Door) and rear windows
(4 Door), a window lock switch (2) is
provided on the armrest of the driver's
door. To disable the power windows,
press the window lock switch. To revert to
normal operation, press the window lock
switch a second time.NOTE:The power windows can be operated for
30 seconds after the ignition key is
turned to the "ACC" or "LOCK" posi-
tions, or removed from the ignition
switch. If the front doors are opened
during this 30 second period, the power
windows can no longer be operated with-
out the ignition key turned to the "ON"
position.

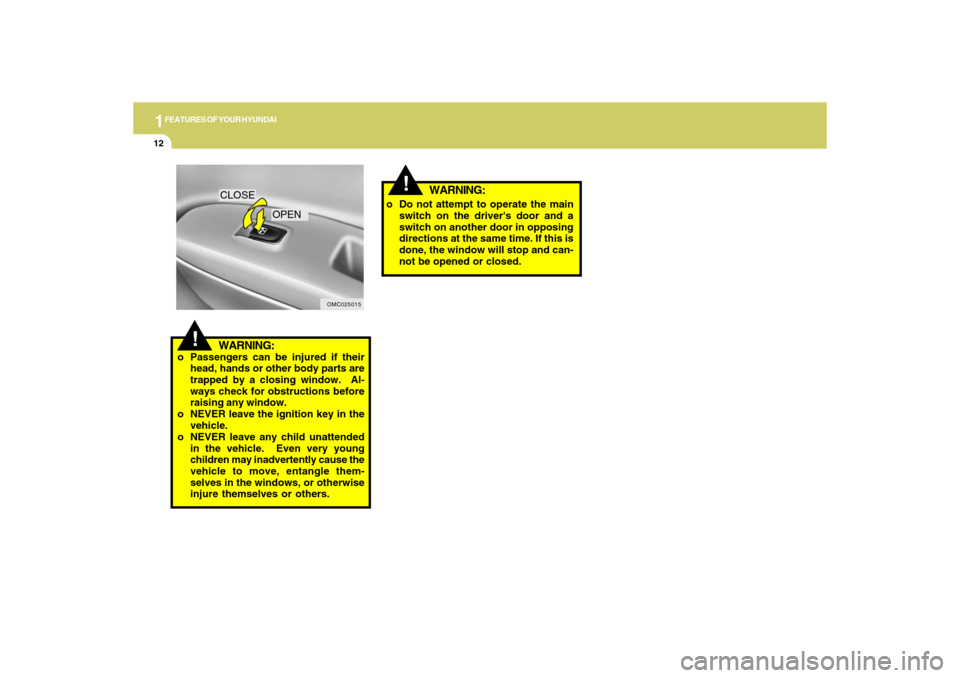

1FEATURES OF YOUR HYUNDAI12
!
WARNING:
o Passengers can be injured if their
head, hands or other body parts are
trapped by a closing window. Al-
ways check for obstructions before
raising any window.
o NEVER leave the ignition key in the
vehicle.
o NEVER leave any child unattended
in the vehicle. Even very young
children may inadvertently cause the
vehicle to move, entangle them-
selves in the windows, or otherwise
injure themselves or others.
OMC025015
CLOSE
OPEN
!
WARNING:
o Do not attempt to operate the main
switch on the driver's door and a
switch on another door in opposing
directions at the same time. If this is
done, the window will stop and can-
not be opened or closed.

1
FEATURES OF YOUR HYUNDAI
131
FEATURES OF YOUR HYUNDAI
13

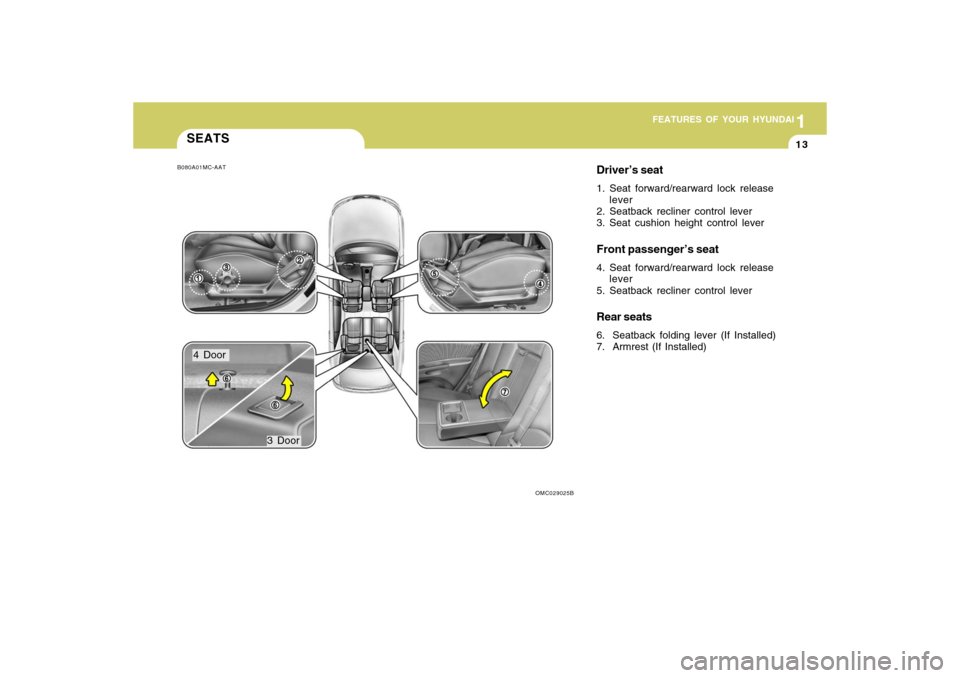

SEATS
Driver’s seat1. Seat forward/rearward lock release
lever
2. Seatback recliner control lever
3. Seat cushion height control leverFront passenger’s seat4. Seat forward/rearward lock release
lever
5. Seatback recliner control leverRear seats6. Seatback folding lever (If Installed)
7. Armrest (If Installed)
B080A01MC-AAT
OMC029025B
4 Door
3 Door

1FEATURES OF YOUR HYUNDAI14
To move the seat toward the front or rear,
pull the lock release lever upward. This
will release the seat on its track so you
can move it forward or rearward to the
desired position.
When you find the position you want,
release the lever and slide the seat for-
ward or rearward on its track until it locks
into the desired position and cannot be
moved further.
!
WARNING:
After adjusting the seat, always check
that it is securely locked into place by
attempting to move the seat forward or
rearward without using the lock release
lever. Sudden or unexpected move-
ment of the driver's seat could cause
you to lose control of the vehicle result-
ing in an accident.
B080B03A-AATFRONT SEATS
Adjusting Seat Forward and Rear-
ward
!
WARNING:
o Never adjust the driver’s seat while
the vehicle is moving. Any sudden
or unexpected movement of the seat
could cause you to lose control of
the vehicle resulting in an accident.
Only adjust the driver’s seat when
the vehicle is stationary.
o Do not sit or lean unnecessarily close
to the airbag. Position the seat so
that you can sit as far back as pos-
sible from the airbag and still com-
fortably reach all controls.B080A01FC-AATADJUSTABLE SEATS
OMC029026
