2009 Hyundai Accent Button

1FEATURES OF YOUR HYUNDAI8
THEFT-ALARM SYSTEMB070A01A-AAT(If Installed)This system is designed to provide pro-
tection from unauthorized entry into the
car. This system is operated in three
stages: the first is the "Armed" stage, the
second is the "Alarm" stage, and the third
is the "Disarmed" stage. If triggered, the
system provides an audible alarm with
blinking of the turn signal lights.
Locking doors1. Close all doors.
2. Push the "LOCK" button on the trans-
mitter.
3. At the same time all doors lock, the turn
signal light will blink once to indicate
that the system is armed.Unlocking doors1. Push the "UNLOCK" button on the
transmitter.
2. At the same time the driver's door
unlocks, the turn signal light will blink
twice to indicate that the system is
disarmed.NOTE:If you wish to unlock all the doors, press
the "UNLOCK" button on the transmitter
again within 4 seconds.
NOTE:The transmitter will not work if any of
following occur:
- The ignition key is in ignition switch.
- You exceed the operating distance
limit (10 m).
- The battery in the transmitter is weak.
- Other vehicles or objects may be
blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a radio
transmitter such as a radio station
or an airport which can interfere with
normal operation of the transmitter.
When the transmitter does not work
correctly, open and close the door with
the ignition key. If you have a problem
with the transmitter, contact an autho-
rized Hyundai Dealer.NOTE:Keep the transmitter away from water or
any liquid. If the keyless entry system is
inoperative due to exposure to water or
liquids, it will not be covered by your
manufacturer vehicle warranty.

1
FEATURES OF YOUR HYUNDAI
91
FEATURES OF YOUR HYUNDAI
9
!
B070B02MC-A B070B02MC-AAT
Armed StagePark the car and stop the engine. Arm the
system as described in the following para-
graph.
1) Remove the ignition key from the igni-
tion switch.
2) Make sure that all doors, tail gate (3
Door) and engine hood are closed
and latched.
3) Lock the doors using the transmitter of
the keyless entry system.
After completion of the steps above, the
turn signal lights will blink once to indi-
cate that the system is armed.The system can be armed by locking the
doors with the key from the front doors or
tail gate (3 Door). However, the hazard
warning lights are not operated.
NOTE:If any door, tail gate (3 Door) or engine
hood remains open, the system will not
be armed. If this happens, rearm the
system as described above.
CAUTION:
o Do not arm the system until all pas-
sengers have left the car. If the sys-
tem is armed while a passenger(s)
remains in the car, the alarm may be
activated when the remaining
passenger(s) leaves the car.
o If the "LOCK" button is pressed once
more within 4 seconds after pushing
the "LOCK" button on the transmit-
ter, the alarming horn will sound once
to indicate that the system is armed.
LOCK
B070C02MC-AATAlarm StageThe alarm will be activated if any of the
following occurs while the car is parked
and the system is armed.
1) Any door, tail gate (3 Door) included,
is opened without using the transmitter
or the ignition key.
2) The engine hood is opened.
The alarming horn will sound and the turn
signal lights will blink continuously for 27
seconds (This happens 3 times). To turn
off the system, unlock the door with the
transmitter or the ignition key.
CAUTION:
Avoid trying to start the engine while the
system is armed.
!

1FEATURES OF YOUR HYUNDAI10
Battery
1KMA2003 B070E01MC-AAT
Replacing the batteryWhen the transmitter's battery begins to
get weak, it may take several pushes on
the button to lock or unlock the doors, and
the LED will not light. Replace the battery
as soon as possible.
Battery type : CR2032
Replacement instructions:
1. Carefully separate the case with a
blade screwdriver.
B070E01MC-AATPanic Warning1. Push the "PANIC" button on the trans-
mitter.
2. At the same time, the alarming horn
will sound and the turn signal lights
will blink continuously for 30 seconds.
3. To turn off the system, push any button
on the transmitter or lock/unlock the
doors by turning the key.
B070E02MC-A
2. Remove the old battery from the case
and note the polarity. Make sure the
polarity of the new battery is the
same(+side facing up), then insert it in
the transmitter.
B070D02MC-AATDisarmed StageThe system will be disarmed when the
following step is taken:
The doors are unlocked by depressing
the "UNLOCK" button on the transmitter
or unlocked with the ignition key.
After depressing unlock button, the haz-
ard warning lights will blink twice to indi-
cate that the system is disarmed.
If any door, tail gate (3 Door) included, is
not opened within 30 seconds, the sys-
tem will be rearmed.
B070D02MC-A
NOTE:When the system is disarmed with the
interior light switched to "DOOR", the
interior light will illuminate for 30 sec-
onds.
UNLOCK

1FEATURES OF YOUR HYUNDAI16
Adjusting the height up and downTo raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).
RemovalTo remove the headrest, raise it as far as
it can go then press the release button (1)
while pulling upward (2).
To reinstall the headrest, put the headrest
poles (3) into the holes while pressing the
release button (1). Then adjust it to the
appropriate height.
OMC029029
OMC029030
!
WARNING:
Make sure the headrest locks in position
after adjusting it to properly protects the
occupants.
!
WARNING:
o For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of grav-
ity of most people's head is similar
with the height of the top of their
eyes. Also, adjust the headrest as
close to your head as possible.
o Do not operate the vehicle with the
headrests removed as severe injury
to the occupants may occur in the
event of an accident. Headrests may
provide protection against neck inju-
ries when properly adjusted.
o Do not adjust the headrest position
of the driver's seat while the vehicle
is in motion.

1
FEATURES OF YOUR HYUNDAI
191
FEATURES OF YOUR HYUNDAI
19
Adjusting the height up and down
(If Installed)To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).
Removal (If Installed)To remove the headrest, raise it as far as
it can go then press the release button (1)
while pulling upward (2).
To reinstall the headrest, put the headrest
poles (3) into the holes while pressing the
release button (1). Then adjust it to the
appropriate height.
OMC029045
OMC029046
!
WARNING:
Make sure the headrest locks in position
after adjusting it to properly protect the
occupants.
!
B110A02MC-AATFolding Rear SeatbacksThe rear seatbacks may be folded to
facilitate carrying long items or to increase
the luggage capacity of the vehicle.
WARNING:
The purpose of the fold-down rear
seatbacks is to allow you to carry longer
objects than could otherwise be accom-
modated.
Never allow passengers to sit on top of
the folded down seatback or cargo area
while the car is moving as this is not a
proper seating position and no seat belts
are available for use. This could result in
serious injury or death in case of an
accident or sudden stop. Objects car-
ried on the folded down seatback should
not extend higher than the top of the front
seats. This could allow cargo to slide
forward and cause injury or damage
during sudden stops.

1FEATURES OF YOUR HYUNDAI26
To fasten your seat belt, pull it out of the
retractor and insert the metal tab into the
buckle. There will be an audible "click"
when the tab locks into the buckle.
The seat belt automatically adjusts to the
proper length only after the lap belt is
adjusted manually so that it fits snugly
around your hips. If you lean forward in a
slow, easy motion, the belt will extend
and let you move around. If there is a
sudden stop or impact, however, the belt
will lock into position. It will also lock if you
try to lean forward too quickly.B180A01MC-AATSEAT BELT-Driver's 3-Point System
with Emergency Locking Retractor
To Fasten Your Belt
B180A01NF
!
WARNING:
o Verify the shoulder belt anchor is
locked into position at the appropri-
ate height. Never position the shoul-
der belt across your neck or face.
Improperly positioned seat belts can
cause serious injuries in an acci-
dent.
o Failure to replace seat belts after an
accident could leave you with dam-
aged seat belts that will not provide
protection in the event of another
collision leading to personal injury or
death. Replace your seat belts after
being in an accident as soon as pos-
sible. To lower it, push it down while pressing
the height adjuster button. Release the
button to lock the anchor into position. Try
sliding the height adjuster to make sure
that it has locked into the position.
OMC025042-1
!
CAUTION:
o Adjust the shoulder belt height when
you sit well back in the seat.
o When adjusting the shoulder belt
height, grip the height adjuster but-
ton securely and slide the height
adjuster up or down.
o If the shoulder belt anchor is not
moved, grasp the shoulder part of
the belt and pull forward to the full.

1
FEATURES OF YOUR HYUNDAI
291
FEATURES OF YOUR HYUNDAI
29
B210A01A-AATTo Release the Seat BeltThe seat belt is released by pressing the
release button in the locking buckle. When
it is released, the belt should automati-
cally draw back into the retractor.
If this does not happen, check the belt to
be sure it is not twisted, then try again.
B210A01NF
B220D02MC-AATSEAT BELTS - Rear Seat Center 3-
Point System With Emergency Lock-
ing Retractor1. Before fastening the rear seat center
belt, confirm the metal tab (A) and
buckle (B) are latched together.
B220D01MC
2. After confirming that (A) and (B) are
latched, pull the seat belt out of the
retractor and insert the metal tab (C)
into the buckle (D).
B220D02MC

1
FEATURES OF YOUR HYUNDAI
311
FEATURES OF YOUR HYUNDAI
31
!

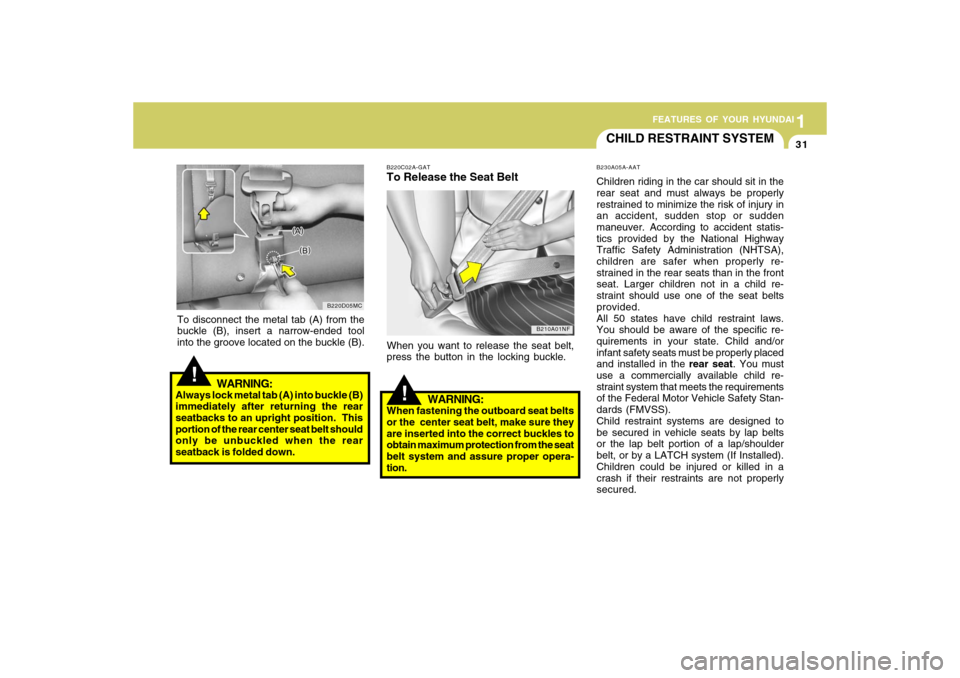

B220D05MC
To disconnect the metal tab (A) from the
buckle (B), insert a narrow-ended tool
into the groove located on the buckle (B).
WARNING:
Always lock metal tab (A) into buckle (B)
immediately after returning the rear
seatbacks to an upright position. This
portion of the rear center seat belt should
only be unbuckled when the rear
seatback is folded down.
!
B220C02A-GATTo Release the Seat BeltWhen you want to release the seat belt,
press the button in the locking buckle.
WARNING:
When fastening the outboard seat belts
or the center seat belt, make sure they
are inserted into the correct buckles to
obtain maximum protection from the seat
belt system and assure proper opera-
tion.
B210A01NF
CHILD RESTRAINT SYSTEMB230A05A-AATChildren riding in the car should sit in the
rear seat and must always be properly
restrained to minimize the risk of injury in
an accident, sudden stop or sudden
maneuver. According to accident statis-
tics provided by the National Highway
Traffic Safety Administration (NHTSA),
children are safer when properly re-
strained in the rear seats than in the front
seat. Larger children not in a child re-
straint should use one of the seat belts
provided.
All 50 states have child restraint laws.
You should be aware of the specific re-
quirements in your state. Child and/or
infant safety seats must be properly placed
and installed in the rear seat. You must
use a commercially available child re-
straint system that meets the requirements
of the Federal Motor Vehicle Safety Stan-
dards (FMVSS).
Child restraint systems are designed to
be secured in vehicle seats by lap belts
or the lap belt portion of a lap/shoulder
belt, or by a LATCH system (If Installed).
Children could be injured or killed in a
crash if their restraints are not properly
secured.
