One touch down
•Press AUTO completely down and
release quickly. The driver’s
window will open fully. Depress
again to stop window operation.
Window lock
The window lock feature allows only
the driver to operate the power
windows.
To lock out all the window controls
except for the driver’s press the left
side of the control. Press the right side to restore the window controls.
EXTERIOR MIRRORS
With the doors closed and the seat
adjusted for proper comfort, move
the mirrors to maximize rear
viewing area by adjusting the
western mirrors left or right as
required.
Adjust the auxiliary convex mirrors.
Convex mirrors are a ball-stud
design for precise adjustment to
maximize viewing area.
AUTO
2009 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
57

Power side view mirrors (if equipped)
The ignition can be in any position to adjust the power side view mirrors.
To adjust your mirrors:
1. Select L to adjust the left mirror
or R to adjust the right mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
4. If your vehicle’s mirrors are equipped with spotter mirrors (located
below the main mirrors), they must be adjusted manually.
Heated mirrors (if equipped)
Both main mirrors are heated automatically to remove ice, mist and fog
and are automatically activated when the vehicle is started.
Note:The mirrors may behotto the touch but will not burn. This is a
normal condition.
Do not remove ice from the mirrors with a scraper or attempt to
readjust the mirror glass if it is frozen in place. These actions
could cause damage to the glass and mirrors.
The mirror heating elements are designed to operate regardless of the
geographic location of the vehicle. There is no switch to turn on, or
other operator involvement required other than to start the vehicle.
MIRRORS
L R
MIRRORS
L R
2009 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
58

The spotter mirror (if equipped) is not heated.
Fold-away mirrors
The mirrors can be manually folded forward or backwards for narrow
spaces like driving through an automatic car wash or backing out of a
garage with the trailer tow mirror.
The telescoping feature (if equipped) allows the mirror to extend
approximately three inches (76 mm). This feature is especially useful to
the driver when towing a trailer.
SPEED CONTROL (IF EQUIPPED)
To turn speed control on
Press CRUISE RPM. If the vehicle is
moving, speed control will be
enabled; if the vehicle is stationary,
engine RPM can be controlled.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery, or unpaved.
Do not shift the gearshift lever into N (Neutral) with the speed
control on.
CRUISE
RPM
OFF
2009 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
59

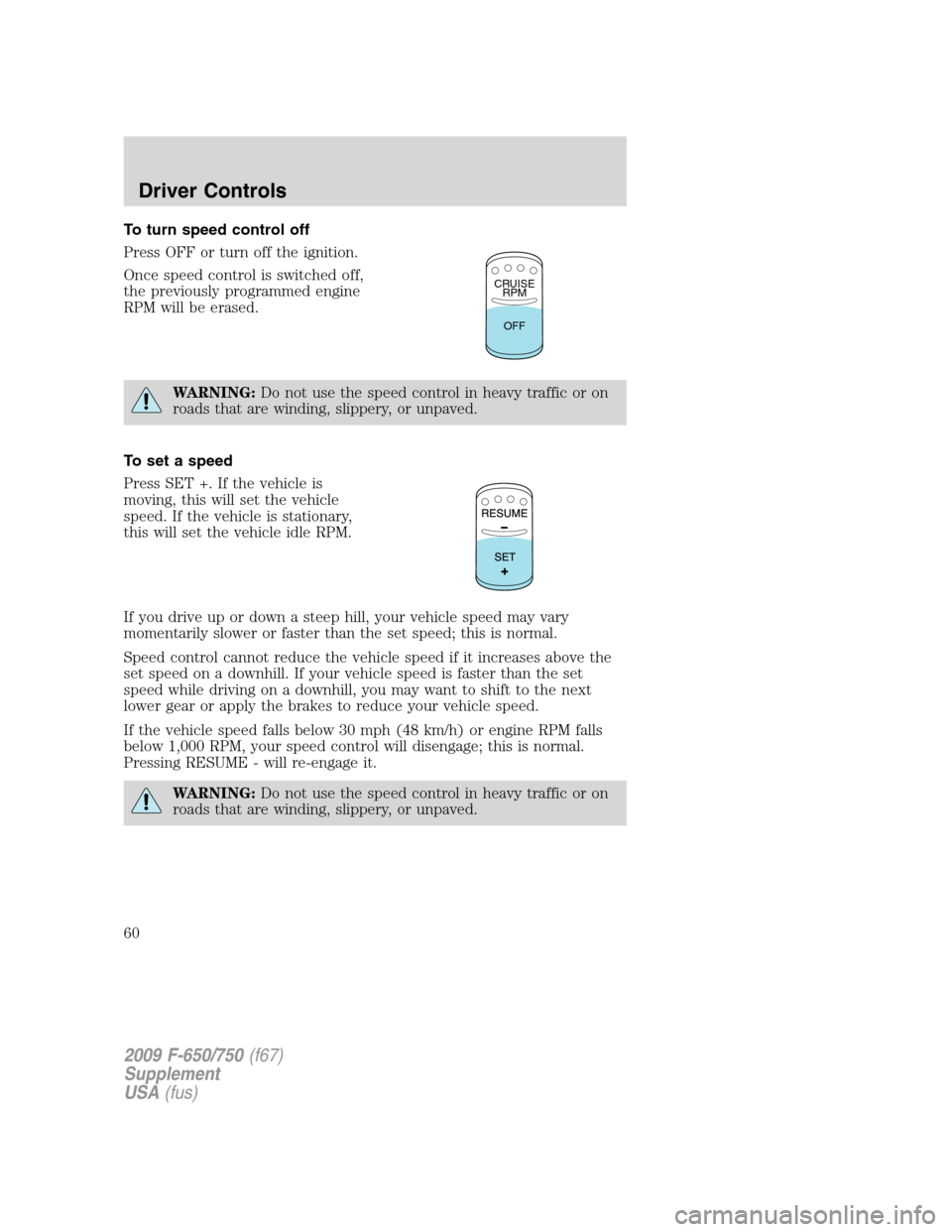

To turn speed control off
Press OFF or turn off the ignition.
Once speed control is switched off,
the previously programmed engine
RPM will be erased.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery, or unpaved.
To set a speed
Press SET +. If the vehicle is
moving, this will set the vehicle
speed. If the vehicle is stationary,
this will set the vehicle idle RPM.
If you drive up or down a steep hill, your vehicle speed may vary
momentarily slower or faster than the set speed; this is normal.
Speed control cannot reduce the vehicle speed if it increases above the
set speed on a downhill. If your vehicle speed is faster than the set
speed while driving on a downhill, you may want to shift to the next
lower gear or apply the brakes to reduce your vehicle speed.
If the vehicle speed falls below 30 mph (48 km/h) or engine RPM falls
below 1,000 RPM, your speed control will disengage; this is normal.
Pressing RESUME - will re-engage it.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery, or unpaved.
CRUISE
RPM
OFF
2009 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
60

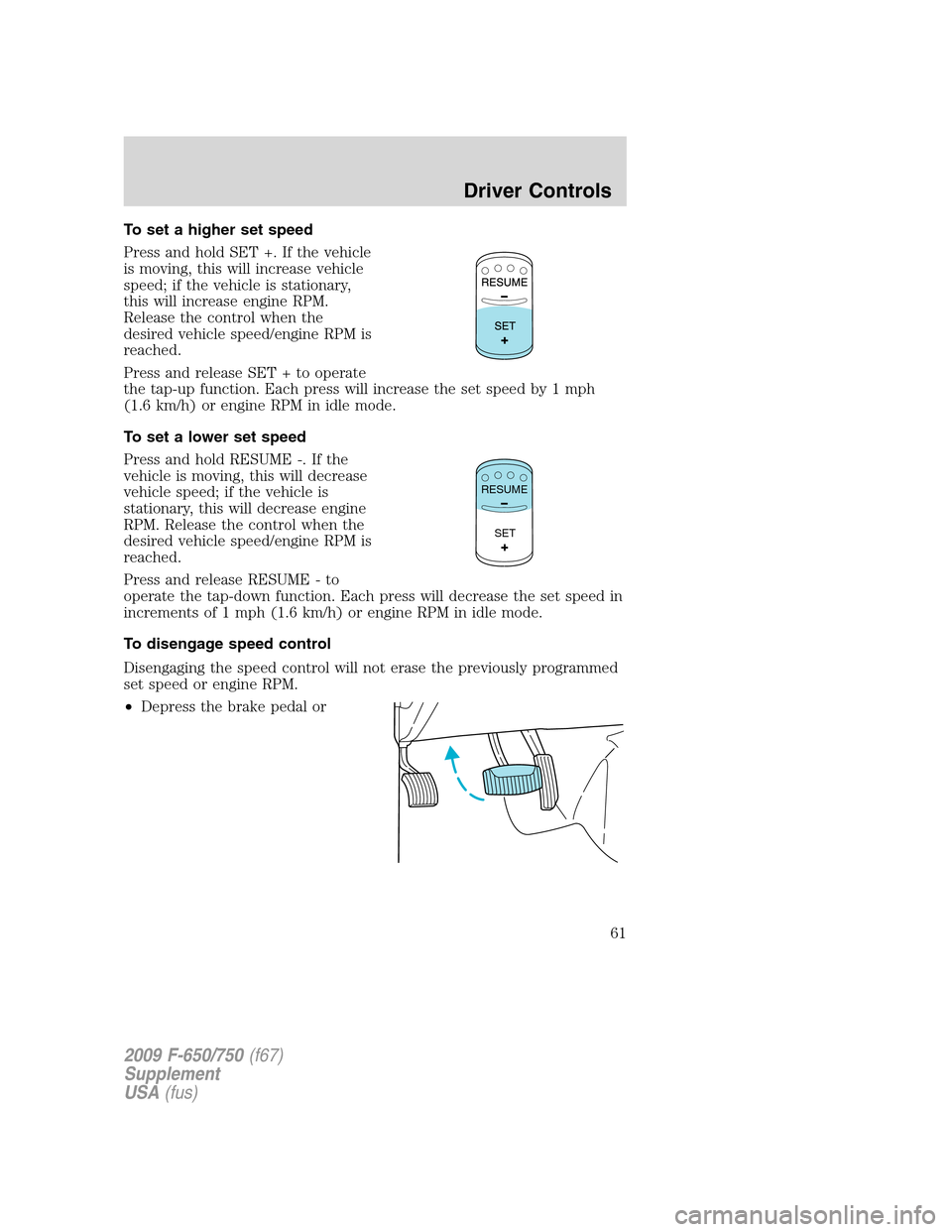

To set a higher set speed
Press and hold SET +. If the vehicle
is moving, this will increase vehicle
speed; if the vehicle is stationary,
this will increase engine RPM.
Release the control when the
desired vehicle speed/engine RPM is
reached.
Press and release SET + to operate
the tap-up function. Each press will increase the set speed by 1 mph
(1.6 km/h) or engine RPM in idle mode.
To set a lower set speed
Press and hold RESUME -. If the
vehicle is moving, this will decrease
vehicle speed; if the vehicle is
stationary, this will decrease engine
RPM. Release the control when the
desired vehicle speed/engine RPM is
reached.
Press and release RESUME - to
operate the tap-down function. Each press will decrease the set speed in
increments of 1 mph (1.6 km/h) or engine RPM in idle mode.
To disengage speed control
Disengaging the speed control will not erase the previously programmed
set speed or engine RPM.
•Depress the brake pedal or
SET RESUME
2009 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
61

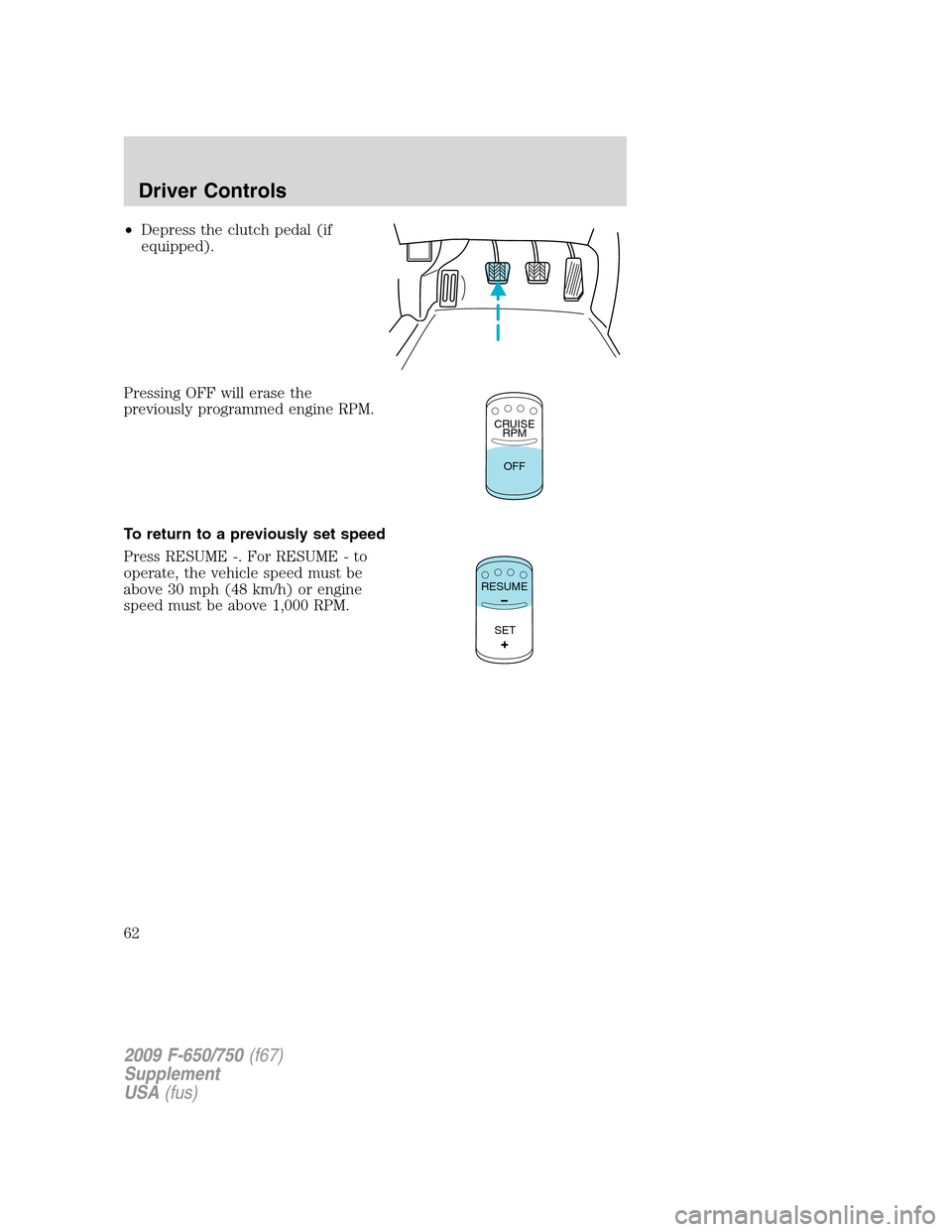

•Depress the clutch pedal (if
equipped).
Pressing OFF will erase the
previously programmed engine RPM.
To return to a previously set speed
Press RESUME -. For RESUME - to
operate, the vehicle speed must be
above 30 mph (48 km/h) or engine
speed must be above 1,000 RPM.
CRUISE
RPM
OFF
SET RESUME
2009 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
62

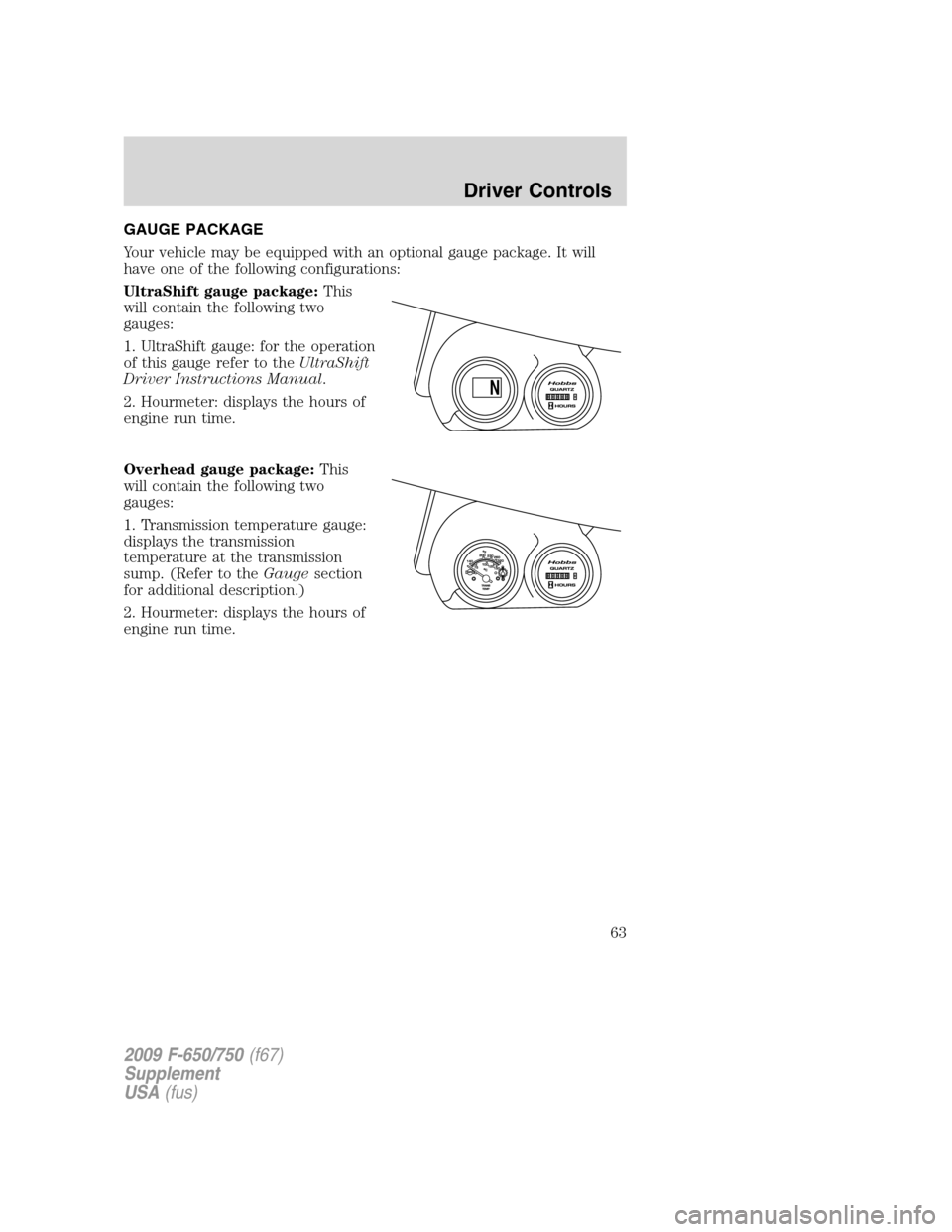

GAUGE PACKAGE
Your vehicle may be equipped with an optional gauge package. It will
have one of the following configurations:
UltraShift gauge package:This
will contain the following two
gauges:
1. UltraShift gauge: for the operation
of this gauge refer to theUltraShift
Driver Instructions Manual.
2. Hourmeter: displays the hours of
engine run time.
Overhead gauge package:This
will contain the following two
gauges:
1. Transmission temperature gauge:
displays the transmission
temperature at the transmission
sump. (Refer to theGaugesection
for additional description.)
2. Hourmeter: displays the hours of
engine run time.
2009 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
63

KEYS
The key operates all locks on your vehicle. In case of loss, replacement
keys are available from your dealer.
You should always carry a second key with you in a safe place in case
you require it in an emergency.
POWER DOOR LOCKS (IF EQUIPPED)
Press U to unlock all doors and L to
lock all doors.
U L
2009 F-650/750(f67)
Supplement
USA(fus)
Locks and Security
64
