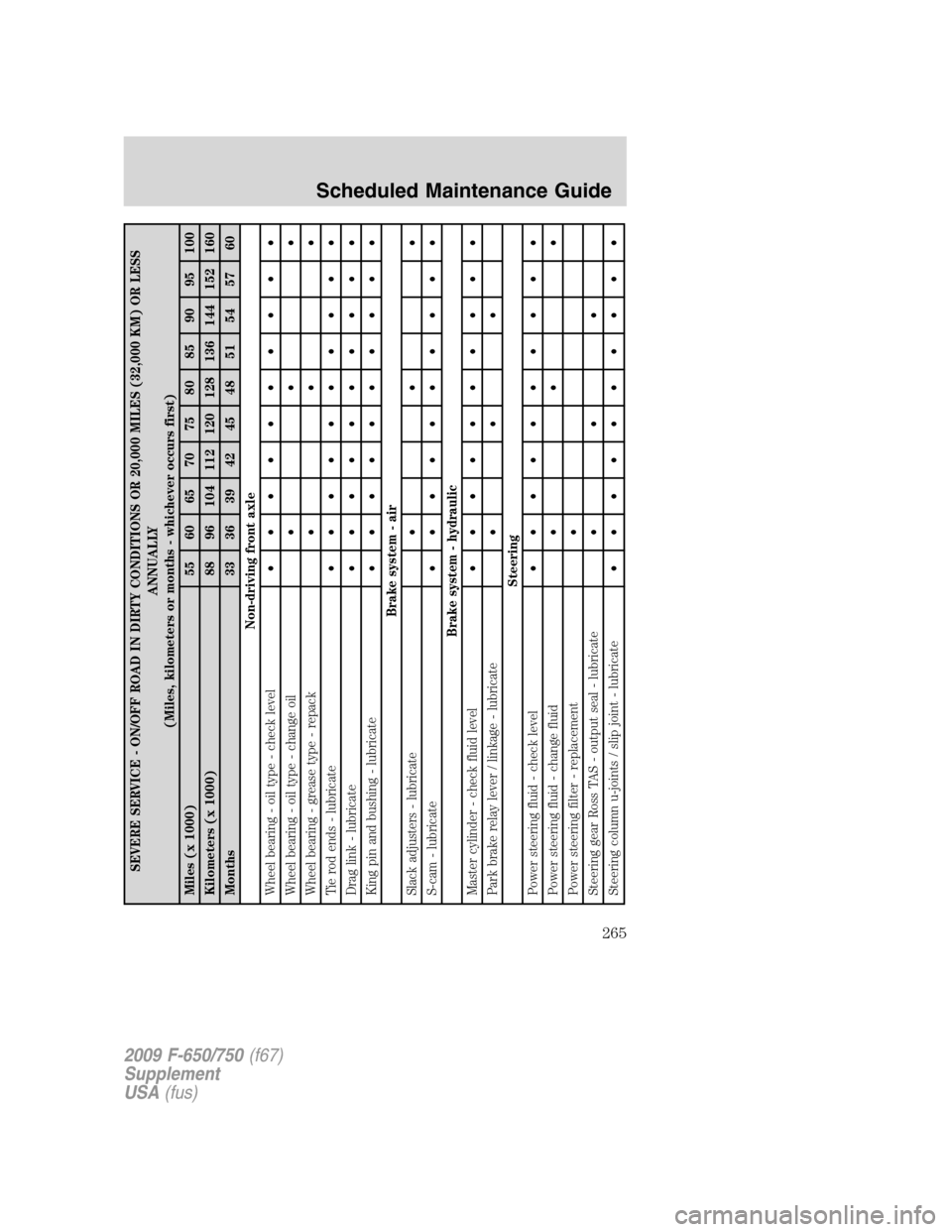

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil•••
Wheel bearing - grease type - repack•••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate•••
S-cam - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay lever / linkage - lubricate•••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid•••
Power steering filter - replacement•
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
265

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Driveshaft SPL
Slip joint - inspect boot Every 25,000 miles (40,000 km) or six months, whichever comes
first
U-joint - lubricate
Driveshaft non-SPL
U-joint and slip joint - lubricate Every 5,000–8,000 miles (8,000–12,800 km) or three months,
whichever comes first
Clutch
Release bearing / shafts / fork - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
266

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Engine - refer to your engine operator’s manual
Transmission
Automatic and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton-Fuller manual transmission - petroleum oil
change•••
Eaton-Fuller manual transmission - synthetic oil
change••
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil - change•••
Eaton / Dana / Spicer synthetic oil - change••
Cab components
Door hinges / latches / strikers - lubricate, check link•••
Door lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
267

Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
268

Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
269

Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
270

Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
271

A
Air conditioning ..........................47
manual heating and air
conditioning system .................47
Air suspension ...........................121
Anti-lock brake system
(see Brakes) ..............................119
Audio system
(see Radio) ......................33, 35, 40
Automatic transmission ............123
fluid, adding ............................201
fluid, checking ........................201
fluid, refill capacities ..............234
fluid, specification ..................220
Auxiliary power point .................55
Axle ............................132, 173, 206
lubricant specifications ..........220
refill capacities ........................232
B
Battery .......................................182
charging system warning
light ............................................22
jumping a disabled battery ....153
voltage gauge ............................28
Belt-Minder...............................75
Booster seats ...............................88
Brakes ........................100, 105, 174
adjustment ..............................176
anti-lock ...................................119
anti-lock brake system (ABS)
warning light .....................22, 119
brake warning light ..................22
fluid, checking and
adding ..............................176, 198
fluid, specifications .................220
parking ....................101, 108, 177Bulbs ............................................51
C
Catalytic converter
(see Emission control) .............177
CD-single premium .....................33
Cell phone use ..............................7
Child safety seats ........................82
attaching with tether straps ....86
in front seat ..............................84
in rear seat ..........................84, 86
tether anchorage hardware .....86
Child safety seats - booster
seats .............................................88
Cleaning your vehicle
chrome and aluminum
parts .........................................167
engine compartment ..............167
exterior ....................................169
instrument panel ....................168
interior .....................................168
interior trim ............................168
plastic parts ............................167
washing ....................................166
waxing .....................................166
wheels ......................................167
Climate control (see Air
conditioning or Heating) ......46–47
Clutch ................................126, 199
adjusting ..................................200
fluid ..........................................199
operation while driving ..........126
specifications ..........................220
Controls
power seat .................................66
Coolant ......................................184
refill capacities ........................234
specifications ..........................220
