2009 FORD F750 Owners Manual

CITY - 60,000 MILES (96,000 KM) OR LESS ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 10 20 30 40 50 60 70 80 90 100
Kilometers (x 1000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Driveshaft SPL
U-joint - lubricate Every 25,000 miles (40,000 km) or six months, whichever comes
first
Driveshaft non-SPL
U-joint and slip joint - lubricate Every 5,000–8,000 miles (8,000 km-12,800 km) or three months,
whichever comes first
Clutch
Release bearing / shafts / fork - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to your engine operator’s manual
Transmission
Automatic and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton-Fuller manual transmission - petroleum oil
change••
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
257

CITY - 60,000 MILES (96,000 KM) OR LESS ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 10 20 30 40 50 60 70 80 90 100
Kilometers (x 1000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil - change••
Cab components
Door hinges / latches / strikers - lubricate, check link•••
Door lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
258

CITY - 60,000 MILES (96,000 KM) OR LESS ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil•••
Wheel bearing - grease type - repack•••
Tie rode ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate•••
S-cam - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay lever / linkage - lubricate•••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid•••
Power steering filter - replacement Five years or 50,000 miles (80,000 km)
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
259

CITY - 60,000 MILES (96,000 KM) OR LESS ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Driveshaft SPL
U-joint - lubricate Every 25,000 miles (40,000 km) or six months, whichever comes
first
Driveshaft non-SPL
U-joint and slip joint - lubricate Every 5,000–8,000 miles (8,000 km-12,800 km) or three months,
whichever comes first
Clutch
Release bearing / shafts / fork - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
260

CITY - 60,000 MILES (96,000 KM) OR LESS ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Engine - refer to your engine operator’s manual
Transmission
Automatic and Auto-shift transmission Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton-Fuller manual transmission - petroleum oil
change••
Eaton-Fuller manual transmission - synthetic oil
change•
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil - change••
Eaton / Dana / Spicer synthetic oil - change•
Cab components
Door hinges / latches / strikers - lubricate, check link•••
Door lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
261

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil••
Wheel bearing - grease type - repack••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate••
S-cam - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level•••
Park brake relay lever / linkage - lubricate•••
Steering
Power steering fluid - check fluid level••••••••••
Power steering fluid - change fluid••
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joints - lubricate••••••••••
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
262

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Driveshaft - SPL
Slip joint - inspect boot Every 25,000 miles (40,000 km) or six months, whichever comes
first
U-joint - lubricate
Driveshaft - non-SPL
U-joint and slip joint - lubricate Every 5,000–8,000 miles (8,000–12,800 km) or three months,
whichever comes first
Clutch
Release bearing / shafts / forks••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to your engine operator’s manual
Transmission
Automatic and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton-Fuller manual transmission - petroleum oil
change••
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
263

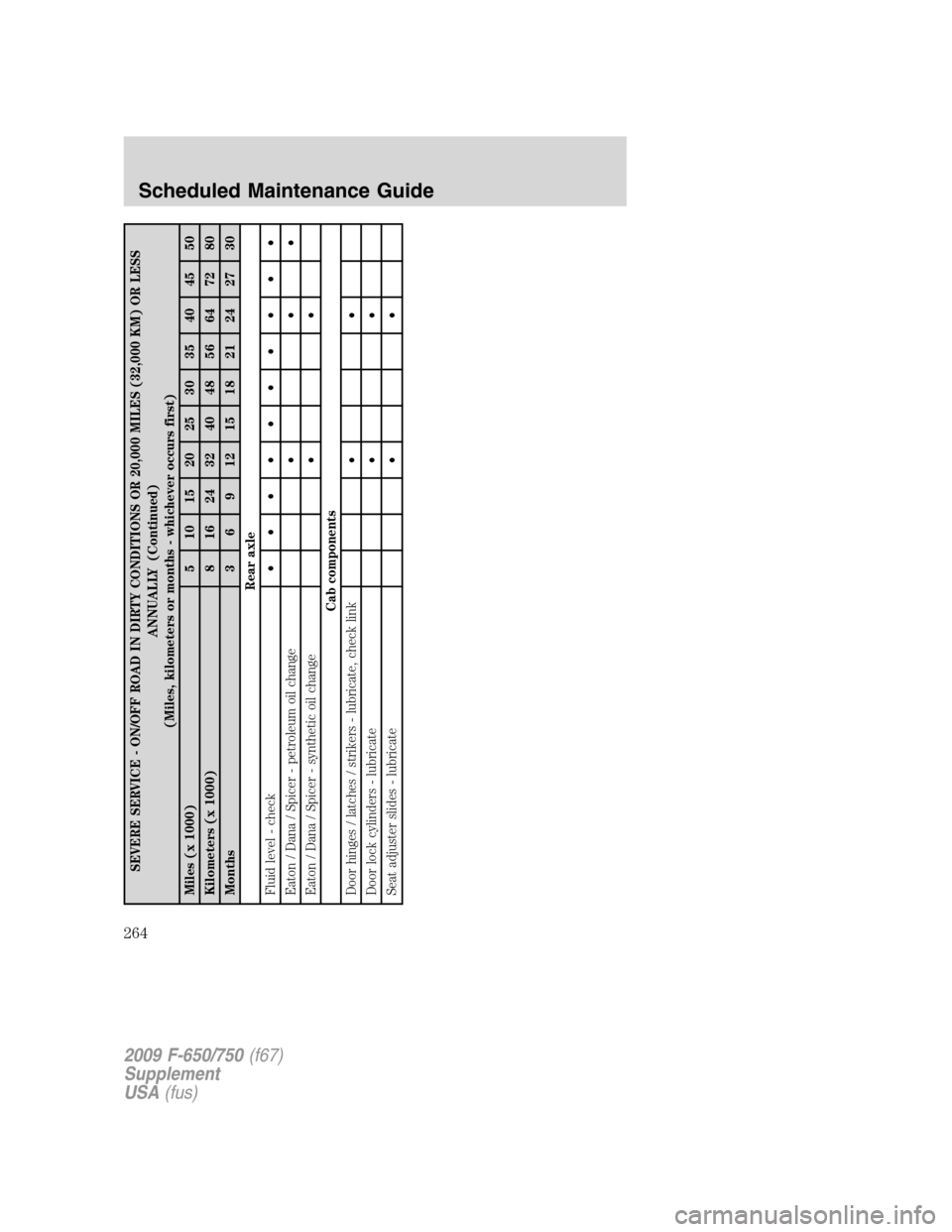

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer - petroleum oil change•••
Eaton / Dana / Spicer - synthetic oil change••
Cab components
Door hinges / latches / strikers - lubricate, check link••
Door lock cylinders - lubricate••
Seat adjuster slides - lubricate••
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
264
