2009 FORD F750 Owners Manual

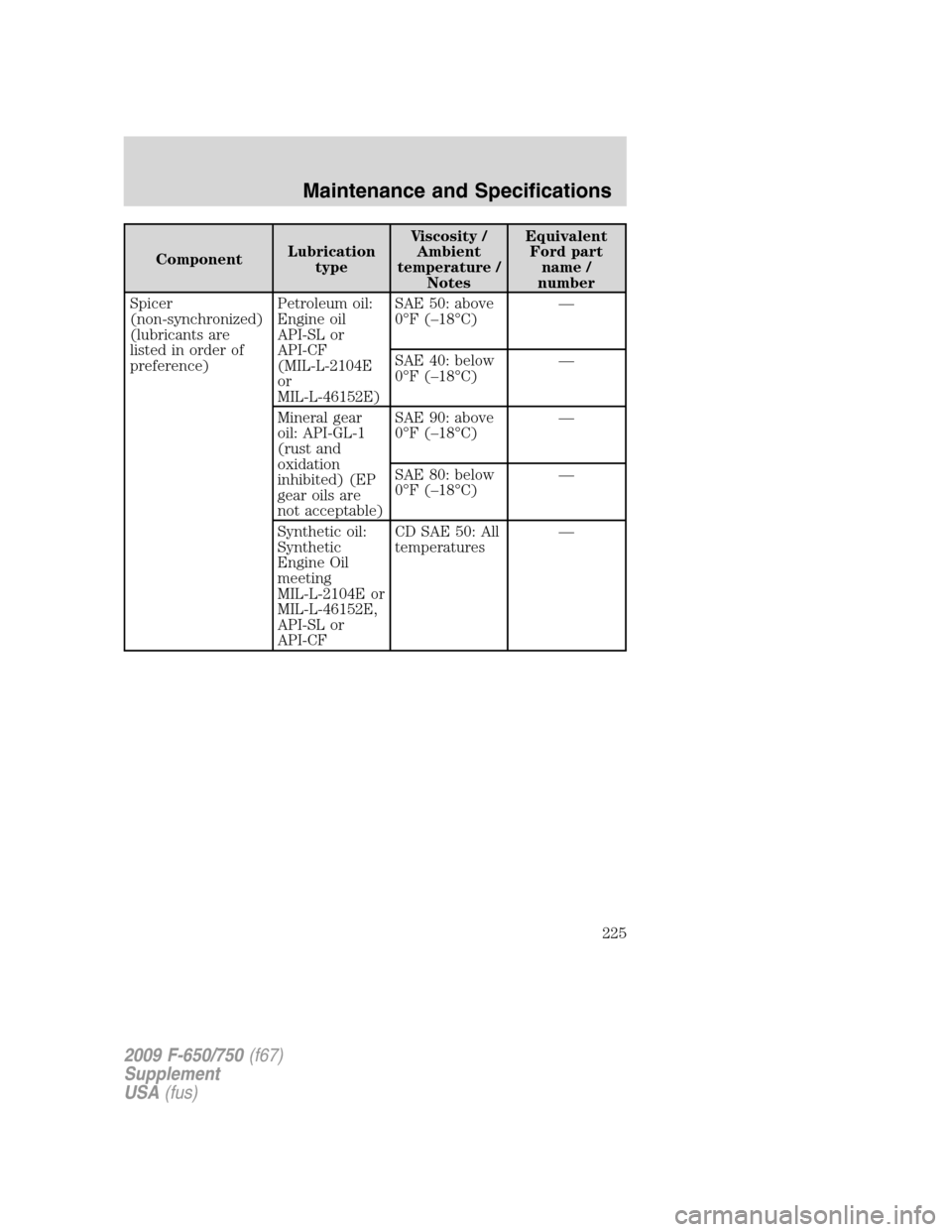

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number
Spicer
(non-synchronized)
(lubricants are
listed in order of
preference)Petroleum oil:
Engine oil
API-SL or
API-CF
(MIL-L-2104E
or
MIL-L-46152E)SAE 50: above
0°F (–18°C)—
SAE 40: below
0°F (–18°C)—
Mineral gear
oil: API-GL-1
(rust and
oxidation
inhibited) (EP
gear oils are
not acceptable)SAE 90: above
0°F (–18°C)—
SAE 80: below
0°F (–18°C)—
Synthetic oil:
Synthetic
Engine Oil
meeting
MIL-L-2104E or
MIL-L-46152E,
API-SL or
API-CFCD SAE 50: All
temperatures—
2009 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
225

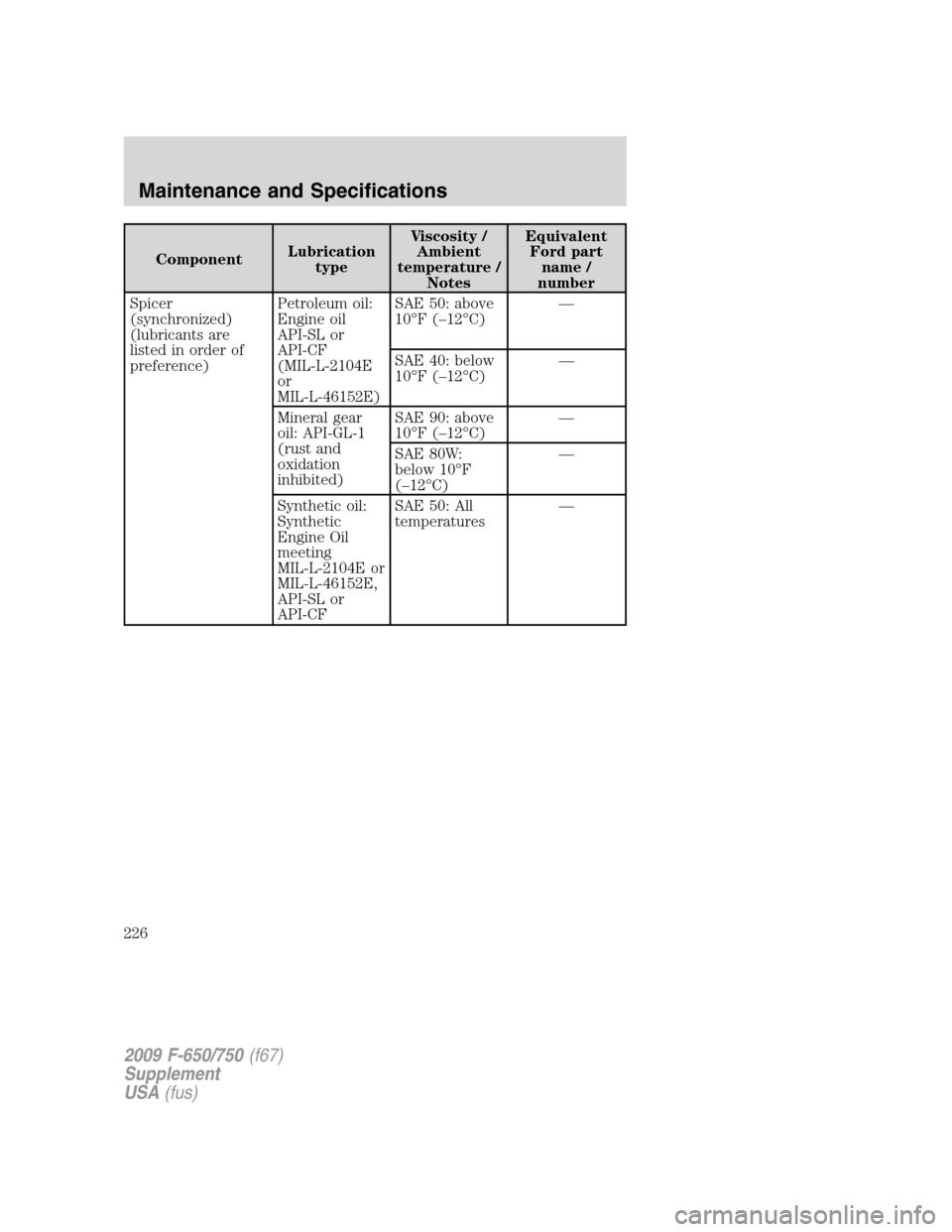

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number
Spicer
(synchronized)
(lubricants are
listed in order of
preference)Petroleum oil:
Engine oil
API-SL or
API-CF
(MIL-L-2104E
or
MIL-L-46152E)SAE 50: above
10°F (–12°C)—
SAE 40: below
10°F (–12°C)—
Mineral gear
oil: API-GL-1
(rust and
oxidation
inhibited)SAE 90: above
10°F (–12°C)—
SAE 80W:
below 10°F
(–12°C)—
Synthetic oil:
Synthetic
Engine Oil
meeting
MIL-L-2104E or
MIL-L-46152E,
API-SL or
API-CFSAE 50: All
temperatures—
2009 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
226

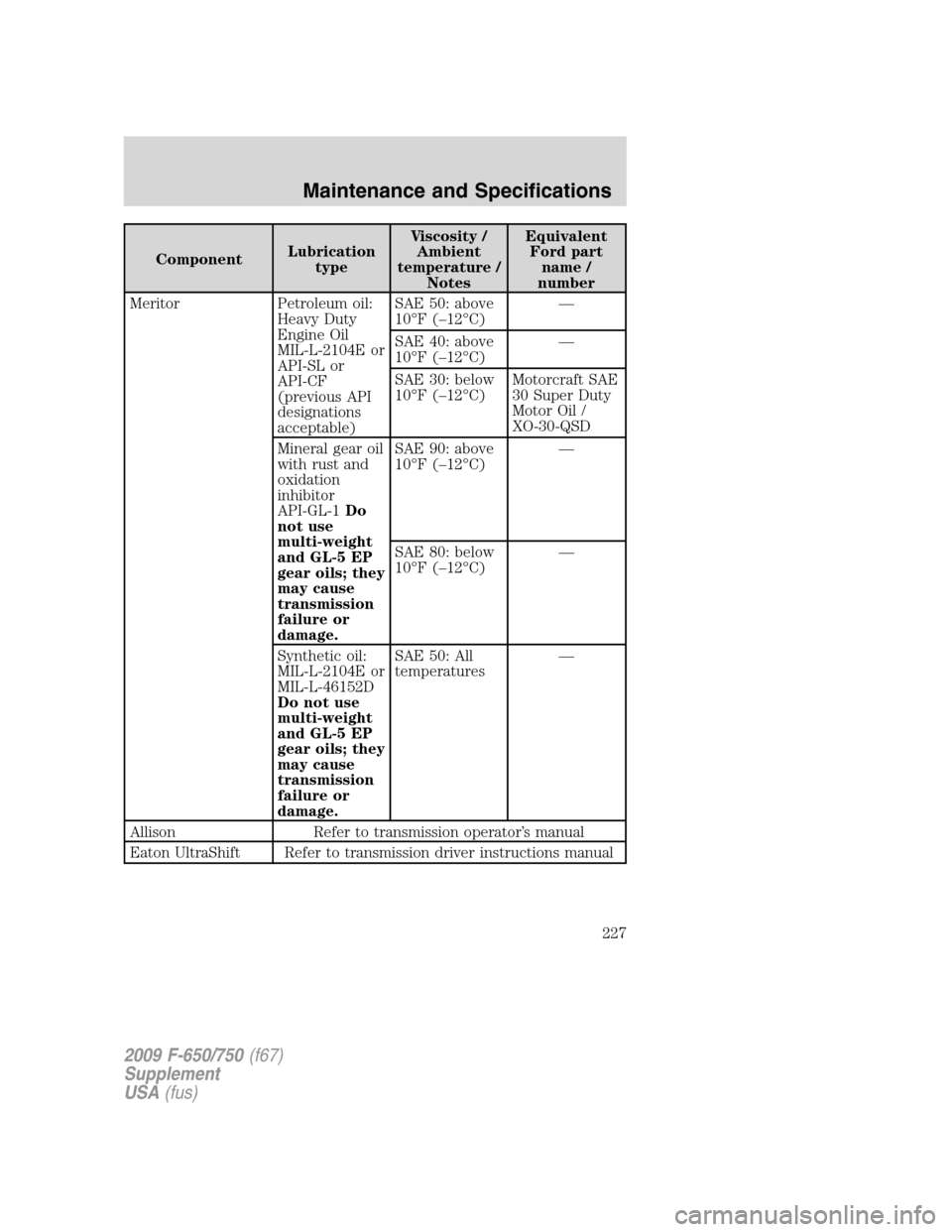

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number
Meritor Petroleum oil:
Heavy Duty
Engine Oil
MIL-L-2104E or
API-SL or
API-CF
(previous API
designations
acceptable)SAE 50: above
10°F (–12°C)—
SAE 40: above
10°F (–12°C)—
SAE 30: below
10°F (–12°C)Motorcraft SAE
30 Super Duty
Motor Oil /
XO-30-QSD
Mineral gear oil
with rust and
oxidation
inhibitor
API-GL-1Do
not use
multi-weight
and GL-5 EP
gear oils; they
may cause
transmission
failure or
damage.SAE 90: above
10°F (–12°C)—
SAE 80: below
10°F (–12°C)—
Synthetic oil:
MIL-L-2104E or
MIL-L-46152D
Do not use
multi-weight
and GL-5 EP
gear oils; they
may cause
transmission
failure or
damage.SAE 50: All
temperatures—
Allison Refer to transmission operator’s manual
Eaton UltraShift Refer to transmission driver instructions manual
2009 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
227

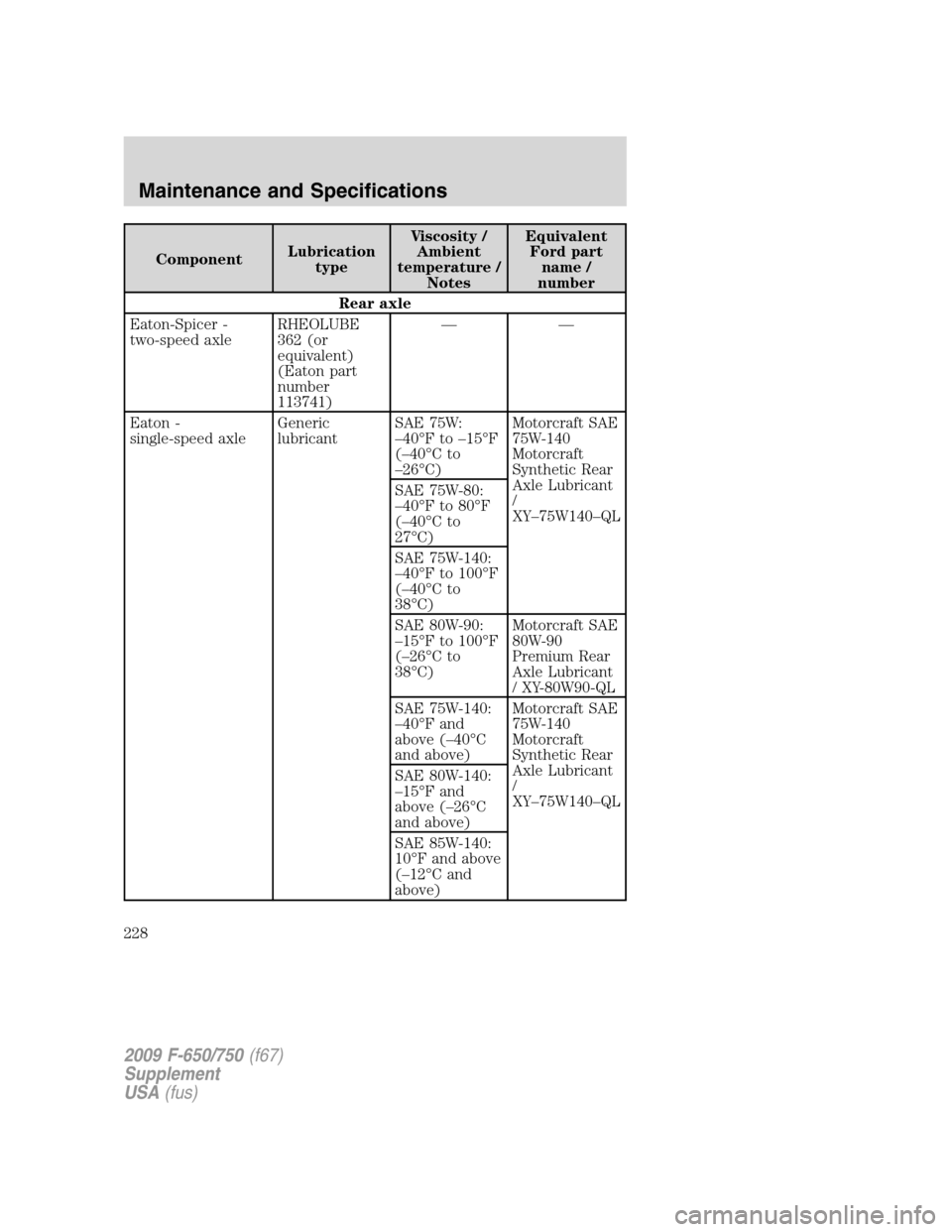

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number
Rear axle
Eaton-Spicer -
two-speed axleRHEOLUBE
362 (or
equivalent)
(Eaton part
number
113741)——
Eaton -
single-speed axleGeneric
lubricantSAE 75W:
–40°F to –15°F
(–40°C to
–26°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL SAE 75W-80:
–40°F to 80°F
(–40°C to
27°C)
SAE 75W-140:
–40°F to 100°F
(–40°C to
38°C)
SAE 80W-90:
–15°F to 100°F
(–26°C to
38°C)Motorcraft SAE
80W-90
Premium Rear
Axle Lubricant
/ XY-80W90-QL
SAE 75W-140:
–40°F and
above (–40°C
and above)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL SAE 80W-140:
–15°F and
above (–26°C
and above)
SAE 85W-140:
10°F and above
(–12°C and
above)
2009 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
228

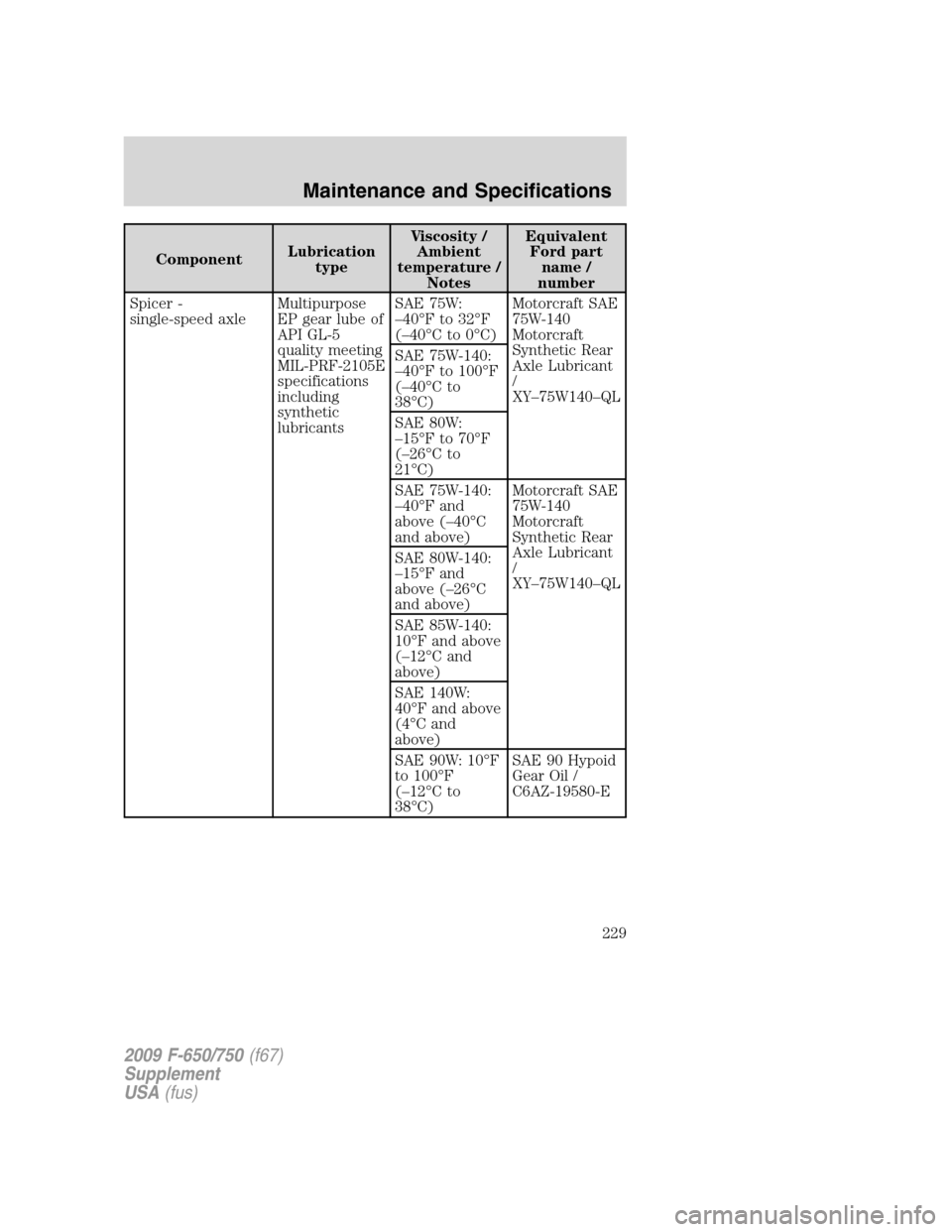

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number
Spicer -
single-speed axleMultipurpose
EP gear lube of
API GL-5
quality meeting
MIL-PRF-2105E
specifications
including
synthetic
lubricantsSAE 75W:
–40°F to 32°F
(–40°C to 0°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL SAE 75W-140:
–40°F to 100°F
(–40°C to
38°C)
SAE 80W:
–15°F to 70°F
(–26°C to
21°C)
SAE 75W-140:
–40°F and
above (–40°C
and above)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL SAE 80W-140:
–15°F and
above (–26°C
and above)
SAE 85W-140:
10°F and above
(–12°C and
above)
SAE 140W:
40°F and above
(4°C and
above)
SAE 90W: 10°F
to 100°F
(–12°C to
38°C)SAE 90 Hypoid
Gear Oil /
C6AZ-19580-E
2009 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
229

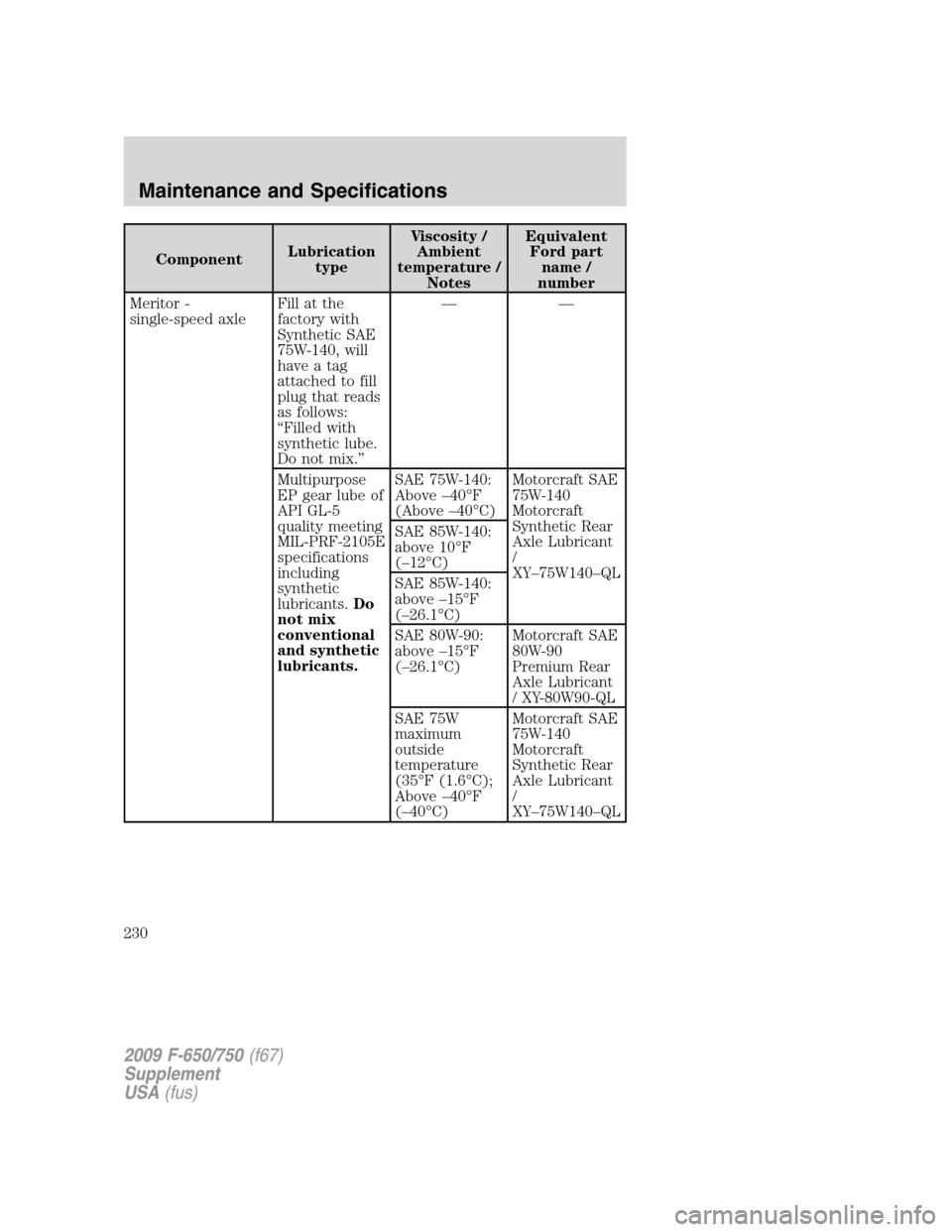

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number
Meritor -
single-speed axleFill at the
factory with
Synthetic SAE
75W-140, will
have a tag
attached to fill
plug that reads
as follows:
“Filled with
synthetic lube.
Do not mix.”——
Multipurpose
EP gear lube of
API GL-5
quality meeting
MIL-PRF-2105E
specifications
including
synthetic
lubricants.Do
not mix
conventional
and synthetic
lubricants.SAE 75W-140:
Above –40°F
(Above –40°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL SAE 85W-140:
above 10°F
(–12°C)
SAE 85W-140:
above –15°F
(–26.1°C)
SAE 80W-90:
above –15°F
(–26.1°C)Motorcraft SAE
80W-90
Premium Rear
Axle Lubricant
/ XY-80W90-QL
SAE 75W
maximum
outside
temperature
(35°F (1.6°C);
Above –40°F
(–40°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL
2009 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
230

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number
Cab components
Hydraulic lift pump
fluidDexron III — Motorcraft
MERCON
Multi-Purpose
(ATF)
Transmission
Fluid /
XT-2-QDX
Cab latch and lock
leversMobile SHC 32
Low
Temperature
Lubricant (or
equivalent)——
Cab latch pivots;
Door check, hinges,
latches and strikers;
Seat adjuster slidesGC/LB NLGI #2
lithium
complex-based
moly grease (or
equivalent) or
multi-purpose
lithium
complex grease— Motorcraft
Premium Long
Life Grease /
XG-1-C
Cab latch pivot pins Light engine oil — Motorcraft SAE
5W-30 Super
Premium Motor
Oil /
XO-5W30-QSP
Door lock cylinders Lock oil — Motorcraft
Penetrating
and Lock
Lubricant /
XL-1
2009 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
231

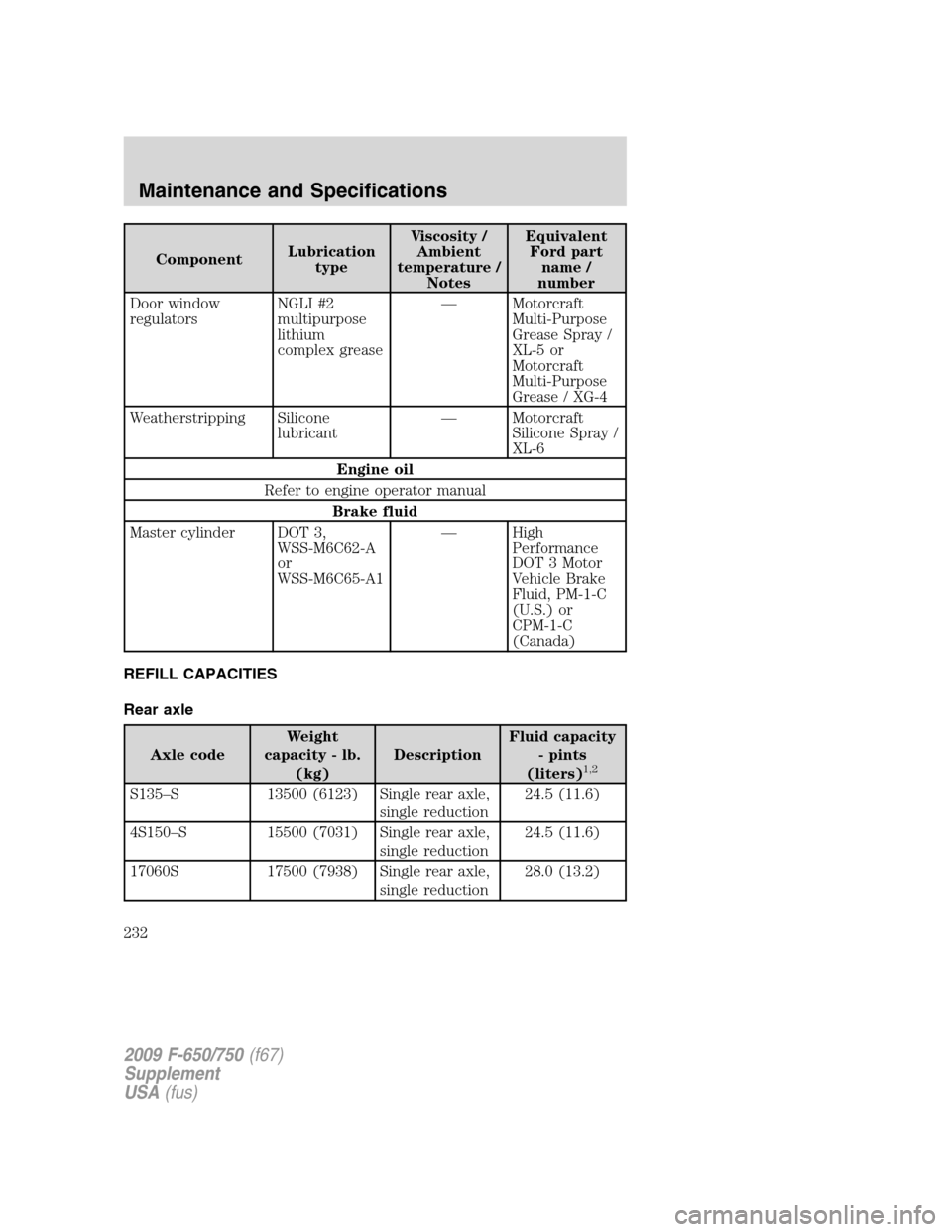

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number
Door window
regulatorsNGLI #2
multipurpose
lithium
complex grease— Motorcraft
Multi-Purpose
Grease Spray /
XL-5 or
Motorcraft
Multi-Purpose
Grease / XG-4
Weatherstripping Silicone
lubricant— Motorcraft
Silicone Spray /
XL-6
Engine oil
Refer to engine operator manual
Brake fluid
Master cylinder DOT 3,
WSS-M6C62-A
or
WSS-M6C65-A1— High
Performance
DOT 3 Motor
Vehicle Brake
Fluid, PM-1-C
(U.S.) or
CPM-1-C
(Canada)
REFILL CAPACITIES
Rear axle
Axle codeWeight
capacity - lb.
(kg)DescriptionFluid capacity
- pints
(liters)1,2
S135–S 13500 (6123) Single rear axle,
single reduction24.5 (11.6)
4S150–S 15500 (7031) Single rear axle,
single reduction24.5 (11.6)
17060S 17500 (7938) Single rear axle,
single reduction28.0 (13.2)
2009 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
232
