2009 FORD F SERIES MOTORHOME AND COMMERCIAL CHASSIS Owners Manual

Introduction
3
Instrument Cluster
10

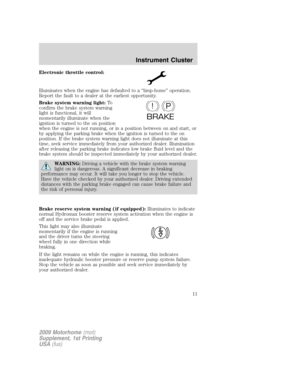

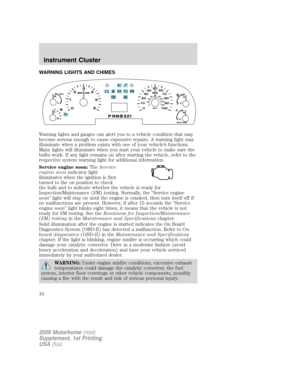

Warning lights and chimes 10

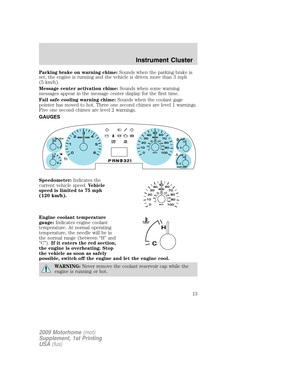

Gauges 13
Lights
17
Headlamps 17
Turn signal control 18
Bulb replacement 18
Driver Controls
19
Windshield wiper/washer control 19
Steering wheel adjustment 19

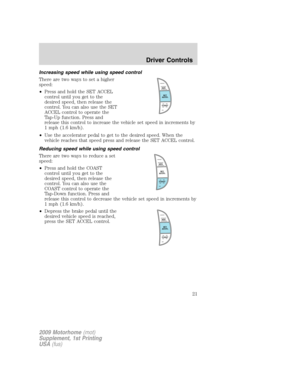

Speed control 20

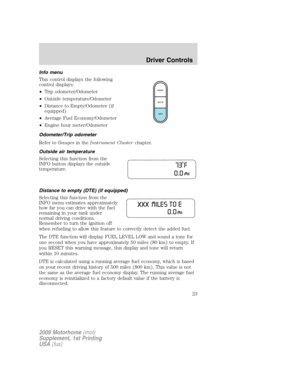

Message center 22
Tires, Wheels and Loading
28

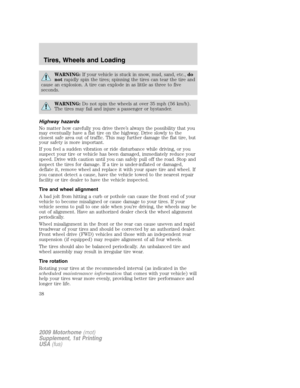

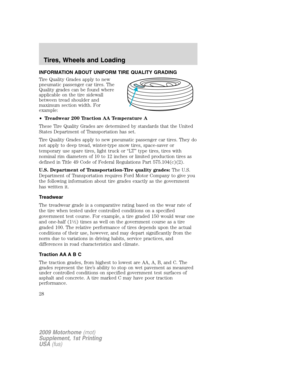

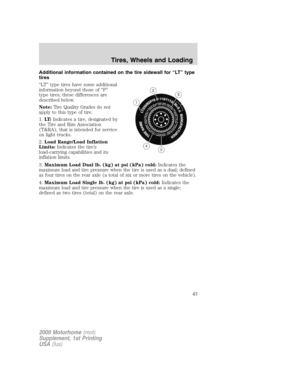

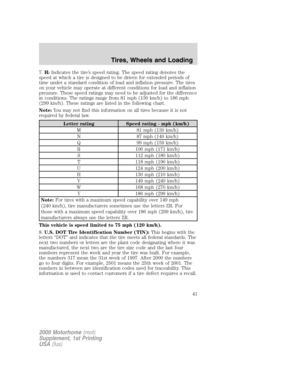

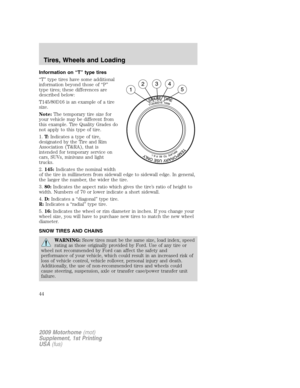

Tire information 28

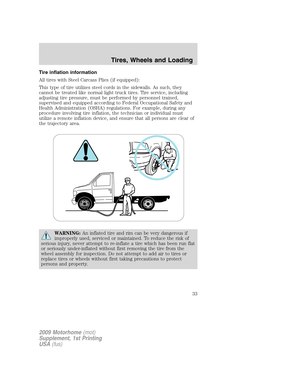

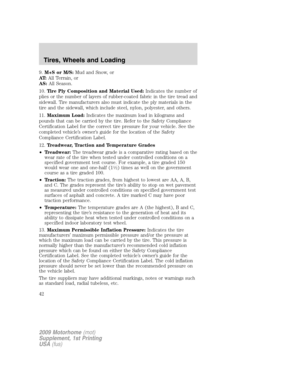

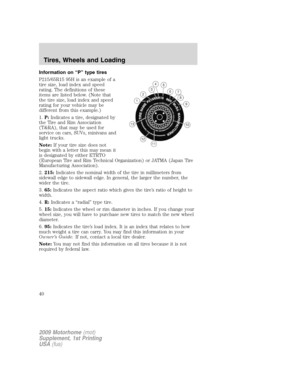

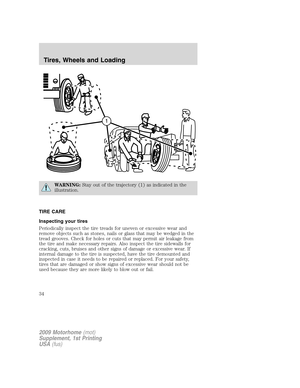

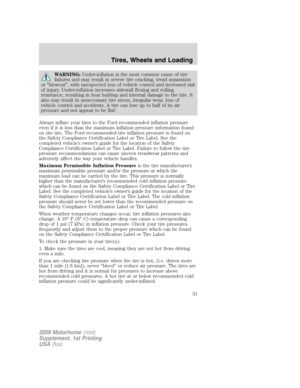

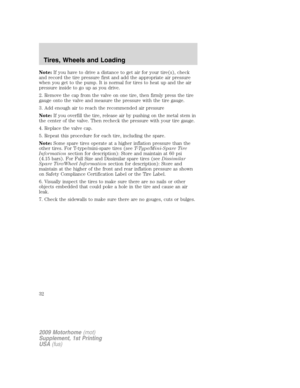

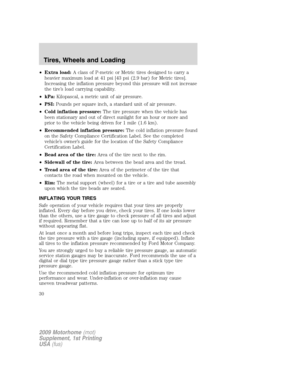

Tire inflation 30

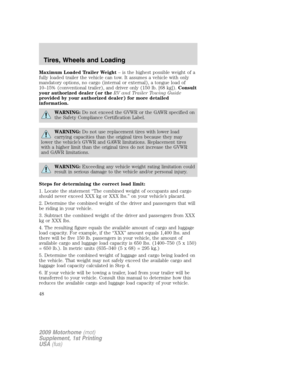

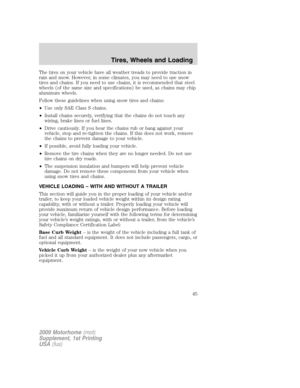

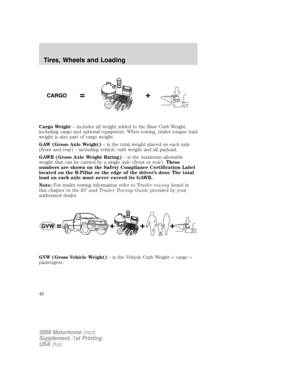

Vehicle loading 45

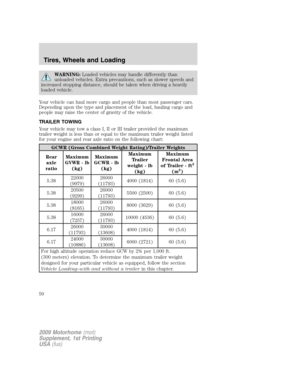

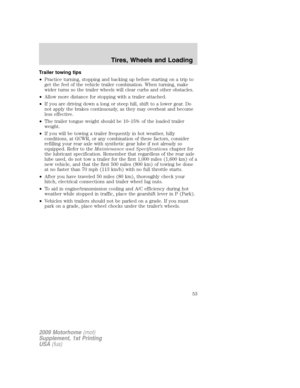

Trailer towing 50
Driving
54

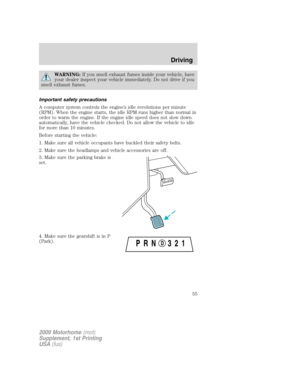

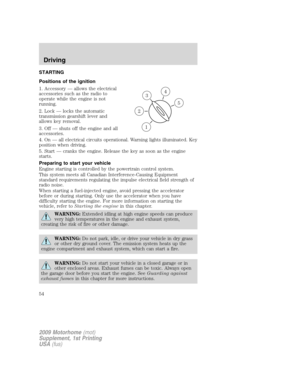

Starting 54

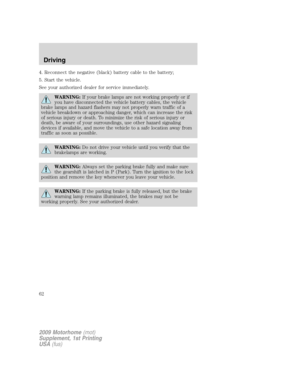

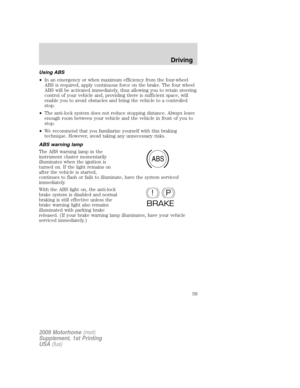

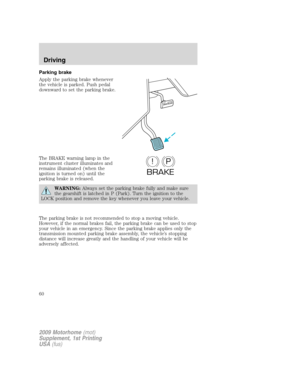

Brakes 57

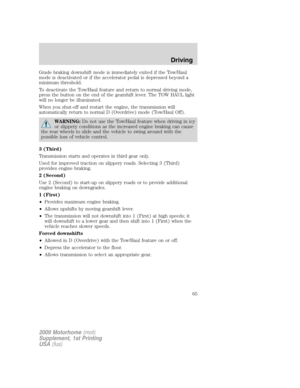

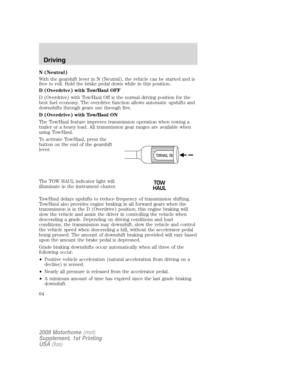

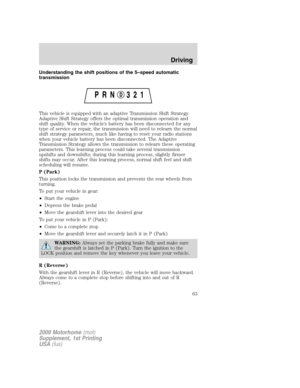

Transmission operation 61
Roadside Emergencies
67

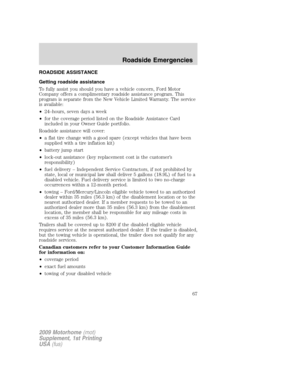

Getting roadside assistance 67
Hazard flasher switch 68

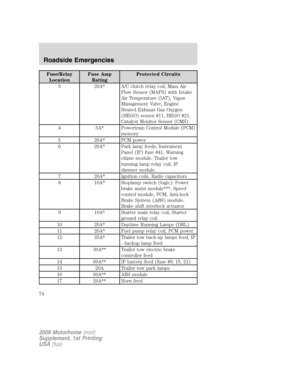

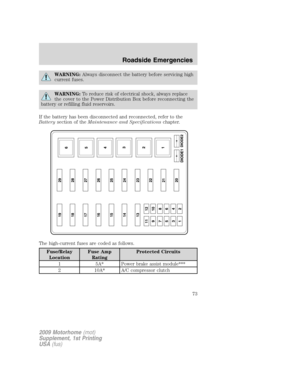

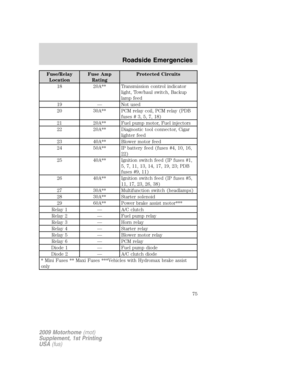

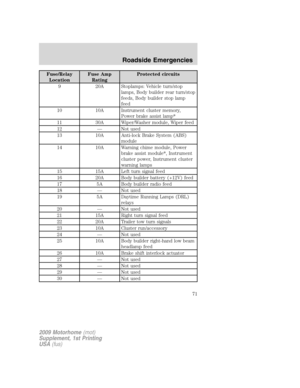

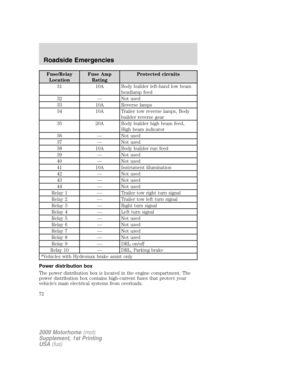

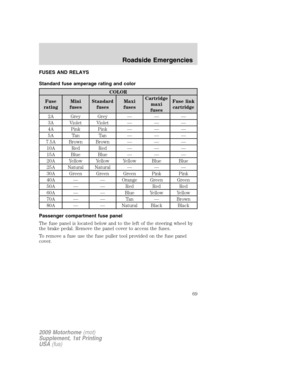

Fuses and relays 69

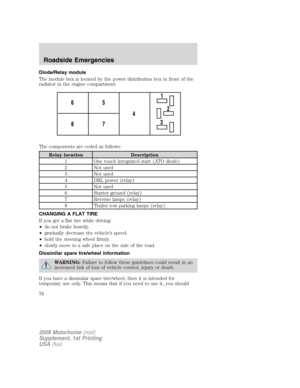

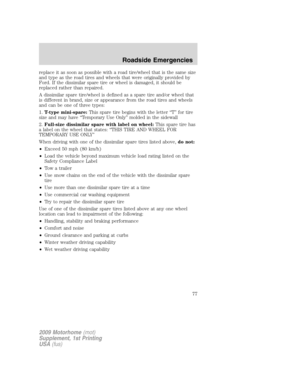

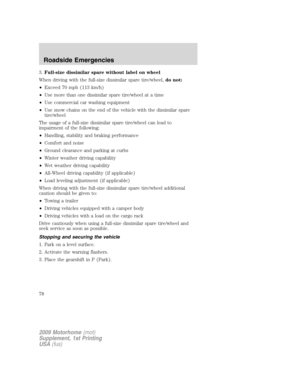

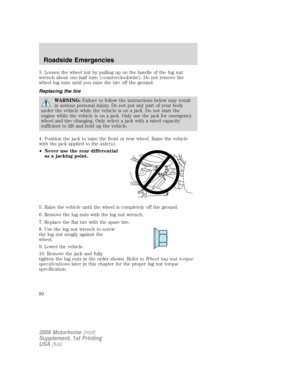

Changing tires 76

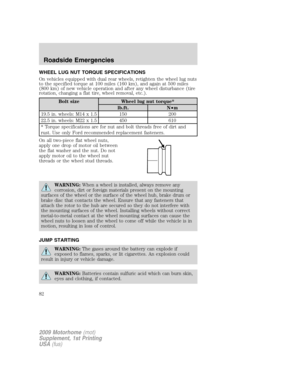

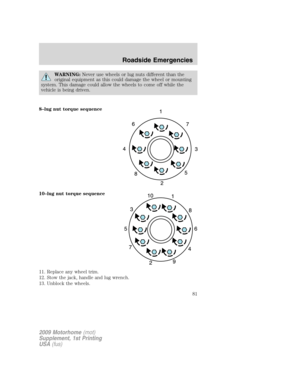

Wheel lug nut torque 82

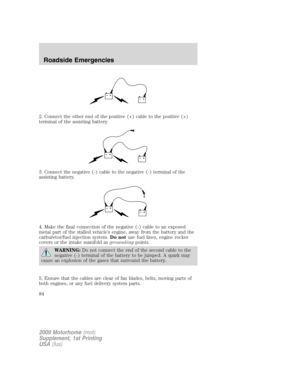

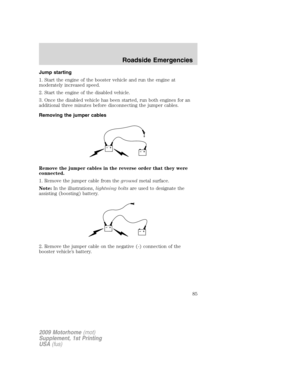

Jump starting 82

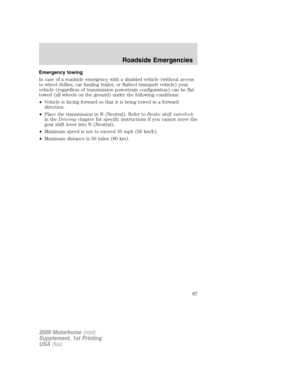

Wrecker towing 86
Table of Contents
1
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)

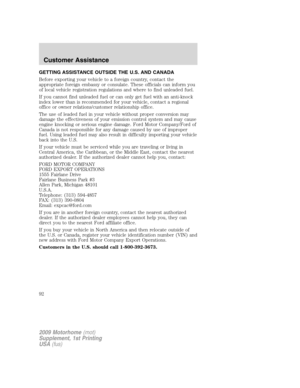

Customer Assistance
88

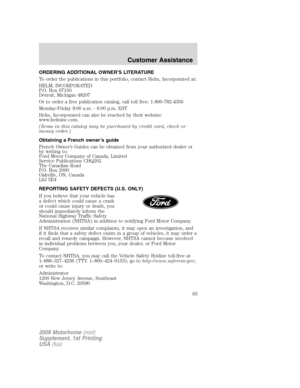

Reporting safety defects (U.S. only) 93

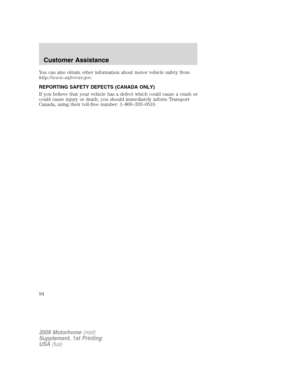

Reporting safety defects (Canada only) 94

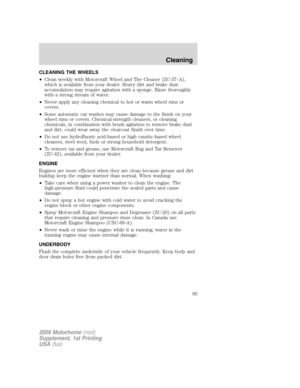

Cleaning
95

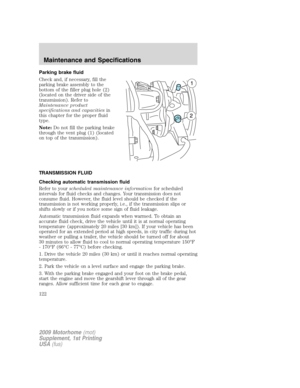

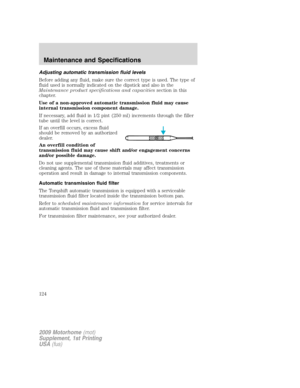

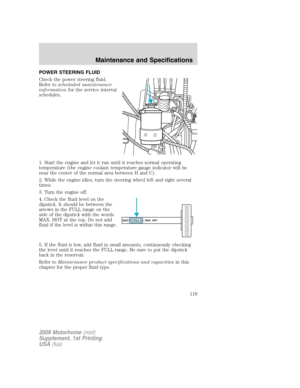

Maintenance and Specifications
96
Engine compartment 97

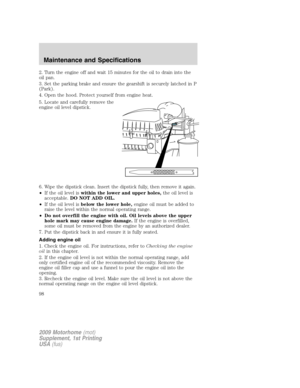

Engine oil 97

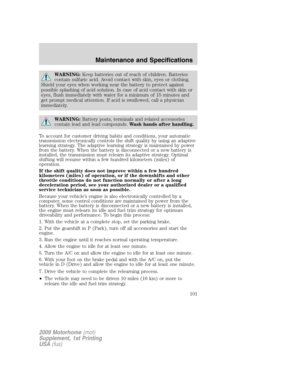

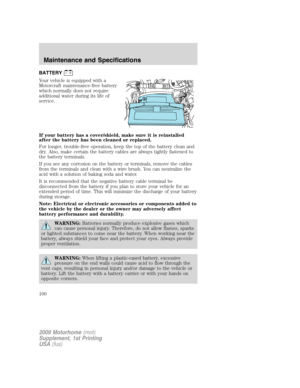

Battery 100

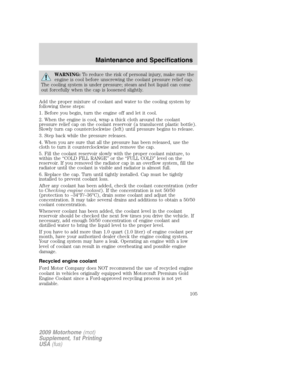

Engine coolant 102

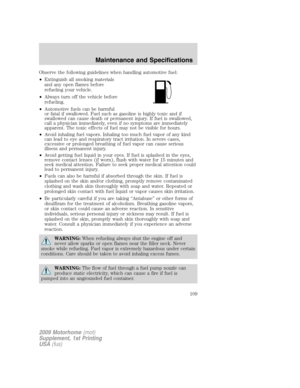

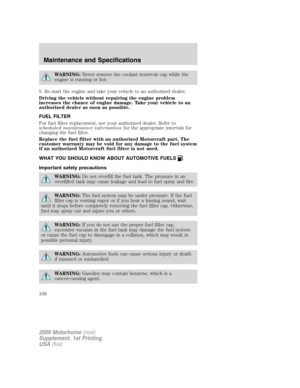

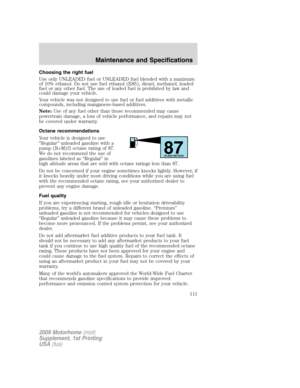

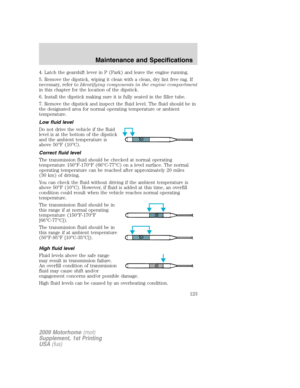

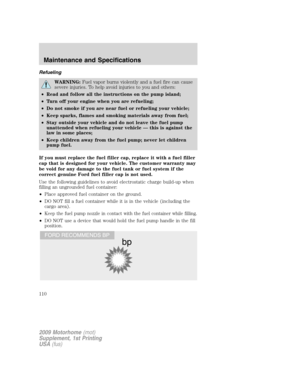

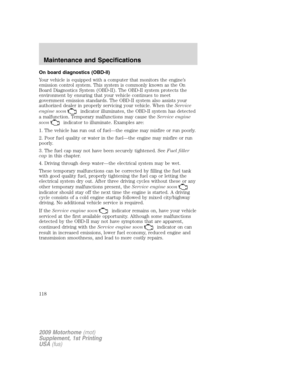

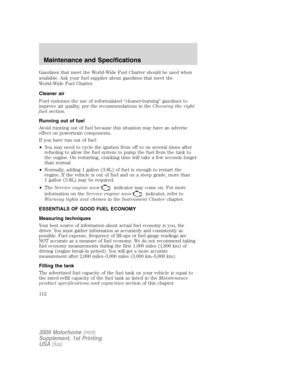

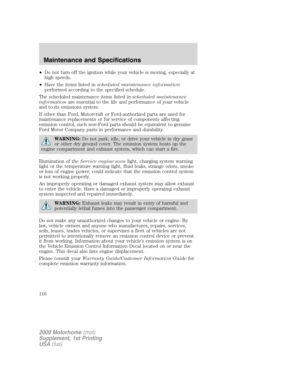

Fuel information 108
Air filter(s) 125
Part numbers 127

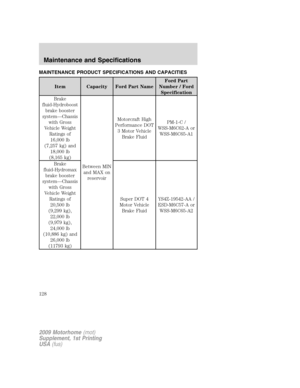

Maintenance product specifications and capacities 128

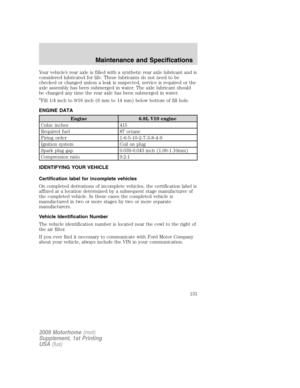

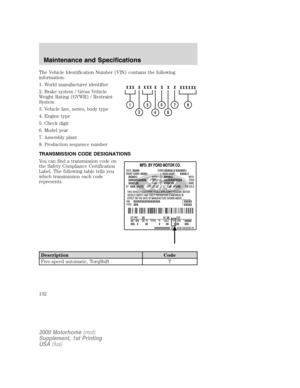

Engine data 131
Index
133
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2008 Ford Motor Company
Table of Contents
2
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)

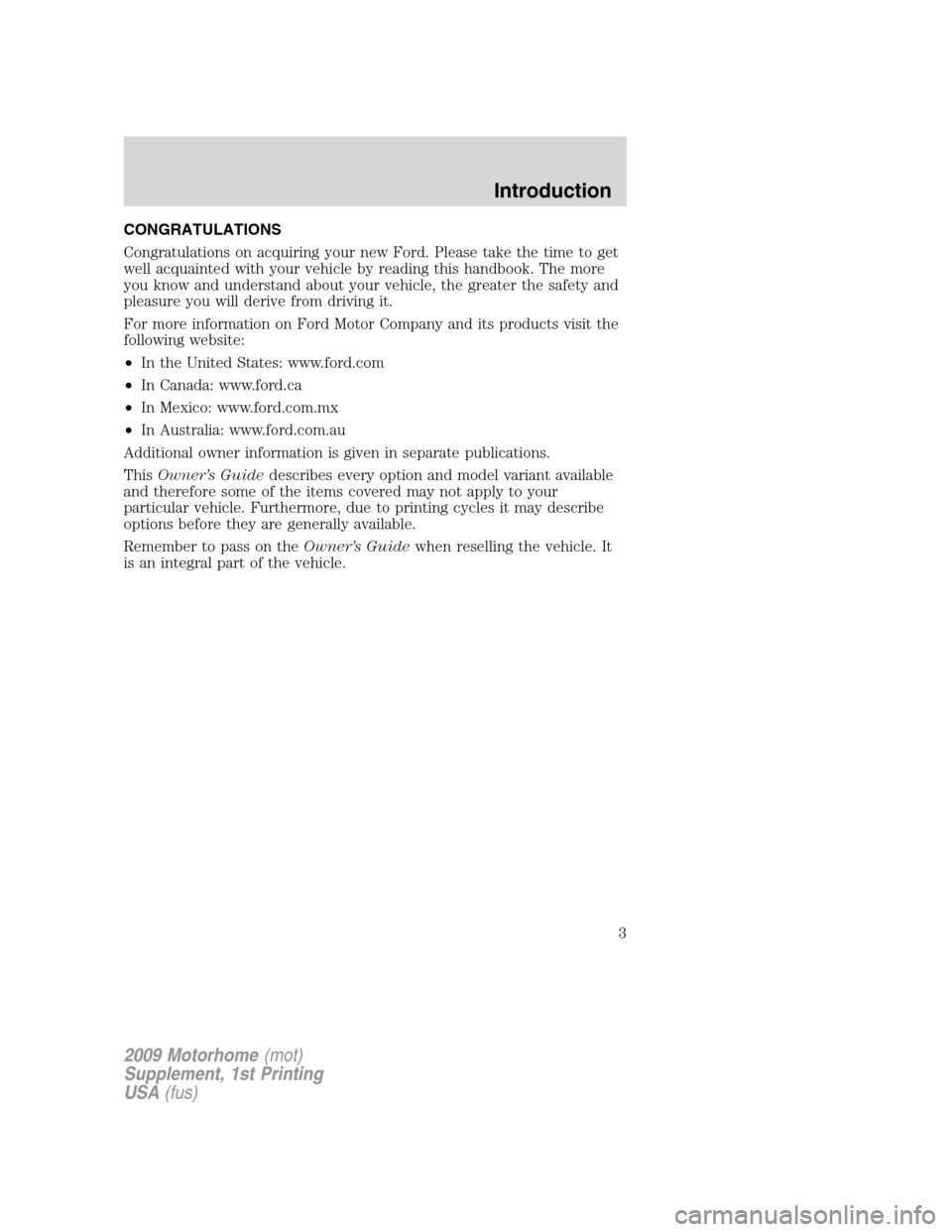

CONGRATULATIONS
Congratulations on acquiring your new Ford. Please take the time to get
well acquainted with your vehicle by reading this handbook. The more
you know and understand about your vehicle, the greater the safety and
pleasure you will derive from driving it.
For more information on Ford Motor Company and its products visit the
following website:
•In the United States: www.ford.com
•In Canada: www.ford.ca
•In Mexico: www.ford.com.mx
•In Australia: www.ford.com.au
Additional owner information is given in separate publications.
ThisOwner’s Guidedescribes every option and model variant available
and therefore some of the items covered may not apply to your
particular vehicle. Furthermore, due to printing cycles it may describe
options before they are generally available.
Remember to pass on theOwner’s Guidewhen reselling the vehicle. It
is an integral part of the vehicle.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Introduction
3

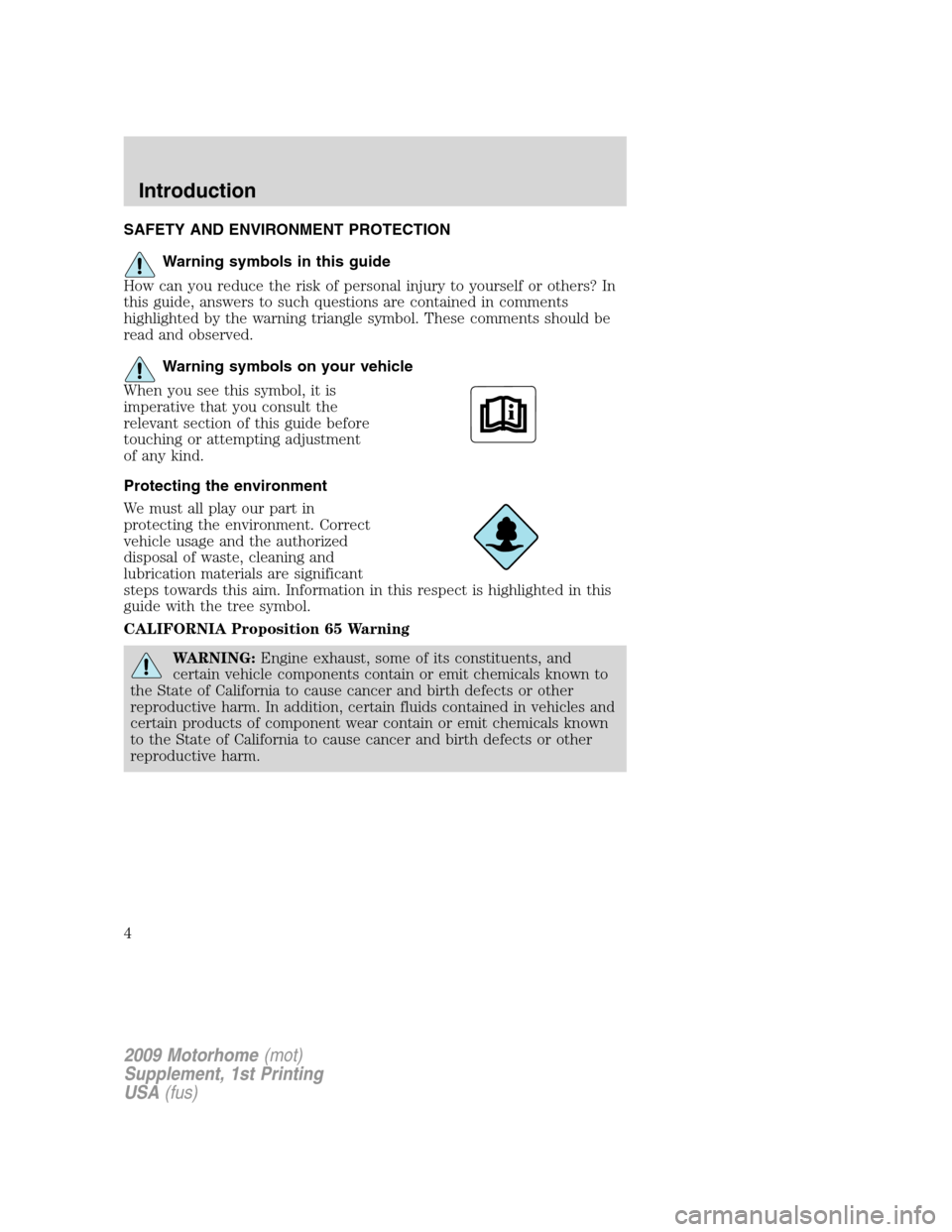

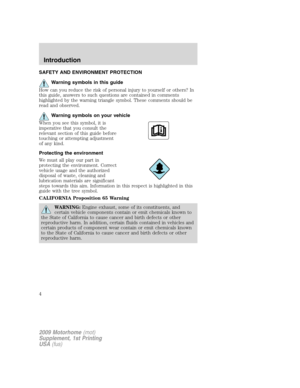

SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury to yourself or others? In
this guide, answers to such questions are contained in comments
highlighted by the warning triangle symbol. These comments should be
read and observed.
Warning symbols on your vehicle
When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.
Protecting the environment
We must all play our part in
protecting the environment. Correct
vehicle usage and the authorized
disposal of waste, cleaning and
lubrication materials are significant
steps towards this aim. Information in this respect is highlighted in this
guide with the tree symbol.
CALIFORNIA Proposition 65 Warning
WARNING:Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other
reproductive harm. In addition, certain fluids contained in vehicles and
certain products of component wear contain or emit chemicals known
to the State of California to cause cancer and birth defects or other
reproductive harm.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Introduction
4

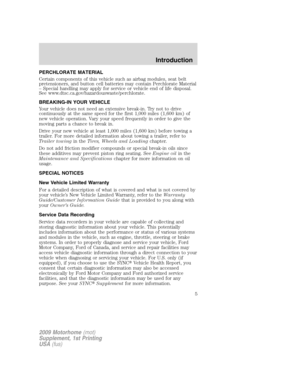

PERCHLORATE MATERIAL
Certain components of this vehicle such as airbag modules, seat belt
pretensioners, and button cell batteries may contain Perchlorate Material
– Special handling may apply for service or vehicle end of life disposal.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.

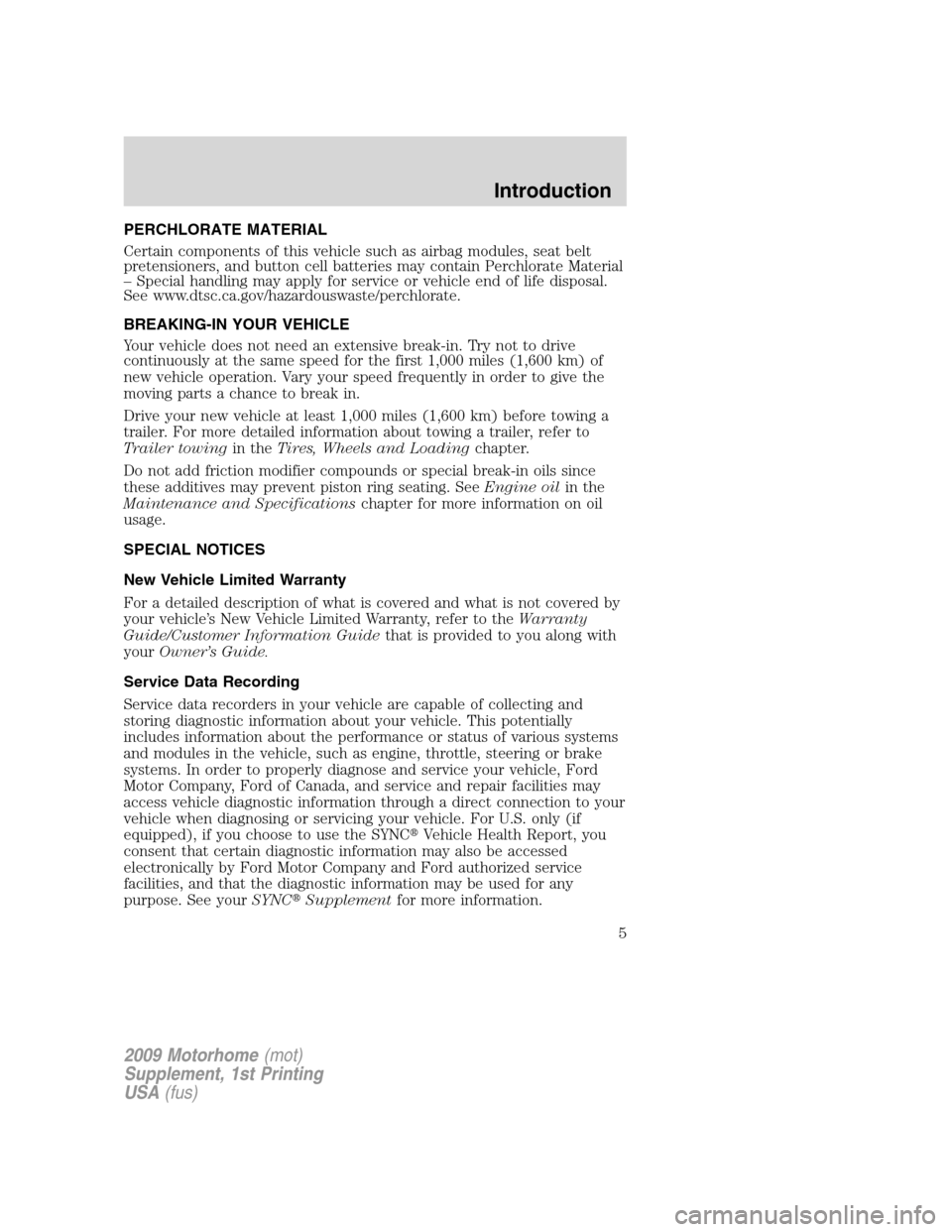

BREAKING-IN YOUR VEHICLE
Your vehicle does not need an extensive break-in. Try not to drive
continuously at the same speed for the first 1,000 miles (1,600 km) of
new vehicle operation. Vary your speed frequently in order to give the
moving parts a chance to break in.
Drive your new vehicle at least 1,000 miles (1,600 km) before towing a
trailer. For more detailed information about towing a trailer, refer to
Trailer towingin theTires, Wheels and Loadingchapter.
Do not add friction modifier compounds or special break-in oils since
these additives may prevent piston ring seating. SeeEngine oilin the
Maintenance and Specificationschapter for more information on oil
usage.
SPECIAL NOTICES
New Vehicle Limited Warranty
For a detailed description of what is covered and what is not covered by
your vehicle’s New Vehicle Limited Warranty, refer to theWarranty
Guide/Customer Information Guidethat is provided to you along with
yourOwner’s Guide.
Service Data Recording
Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Ford
Motor Company, Ford of Canada, and service and repair facilities may
access vehicle diagnostic information through a direct connection to your
vehicle when diagnosing or servicing your vehicle. For U.S. only (if
equipped), if you choose to use the SYNCVehicle Health Report, you
consent that certain diagnostic information may also be accessed
electronically by Ford Motor Company and Ford authorized service
facilities, and that the diagnostic information may be used for any
purpose. See yourSYNCSupplementfor more information.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Introduction
5

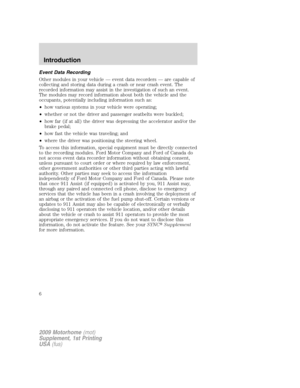

Event Data Recording

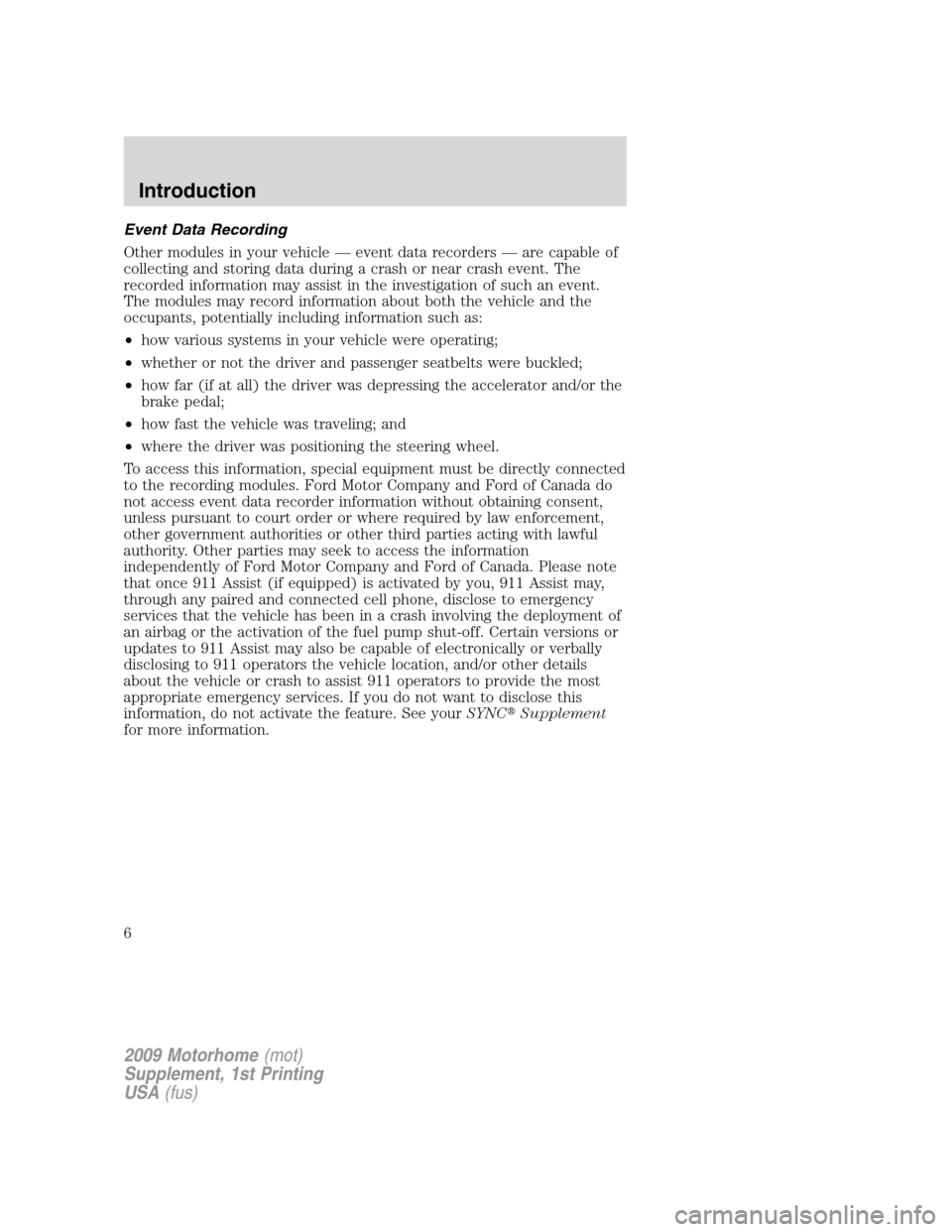

Other modules in your vehicle — event data recorders — are capable of
collecting and storing data during a crash or near crash event. The
recorded information may assist in the investigation of such an event.
The modules may record information about both the vehicle and the
occupants, potentially including information such as:
•how various systems in your vehicle were operating;
•whether or not the driver and passenger seatbelts were buckled;
•how far (if at all) the driver was depressing the accelerator and/or the
brake pedal;
•how fast the vehicle was traveling; and
•where the driver was positioning the steering wheel.
To access this information, special equipment must be directly connected
to the recording modules. Ford Motor Company and Ford of Canada do
not access event data recorder information without obtaining consent,
unless pursuant to court order or where required by law enforcement,
other government authorities or other third parties acting with lawful
authority. Other parties may seek to access the information
independently of Ford Motor Company and Ford of Canada. Please note
that once 911 Assist (if equipped) is activated by you, 911 Assist may,
through any paired and connected cell phone, disclose to emergency
services that the vehicle has been in a crash involving the deployment of
an airbag or the activation of the fuel pump shut-off. Certain versions or
updates to 911 Assist may also be capable of electronically or verbally
disclosing to 911 operators the vehicle location, and/or other details
about the vehicle or crash to assist 911 operators to provide the most
appropriate emergency services. If you do not want to disclose this
information, do not activate the feature. See yourSYNCSupplement
for more information.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Introduction
6

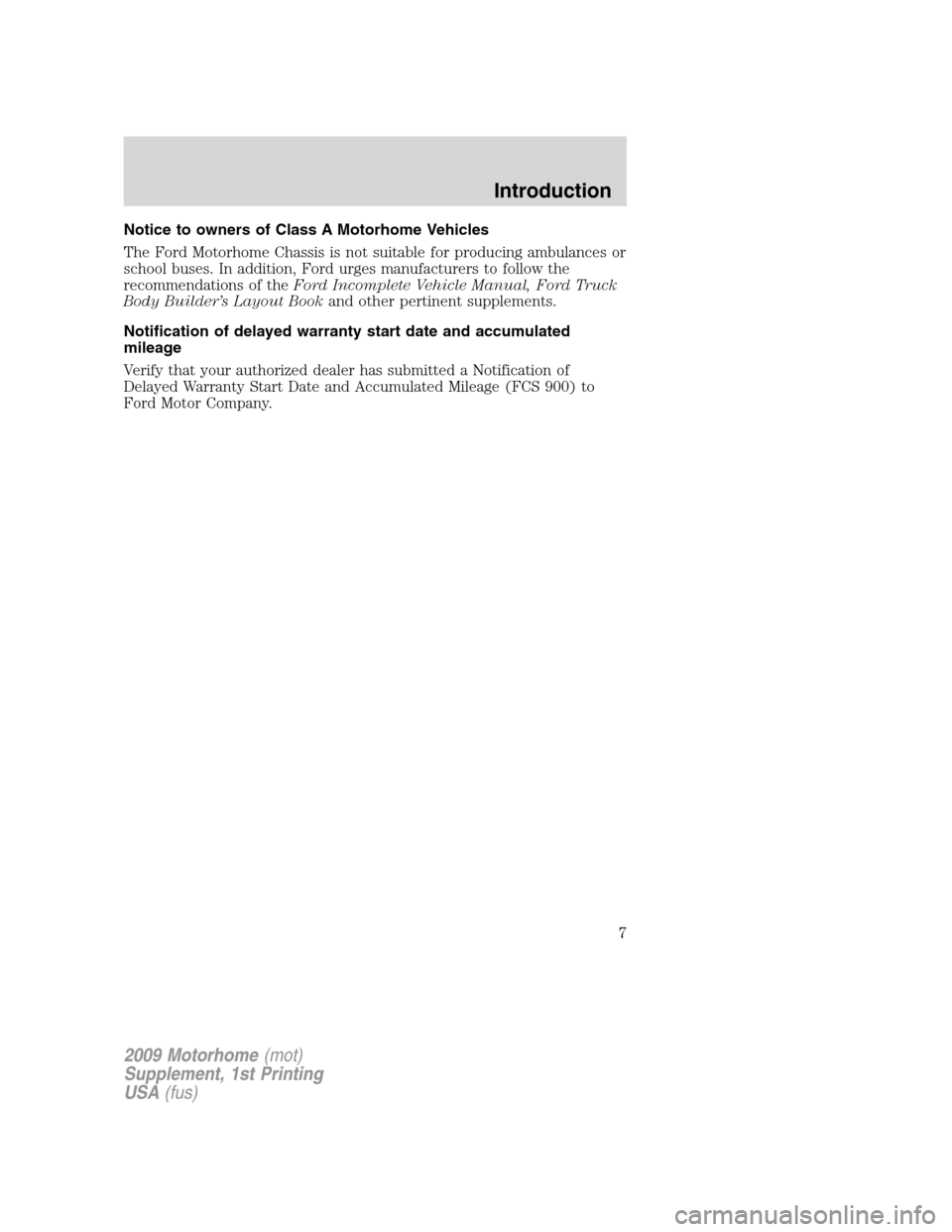

Notice to owners of Class A Motorhome Vehicles
The Ford Motorhome Chassis is not suitable for producing ambulances or
school buses. In addition, Ford urges manufacturers to follow the
recommendations of theFord Incomplete Vehicle Manual, Ford Truck
Body Builder’s Layout Bookand other pertinent supplements.
Notification of delayed warranty start date and accumulated
mileage
Verify that your authorized dealer has submitted a Notification of
Delayed Warranty Start Date and Accumulated Mileage (FCS 900) to
Ford Motor Company.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Introduction
7

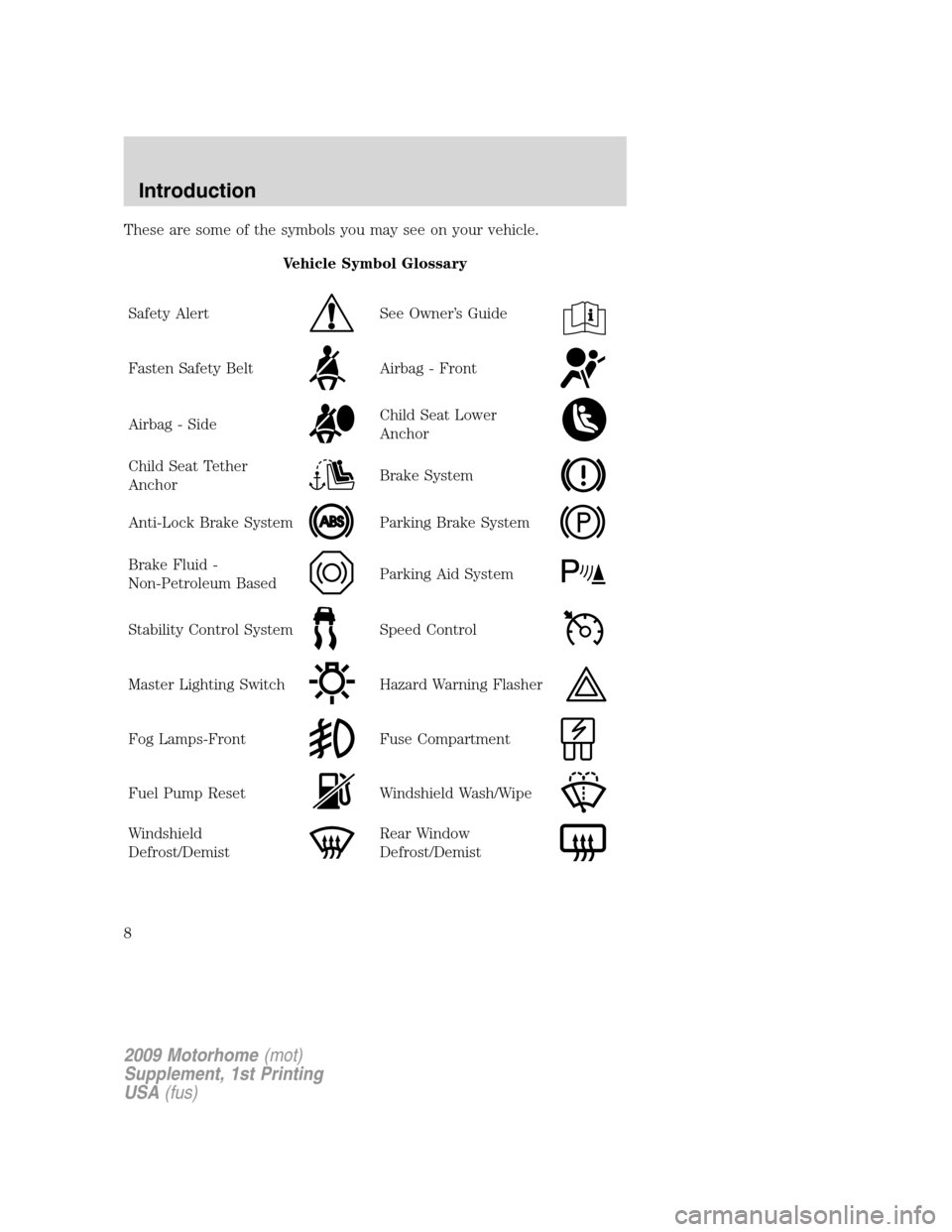

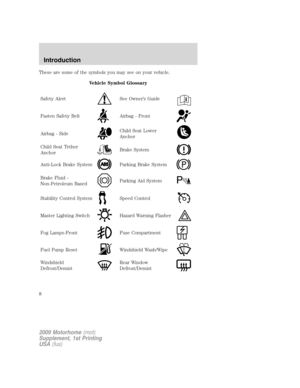

These are some of the symbols you may see on your vehicle.

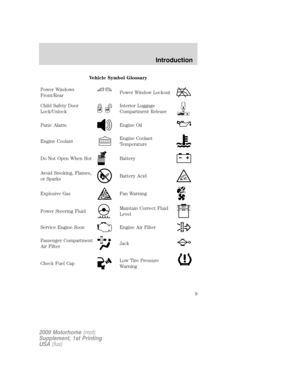

Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemParking Brake System
Brake Fluid -
Non-Petroleum BasedParking Aid System
Stability Control SystemSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Introduction
8
