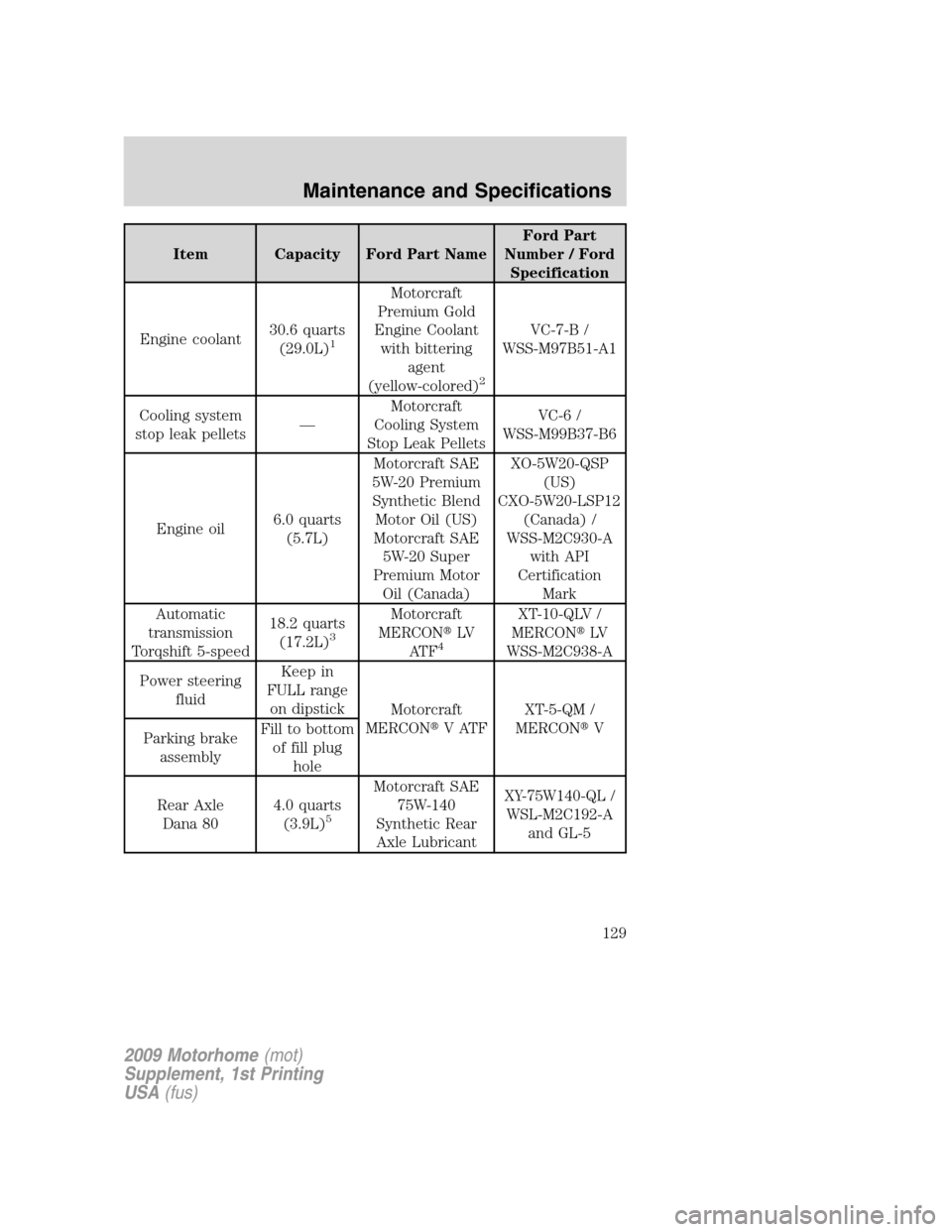

Item Capacity Ford Part NameFord Part
Number / Ford
Specification
Engine coolant30.6 quarts
(29.0L)
1
Motorcraft
Premium Gold
Engine Coolant
with bittering
agent
(yellow-colored)
2
VC-7-B /
WSS-M97B51-A1
Cooling system
stop leak pellets—Motorcraft
Cooling System
Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Engine oil6.0 quarts
(5.7L)Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20-LSP12
(Canada) /
WSS-M2C930-A
with API
Certification
Mark
Automatic
transmission
Torqshift 5-speed18.2 quarts
(17.2L)
3
Motorcraft
MERCONLV
AT F
4
XT-10-QLV /
MERCONLV
WSS-M2C938-A
Power steering
fluidKeep in
FULL range
on dipstick
Motorcraft
MERCONVATFXT-5-QM /
MERCONV
Parking brake
assemblyFill to bottom
of fill plug
hole
Rear Axle
Dana 804.0 quarts
(3.9L)
5
Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
and GL-5
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
129

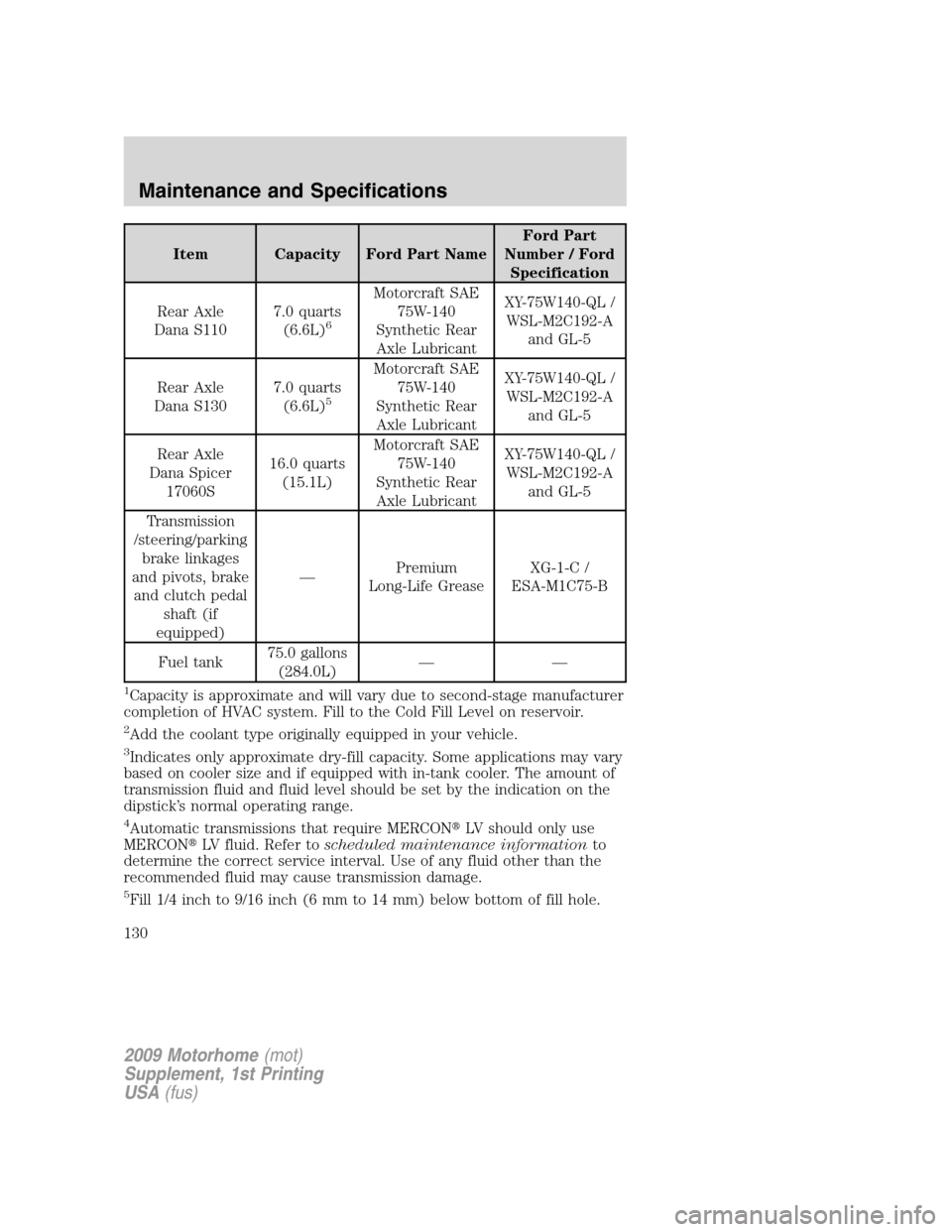

Item Capacity Ford Part NameFord Part
Number / Ford
Specification
Rear Axle
Dana S1107.0 quarts
(6.6L)
6
Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
and GL-5
Rear Axle
Dana S1307.0 quarts
(6.6L)
5
Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
and GL-5
Rear Axle
Dana Spicer
17060S16.0 quarts
(15.1L)Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
and GL-5
Transmission
/steering/parking
brake linkages
and pivots, brake
and clutch pedal
shaft (if
equipped)—Premium
Long-Life GreaseXG-1-C /
ESA-M1C75-B
Fuel tank75.0 gallons
(284.0L)——
1Capacity is approximate and will vary due to second-stage manufacturer
completion of HVAC system. Fill to the Cold Fill Level on reservoir.
2Add the coolant type originally equipped in your vehicle.
3Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with in-tank cooler. The amount of
transmission fluid and fluid level should be set by the indication on the
dipstick’s normal operating range.
4Automatic transmissions that require MERCONLV should only use
MERCONLV fluid. Refer toscheduled maintenance informationto
determine the correct service interval. Use of any fluid other than the
recommended fluid may cause transmission damage.
5Fill 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
130

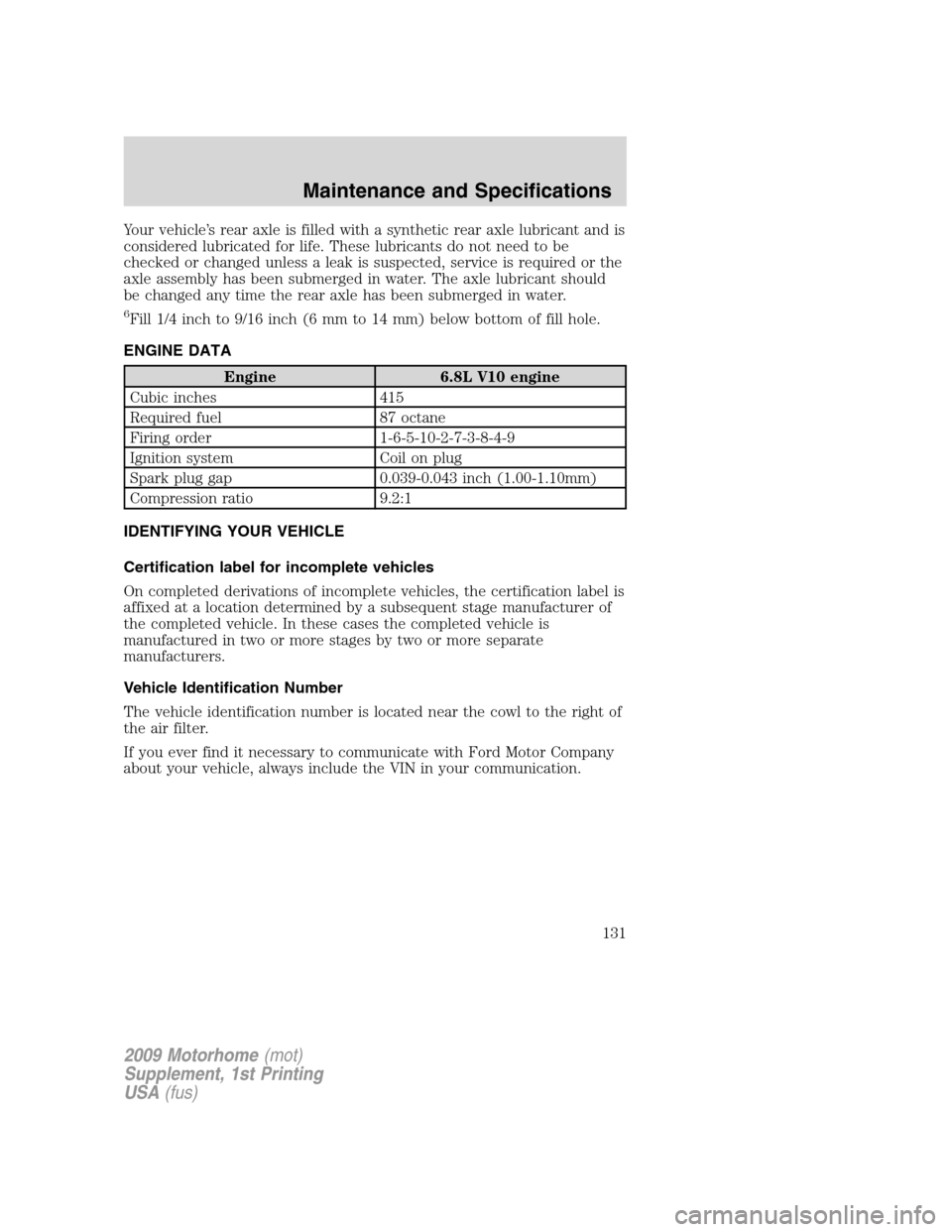

Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is
considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle lubricant should
be changed any time the rear axle has been submerged in water.
6Fill 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.
ENGINE DATA
Engine 6.8L V10 engine
Cubic inches 415
Required fuel 87 octane
Firing order 1-6-5-10-2-7-3-8-4-9
Ignition system Coil on plug
Spark plug gap 0.039-0.043 inch (1.00-1.10mm)
Compression ratio 9.2:1
IDENTIFYING YOUR VEHICLE
Certification label for incomplete vehicles
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
Vehicle Identification Number
The vehicle identification number is located near the cowl to the right of
the air filter.
If you ever find it necessary to communicate with Ford Motor Company
about your vehicle, always include the VIN in your communication.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
131

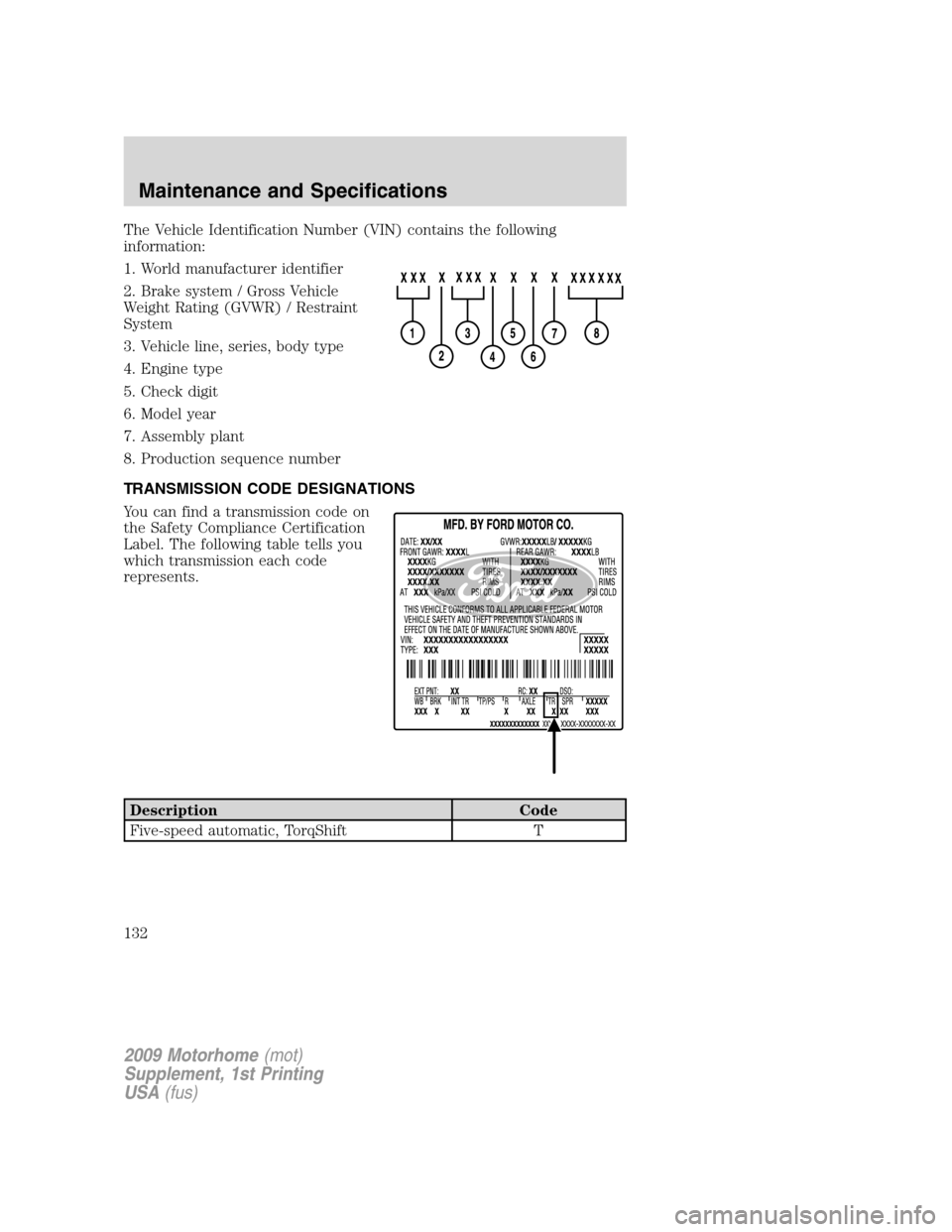

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Five-speed automatic, TorqShift T
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
132

A
