2009 DODGE AVENGER Owners Manual

License Plate Light
1. Remove two retaining screws holding the light lens in
place.
2. Gently pry the light assembly loose.
3. Pull bulb from socket, replace and reattach the light
assembly with the two retaining screws.
Center High-Mounted Stop Light
1. Open the trunk lid to find the centrally located high-
mounted stop light.
MAINTAINING YOUR VEHICLE 415
7

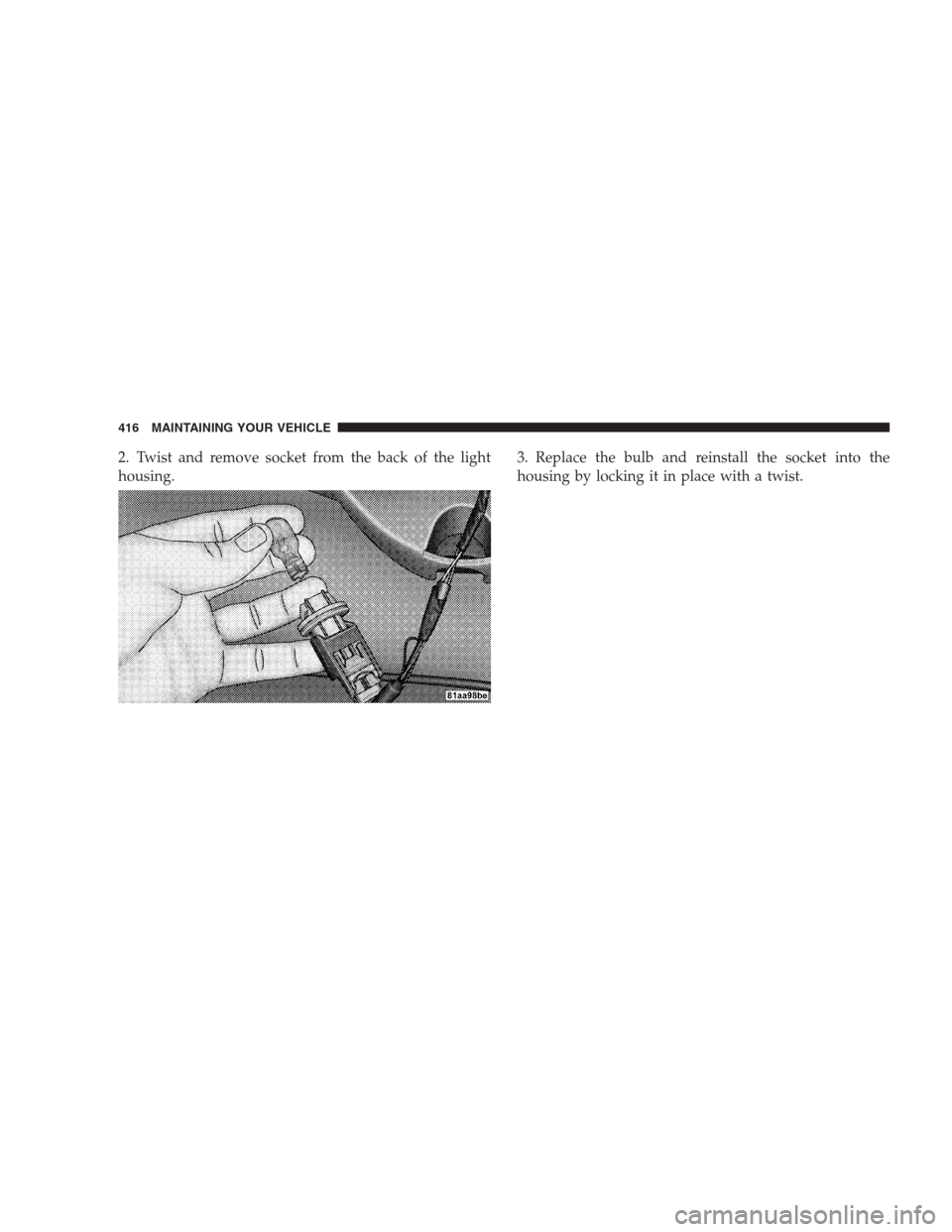

2. Twist and remove socket from the back of the light
housing.3. Replace the bulb and reinstall the socket into the
housing by locking it in place with a twist.
416 MAINTAINING YOUR VEHICLE

FLUIDS AND CAPACITIES
U.S. Metric
Fuel (Approximate)
2.4L and 2.7L Engine — (Except 2.4L PZEV) 16.9 Gallons 64 Liters
2.4L PZEV (Partial Zero Emissions Vehicle) 18.5 Gallons 70 Liters
3.5L Engine 17.2 Gallons 65 Liters
Engine Oil with Filter
2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts 4.4 Liters
2.7L Engine (SAE 5W-20, API Certified) 5.5 Quarts 5.2 Liters
3.5L Engine (SAE 10W-30, API Certified) 5.5 Quarts 5.2 Liters
Cooling System*
2.4L Engine (MOPARAntifreeze/Coolant 5
Year/100,000 Mile Formula) or equivalent.7.7 Quarts 7.3 Liters
2.7L Engine (MOPARAntifreeze/Coolant 5
Year/100,000 Mile Formula) or equivalent.9.8 Quarts 9.3 Liters
3.5L Engine (MOPARAntifreeze/Coolant 5
Year/100,000 Mile Formula) or equivalent.11.6 Quarts 11 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
MAINTAINING YOUR VEHICLE 417
7

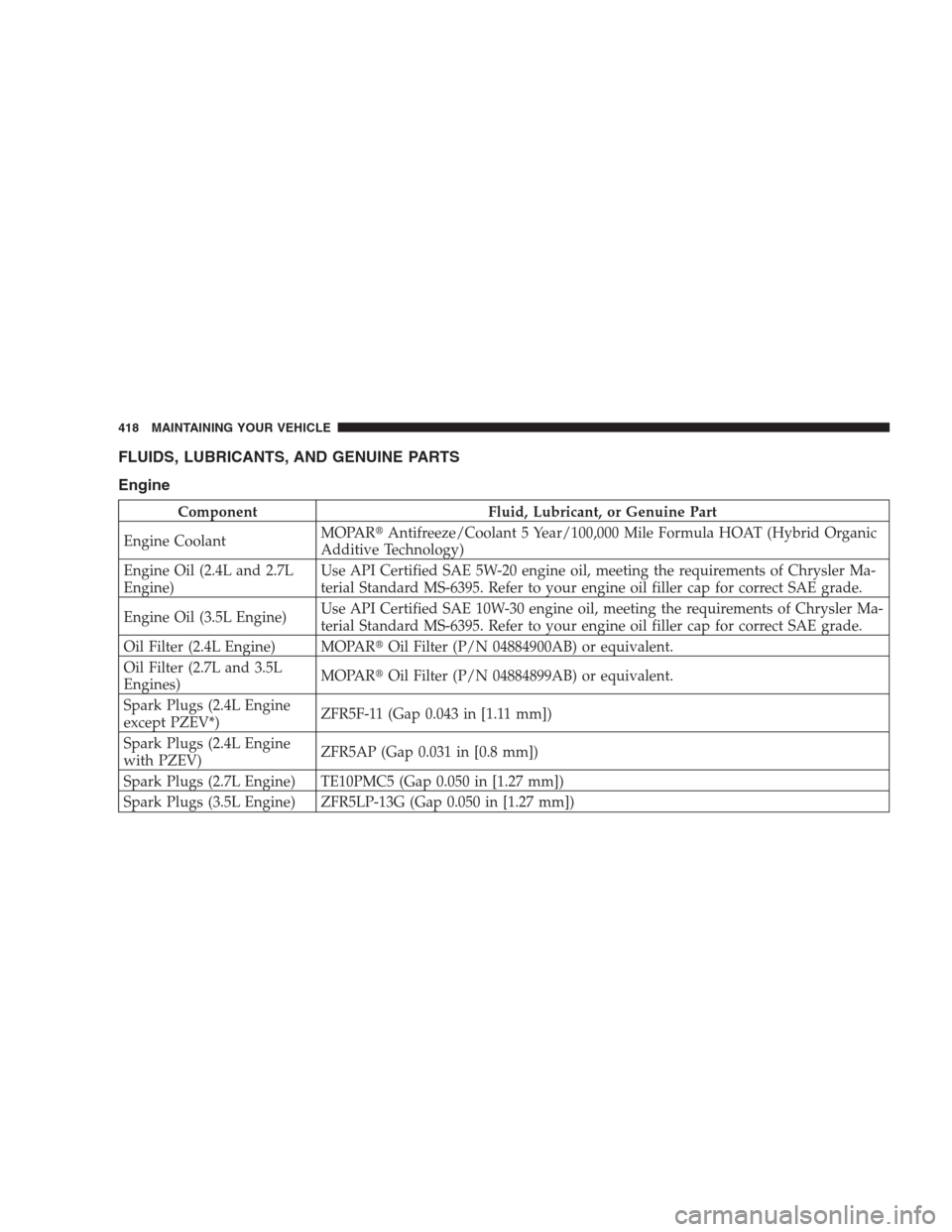

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine CoolantMOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic
Additive Technology)
Engine Oil (2.4L and 2.7L
Engine)Use API Certified SAE 5W-20 engine oil, meeting the requirements of Chrysler Ma-
terial Standard MS-6395. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil (3.5L Engine)Use API Certified SAE 10W-30 engine oil, meeting the requirements of Chrysler Ma-
terial Standard MS-6395. Refer to your engine oil filler cap for correct SAE grade.
Oil Filter (2.4L Engine) MOPAROil Filter (P/N 04884900AB) or equivalent.
Oil Filter (2.7L and 3.5L
Engines)MOPAROil Filter (P/N 04884899AB) or equivalent.
Spark Plugs (2.4L Engine
except PZEV*)ZFR5F-11 (Gap 0.043 in [1.11 mm])
Spark Plugs (2.4L Engine
with PZEV)ZFR5AP (Gap 0.031 in [0.8 mm])
Spark Plugs (2.7L Engine) TE10PMC5 (Gap 0.050 in [1.27 mm])
Spark Plugs (3.5L Engine) ZFR5LP-13G (Gap 0.050 in [1.27 mm])
418 MAINTAINING YOUR VEHICLE

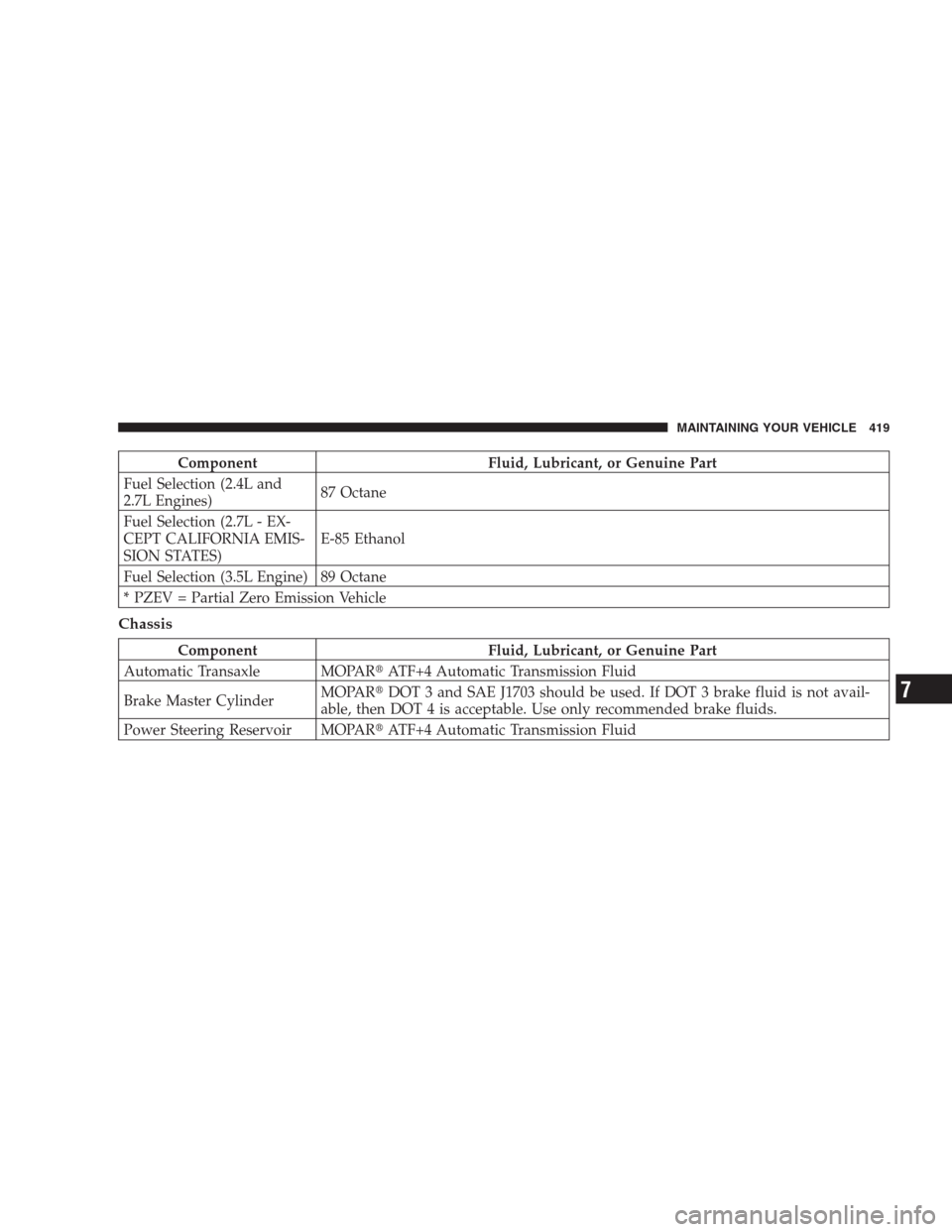

Component Fluid, Lubricant, or Genuine Part
Fuel Selection (2.4L and
2.7L Engines)87 Octane
Fuel Selection (2.7L - EX-
CEPT CALIFORNIA EMIS-
SION STATES)E-85 Ethanol
Fuel Selection (3.5L Engine) 89 Octane
* PZEV = Partial Zero Emission Vehicle
Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transaxle MOPARATF+4 Automatic Transmission Fluid
Brake Master CylinderMOPARDOT 3 and SAE J1703 should be used. If DOT 3 brake fluid is not avail-
able, then DOT 4 is acceptable. Use only recommended brake fluids.
Power Steering Reservoir MOPARATF+4 Automatic Transmission Fluid
MAINTAINING YOUR VEHICLE 419
7

MAINTENANCE SCHEDULES
CONTENTS
Emissions Control System Maintenance...... 422
Maintenance Schedule.................. 422▫Required Maintenance Intervals.......... 424
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type
must be done at the times or mileages specified to ensure
the continued proper functioning of the emissions control
system. These and all other maintenance services in-
cluded in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE:Maintenance, replacement or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).
422 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
