2009 DODGE AVENGER Owners Manual

MIRRORS
Inside Day/Night Mirror — If Equipped
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Adjusting Rearview Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
3

Automatic Dimming Mirror — If Equipped
This mirror will automatically adjust for headlight glare
from vehicles behind you. Push in the button on the face
of the mirror to activate the dimming feature.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
1 — Auto Dimming Mirror Power Indicator
2 — On/Off Switch
3 — Auto Dimming Mirror Sensor 88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Power Mirrors
Both of the outside mirrors can be adjusted by using the
controls mounted on the driver’s door panel.
A rotary knob selects the left mirror, right mirror, or off
position.After selecting a mirror, move the knob in the same
direction you want the mirror to move. When finished,
return the knob to the center O (OFF) position to guard
against accidentally moving a mirror position.
Power Mirror Switch
Mirror Directions
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3

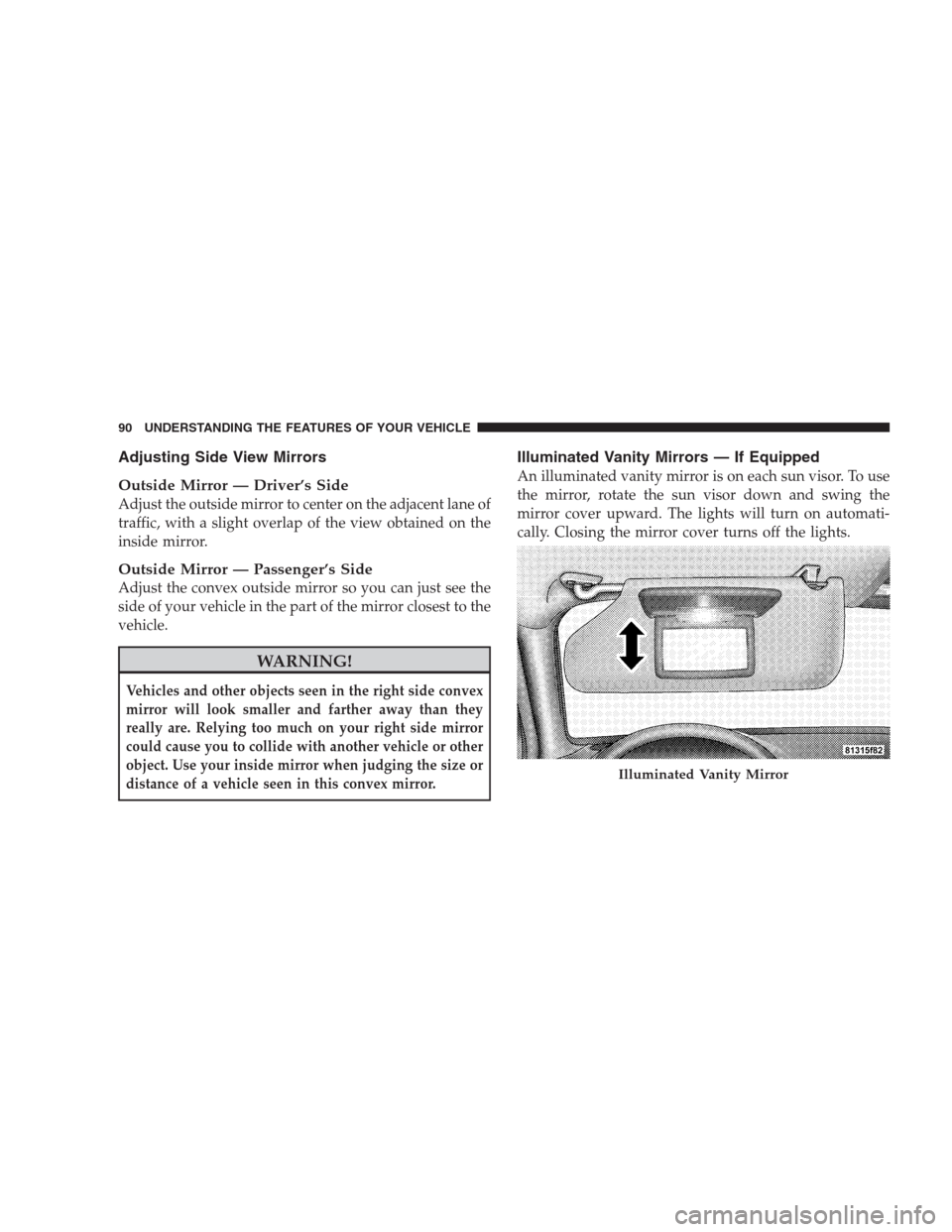

Adjusting Side View Mirrors
Outside Mirror — Driver’s Side
Adjust the outside mirror to center on the adjacent lane of
traffic, with a slight overlap of the view obtained on the
inside mirror.
Outside Mirror — Passenger’s Side
Adjust the convex outside mirror so you can just see the
side of your vehicle in the part of the mirror closest to the
vehicle.
WARNING!
Vehicles and other objects seen in the right side convex
mirror will look smaller and farther away than they
really are. Relying too much on your right side mirror
could cause you to collide with another vehicle or other
object. Use your inside mirror when judging the size or
distance of a vehicle seen in this convex mirror.
Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor down and swing the
mirror cover upward. The lights will turn on automati-
cally. Closing the mirror cover turns off the lights.
Illuminated Vanity Mirror
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

HANDS-FREE COMMUNICATION (UConnect)—
IF EQUIPPED
NOTE: The sales code RER and REU radios contain an
integrated Hands-Free Communication (UConnect)
system. Refer to your “Navigation User’s Manual” for
UConnectsystem operating instructions for these ra-
dios. Radio sales code can be located on the lower right
corner of the Radio faceplate.
UConnectis a voice-activated, hands-free, in-vehicle
communications system. UConnectallows you to dial a
phone number with your cellular phone using simple
voice commands (e.g.,Call”“Mike””WorkorDial”
“248-555-1212). Your cellular phone’s audio is trans-
mitted through your vehicle’s audio system; the system
will automatically mute your radio when using the
UConnectsystem.NOTE:The UConnectsystem requires a cellular phone
equipped with the BluetoothHands-Free Profile,Ve r -
sion 0.96 or higher. See the UConnectwebsite for
supported phones.
NOTE:For UConnectcustomer support, visit the
following websites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
•or call 1–877–855–8400
UConnectallows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle and enables you to mute the system’s microphone
for private conversation.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3

The UConnectsystem is driven through your
Bluetooth“Hands-Free Profile” cellular phone.
UConnectfeatures Bluetoothtechnology - the global
standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
UConnectworks no matter where you stow your cellu-
lar phone (be it your purse, pocket, or briefcase), as long
as your phone is turned on and has been paired to the
vehicle’s UConnectsystem. The UConnectsystem
allows up to seven cellular phones to be linked to the
system. Only one linked (or paired) cellular phone can be
used with the system at a time. The system is available in
English, Spanish, or French languages.
Phone Button
The rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either theradio or the mirror has the two control buttons (PHONE
Button and VOICE RECOGNITION button) that will
enable you to access the system.
Voice Recognition Button
Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.
The UConnectsystem can be used with any Hands-Free
Profile certified Bluetoothcellular phone. See the
UConnectwebsite for supported phones. If your cellu-
lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any UConnect
features. Refer to your cellular service provider or the
phone manufacturer for details.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The UConnectsystem is fully integrated with the vehi-
cle’s audio system. The volume of the UConnectsystem
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the UConnectsystem such asCELLor caller ID on
certain radios.
Operation
Voice commands can be used to operate the UConnect
system and to navigate through the UConnectmenu
structure. Voice commands are required after most
UConnectsystem prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the beep, which follows theReadyprompt or another
prompt.
•For certain operations, compound commands can be
used. For example, instead of sayingSetupand then
Phone Pairing,the following compound command
can be said:Setup Phone Pairing.
•For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command when you are asked for it. For
example, you can use the combined form voice com-
mandPhonebook New Entry,or you can break the
combined form command into two voice commands:
PhonebookandNew Entry.Please remember, the
UConnectsystem works best when you talk in a
normal conversational tone, as if speaking to someone
sitting a few feet/meters away from you.
Voice Command Tree
Refer to “Voice Tree” in this section.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
3

Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, sayHelpfollowing
the beep. The UConnectsystem will play all the options
at any prompt if you ask for help.
To activate the UConnectsystem from idle, simply press
the PHONE button and follow the audible prompts for
directions. All UConnectsystem sessions begin with a
press of the PHONE button on the radio control head.
Cancel Command
At any prompt, after the beep, you can sayCanceland
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.
Pair (Link) UConnectSystem to a Cellular Phone
To begin using your UConnectsystem, you must pair
your compatible Bluetoothenabled cellular phone.To complete the pairing process, you will need to refer-
ence your cellular phone Owner’s Manual. The
UConnectwebsite may also provide detailed instruc-
tions for pairing.
The following are general phone to UConnectsystem
pairing instructions:
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Setup Phone Pairing.
•When prompted, after the beep, sayPair a Phoneand
follow the audible prompts.
•You will be asked to say a four-digit Personal Identi-
fication Number (PIN), which you will later need to
enter into your cellular phone. You can enter any
four-digit PIN. You will not need to remember this PIN
after the initial pairing process.
