2009 CHRYSLER 300 SRT Owners Manual

Cavity Car-
tridge
FuseMini-
FuseDescription
40 — 5 Amp
OrangeAuto Inside Rearview
Mirror/Heated Seats - if
equipped/Switch Bank
41 — 10 Amp
RedAC Heater Control/
Headlights/Tire Pres-
sure Monitoring - if
equipped
42 30 Amp
Pink— Front Blower Motor
43 30 Amp
Pink— Rear Window Defroster
44 20 Amp
Blue— Amplifier - if equipped/
Sunroof - if equipped
*Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The cluster and the driver seat switch arefused by the 25-amp circuit breaker in cavity 11. The
passenger seat switch is fused by the 25-amp circuit
breaker in cavity 12. The door modules, the driver power
window switch, and the passenger power window
switch are fused by the 25-amp circuit breaker in cavity
13. If you experience temporary or permanent loss of
these systems, see your authorized dealer for service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
MAINTAINING YOUR VEHICLE 431
7

REPLACEMENT BULBS
LIGHT BULBS — Interior Bulb Number
Rear Courtesy/Reading Lights.............. W5W
Rear Compartment (Trunk) Light............. 562
Overhead Console Reading Lights............. 578
Visor Vanity Lights.....................A6220
Glove Box Light......................... 194
Door Courtesy.......................... 562
Shift Indicator Light.................JKLE14140
Optional Door Map Pocket /
Cupholder Lighting...................... LED
(Serviced at Authorized Dealer)
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.LIGHT BULBS — Exterior Bulb Number
Low Beam Headlight – High Intensity Discharge
(HID)................................ D1S
(Serviced at Authorized Dealer)
High Beam Headlight.....................9005
Front Park/Turn Light..................3157AK
Front Fog Light......................9145/H10
(Serviced at Authorized Dealer)
Front Side Marker...................... W5W
(Serviced at Authorized Dealer)
Tail/Stop Light.........................3057
Tail Light.............................3057
Turn Signal Light.......................3757A
Backup Light...........................3057
Center High Mount Stop Light (CHMSL)....... LED
License.............................. W5W
432 MAINTAINING YOUR VEHICLE

BULB REPLACEMENT
Low Beam Headlight, High Beam Headlight, and
Park/Turn Light
High Intensity Discharge Headlights (HID)
The headlights are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
HEADLIGHT switch off and the key removed.Because
of this, you should not attempt to service a headlight
bulb yourself. If a headlight bulb fails, take your
vehicle to an authorized dealer for service.
NOTE:When HID headlights are turned on, there is a
blue hue to the lights. This diminishes and becomes more
white after approximately 10 seconds, as the system
charges.
Tail/Stop, Tail, Turn Signal Light, and Backup
Light
1. Open the trunk.2. Remove the two fasteners from the back of the tail
light assembly.
3. Pull back the trunk liner.
4. Remove the remaining fastener from the back of the
tail light assembly.
5. Push the electrical connector locking tab to the side.
MAINTAINING YOUR VEHICLE 433
7

6. Disconnect the electrical connector.
7. Pull the tail light assembly clear from the vehicle to
access the bulbs. Turn bulb sockets counterclockwise to
remove.8. Turn the appropriate bulb and socket assembly coun-
terclockwise to remove it from the tail light assembly.
1 — Tail/Stop Light Bulb 434 MAINTAINING YOUR VEHICLE

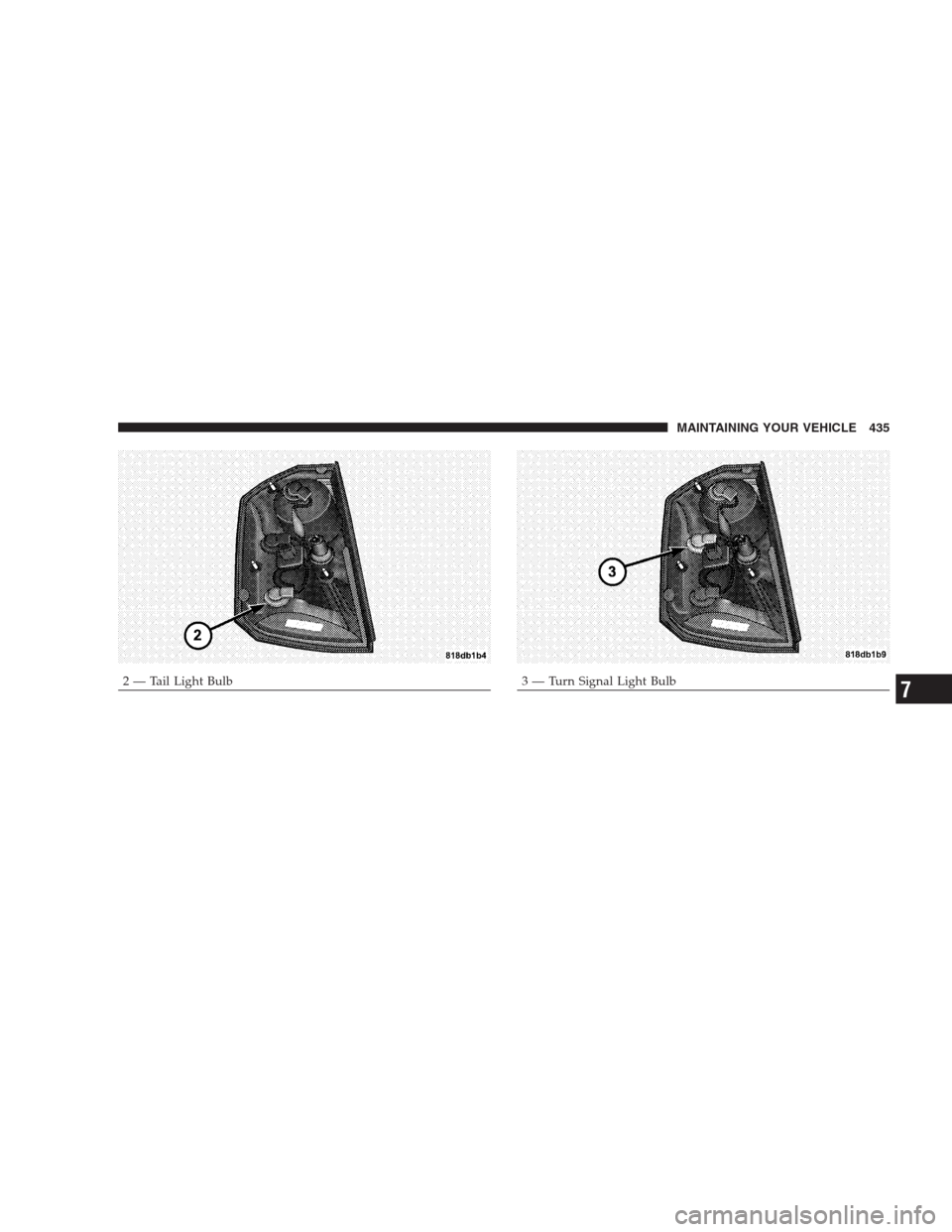

2 — Tail Light Bulb3 — Turn Signal Light BulbMAINTAINING YOUR VEHICLE 4357

9. Disconnect the bulb from the socket assembly and
install the replacement bulb.10. Reinstall the bulb and socket assembly into the tail
light assembly, and then turn it clockwise.
11. Reinstall the tail light assembly, fasteners, electrical
connector, and trunk liner.
12. Close the trunk.

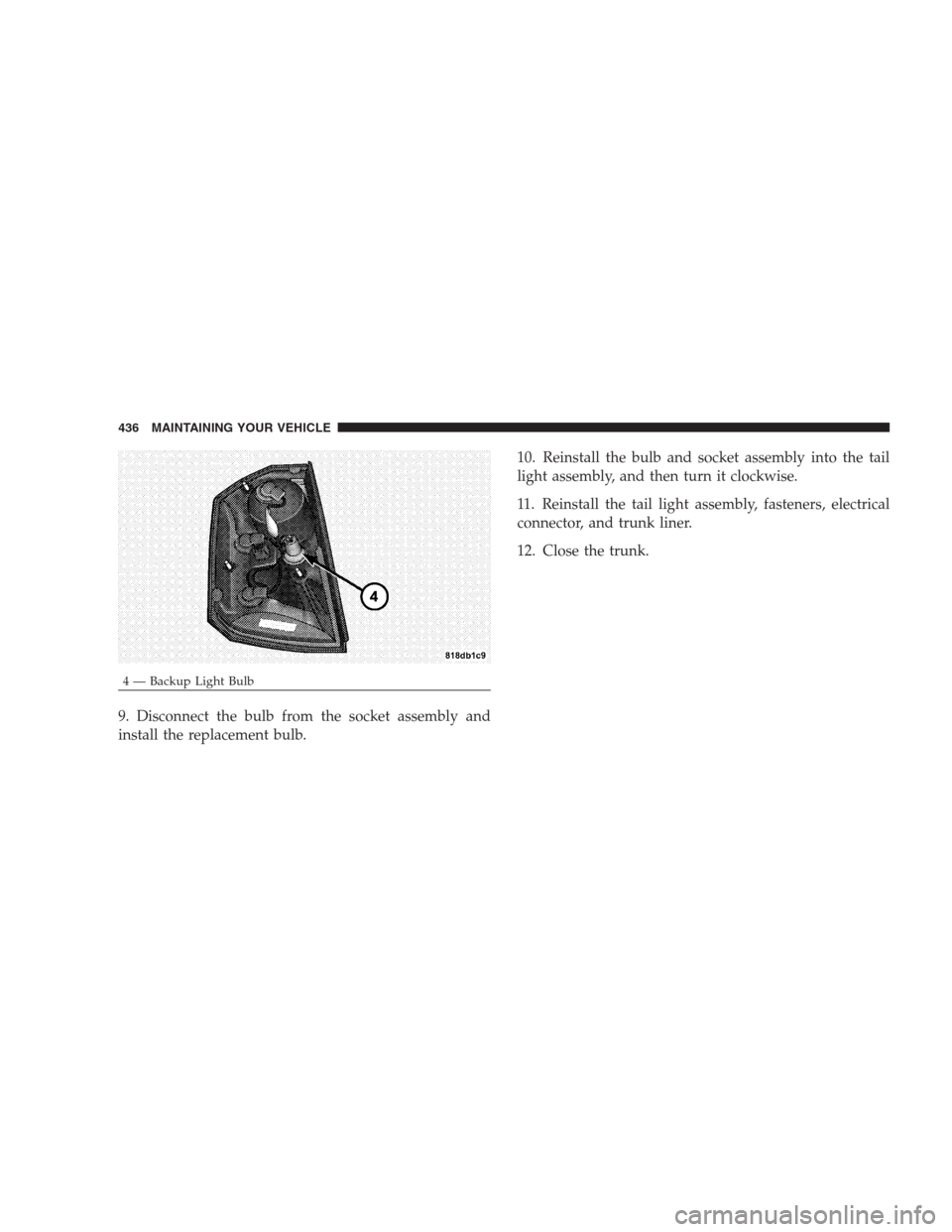

4 — Backup Light Bulb 436 MAINTAINING YOUR VEHICLE

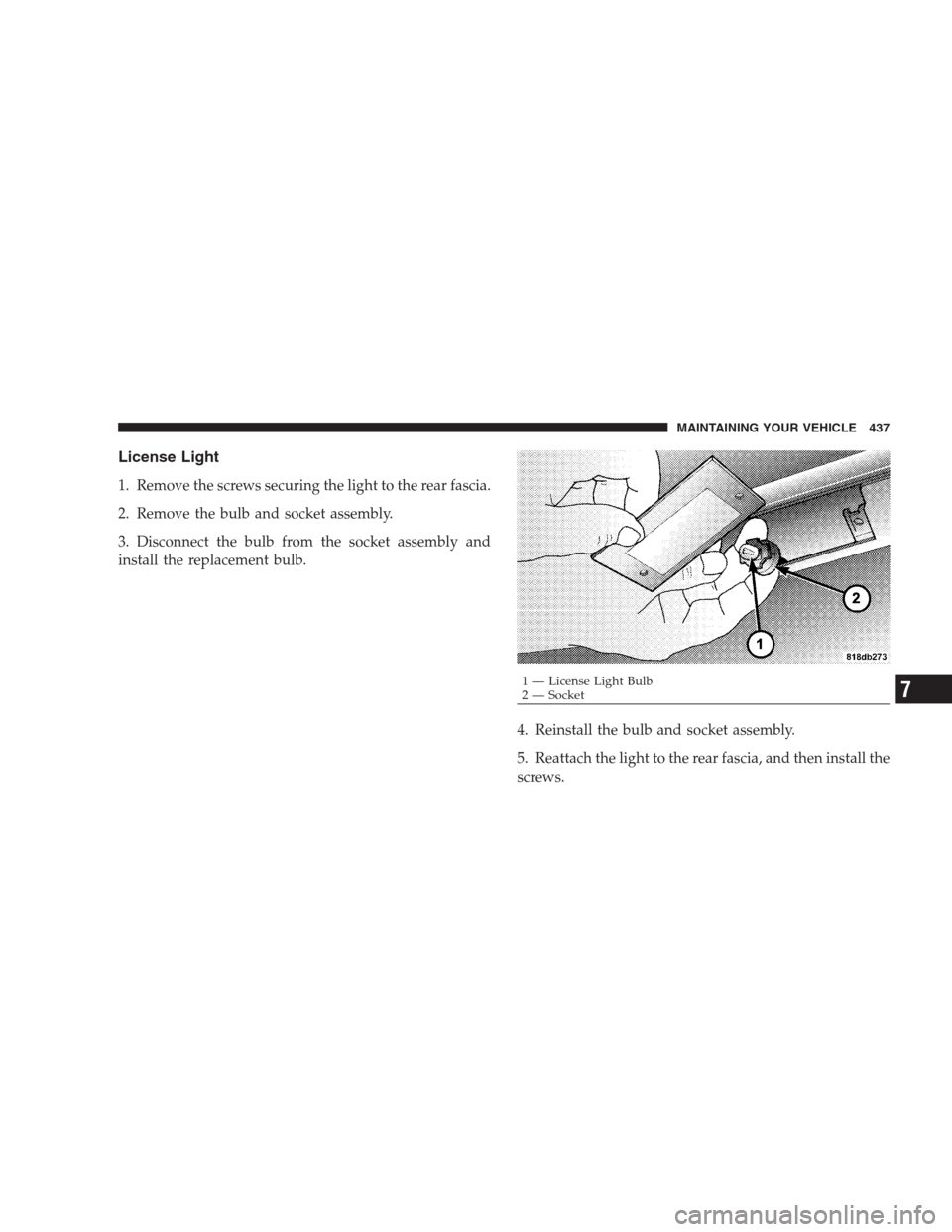

License Light
1. Remove the screws securing the light to the rear fascia.
2. Remove the bulb and socket assembly.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly.
5. Reattach the light to the rear fascia, and then install the
screws.
1 — License Light Bulb
2 — SocketMAINTAINING YOUR VEHICLE 4377

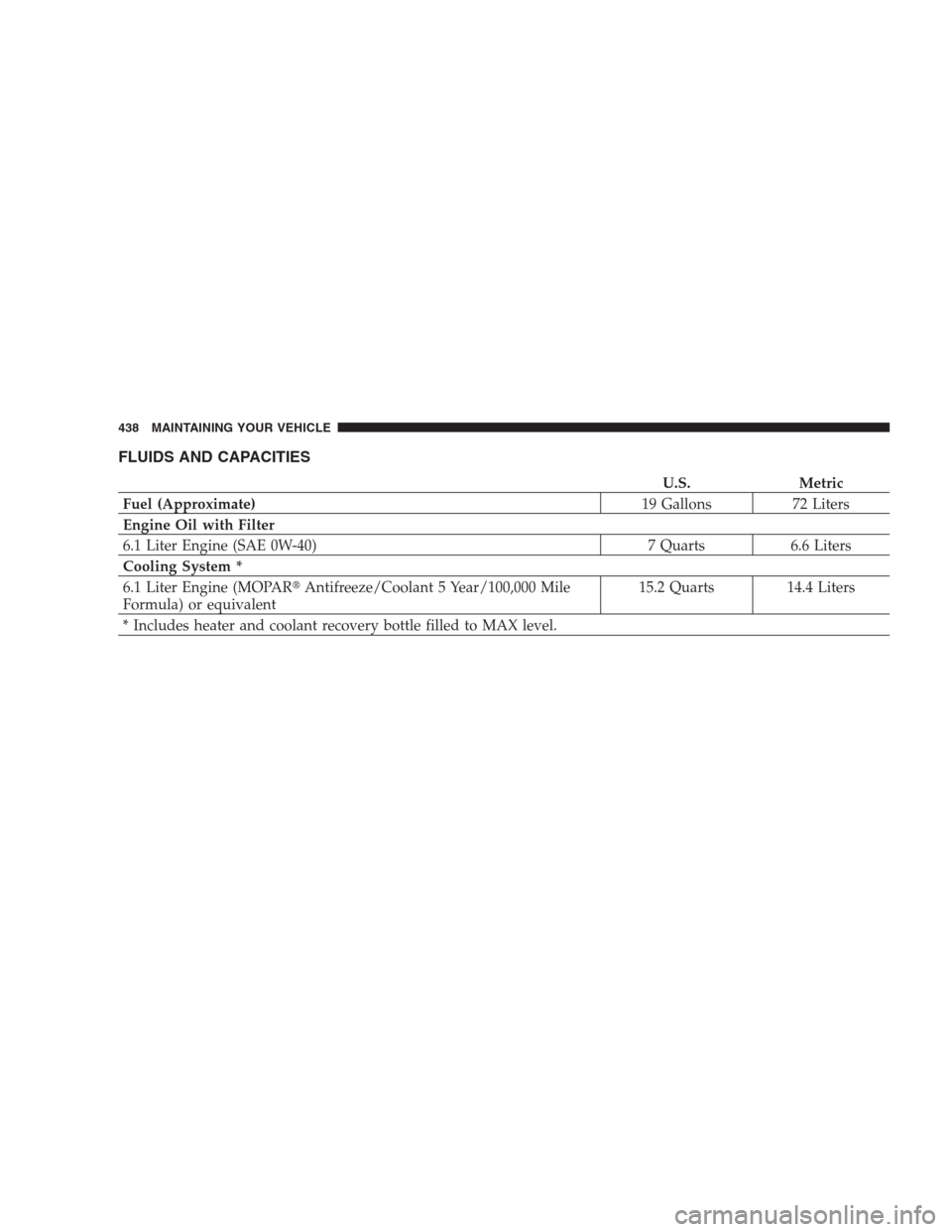

FLUIDS AND CAPACITIES
U.S. Metric
Fuel (Approximate)19 Gallons 72 Liters
Engine Oil with Filter
6.1 Liter Engine (SAE 0W-40) 7 Quarts 6.6 Liters
Cooling System *
6.1 Liter Engine (MOPARAntifreeze/Coolant 5 Year/100,000 Mile
Formula) or equivalent15.2 Quarts 14.4 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
438 MAINTAINING YOUR VEHICLE
