2009 CHRYSLER 300 SRT Owners Manual

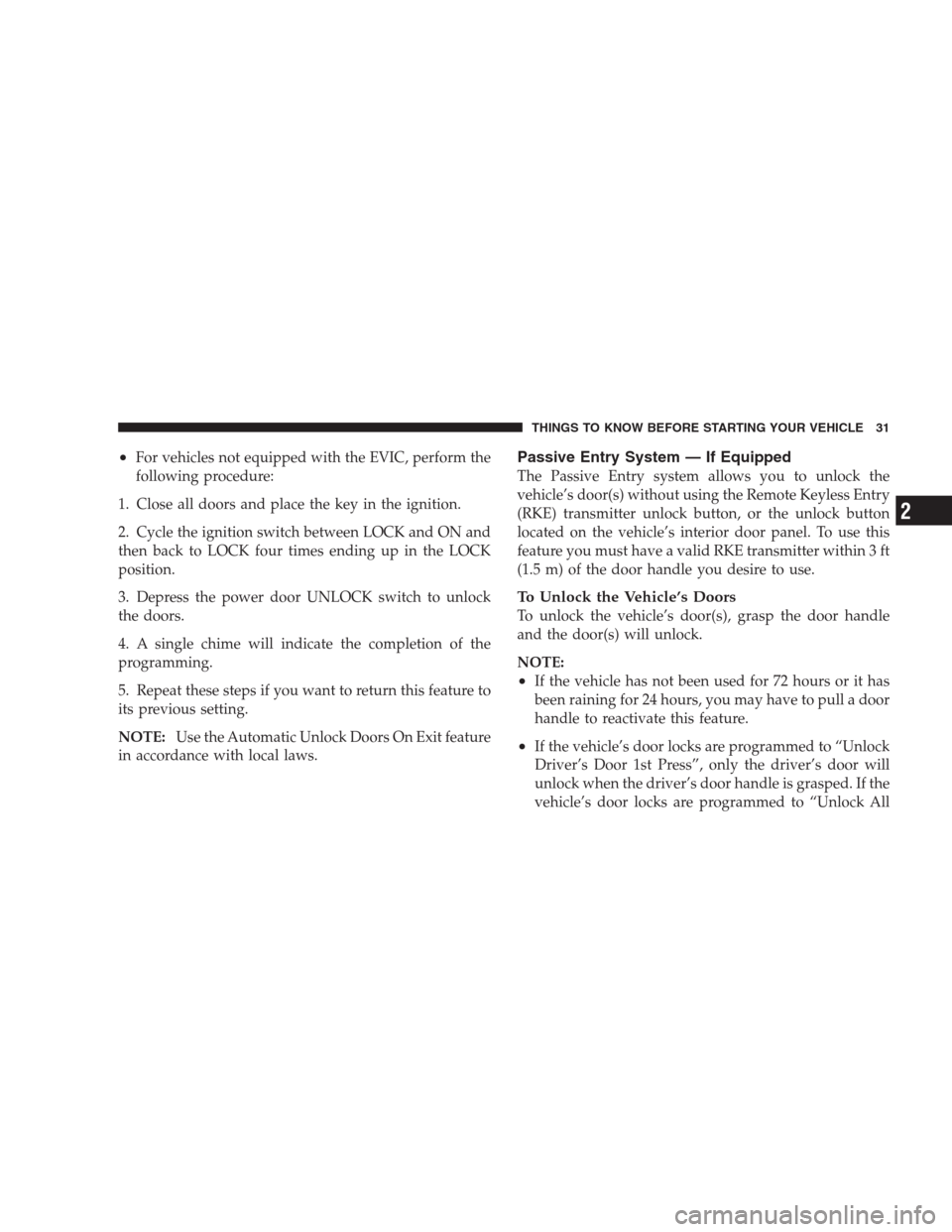

•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between LOCK and ON and
then back to LOCK four times ending up in the LOCK
position.
3. Depress the power door UNLOCK switch to unlock
the doors.
4. A single chime will indicate the completion of the
programming.
5. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Use the Automatic Unlock Doors On Exit feature
in accordance with local laws.Passive Entry System — If Equipped
The Passive Entry system allows you to unlock the
vehicle’s door(s) without using the Remote Keyless Entry
(RKE) transmitter unlock button, or the unlock button
located on the vehicle’s interior door panel. To use this
feature you must have a valid RKE transmitter within 3 ft
(1.5 m) of the door handle you desire to use.
To Unlock the Vehicle’s Doors
To unlock the vehicle’s door(s), grasp the door handle
and the door(s) will unlock.
NOTE:
•If the vehicle has not been used for 72 hours or it has
been raining for 24 hours, you may have to pull a door
handle to reactivate this feature.
•If the vehicle’s door locks are programmed to “Unlock
Driver’s Door 1st Press”, only the driver’s door will
unlock when the driver’s door handle is grasped. If the
vehicle’s door locks are programmed to “Unlock All
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2

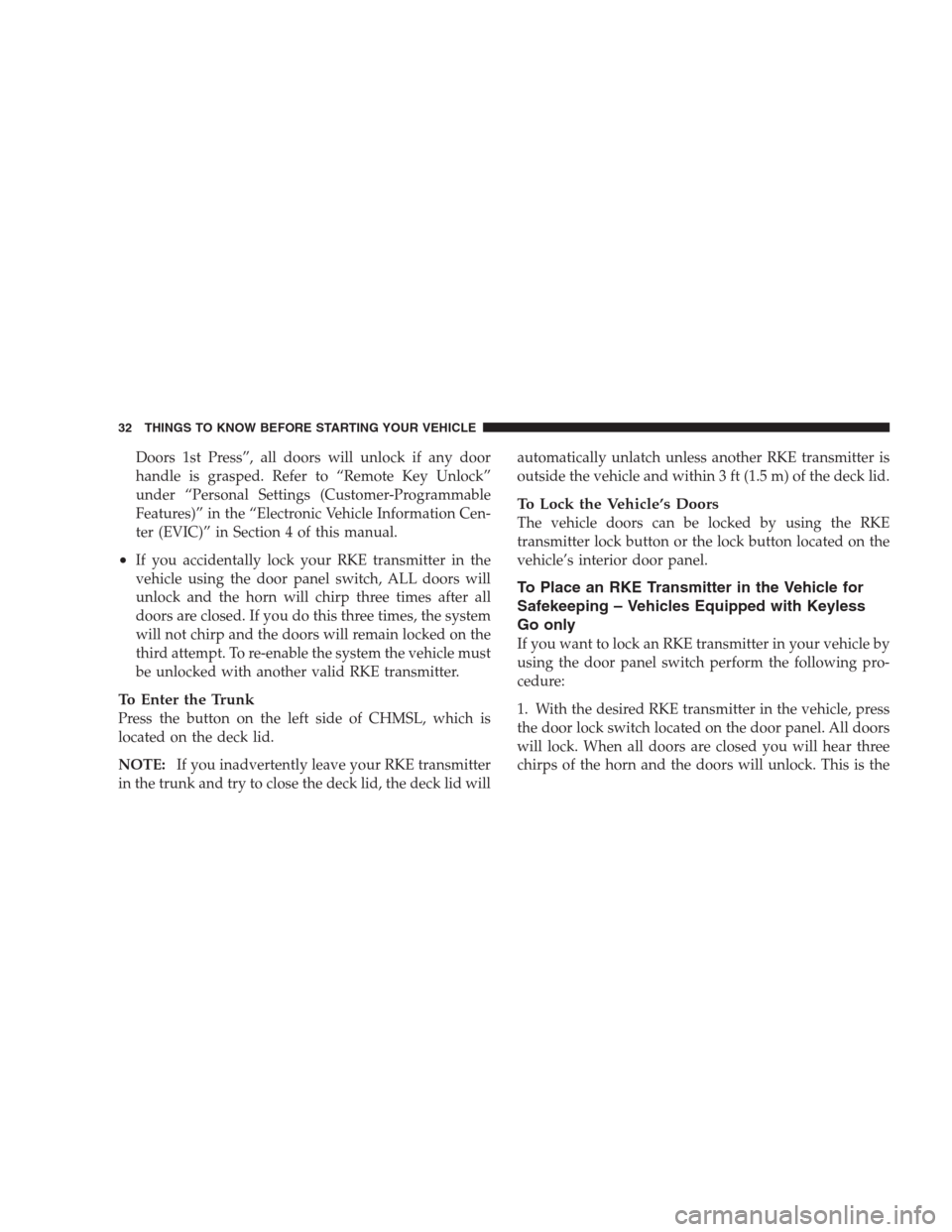

Doors 1st Press”, all doors will unlock if any door
handle is grasped. Refer to “Remote Key Unlock”
under “Personal Settings (Customer-Programmable
Features)” in the “Electronic Vehicle Information Cen-
ter (EVIC)” in Section 4 of this manual.
•If you accidentally lock your RKE transmitter in the
vehicle using the door panel switch, ALL doors will
unlock and the horn will chirp three times after all
doors are closed. If you do this three times, the system
will not chirp and the doors will remain locked on the
third attempt. To re-enable the system the vehicle must
be unlocked with another valid RKE transmitter.
To Enter the Trunk
Press the button on the left side of CHMSL, which is
located on the deck lid.
NOTE:If you inadvertently leave your RKE transmitter
in the trunk and try to close the deck lid, the deck lid willautomatically unlatch unless another RKE transmitter is
outside the vehicle and within 3 ft (1.5 m) of the deck lid.
To Lock the Vehicle’s Doors
The vehicle doors can be locked by using the RKE
transmitter lock button or the lock button located on the
vehicle’s interior door panel.
To Place an RKE Transmitter in the Vehicle for
Safekeeping – Vehicles Equipped with Keyless
Go only
If you want to lock an RKE transmitter in your vehicle by
using the door panel switch perform the following pro-
cedure:
1. With the desired RKE transmitter in the vehicle, press
the door lock switch located on the door panel. All doors
will lock. When all doors are closed you will hear three
chirps of the horn and the doors will unlock. This is the
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

same lock/unlock and chirping sound that you would
experience if you accidentally locked your RKE transmit-
ter in the vehicle.
2. Open the door and repeat Step 1 two more times (three
times total). The doors will remain locked; no audible
warnings will occur.
NOTE:Any RKE transmitter that is locked in the
vehicle either by a passive lock, another RKE lock, or the
door panel lock switch will be disabled from Keyless Go.
The disabled RKE transmitter(s) will be re-enabled after a
passive unlock or RKE unlock.
Child Protection Door Lock
To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with a Child
Protection Door Lock system.
To Engage the Child Protection Door Lock System
1. Open the rear door.2. Insert the tip of the valet key (or alike) into the child
lock control and pull it upward.
NOTE:For valet key information, refer to “A Word
About Your Keys” in this section.
3. Repeat Steps 1 and 2 for the opposite rear door.
Child Lock Control
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2

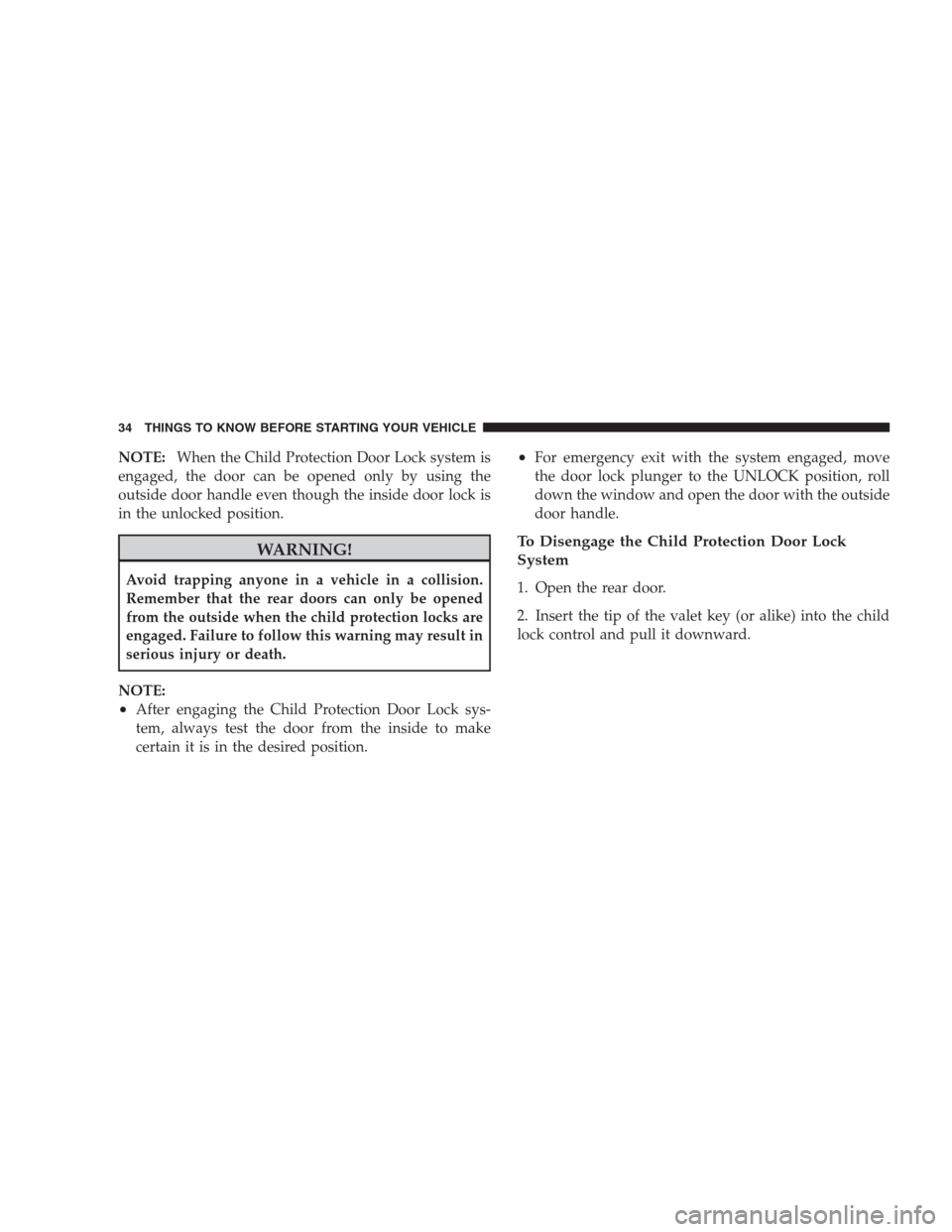

NOTE:When the Child Protection Door Lock system is
engaged, the door can be opened only by using the
outside door handle even though the inside door lock is
in the unlocked position.
WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the child protection locks are
engaged. Failure to follow this warning may result in
serious injury or death.
NOTE:
•After engaging the Child Protection Door Lock sys-
tem, always test the door from the inside to make
certain it is in the desired position.
•For emergency exit with the system engaged, move
the door lock plunger to the UNLOCK position, roll
down the window and open the door with the outside
door handle.
To Disengage the Child Protection Door Lock
System
1. Open the rear door.
2. Insert the tip of the valet key (or alike) into the child
lock control and pull it downward.
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Repeat Steps 1 and 2 for the opposite rear door.
NOTE:After disengaging the Child Protection Door
Lock system, always test the door from the inside to
make certain it is in the desired position.
WINDOWS
Power Windows
The window controls on the driver’s door control all the
door windows.

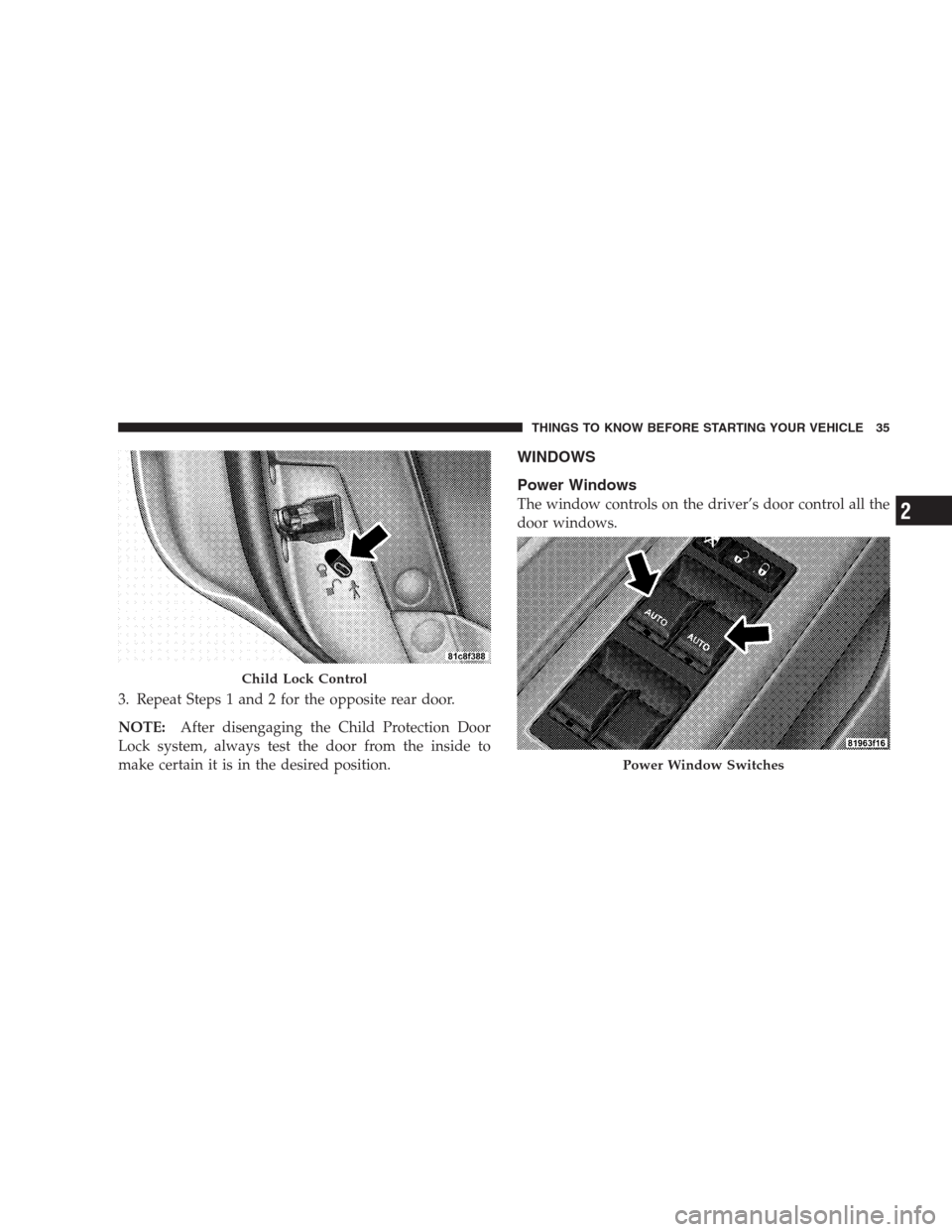

Child Lock Control
Power Window Switches
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2

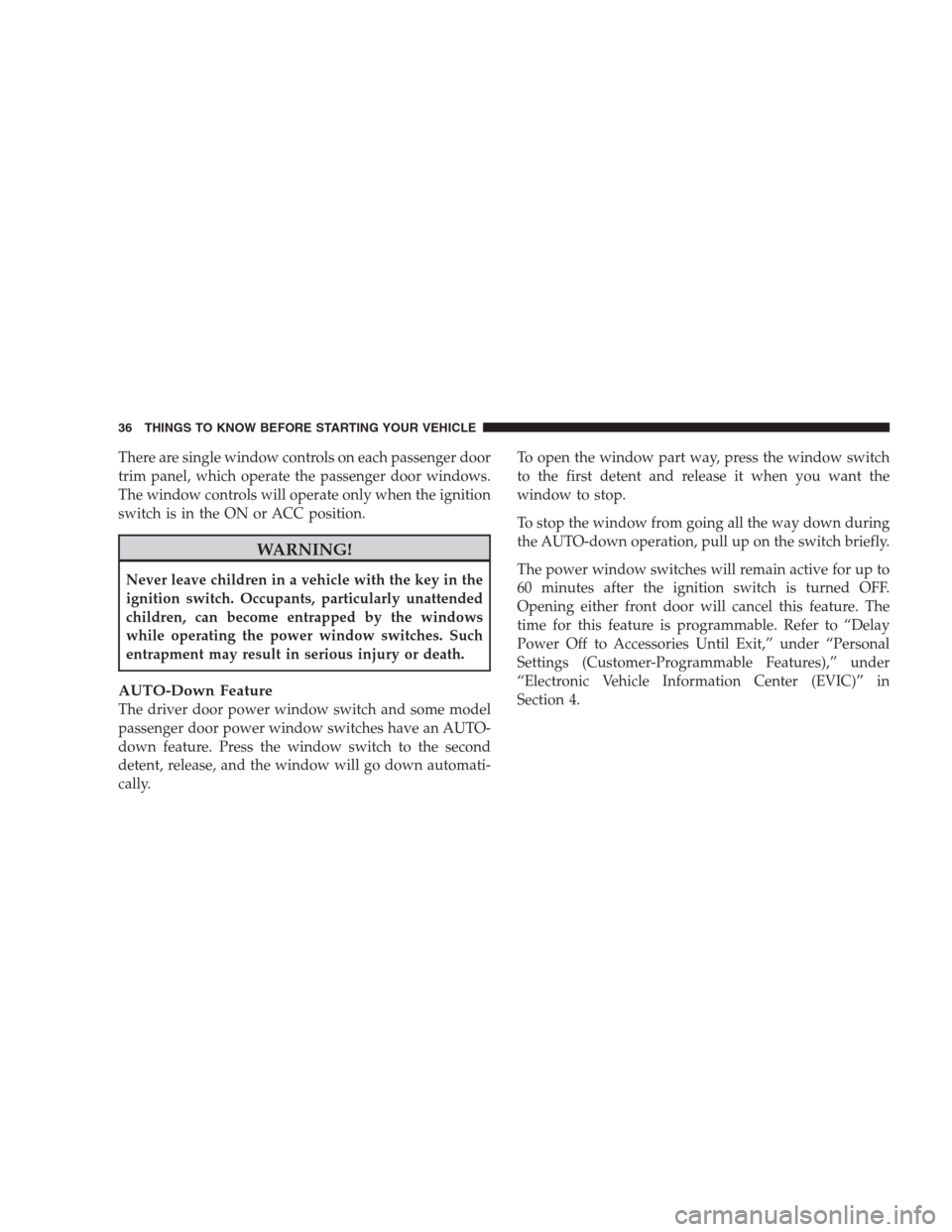

There are single window controls on each passenger door
trim panel, which operate the passenger door windows.
The window controls will operate only when the ignition
switch is in the ON or ACC position.
WARNING!
Never leave children in a vehicle with the key in the
ignition switch. Occupants, particularly unattended
children, can become entrapped by the windows
while operating the power window switches. Such
entrapment may result in serious injury or death.
AUTO-Down Feature
The driver door power window switch and some model
passenger door power window switches have an AUTO-
down feature. Press the window switch to the second
detent, release, and the window will go down automati-
cally.To open the window part way, press the window switch
to the first detent and release it when you want the
window to stop.
To stop the window from going all the way down during
the AUTO-down operation, pull up on the switch briefly.
The power window switches will remain active for up to
60 minutes after the ignition switch is turned OFF.
Opening either front door will cancel this feature. The
time for this feature is programmable. Refer to “Delay
Power Off to Accessories Until Exit,” under “Personal
Settings (Customer-Programmable Features),” under
“Electronic Vehicle Information Center (EVIC)” in
Section 4.
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

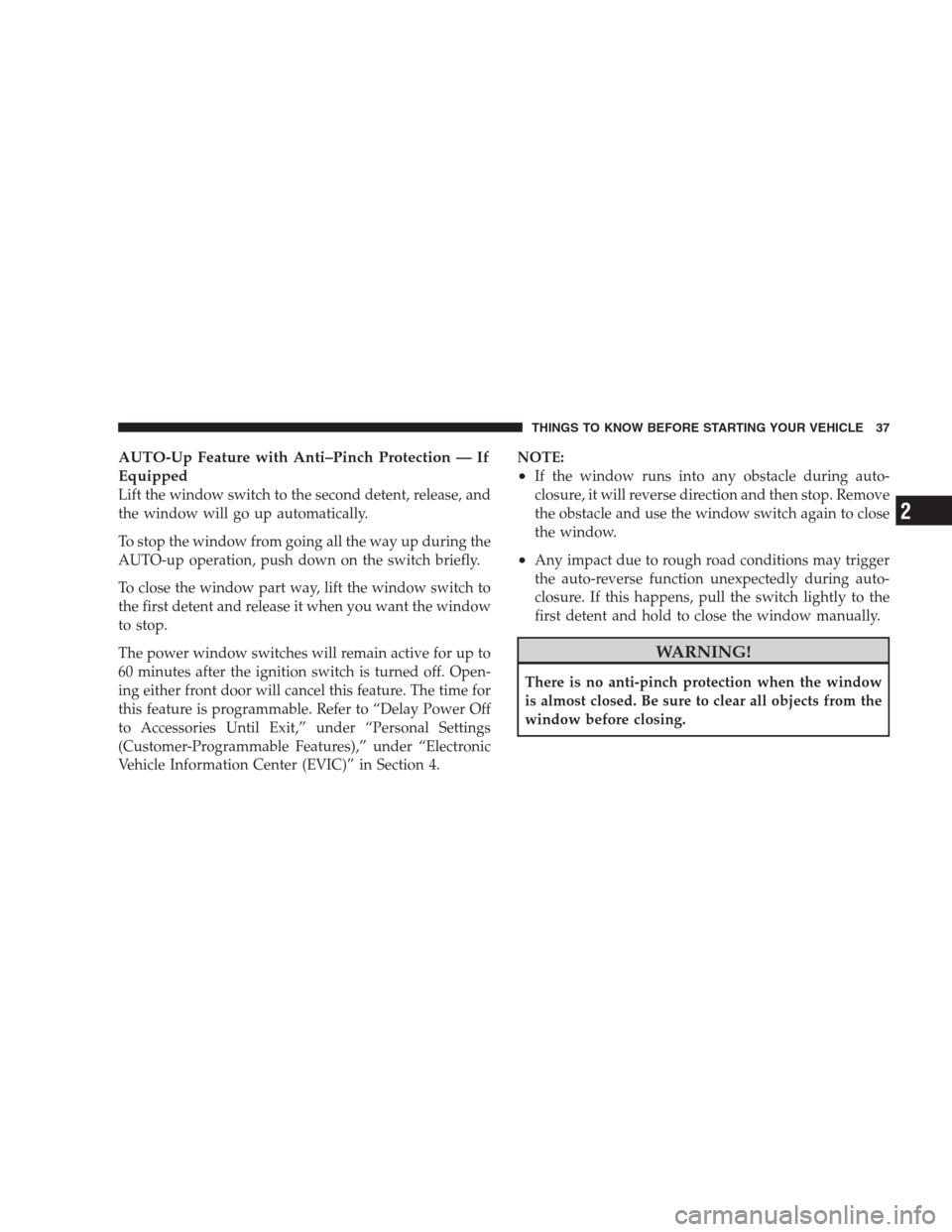

AUTO-Up Feature with Anti–Pinch Protection — If
Equipped
Lift the window switch to the second detent, release, and
the window will go up automatically.
To stop the window from going all the way up during the
AUTO-up operation, push down on the switch briefly.
To close the window part way, lift the window switch to
the first detent and release it when you want the window
to stop.
The power window switches will remain active for up to
60 minutes after the ignition switch is turned off. Open-
ing either front door will cancel this feature. The time for
this feature is programmable. Refer to “Delay Power Off
to Accessories Until Exit,” under “Personal Settings
(Customer-Programmable Features),” under “Electronic
Vehicle Information Center (EVIC)” in Section 4.NOTE:
•If the window runs into any obstacle during auto-
closure, it will reverse direction and then stop. Remove
the obstacle and use the window switch again to close
the window.
•Any impact due to rough road conditions may trigger
the auto-reverse function unexpectedly during auto-
closure. If this happens, pull the switch lightly to the
first detent and hold to close the window manually.
WARNING!
There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
2

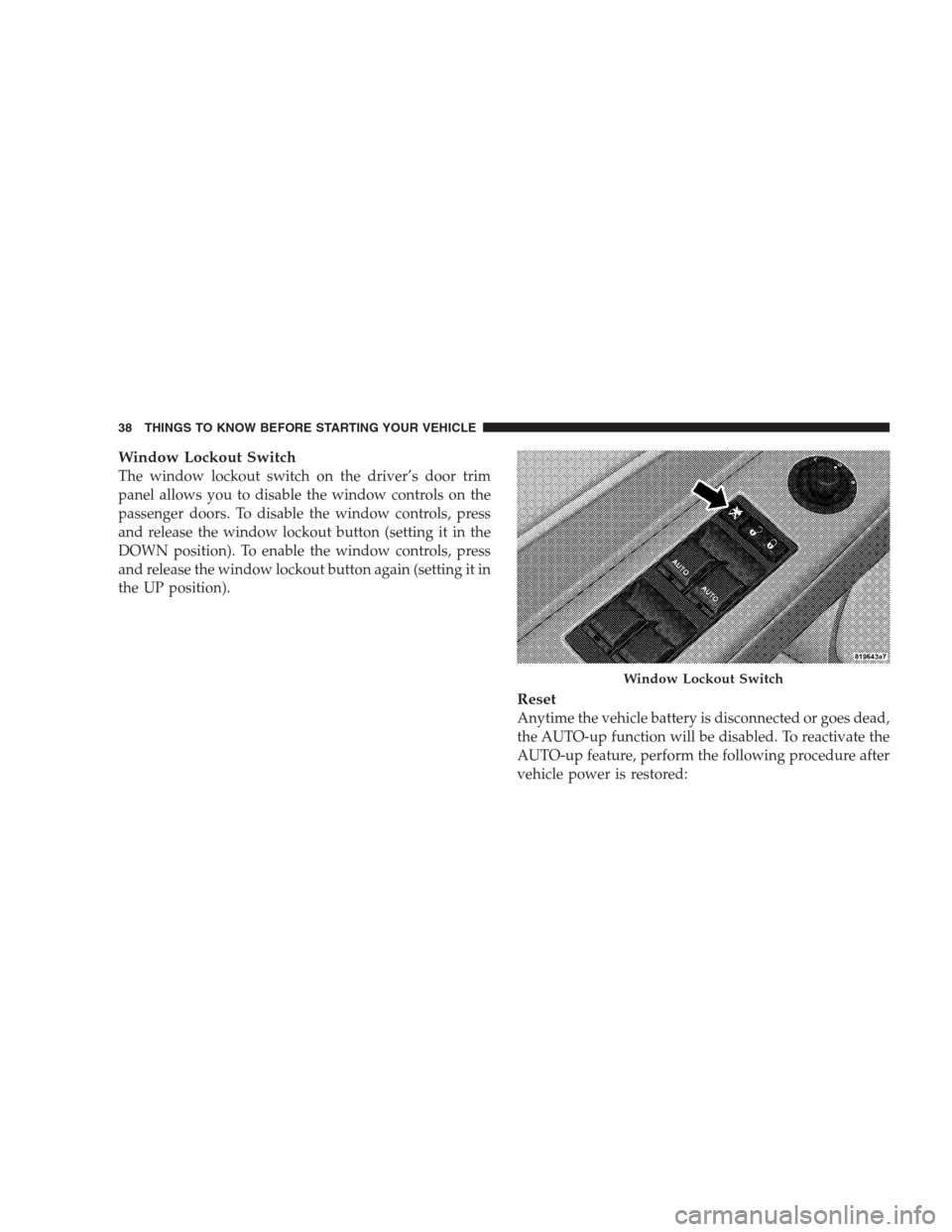

Window Lockout Switch
The window lockout switch on the driver’s door trim
panel allows you to disable the window controls on the
passenger doors. To disable the window controls, press
and release the window lockout button (setting it in the
DOWN position). To enable the window controls, press
and release the window lockout button again (setting it in
the UP position).
Reset
Anytime the vehicle battery is disconnected or goes dead,
the AUTO-up function will be disabled. To reactivate the
AUTO-up feature, perform the following procedure after
vehicle power is restored:
Window Lockout Switch
