UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features............... 203
Premium Instrument Cluster............. 204
Instrument Cluster Descriptions........... 205
Electronic Vehicle Information Center (EVIC) . . 214
▫Electronic Vehicle Information Center (EVIC)
Displays........................... 216
▫Trip Functions...................... 220
▫Performance Pages — If Equipped........ 222
▫Keyless Go Display — If Equipped........ 226▫Compass Display.................... 226
▫Navigation — If Equipped.............. 228
▫Driver-Selectable Surround Sound (DSS) –
If Equipped........................ 229
▫System Warnings (Customer Information
Features).......................... 230
▫Personal Settings (Customer-Programmable
Features).......................... 230
Setting The Analog Clock................ 2354

Sales Code REQ — AM/FM Stereo Radio And
6–Disc CD/DVD Changer (MP3/WMA AUX
Jack)............................... 236
▫Operating Instructions - Radio Mode...... 236
▫Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 244
▫Notes On Playing MP3/WMA Files....... 246
▫List Button (Disc Mode For MP3/WMA
Play)............................. 249
▫Info Button (Disc Mode For MP3/WMA
Play)............................. 249
AM/FM/CD/DVD Multimedia System Radio
(RER/REN) – If Equipped................ 252
▫Operating Instructions — Voice Recognition
System (VR) — If Equipped............. 252▫Operating Instructions — Hands-Free
Communication (UConnect)—
If Equipped........................ 252
▫Clock Setting Procedure............... 252
Sales Code RES — AM/FM Stereo Radio With
CD Player (MP3 AUX Jack)............... 255
▫Operating Instructions — Radio Mode..... 255
▫Operation Instructions — CD Mode For CD
And MP3 Audio Play................. 258
▫Notes On Playing MP3 Files............ 260
▫Operation Instructions - Auxiliary Mode.... 263
Sales Code RES/RSC — AM/FM Stereo Radio
With CD Player (MP3 AUX Jack) And Sirius
Radio............................... 263
▫Operating Instructions — Radio Mode..... 264
200 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Operation Instructions — CD Mode For CD
And MP3 Audio Play................. 269
▫Notes On Playing MP3 Files............ 271
▫List Button (CD Mode For MP3 Play)...... 274
▫Info Button (CD Mode For MP3 Play)...... 274
Universal Consumer Interface (UCI) —
If Equipped.......................... 276
▫Connecting The iPod................. 276
▫Using This Feature................... 277
▫Controlling The iPodUsing Radio
Buttons........................... 277
▫Play Mode......................... 277
▫List Or Browse Mode................. 279Satellite Radio — If Equipped
(REN/REQ/RER/RES/REU Radios Only)..... 281
▫System Activation.................... 281
▫Electronic Serial Number/Sirius
Identification Number (ESN/SID)......... 281
▫Selecting Satellite Mode................ 282
▫Satellite Antenna..................... 282
▫Reception Quality.................... 282
▫Operating Instructions — Satellite Mode.... 283
▫Operating Instructions — Hands-Free Phone
(If Equipped)....................... 286
▫Operating Instructions — Video
Entertainment System (VES)™
(If Equipped)....................... 286
UNDERSTANDING YOUR INSTRUMENT PANEL 201
4

KickerHigh Performance Sound System With
Driver-Selectable Surround (DSS) –
If Equipped.......................... 286
Sirius Backseat TV™ — If Equipped........ 287
Video Entertainment System (VES)™ —
If Equipped.......................... 288
▫KickerMobile Surround (KMS1)–
If Equipped........................ 290Remote Sound System Controls —
If Equipped.......................... 291
CD/DVD Maintenance................. 292
Radio Operation And Cellular Phones....... 293
Climate Controls...................... 293
▫Automatic Temperature Control.......... 294
▫Operating Tips...................... 299
202 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 - Air Outlet 7 - Radio 13 - Ignition Switch
2 - Instrument Cluster 8 - Climate Control 14 - Hood Release
3 - HAZARD Switch 9 - HEATED SEAT Switch* 15 - TRUNK RELEASE Switch
4 - Analog Clock 10 - Power Outlet 16 - HEADLIGHT Switch
5 - Electronic Stability Program OFF Button* 11 - Ash Tray* * If Equipped
6 - Glove Compartment 12 - Storage Compartment*UNDERSTANDING YOUR INSTRUMENT PANEL 203
4

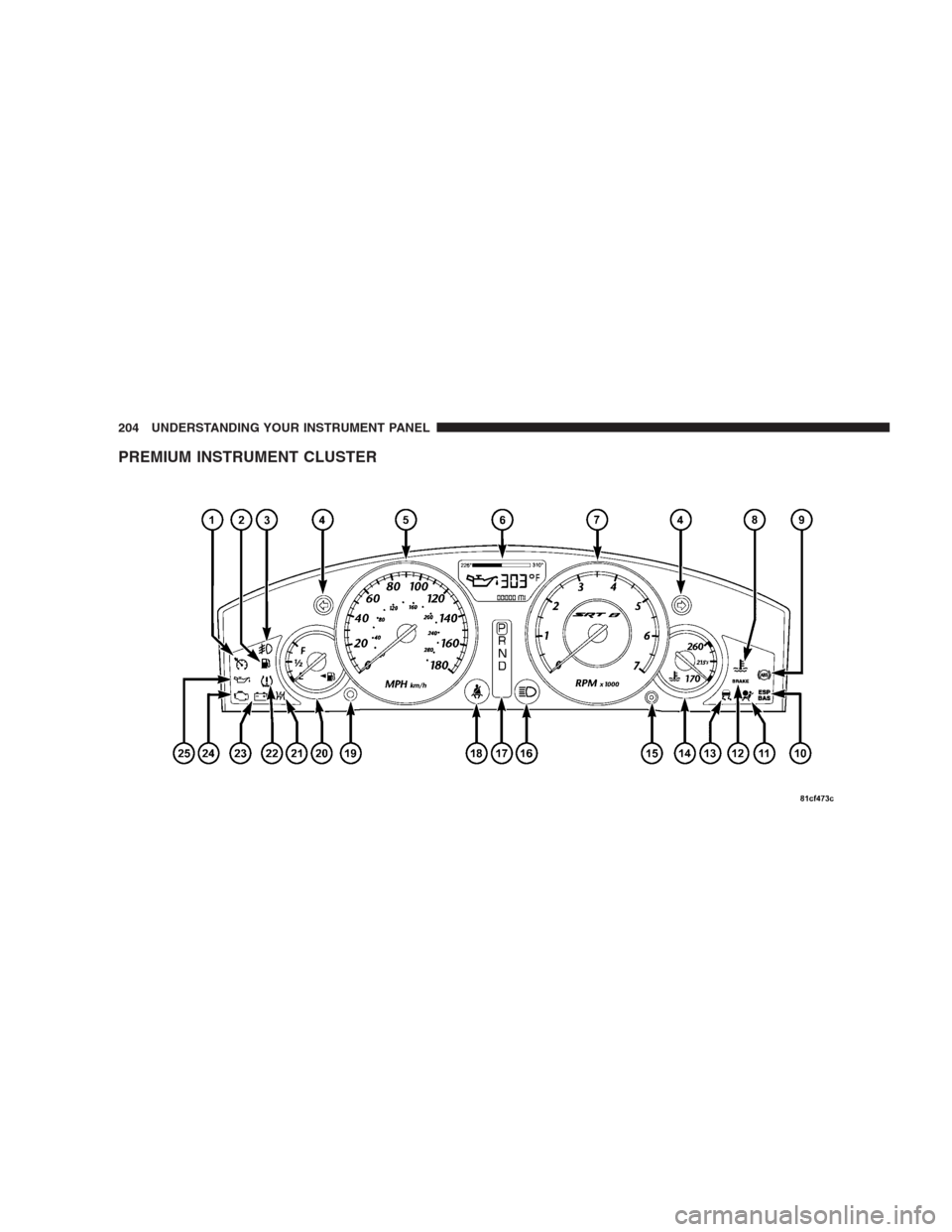

PREMIUM INSTRUMENT CLUSTER
204 UNDERSTANDING YOUR INSTRUMENT PANEL

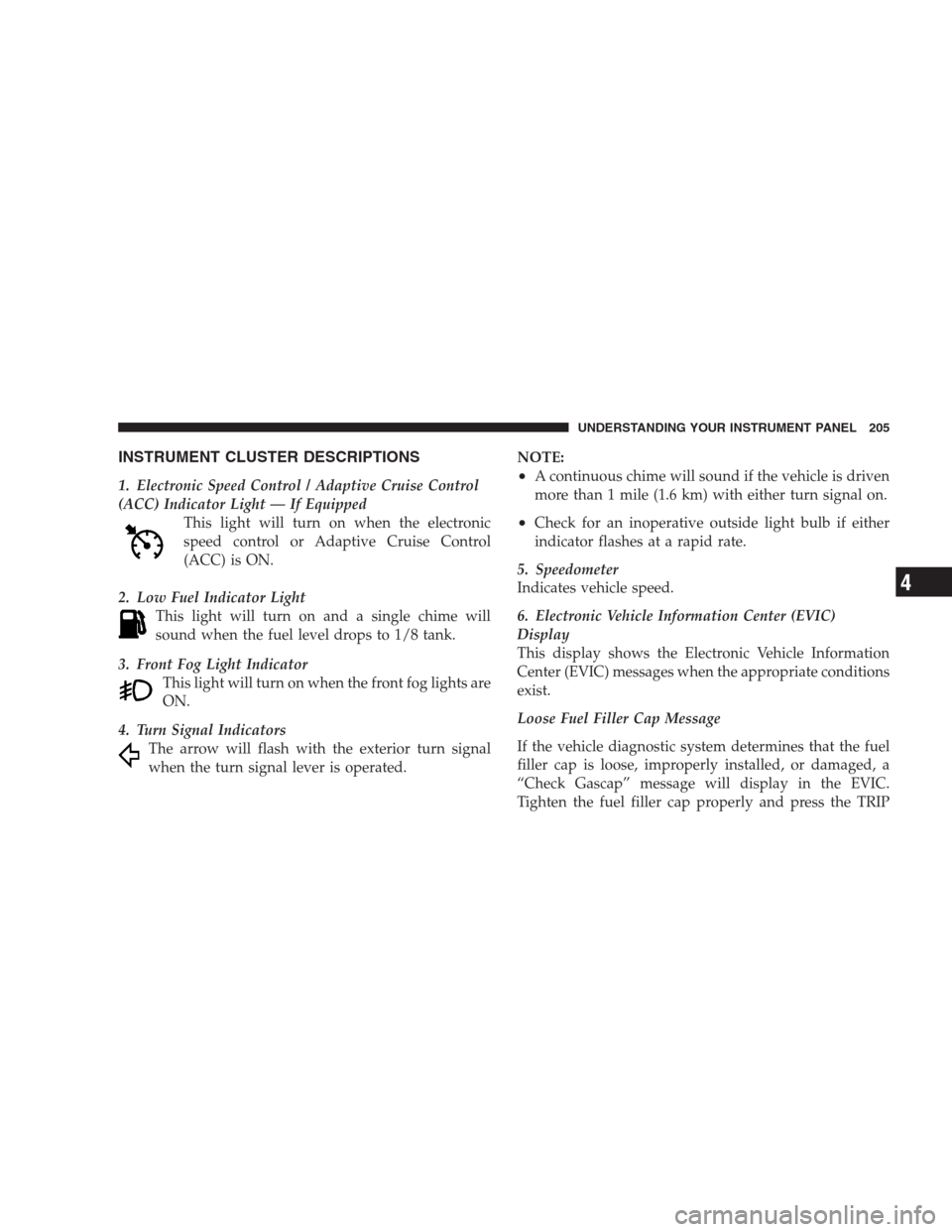

INSTRUMENT CLUSTER DESCRIPTIONS
1. Electronic Speed Control / Adaptive Cruise Control
(ACC) Indicator Light — If Equipped
This light will turn on when the electronic
speed control or Adaptive Cruise Control
(ACC) is ON.
2. Low Fuel Indicator Light
This light will turn on and a single chime will
sound when the fuel level drops to 1/8 tank.
3. Front Fog Light Indicator
This light will turn on when the front fog lights are
ON.
4. Turn Signal Indicators
The arrow will flash with the exterior turn signal
when the turn signal lever is operated.NOTE:•A continuous chime will sound if the vehicle is driven
more than 1 mile (1.6 km) with either turn signal on.
•Check for an inoperative outside light bulb if either
indicator flashes at a rapid rate.
5. Speedometer
Indicates vehicle speed.
6. Electronic Vehicle Information Center (EVIC)
Display
This display shows the Electronic Vehicle Information
Center (EVIC) messages when the appropriate conditions
exist.
Loose Fuel Filler Cap Message
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
“Check Gascap” message will display in the EVIC.
Tighten the fuel filler cap properly and press the TRIP
UNDERSTANDING YOUR INSTRUMENT PANEL 205
4

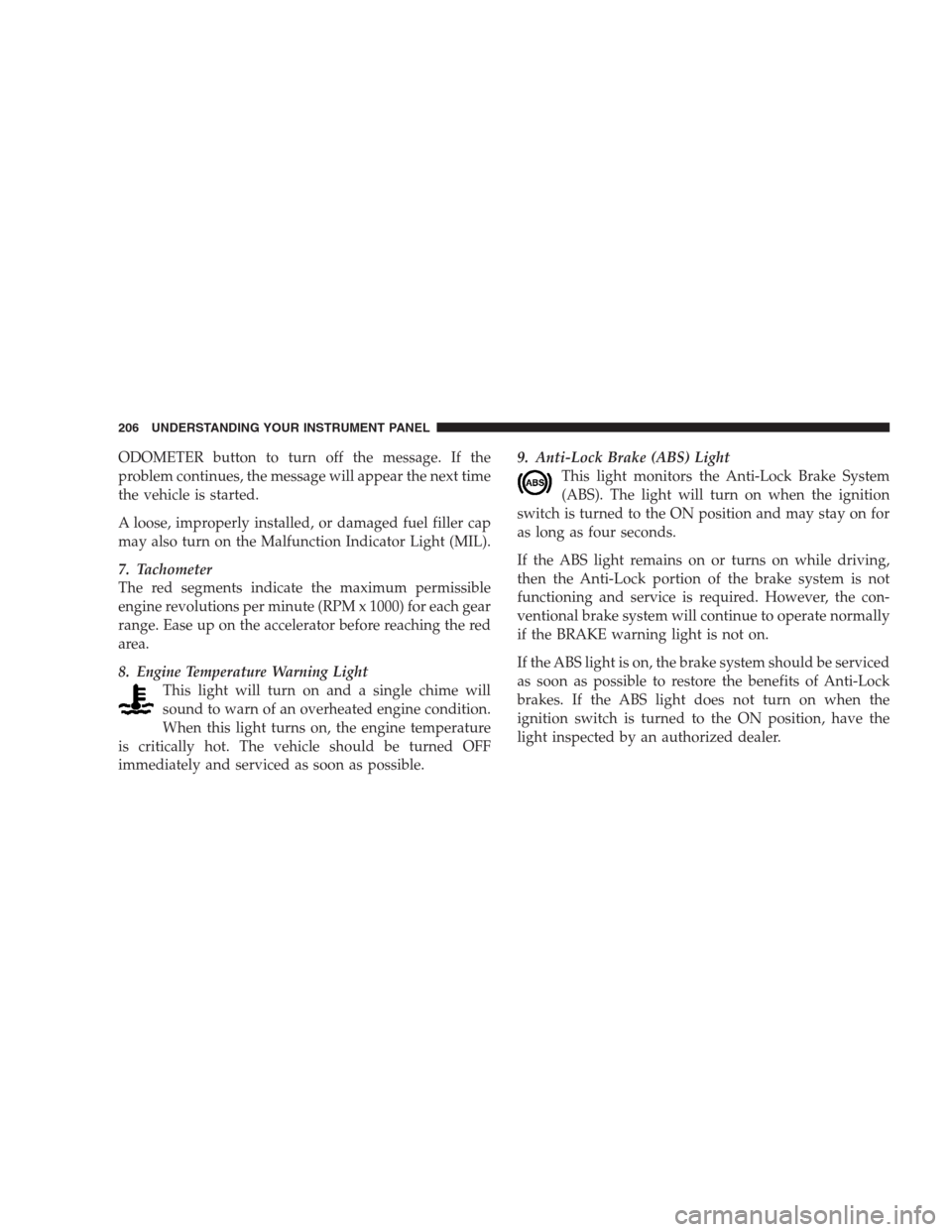

ODOMETER button to turn off the message. If the
problem continues, the message will appear the next time
the vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the Malfunction Indicator Light (MIL).
7. Tachometer
The red segments indicate the maximum permissible
engine revolutions per minute (RPM x 1000) for each gear
range. Ease up on the accelerator before reaching the red
area.
8. Engine Temperature Warning Light
This light will turn on and a single chime will
sound to warn of an overheated engine condition.
When this light turns on, the engine temperature
is critically hot. The vehicle should be turned OFF
immediately and serviced as soon as possible.9. Anti-Lock Brake (ABS) Light
This light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON position and may stay on for
as long as four seconds.
If the ABS light remains on or turns on while driving,
then the Anti-Lock portion of the brake system is not
functioning and service is required. However, the con-
ventional brake system will continue to operate normally
if the BRAKE warning light is not on.
If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefits of Anti-Lock
brakes. If the ABS light does not turn on when the
ignition switch is turned to the ON position, have the
light inspected by an authorized dealer.
206 UNDERSTANDING YOUR INSTRUMENT PANEL
