2009 CHRYSLER 300 SRT immobilizer

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys................. 12
▫Wireless Ignition Node (WIN)............ 12
▫FOB With Integrated Key............... 13
▫Ignition Key Removal.................. 14
▫Key-In-Ignition Reminder............... 14
Sentry KeyImmobilizer System........... 15
▫Replacement Keys..................... 16
▫Customer Key Programming............. 17
▫General Information................... 18Vehicle Security Alarm System — If Equipped . . 18
▫Rearming Of The System................ 18
▫To Arm The System................... 18
▫To Disarm The System................. 19
Illuminated Entry System................. 20
Remote Keyless Entry (RKE).............. 20
▫To Unlock The Doors.................. 21
▫To Lock The Doors.................... 22
▫To Unlatch The Trunk.................. 22
2

NOTE:The Key-In-Ignition reminder only sounds
when the ignition key is placed in the LOCK or ACC
position.
SENTRY KEYIMMOBILIZER SYSTEM
The Sentry KeyImmobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if an invalid RKE transmitter is used to start the
engine.After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check,
it indicates that someone used an invalid RKE transmitter
to start the engine. Either of these conditions will result in
the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible.
NOTE:
•The Sentry KeyImmobilizer system is not compatible
with aftermarket remote starting systems. Use of these
systems may result in vehicle starting problems and
loss of security protection.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

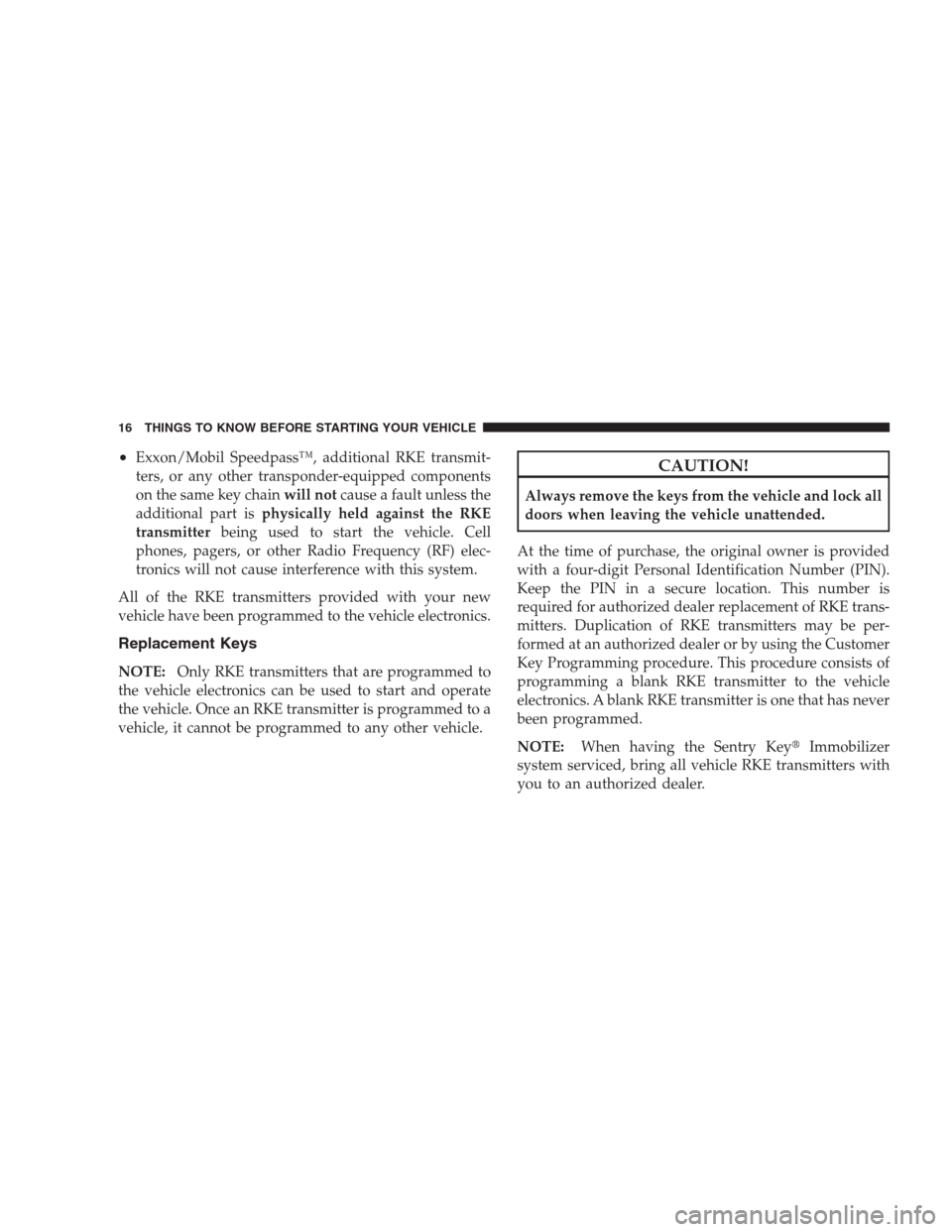

•Exxon/Mobil Speedpass™, additional RKE transmit-
ters, or any other transponder-equipped components
on the same key chainwill notcause a fault unless the
additional part isphysically held against the RKE
transmitterbeing used to start the vehicle. Cell
phones, pagers, or other Radio Frequency (RF) elec-
tronics will not cause interference with this system.
All of the RKE transmitters provided with your new
vehicle have been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only RKE transmitters that are programmed to
the vehicle electronics can be used to start and operate
the vehicle. Once an RKE transmitter is programmed to a
vehicle, it cannot be programmed to any other vehicle.
CAUTION!
Always remove the keys from the vehicle and lock all
doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of RKE trans-
mitters. Duplication of RKE transmitters may be per-
formed at an authorized dealer or by using the Customer
Key Programming procedure. This procedure consists of
programming a blank RKE transmitter to the vehicle
electronics. A blank RKE transmitter is one that has never
been programmed.
NOTE:When having the Sentry KeyImmobilizer
system serviced, bring all vehicle RKE transmitters with
you to an authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

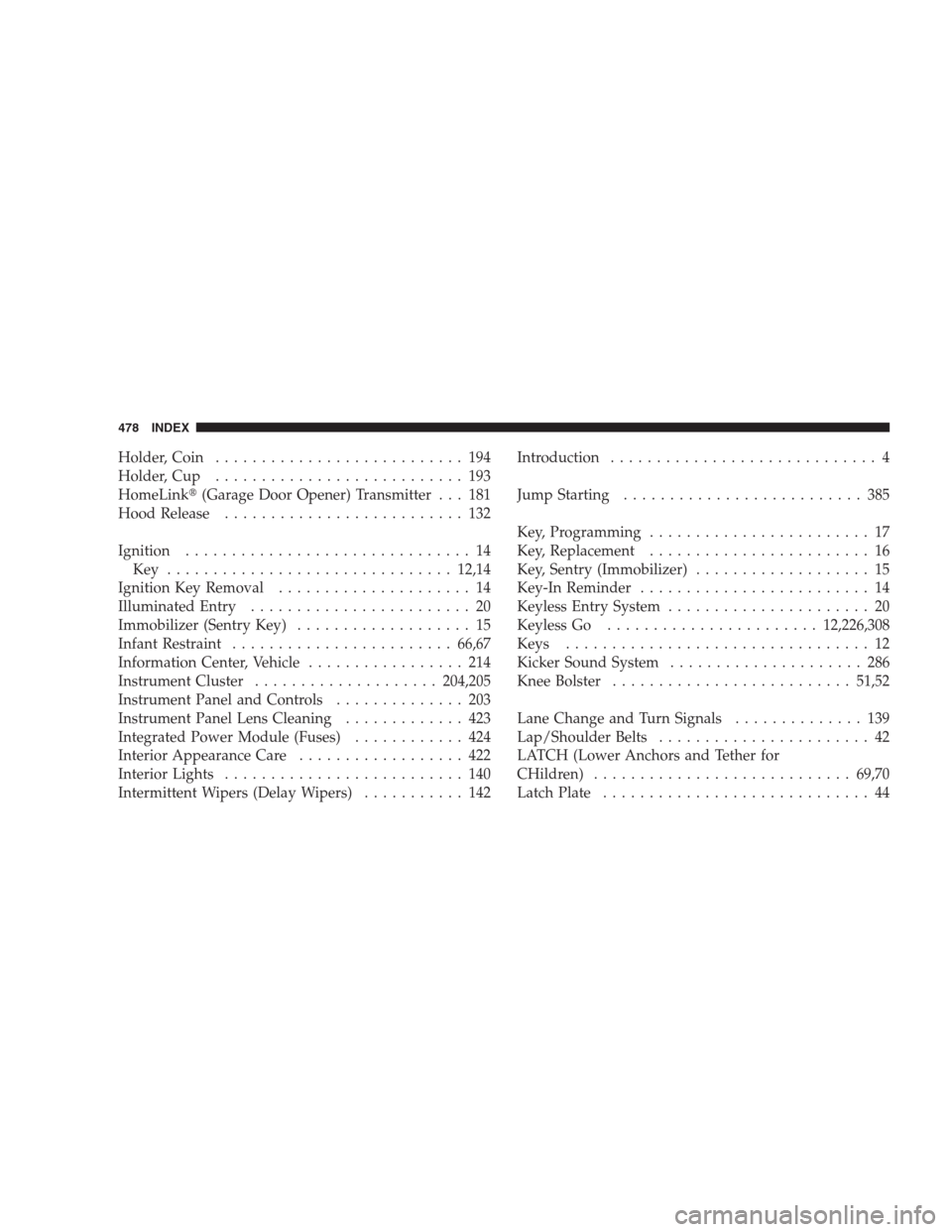

Holder, Coin........................... 194
Holder, Cup........................... 193
HomeLink(Garage Door Opener) Transmitter . . . 181
Hood Release.......................... 132
Ignition............................... 14
Key ...............................12,14
Ignition Key Removal..................... 14
Illuminated Entry........................ 20
Immobilizer (Sentry Key)................... 15
Infant Restraint........................66,67
Information Center, Vehicle................. 214
Instrument Cluster....................204,205
Instrument Panel and Controls.............. 203
Instrument Panel Lens Cleaning............. 423
Integrated Power Module (Fuses)............ 424
Interior Appearance Care.................. 422
Interior Lights.......................... 140
Intermittent Wipers (Delay Wipers)........... 142Introduction............................. 4
Jump Starting.......................... 385
Key, Programming........................ 17
Key, Replacement........................ 16
Key, Sentry (Immobilizer)................... 15
Key-In Reminder......................... 14
Keyless Entry System...................... 20
Keyless Go.......................12,226,308
Keys................................. 12
Kicker Sound System..................... 286
Knee Bolster..........................51,52
Lane Change and Turn Signals.............. 139
Lap/Shoulder Belts....................... 42
LATCH (Lower Anchors and Tether for
CHildren)............................69,70
Latch Plate............................. 44
478 INDEX

Selection of Oil......................... 400
Sentry Key (Immobilizer)................... 15
Sentry Key Programming................... 17
Sentry Key Replacement................... 16
Service Assistance....................... 461
Service Contract......................... 463
Service Engine Soon Light
(Malfunction Indicator).................... 213
Service Manuals........................ 465
Setting the Clock.............235,237,252,256,265
Settings, Personal........................ 230
Shifting............................... 313
Automatic Transmission...............313,317
Shoulder Belt Upper Anchorage.............. 47
Shoulder Belts........................... 42
Side Airbag...........................53,59
Side Curtain (Window Airbag)............... 53
Side View Mirror Adjustment................ 85
Signals, Turn......................78,139,205Sirius Backseat TV™..................... 287
Slippery Surfaces, Driving On............... 323
SmartBeams........................... 135
Snow Chains (Tire Chains)................. 353
Snow Tires............................ 355
Sound System
Kicker.............................. 286
Spark Plugs............................ 439
Specifications
Fuel (Gasoline)........................ 439
Oil ................................ 439
Speed Control (Cruise Control)...........148,152
Speedometer........................... 205
Starting.............................25,307
Emergency (Jump Starting)............... 385
Engine Fails to Start.................... 311
Remote.............................. 25
Starting and Operating.................... 307
Starting Procedures...................... 307
INDEX 485
