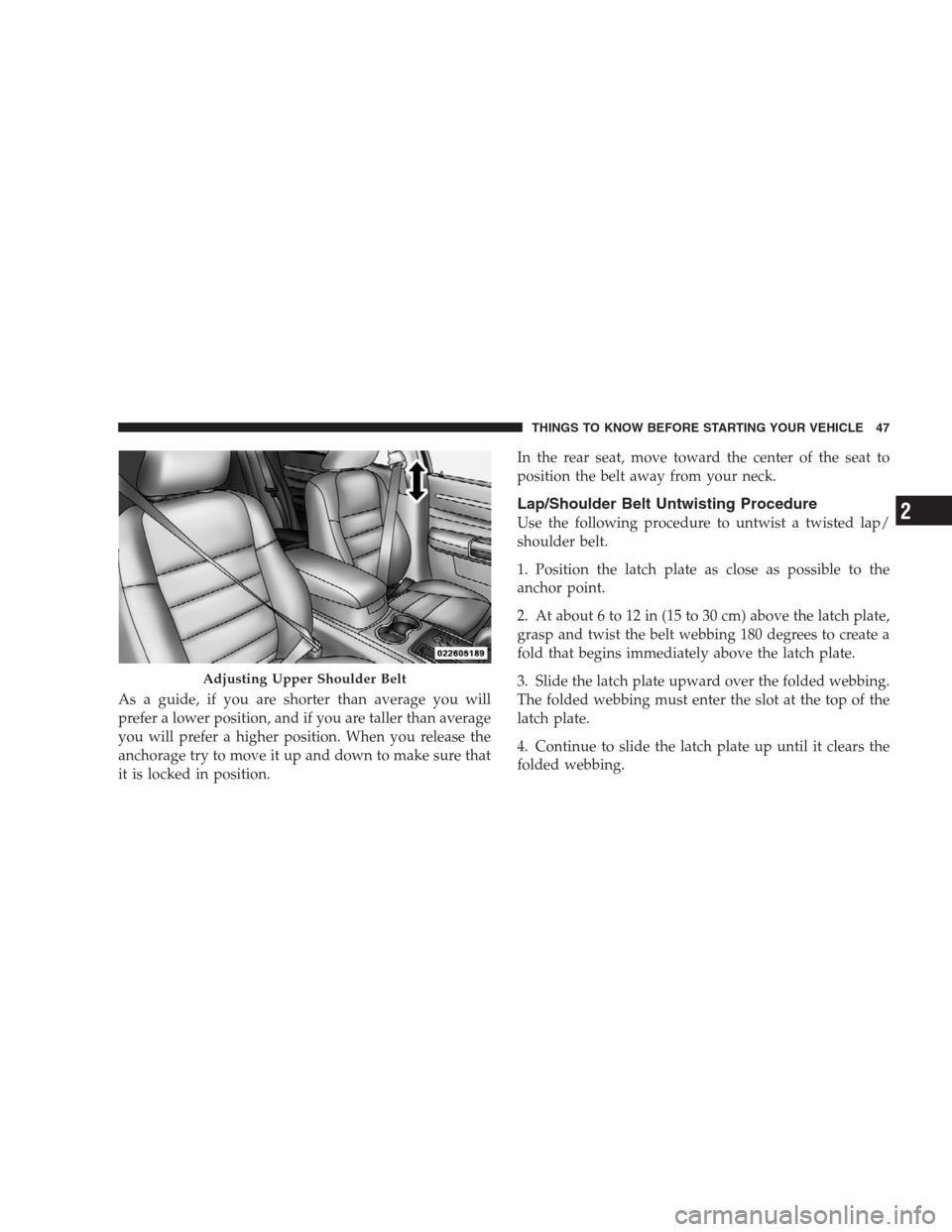

As a guide, if you are shorter than average you will
prefer a lower position, and if you are taller than average
you will prefer a higher position. When you release the
anchorage try to move it up and down to make sure that
it is locked in position.In the rear seat, move toward the center of the seat to
position the belt away from your neck.
Lap/Shoulder Belt Untwisting Procedure
Use the following procedure to untwist a twisted lap/
shoulder belt.
1. Position the latch plate as close as possible to the
anchor point.
2. At about 6 to 12 in (15 to 30 cm) above the latch plate,
grasp and twist the belt webbing 180 degrees to create a
fold that begins immediately above the latch plate.
3. Slide the latch plate upward over the folded webbing.
The folded webbing must enter the slot at the top of the
latch plate.
4. Continue to slide the latch plate up until it clears the
folded webbing.
Adjusting Upper Shoulder Belt
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47
2

Seat Belt Pretensioners
The seat belts for both front seating positions are
equipped with pretensioning devices that are designed to
remove any slack from the seat belts in the event of a
collision. These devices improve the performance of the
seat belt system by assuring that the belt is tight around
the occupant in a collision. Pretensioners work for all size
occupants, including those in child restraints.
NOTE:These devices are not a substitute for proper seat
belt placement by the occupant. The seat belt still must be
worn snugly and positioned properly.
The pretensioners are triggered by the Occupant Re-
straint Controller (ORC). (Refer to information on Air-
bags in this section). Like the front airbags, the preten-
sioners are single use items. After a collision that is severe
enough to deploy the airbags and pretensioners, both
must be replaced.
Enhanced Seat Belt Use Reminder System
(BeltAlert)
If the driver’s seat belt has not been buckled within
60 seconds of starting the vehicle and if the vehicle speed
is greater than 5 mph (8 km/h), the Enhanced Seat Belt
Use Reminder System (BeltAlert) will alert the driver to
buckle their seat belt. The driver should also instruct all
other occupants to buckle their seat belts. Once the
warning is triggered, the BeltAlertwill continue to
chime and flash the Seat Belt Reminder Light for 96 sec-
onds or until the driver’s seat belt is buckled. The
BeltAlertwill be reactivated if the driver’s seat belt is
unbuckled for more than 10 seconds and the vehicle
speed is greater than 5 mph (8 km/h).
BeltAlertProgramming
The BeltAlertcan be enabled or disabled by your
authorized dealer or by performing the following steps:
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:Chrysler LLC does not recommend deactivating
the BeltAlert.
1. With all doors closed, and the ignition switch in any
position except ON or START, buckle the driver’s seat
belt.
2. Turn the ignition switch to the ON position, but do not
start the engine. Wait for the Seat Belt Reminder Light to
turn off and then proceed to the next step.
NOTE:You must perform the following steps within
60 seconds of turning the ignition switch to the ON
position.
3. Within 60 seconds of turning the ignition switch to the
ON position, unbuckle and then re-buckle the driver’s
seat belt at least three times within 10 seconds, ending
with the seat belt buckled.NOTE:Watch for the Seat Belt Reminder Light to turn
on while unbuckling the seat belt and turn off while
re-buckling the seat belt. It may be necessary to retract
the seat belt.
4. Turn the ignition switch to the LOCK position. A
single chime will sound to signify that you have success-
fully completed the programming.
BeltAlertcan be reactivated by repeating this procedure.
NOTE:Although BeltAlerthas been deactivated, the
Seat Belt Reminder Light will continue to illuminate as
long as the driver’s seat belt is unbuckled.
Automatic Locking Mode — If Equipped
In this mode, the shoulder belt is automatically pre-
locked. However, the belt will still retract to remove slack
in the shoulder belt. Use the Automatic Locking mode
any time a child safety seat is installed in a seating
position that has a seat belt with this feature. Seat belts
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49
2

that have the Automatic Locking mode feature have a
distinctive label on the webbing. Children 12 years old
and younger should be properly restrained in the rear
seat whenever possible.
How to Engage the Automatic Locking Mode
1. Buckle the combination lap and shoulder belt.
2. Grasp the shoulder portion and pull downward until
the entire belt is extracted.
3. Allow the belt to retract. As the belt retracts, you will
here a clicking sound. This indicates the safety belt is
now in the Automatic Locking mode.
How to Disengage the Automatic Locking Mode
Unbuckle the combination lap and shoulder belt and
allow it to retract completely to disengage the Automatic
Locking mode and activate the Vehicle Sensitive (Emer-
gency) Locking mode.
Seat Belts and Pregnant Women
We recommend that pregnant women use the seat belts
throughout their pregnancy. Keeping the mother safe is
the best way to keep the baby safe.
Pregnant women should wear the lap part of the belt
across the thighs and as snug across the hips as possible.
Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is a collision.
Seat Belt Extender
If a seat belt is too short even when fully extended and
when the adjustable upper shoulder belt anchorage (if so
equipped) is in its lowest position, your authorized
dealer can provide you with a seat belt extender. This
extender should be used only if the existing belt is not
long enough. When it is not required, remove the ex-
tender and store it.
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
Using a seat belt extender when not needed can
increase the risk of injury in a collision. Only use
when the seat belt is not long enough when it is worn
low and snug and in the recommended seating posi-
tions. Remove and store the extender when not
needed.

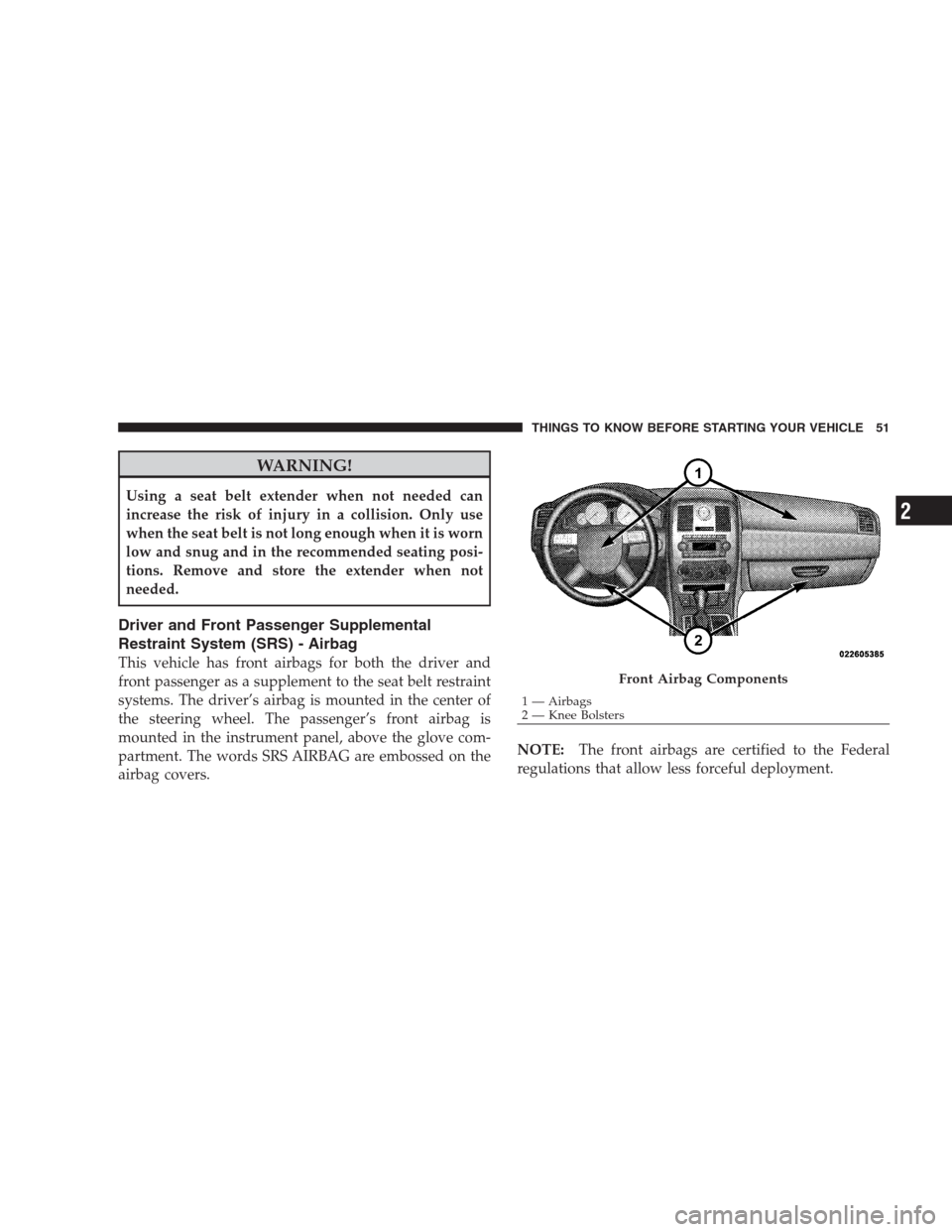

Driver and Front Passenger Supplemental
Restraint System (SRS) - Airbag
This vehicle has front airbags for both the driver and
front passenger as a supplement to the seat belt restraint
systems. The driver’s airbag is mounted in the center of
the steering wheel. The passenger’s front airbag is
mounted in the instrument panel, above the glove com-
partment. The words SRS AIRBAG are embossed on the
airbag covers.NOTE:The front airbags are certified to the Federal
regulations that allow less forceful deployment.
Front Airbag Components
1 — Airbags
2 — Knee BolstersTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51
2

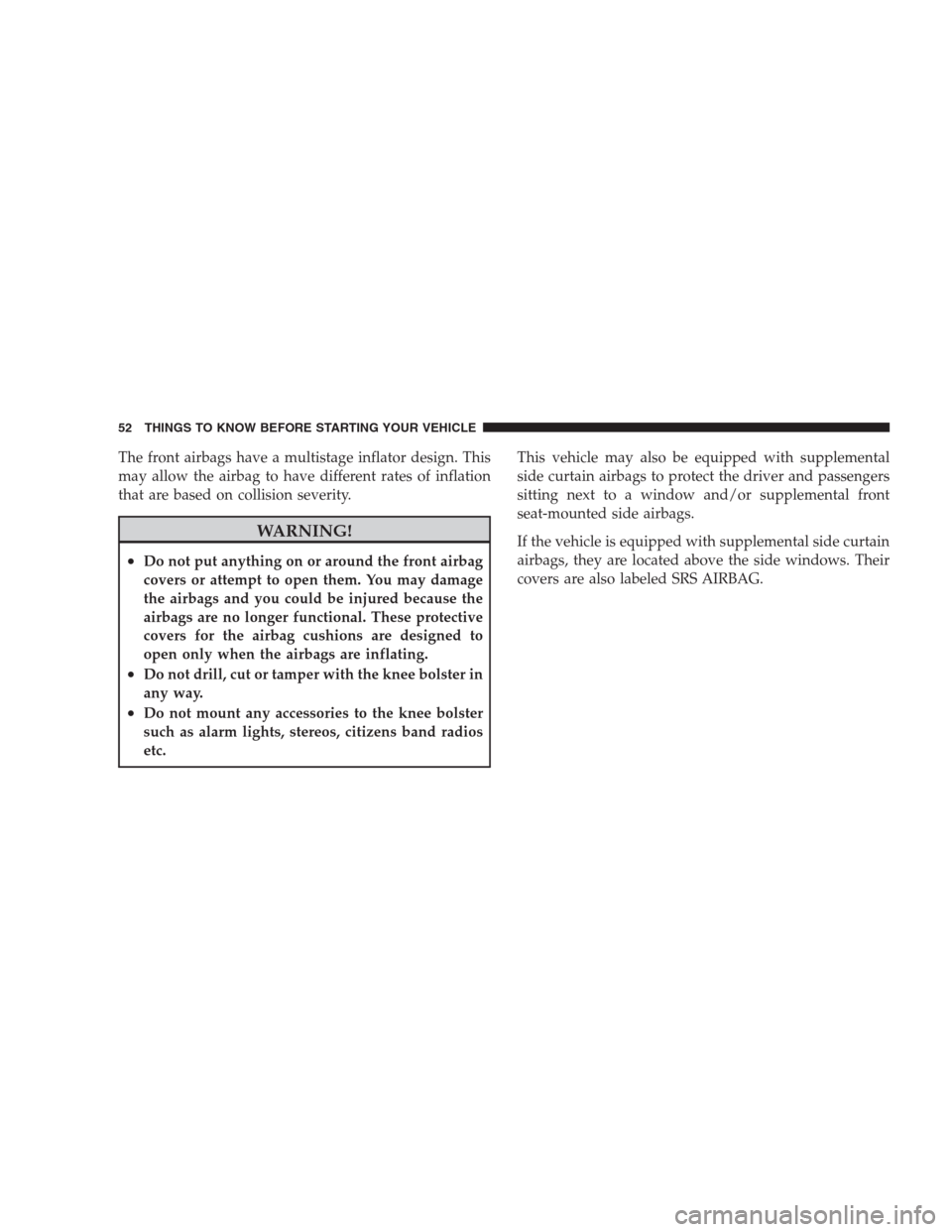

The front airbags have a multistage inflator design. This
may allow the airbag to have different rates of inflation
that are based on collision severity.
WARNING!
•Do not put anything on or around the front airbag
covers or attempt to open them. You may damage
the airbags and you could be injured because the
airbags are no longer functional. These protective
covers for the airbag cushions are designed to
open only when the airbags are inflating.
•Do not drill, cut or tamper with the knee bolster in
any way.
•Do not mount any accessories to the knee bolster
such as alarm lights, stereos, citizens band radios
etc.This vehicle may also be equipped with supplemental
side curtain airbags to protect the driver and passengers
sitting next to a window and/or supplemental front
seat-mounted side airbags.
If the vehicle is equipped with supplemental side curtain
airbags, they are located above the side windows. Their
covers are also labeled SRS AIRBAG.
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:Airbag covers may not be obvious in the interior
trim, but they will open to allow airbag deployment.If the vehicle is equipped with supplemental front seat-
mounted side airbags, they are marked with an SRS label
sewn into the outboard side of the seat.

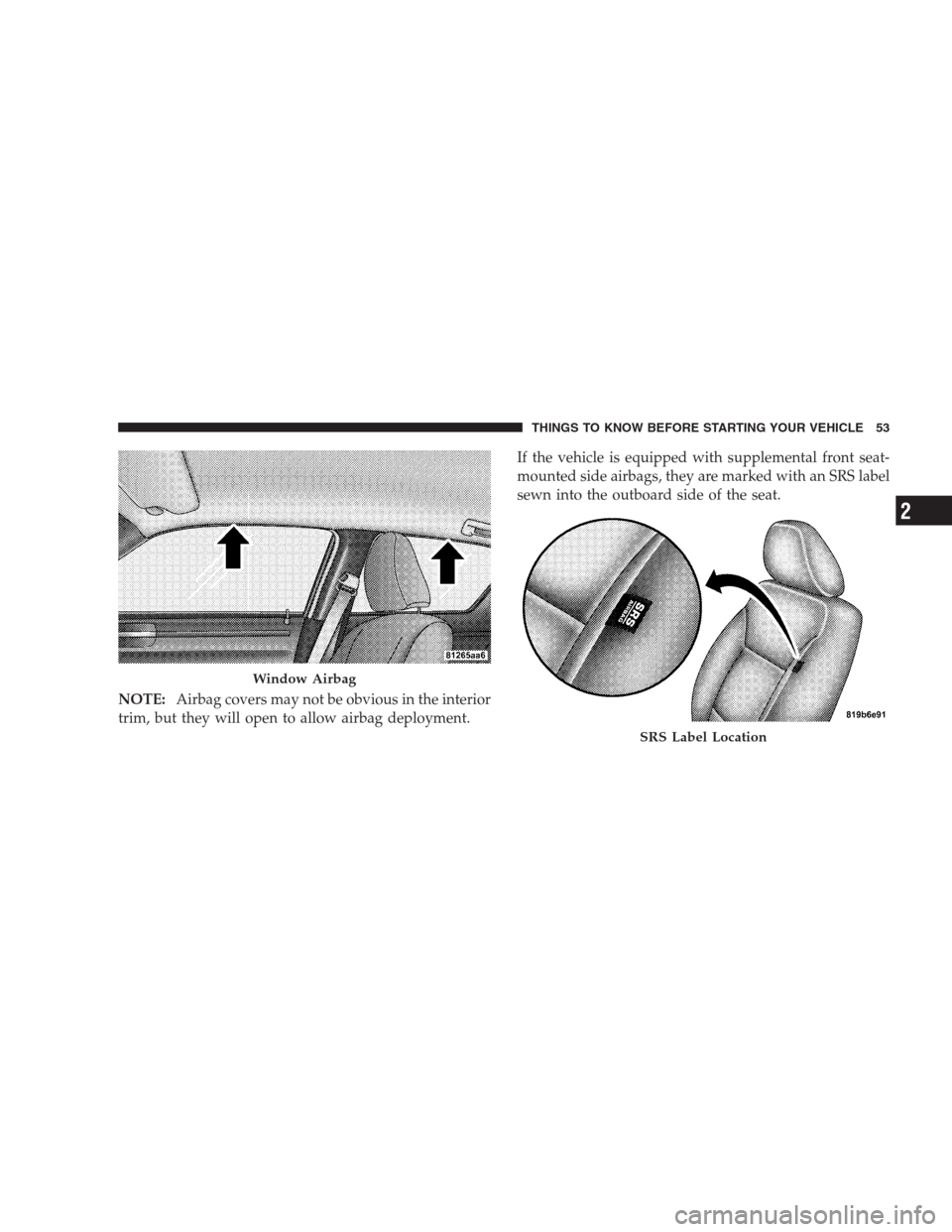

Window Airbag
SRS Label Location
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53
2

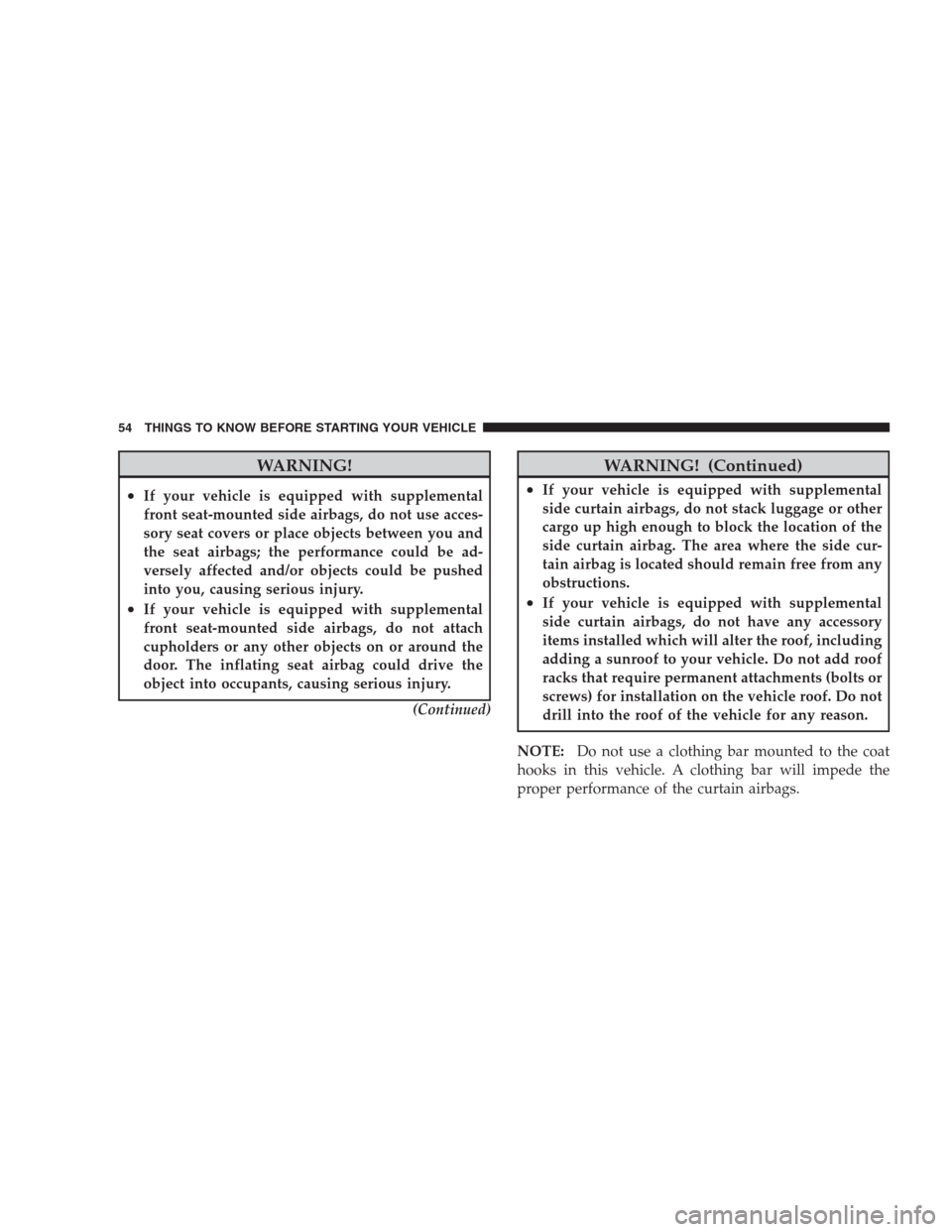

WARNING!
•If your vehicle is equipped with supplemental
front seat-mounted side airbags, do not use acces-
sory seat covers or place objects between you and
the seat airbags; the performance could be ad-
versely affected and/or objects could be pushed
into you, causing serious injury.
•If your vehicle is equipped with supplemental
front seat-mounted side airbags, do not attach
cupholders or any other objects on or around the
door. The inflating seat airbag could drive the
object into occupants, causing serious injury.
(Continued)
WARNING! (Continued)
•If your vehicle is equipped with supplemental
side curtain airbags, do not stack luggage or other
cargo up high enough to block the location of the
side curtain airbag. The area where the side cur-
tain airbag is located should remain free from any
obstructions.
•If your vehicle is equipped with supplemental
side curtain airbags, do not have any accessory
items installed which will alter the roof, including
adding a sunroof to your vehicle. Do not add roof
racks that require permanent attachments (bolts or
screws) for installation on the vehicle roof. Do not
drill into the roof of the vehicle for any reason.
NOTE:Do not use a clothing bar mounted to the coat
hooks in this vehicle. A clothing bar will impede the
proper performance of the curtain airbags.
