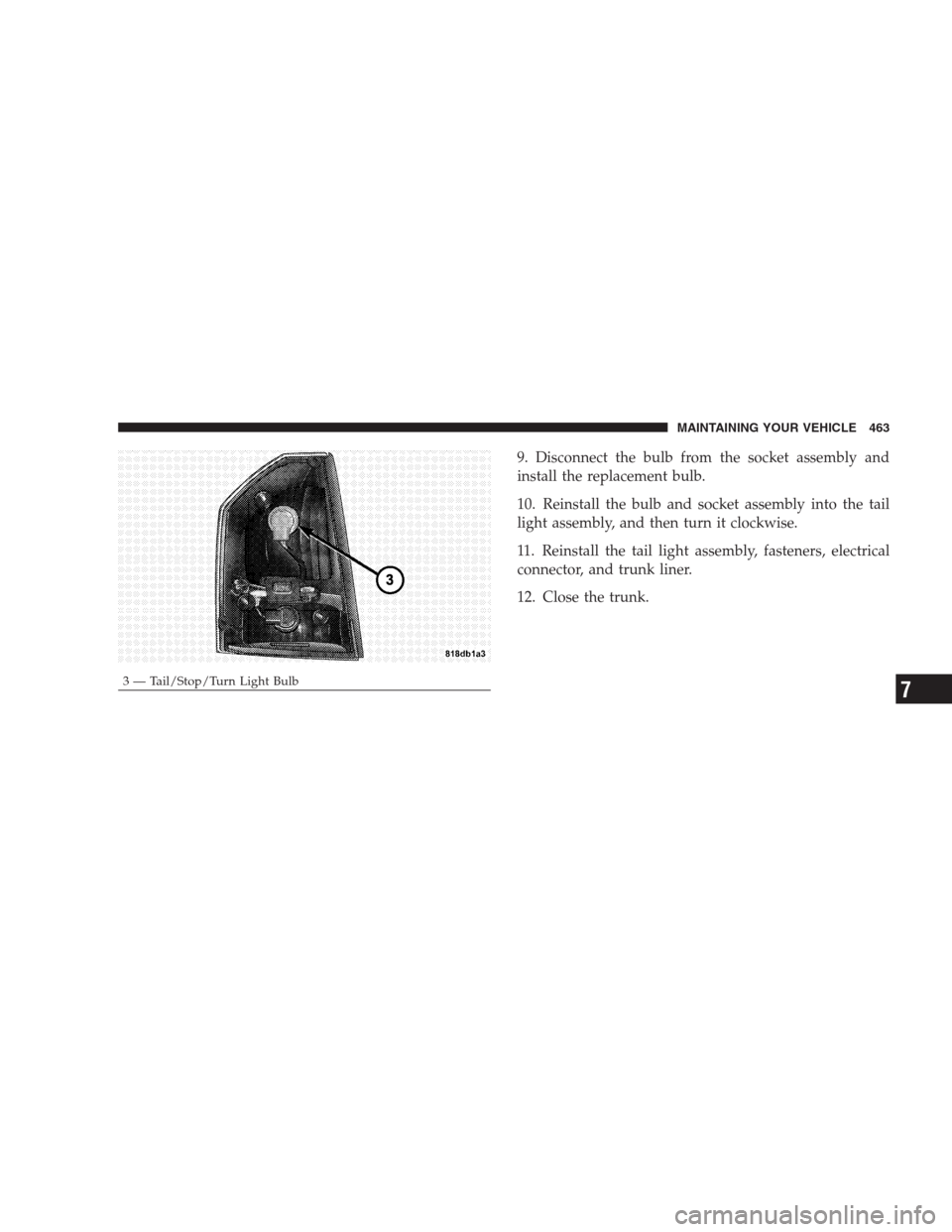

9. Disconnect the bulb from the socket assembly and
install the replacement bulb.
10. Reinstall the bulb and socket assembly into the tail
light assembly, and then turn it clockwise.
11. Reinstall the tail light assembly, fasteners, electrical
connector, and trunk liner.
12. Close the trunk.
3 — Tail/Stop/Turn Light BulbMAINTAINING YOUR VEHICLE 4637

Tail/Stop, Tail, Turn Signal Light, and Backup
Light — 300C Models
1. Open the Trunk.

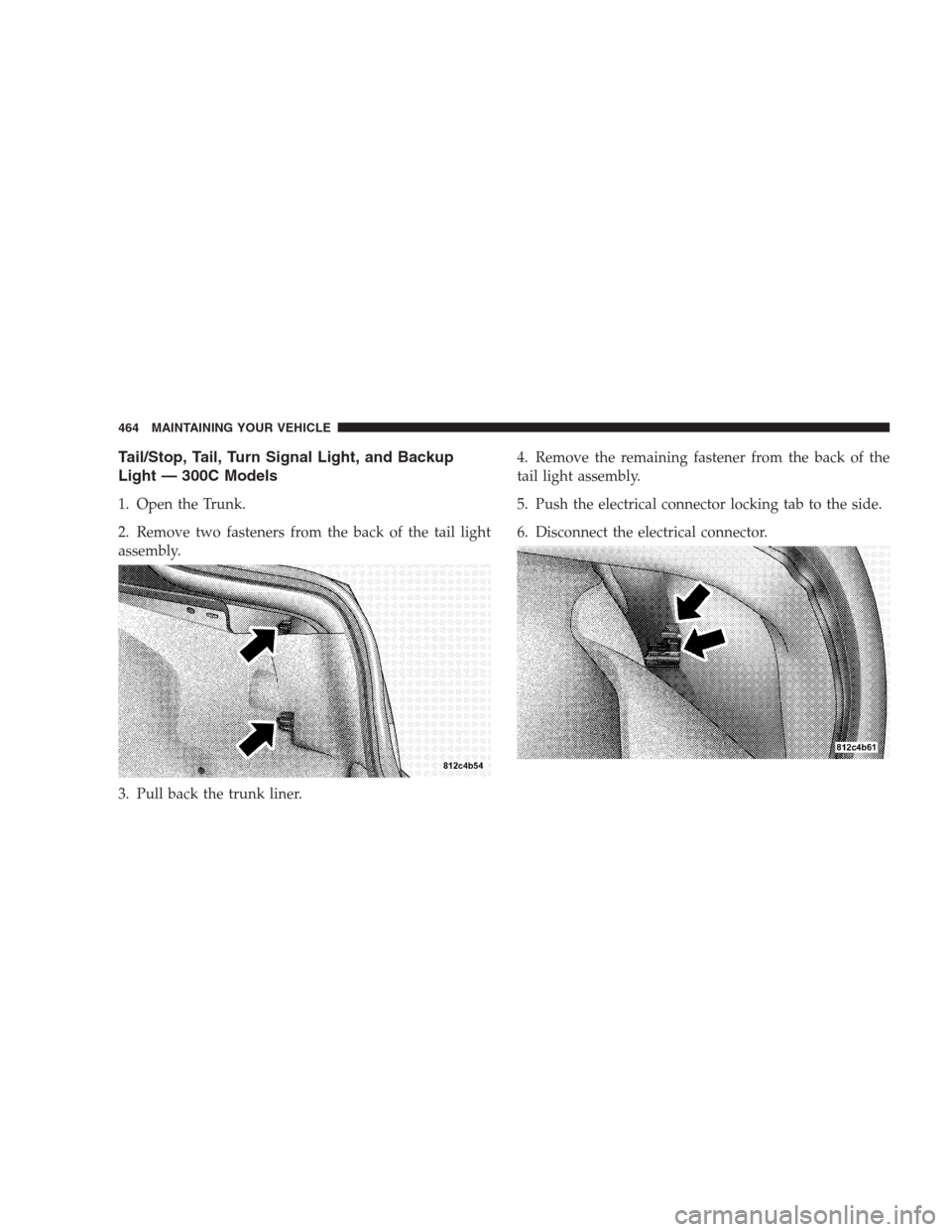

2. Remove two fasteners from the back of the tail light
assembly.
3. Pull back the trunk liner.4. Remove the remaining fastener from the back of the
tail light assembly.
5. Push the electrical connector locking tab to the side.
6. Disconnect the electrical connector.
464 MAINTAINING YOUR VEHICLE

7. Pull the tail light assembly clear from the vehicle to
access the bulbs. Turn bulb sockets counterclockwise to
remove.
8. Turn the appropriate bulb and socket assembly coun-
terclockwise to remove it from the tail light assembly.
1 — Tail/Stop Light Bulb
2 — Tail Light BulbMAINTAINING YOUR VEHICLE 4657

9. Disconnect the bulb from the socket assembly and
install the replacement bulb.
10. Reinstall the bulb and socket assembly into the tail
light assembly, and then turn it clockwise.

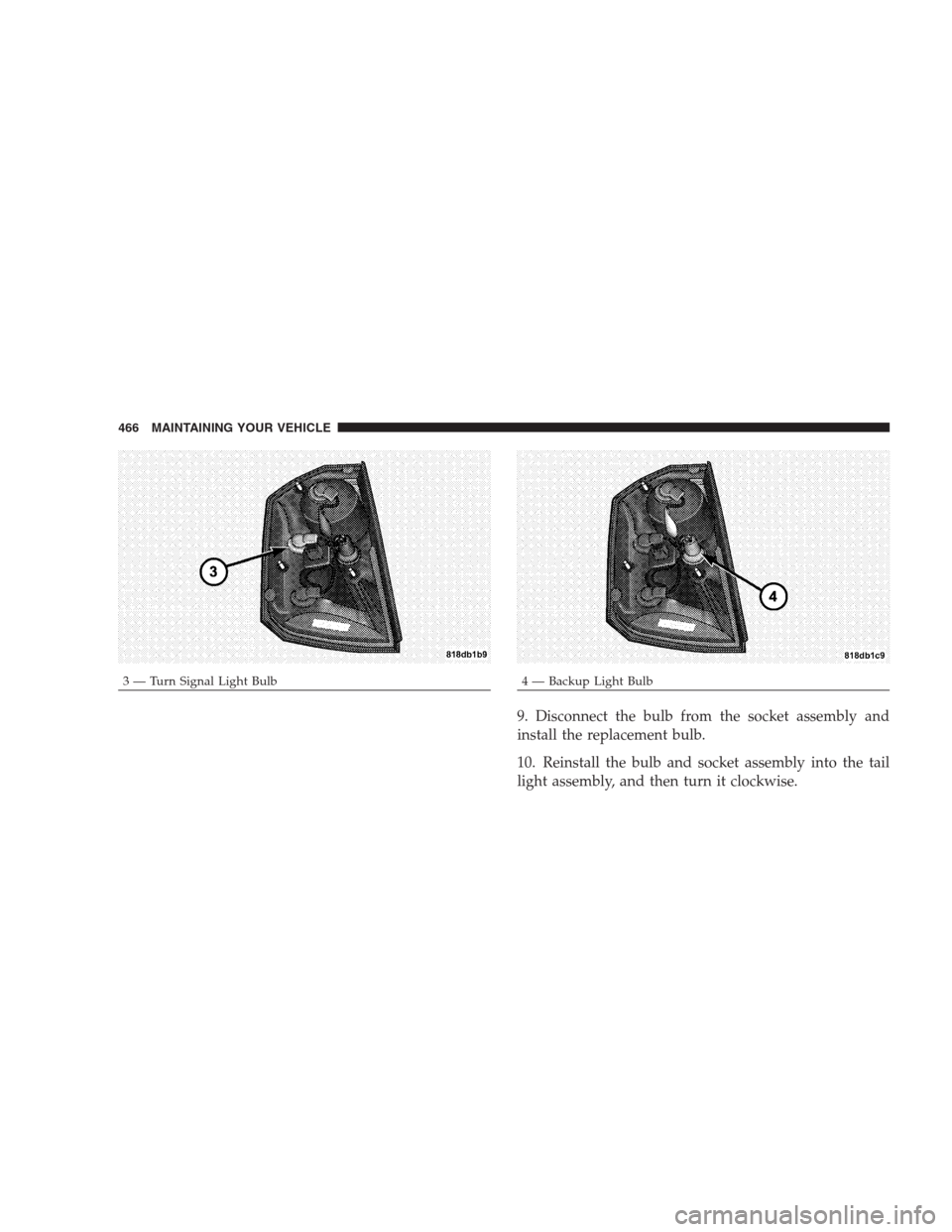

3 — Turn Signal Light Bulb4 — Backup Light Bulb 466 MAINTAINING YOUR VEHICLE

11. Reinstall the tail light assembly, fasteners, electrical
connector, and trunk liner.
12. Close the trunk.

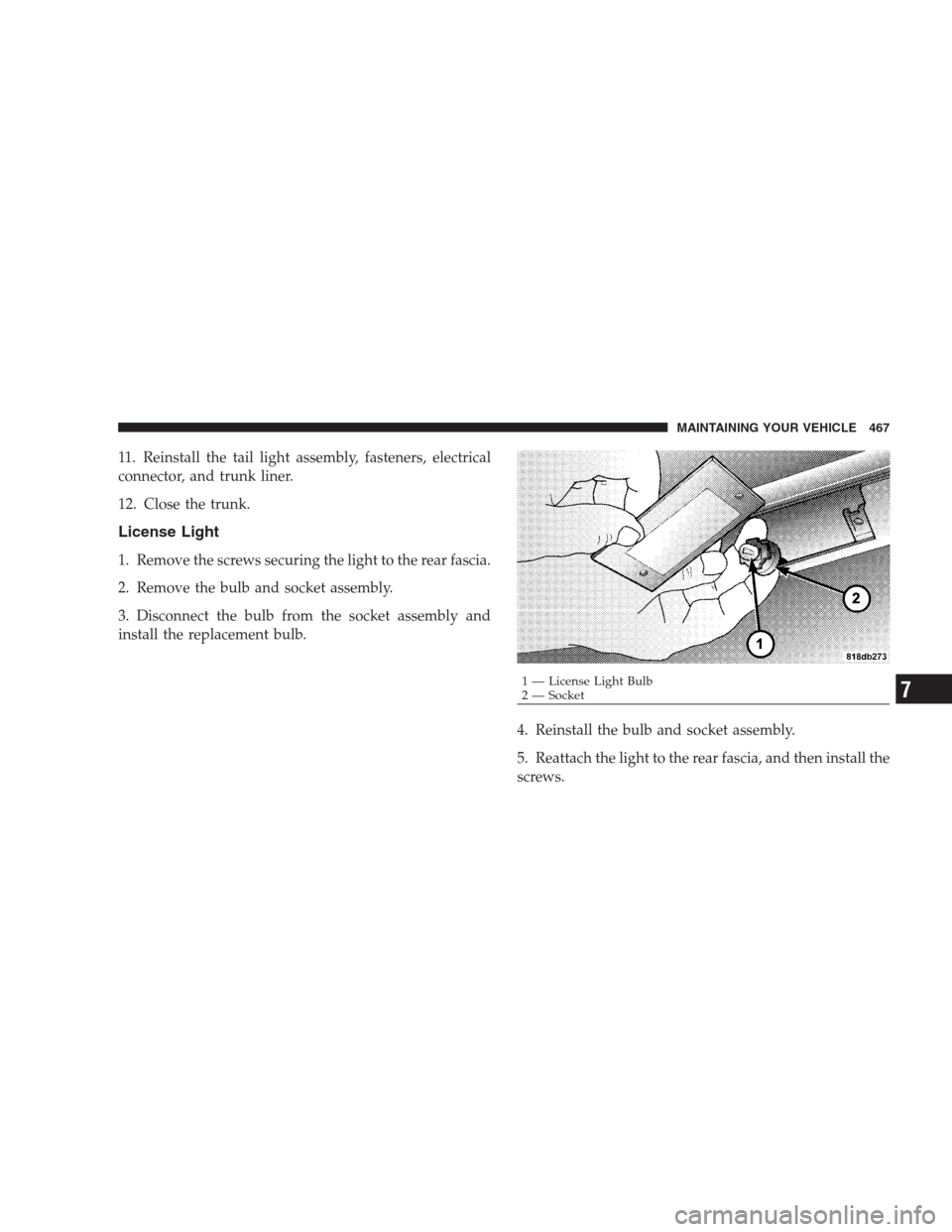

License Light
1. Remove the screws securing the light to the rear fascia.
2. Remove the bulb and socket assembly.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly.
5. Reattach the light to the rear fascia, and then install the
screws.
1 — License Light Bulb
2 — SocketMAINTAINING YOUR VEHICLE 4677

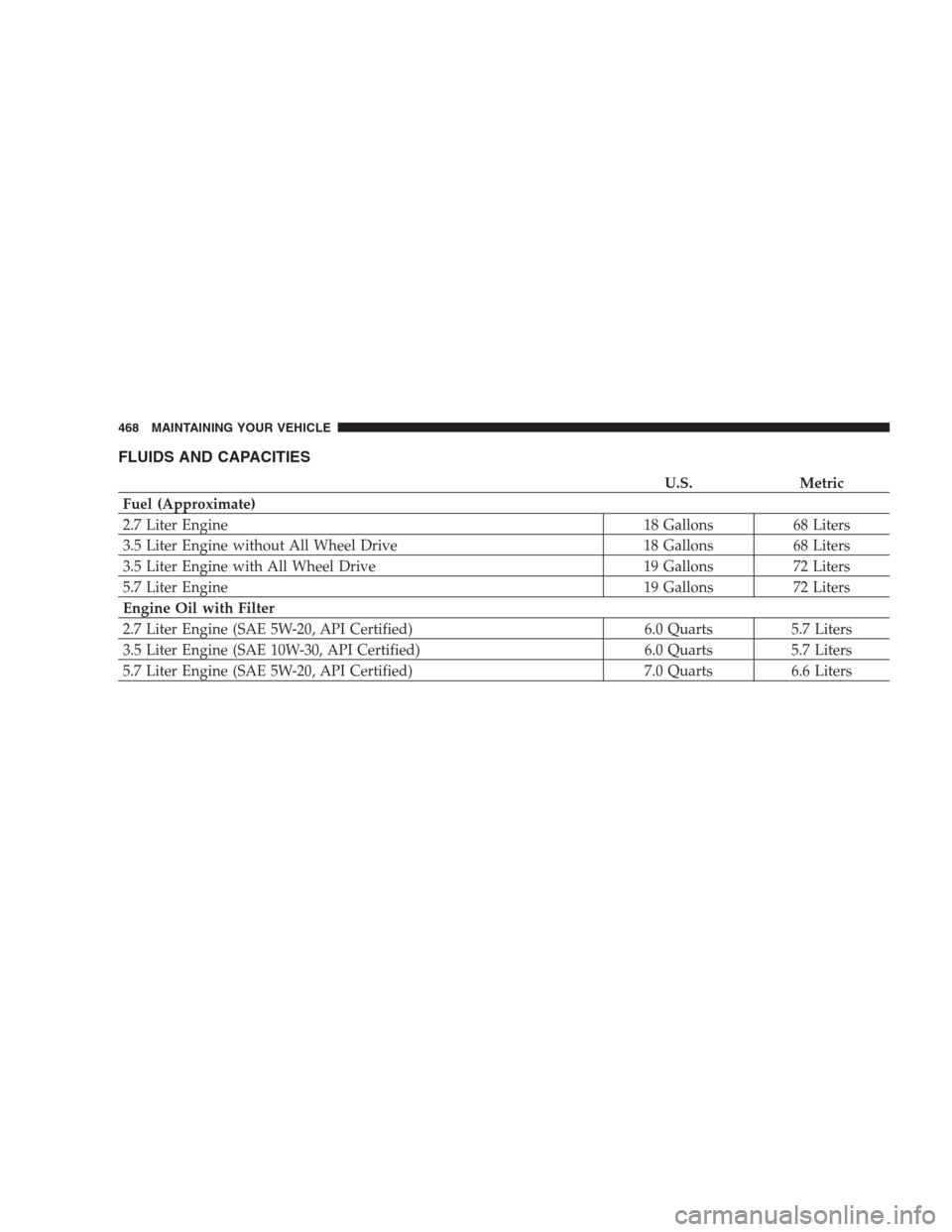

FLUIDS AND CAPACITIES
U.S. Metric
Fuel (Approximate)
2.7 Liter Engine 18 Gallons 68 Liters
3.5 Liter Engine without All Wheel Drive 18 Gallons 68 Liters
3.5 Liter Engine with All Wheel Drive 19 Gallons 72 Liters
5.7 Liter Engine 19 Gallons 72 Liters
Engine Oil with Filter
2.7 Liter Engine (SAE 5W-20, API Certified) 6.0 Quarts 5.7 Liters
3.5 Liter Engine (SAE 10W-30, API Certified) 6.0 Quarts 5.7 Liters
5.7 Liter Engine (SAE 5W-20, API Certified) 7.0 Quarts 6.6 Liters
468 MAINTAINING YOUR VEHICLE

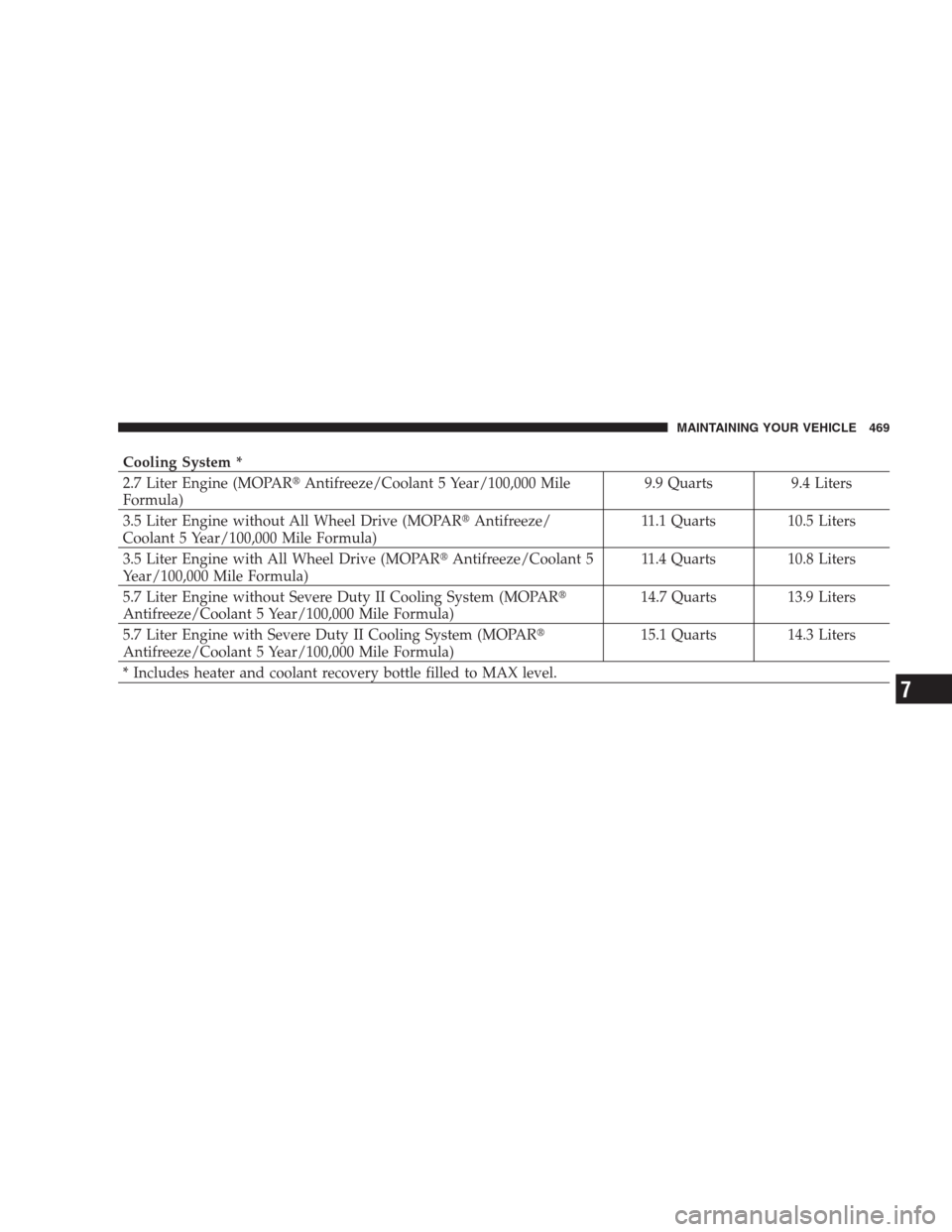

Cooling System *
2.7 Liter Engine (MOPARAntifreeze/Coolant 5 Year/100,000 Mile
Formula)9.9 Quarts 9.4 Liters
3.5 Liter Engine without All Wheel Drive (MOPARAntifreeze/
Coolant 5 Year/100,000 Mile Formula)11.1 Quarts 10.5 Liters
3.5 Liter Engine with All Wheel Drive (MOPARAntifreeze/Coolant 5
Year/100,000 Mile Formula)11.4 Quarts 10.8 Liters
5.7 Liter Engine without Severe Duty II Cooling System (MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula)14.7 Quarts 13.9 Liters
5.7 Liter Engine with Severe Duty II Cooling System (MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula)15.1 Quarts 14.3 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
MAINTAINING YOUR VEHICLE 469
7

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology) or equivalent
Engine Oil (2.7L Engine) Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for cor-
rect SAE grade.
Engine Oil (3.5L Engine) Use API Certified SAE 10W-30 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for cor-
rect SAE grade.
Engine Oil (5.7L Engine) Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for cor-
rect SAE grade.
Spark Plugs (2.7L Engine) TE10MCC5 (Gap 0.050 in [1.27 mm])
Spark Plugs (3.5L Engine) ZFR5LP–13G (Gap 0.050 in [1.27 mm])
Spark Plugs (5.7L Engine) LZFR5C–11 (Gap 0.043 in [1.1 mm])
