2009 CHRYSLER 300 hood release

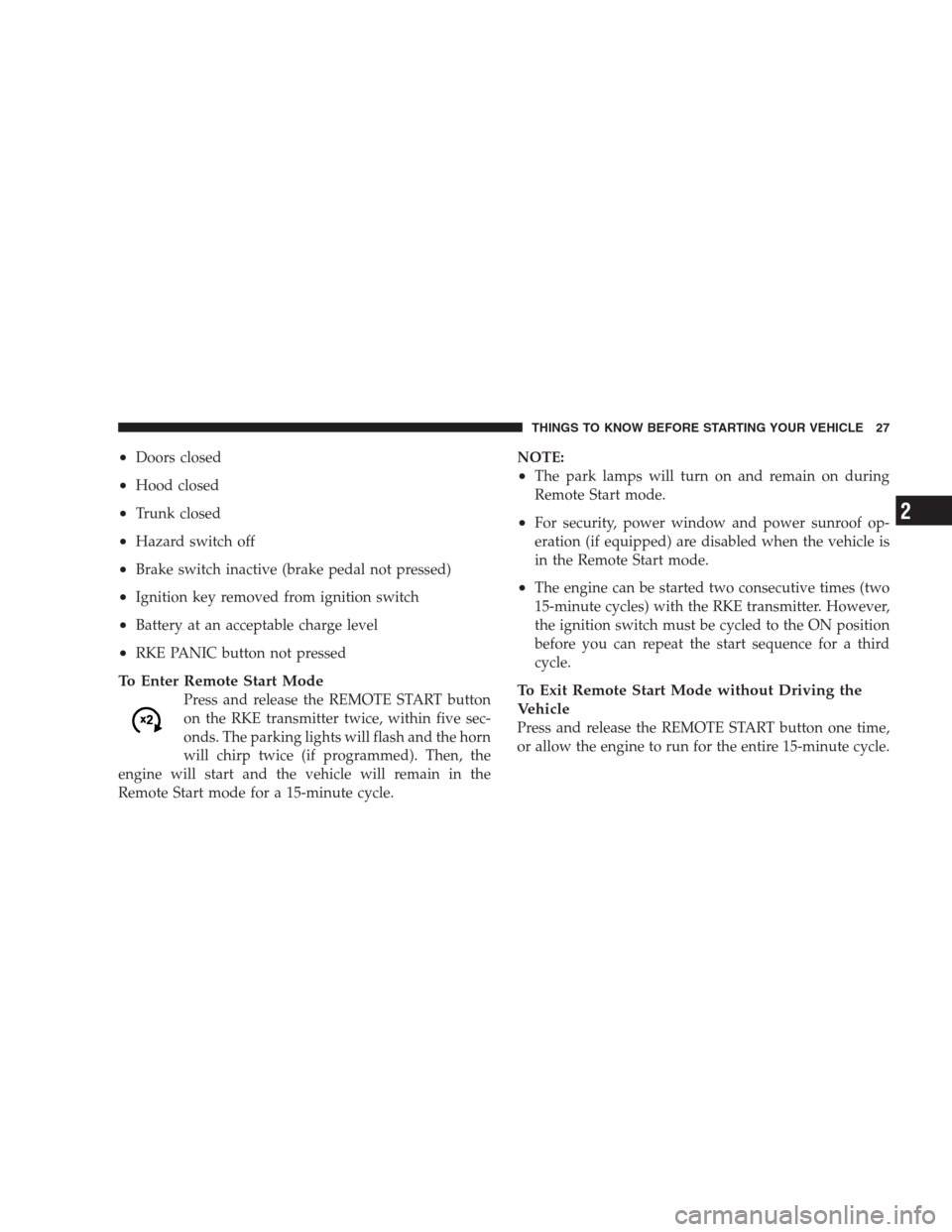

•Doors closed
•Hood closed
•Trunk closed
•Hazard switch off
•Brake switch inactive (brake pedal not pressed)
•Ignition key removed from ignition switch
•Battery at an acceptable charge level
•RKE PANIC button not pressed
To Enter Remote Start Mode
Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.NOTE:
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.
To Exit Remote Start Mode without Driving the
Vehicle
Press and release the REMOTE START button one time,
or allow the engine to run for the entire 15-minute cycle.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2

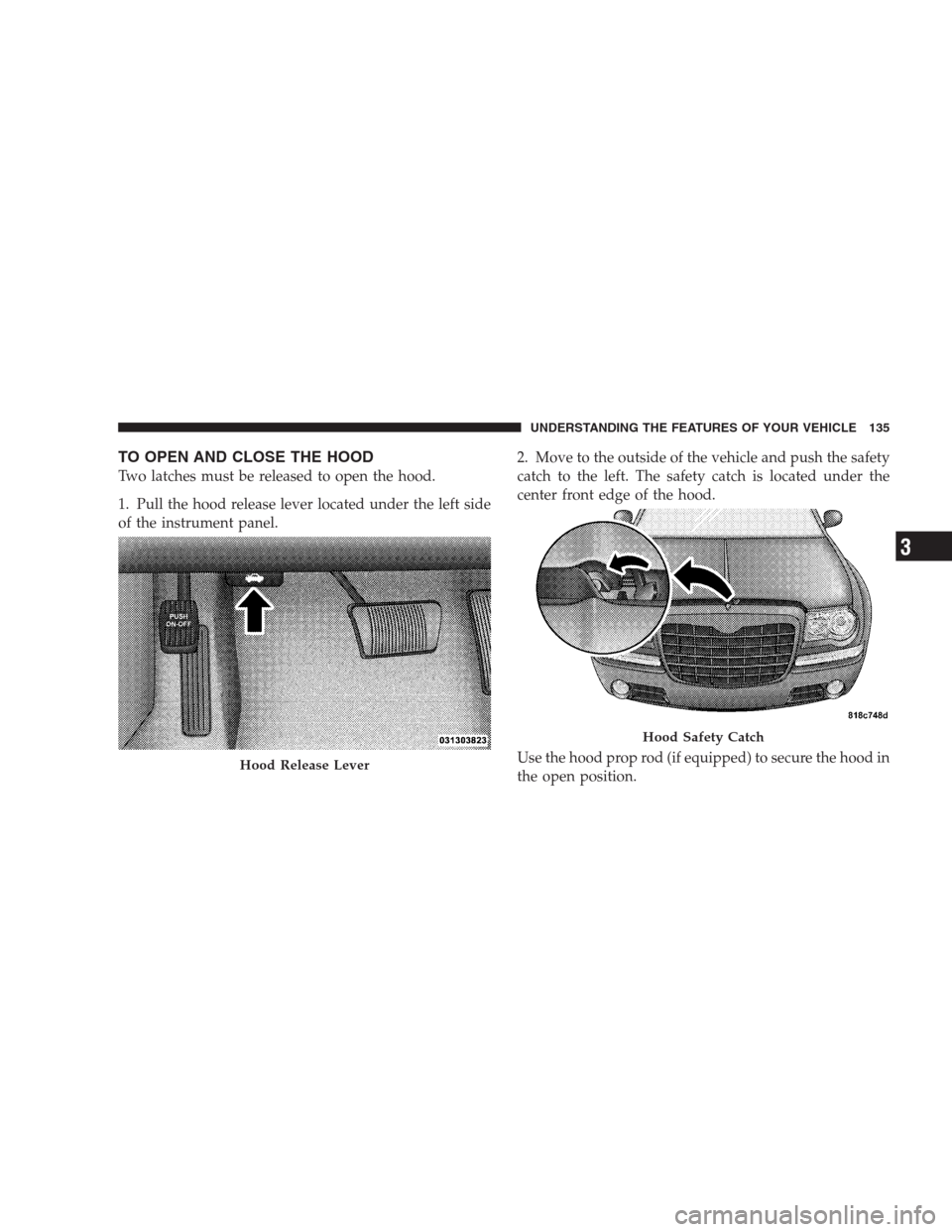

TO OPEN AND CLOSE THE HOOD
Two latches must be released to open the hood.
1. Pull the hood release lever located under the left side
of the instrument panel.2. Move to the outside of the vehicle and push the safety
catch to the left. The safety catch is located under the
center front edge of the hood.
Use the hood prop rod (if equipped) to secure the hood in
the open position.
Hood Release Lever
Hood Safety Catch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
3

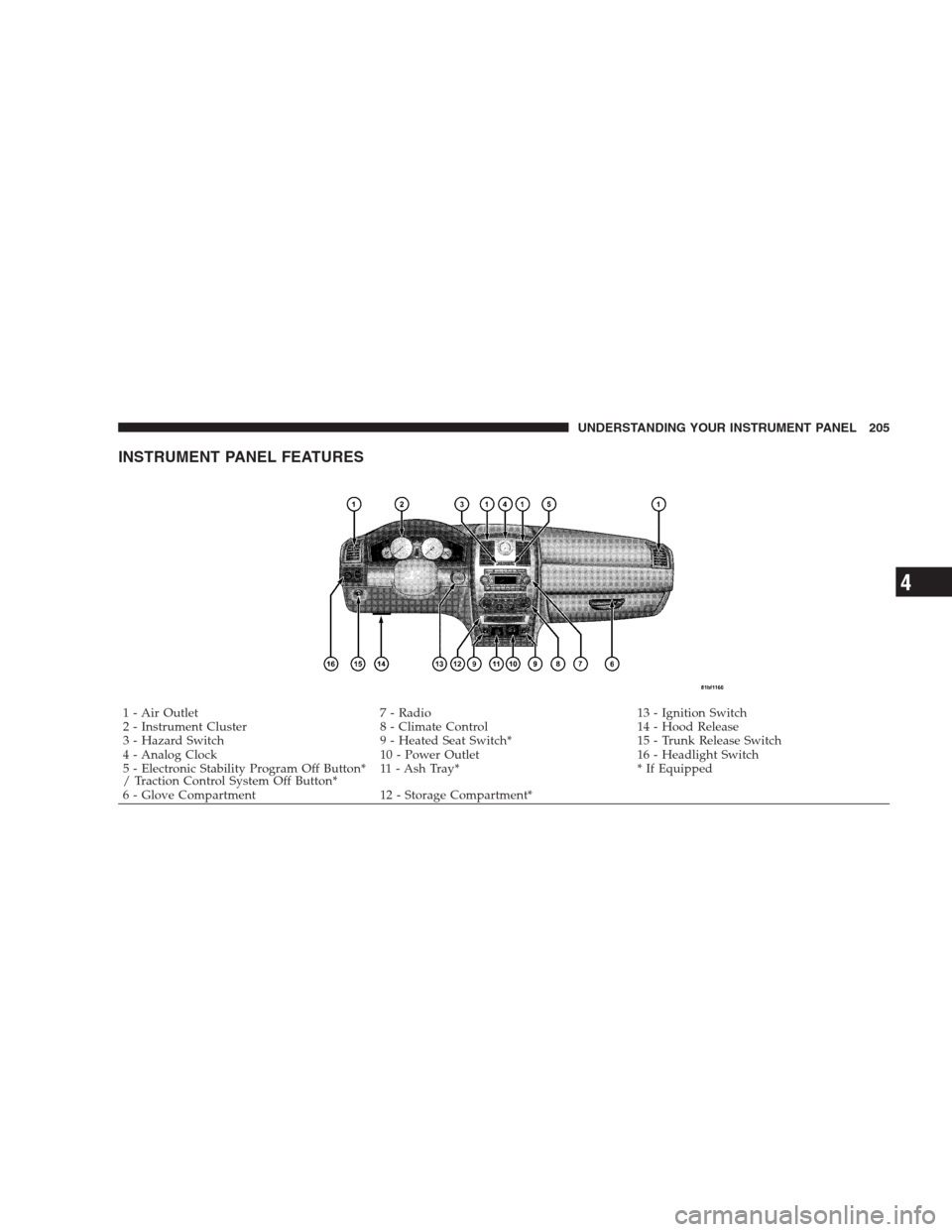

INSTRUMENT PANEL FEATURES
1 - Air Outlet 7 - Radio 13 - Ignition Switch
2 - Instrument Cluster 8 - Climate Control 14 - Hood Release
3 - Hazard Switch 9 - Heated Seat Switch* 15 - Trunk Release Switch
4 - Analog Clock 10 - Power Outlet 16 - Headlight Switch
5 - Electronic Stability Program Off Button*
/ Traction Control System Off Button*11 - Ash Tray* * If Equipped
6 - Glove Compartment 12 - Storage Compartment*UNDERSTANDING YOUR INSTRUMENT PANEL 205
4

release it as soon as the starter engages. The starter motor
will disengage automatically in 10 seconds. Once this
occurs, release the accelerator pedal, turn the ignition
switch to the LOCK position, wait 10 to 15 seconds, then
repeat the normal starting procedure.
CAUTION!
To prevent damage to the starter, wait 10 to 15 sec-
onds before trying again.
After Starting
The idle speed is controlled automatically and it will
decrease as the engine warms up.
ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine, and permits
quicker starts in cold weather. Connect the cord to a
standard 110-115 Volt AC electrical outlet with a
grounded, three-wire extension cord.The engine block heater cord is routed under the hood on
the driver side of the vehicle. It has a removable cap that
is located on the driver side of the Integrated Power
Module.
WARNING!
Remember to disconnect the cord before driving.
Damage to the 110-115 Volt electrical cord could cause
electrocution.
AUTOMATIC TRANSMISSION
CAUTION!
Damage to the transmission may occur if the follow-
ing precautions are not observed:
•Shift into PARK only after the vehicle has come to
a complete stop.
(Continued)
312 STARTING AND OPERATING

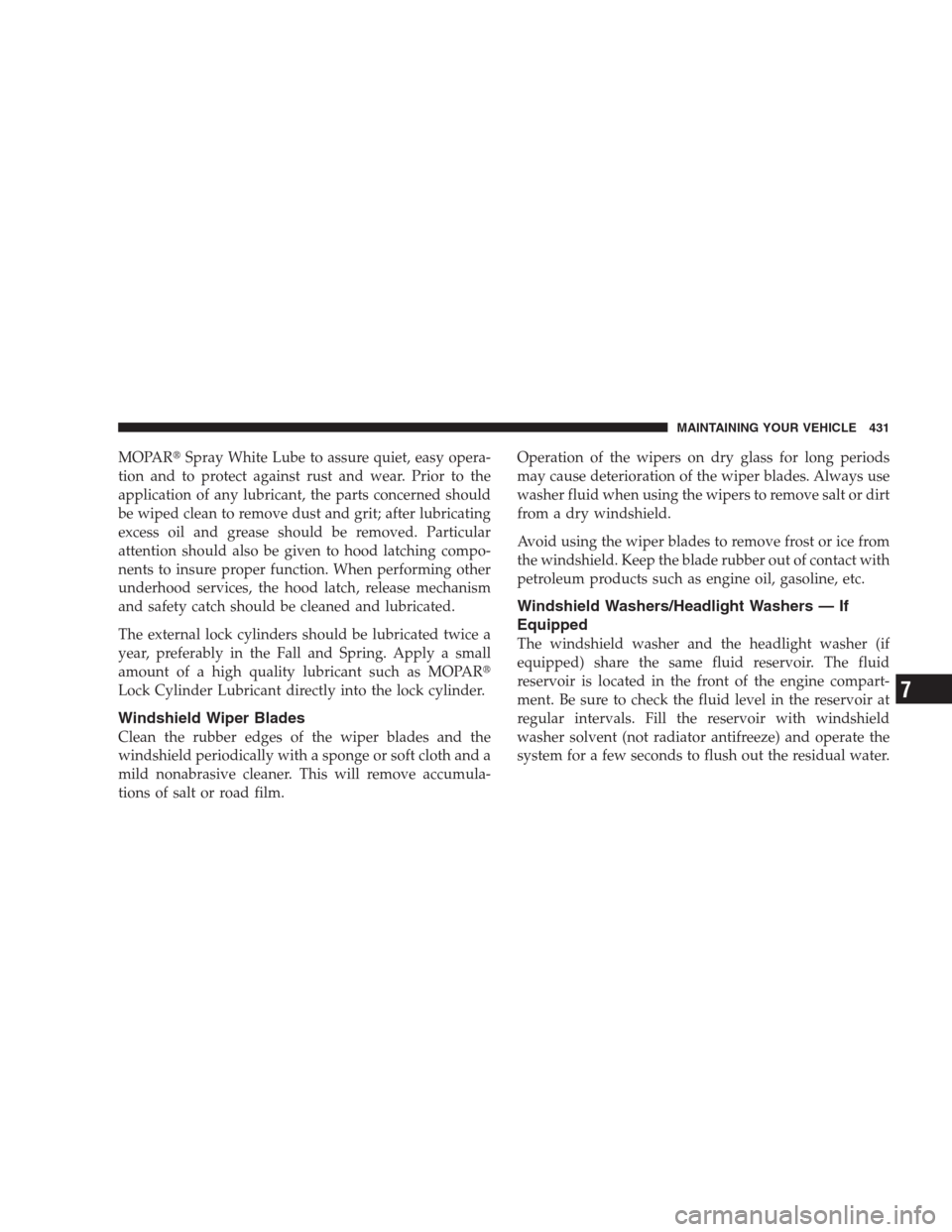

MOPARSpray White Lube to assure quiet, easy opera-
tion and to protect against rust and wear. Prior to the
application of any lubricant, the parts concerned should
be wiped clean to remove dust and grit; after lubricating
excess oil and grease should be removed. Particular
attention should also be given to hood latching compo-
nents to insure proper function. When performing other
underhood services, the hood latch, release mechanism
and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant such as MOPAR
Lock Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
Windshield Washers/Headlight Washers — If
Equipped
The windshield washer and the headlight washer (if
equipped) share the same fluid reservoir. The fluid
reservoir is located in the front of the engine compart-
ment. Be sure to check the fluid level in the reservoir at
regular intervals. Fill the reservoir with windshield
washer solvent (not radiator antifreeze) and operate the
system for a few seconds to flush out the residual water.
MAINTAINING YOUR VEHICLE 431
7

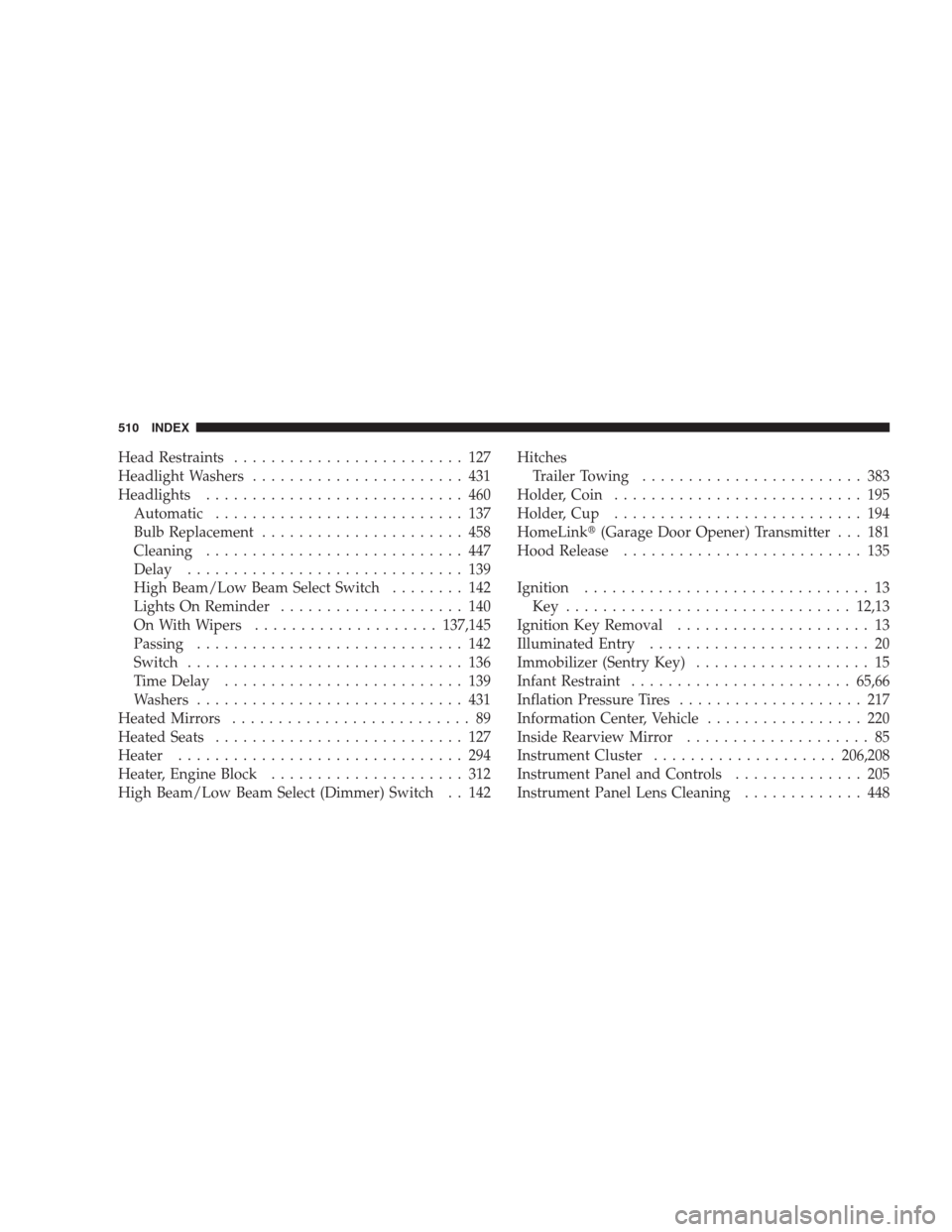

Head Restraints......................... 127
Headlight Washers....................... 431
Headlights............................ 460
Automatic........................... 137
Bulb Replacement...................... 458
Cleaning............................ 447
Delay.............................. 139
High Beam/Low Beam Select Switch........ 142
Lights On Reminder.................... 140
On With Wipers....................137,145
Passing............................. 142
Switch.............................. 136
Time Delay.......................... 139
Washers............................. 431
Heated Mirrors.......................... 89
Heated Seats........................... 127
Heater............................... 294
Heater, Engine Block..................... 312
High Beam/Low Beam Select (Dimmer) Switch . . 142Hitches
Trailer Towing........................ 383
Holder, Coin........................... 195
Holder, Cup........................... 194
HomeLink(Garage Door Opener) Transmitter . . . 181
Hood Release.......................... 135
Ignition............................... 13
Key ...............................12,13
Ignition Key Removal..................... 13
Illuminated Entry........................ 20
Immobilizer (Sentry Key)................... 15
Infant Restraint........................65,66
Inflation Pressure Tires.................... 217
Information Center, Vehicle................. 220
Inside Rearview Mirror.................... 85
Instrument Cluster....................206,208
Instrument Panel and Controls.............. 205
Instrument Panel Lens Cleaning............. 448
510 INDEX

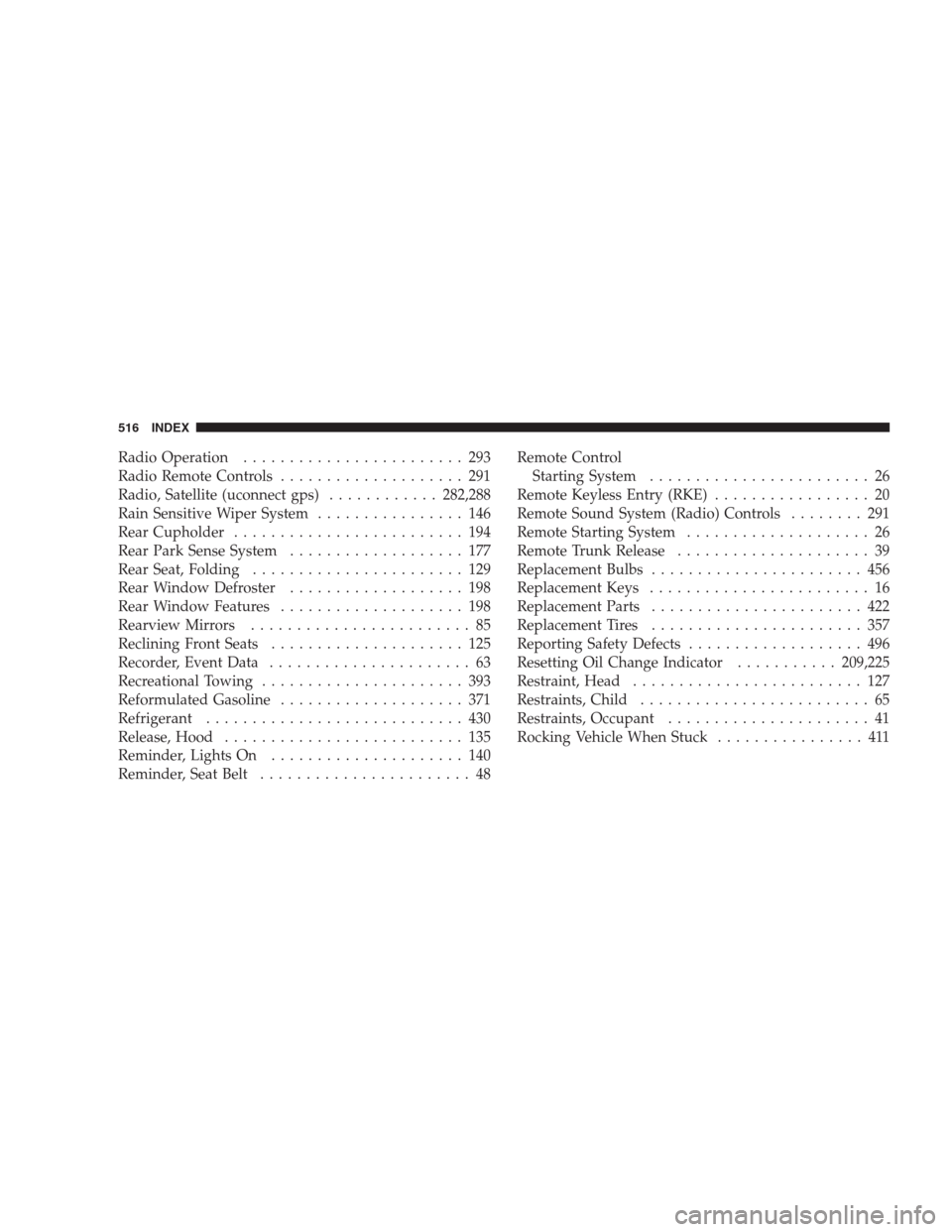

Radio Operation........................ 293
Radio Remote Controls.................... 291
Radio, Satellite (uconnect gps)............282,288
Rain Sensitive Wiper System................ 146
Rear Cupholder......................... 194
Rear Park Sense System................... 177
Rear Seat, Folding....................... 129
Rear Window Defroster................... 198
Rear Window Features.................... 198
Rearview Mirrors........................ 85
Reclining Front Seats..................... 125
Recorder, Event Data...................... 63
Recreational Towing...................... 393
Reformulated Gasoline.................... 371
Refrigerant............................ 430
Release, Hood.......................... 135
Reminder, Lights On..................... 140
Reminder, Seat Belt....................... 48Remote Control
Starting System........................ 26
Remote Keyless Entry (RKE)................. 20
Remote Sound System (Radio) Controls........ 291
Remote Starting System.................... 26
Remote Trunk Release..................... 39
Replacement Bulbs....................... 456
Replacement Keys........................ 16
Replacement Parts....................... 422
Replacement Tires....................... 357
Reporting Safety Defects................... 496
Resetting Oil Change Indicator...........209,225
Restraint, Head......................... 127
Restraints, Child......................... 65
Restraints, Occupant...................... 41
Rocking Vehicle When Stuck................ 411
516 INDEX
