2009 CHRYSLER 300 Owners Manual

NOTE:The Key-In-Ignition reminder only sounds
when the ignition key is placed in the LOCK or ACC
position.
SENTRY KEY
The Sentry KeyImmobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if an invalid RKE transmitter is used to start the
engine.After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check,
it indicates that someone used an invalid RKE transmitter
to start the engine. Either of these conditions will result in
the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible.
NOTE:
•The Sentry KeyImmobilizer system is not compatible
with aftermarket remote starting systems. Use of these
systems may result in vehicle starting problems and
loss of security protection.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

•Exxon/Mobil Speedpass™, additional RKE transmit-
ters, or any other transponder-equipped components
on the same key chainwill notcause a fault unless the
additional part isphysically held against the RKE
transmitterbeing used to start the vehicle. Cell
phones, pagers, or other Radio Frequency (RF) elec-
tronics will not cause interference with this system.
All of the RKE transmitters provided with your new
vehicle have been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only RKE transmitters that are programmed to
the vehicle electronics can be used to start and operate
the vehicle. Once an RKE transmitter is programmed to a
vehicle, it cannot be programmed to any other vehicle.
CAUTION!
Always remove the keys from the vehicle and lock all
doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of RKE trans-
mitters. Duplication of RKE transmitters may be per-
formed at an authorized dealer or by using the Customer
Key Programming procedure. This procedure consists of
programming a blank RKE transmitter to the vehicle
electronics. A blank RKE transmitter is one that has never
been programmed.
NOTE:When having the Sentry KeyImmobilizer
system serviced, bring all vehicle RKE transmitters with
you to an authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Customer Key Programming
If you have two valid RKE transmitters with integrated
keys, you can program new RKE transmitters to the
system by performing the following procedure:
1. Insert the first valid integrated key into the ignition
switch and turn the ignition switch to the ON position for
at least three seconds, but no longer than 15 seconds.
Turn the ignition switch to the LOCK position and
remove the first key.
2. Insert the second valid integrated key and turn the
ignition switch to the ON position within 15 seconds.
After 10 seconds, a chime will sound and the Vehicle
Security Light will begin to flash. Turn the ignition switch
to the LOCK position and remove the second key.
3. Insert a blank integrated key into the ignition switch
and turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will soundand the Vehicle Security Light will stop flashing, turn on
again for three seconds, and then turn off.
The new integrated key is programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed RKE transmitter with inte-
grated key, contact your authorized dealer for details.
NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and the ignition switch for unau-
thorized operation. If something triggers the alarm, the
Vehicle Security Alarm will prevent the vehicle from
starting and provide the following audible and visible
signals: the horn will pulse; the headlights will flash; the
park lights will flash; and the Vehicle Security Light in
the instrument cluster will flash.
Rearming of the System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn the horn
off after three minutes, turn all of the visual signals off
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Arm the System
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver or passenger
door is open or press the LOCK button on the Remote
Keyless Entry (RKE) transmitter. After the last door is
closed, or if all doors are closed, the Vehicle Security
Alarm will arm itself in about 16 seconds. During that
time, the Vehicle Security Light will flash. If it does not
illuminate, the Vehicle Security Alarm is not arming. In
addition, if you open a door during the arming period,
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

the Vehicle Security Alarm will cancel the arming pro-
cess. If you wish to rearm the Vehicle Security Alarm after
closing the door, you must repeat one of the previously-
described arming sequences.
To Disarm the System
Either press the UNLOCK button on the RKE transmitter
or insert a valid ignition key into the ignition switch and
turn the key to the ON position.
NOTE:
•The driver’s door key cylinder and the trunk button on
the RKE transmitter cannot arm or disarm the Vehicle
Security Alarm.
•The Vehicle Security Alarm remains armed during
trunk entry. Pressing the TRUNK button will not
disarm the Vehicle Security Alarm. If someone enters
the vehicle through the trunk, and opens any door, the
alarm will sound.
•When the Vehicle Security Alarm is armed, the interior
power door lock switches will not unlock the doors.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will give you a false alarm. If one
of the previously-described arming sequences has oc-
curred, the Vehicle Security Alarm will arm regardless of
whether you are in the vehicle or not. If you remain in the
vehicle and open a door, the alarm will sound. If this
occurs, disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected the Vehicle Security Alarm will
remain armed when the battery is reconnected. The
exterior lights will flash, the horn will sound, and the
ignition will not start the vehicle. If this occurs, disarm
the Vehicle Security Alarm.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times when you
disarm the Vehicle Security Alarm. Check the vehicle for
tampering.
ILLUMINATED ENTRY SYSTEM
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter or open any
door.
This feature also turns on the approach lighting in the
outside mirrors (if equipped). Refer to “Outside Mirrors
with Turn Signal and Approach Lighting – If Equipped”
under “Mirrors” in Section 3.
The lights will fade to off after about 30 seconds or they
will immediately fade to off once the ignition switch is
turned ON from the LOCK position.NOTE:None of the courtesy lights will operate if the
dimmer control is in the “defeat” position (extreme
downward position), unless the overhead map/reading
lights are turned on manually.
REMOTE KEYLESS ENTRY (RKE)
The RKE system allows you to lock or unlock the doors,
open the trunk, or activate the Panic Alarm from dis-
tances up to approximately 66 ft (20 m) using a handheld
radio RKE transmitter with integrated key. The RKE
transmitter need not be pointed at the vehicle to activate
the system.
NOTE:Inserting the RKE transmitter with integrated
key into the ignition switch disables all buttons on that
RKE transmitter; however, the buttons on the remaining
RKE transmitters will continue to work. Driving at
speeds 5 mph (8 km/h) and above disables all RKE
transmitter buttons for all RKE transmitters.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Unlock the Doors
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door, or twice
within five seconds to unlock all doors. The turn signal
lights will flash to acknowledge the unlock signal. The
illuminated entry system will also turn on.
Remote Key Unlock, Driver Door/All Doors 1st
Press
This feature lets you program the system to unlock either
the driver’s door or all doors on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Remote Key
Unlock,” under “Personal Settings (Customer-
Programmable Features),” under “Electronic Vehicle
Information Center (EVIC) –If Equipped” in Section 4.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the LOCK button on a programmed
RKE transmitter for at least four seconds, but no longer
than 10 seconds. Then, press and hold the UNLOCK
button while still holding the LOCK button.RKE Transmitter with Integrated Key
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

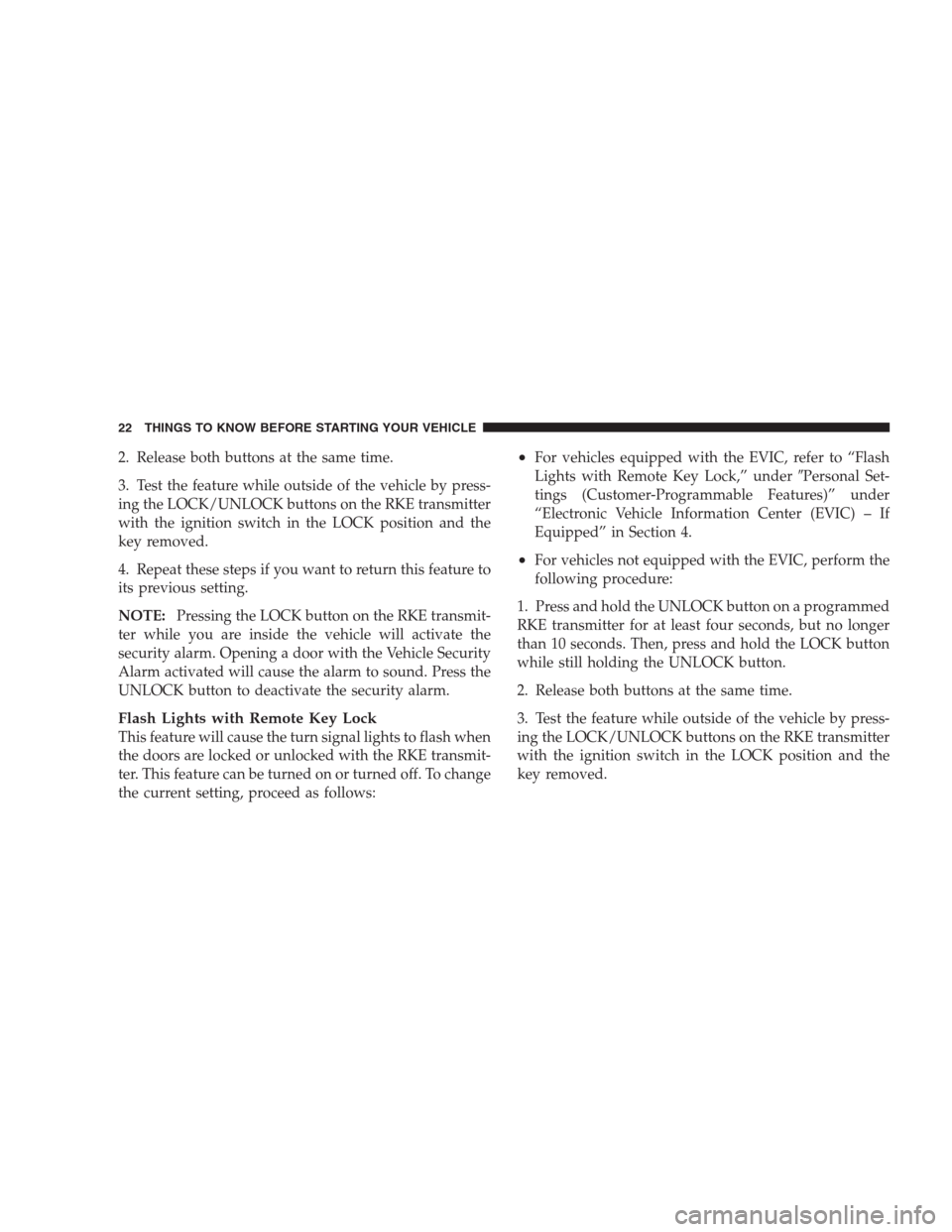

2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the RKE transmitter
with the ignition switch in the LOCK position and the
key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
security alarm. Opening a door with the Vehicle Security
Alarm activated will cause the alarm to sound. Press the
UNLOCK button to deactivate the security alarm.
Flash Lights with Remote Key Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or turned off. To change
the current setting, proceed as follows:
•For vehicles equipped with the EVIC, refer to “Flash
Lights with Remote Key Lock,” underPersonal Set-
tings (Customer-Programmable Features)” under
“Electronic Vehicle Information Center (EVIC) – If
Equipped” in Section 4.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the UNLOCK button on a programmed
RKE transmitter for at least four seconds, but no longer
than 10 seconds. Then, press and hold the LOCK button
while still holding the UNLOCK button.
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the RKE transmitter
with the ignition switch in the LOCK position and the
key removed.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
