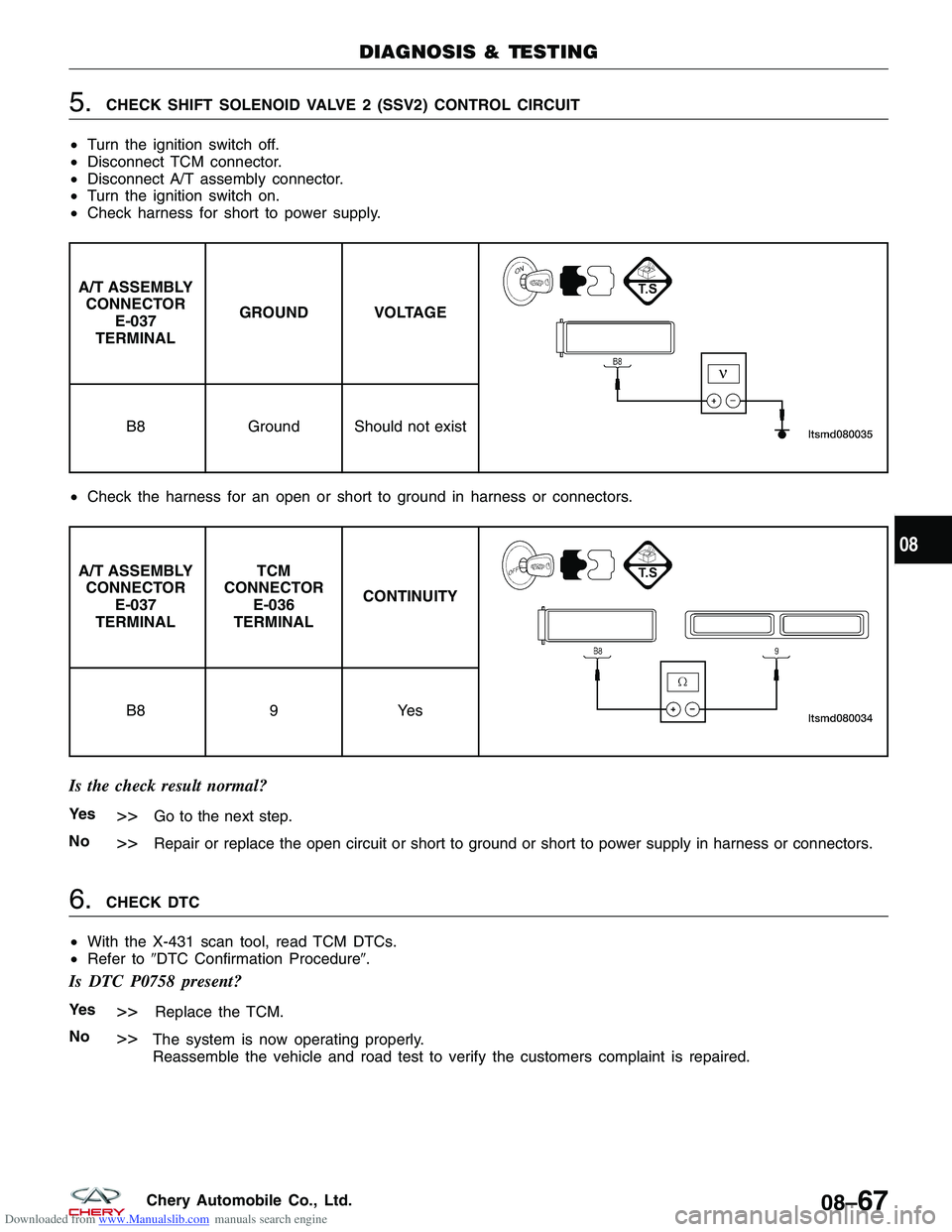

Downloaded from www.Manualslib.com manuals search engine 5.CHECK SHIFT SOLENOID VALVE 2 (SSV2) CONTROL CIRCUIT
• Turn the ignition switch off.
• Disconnect TCM connector.
• Disconnect A/T assembly connector.
• Turn the ignition switch on.
• Check harness for short to power supply.
A/T ASSEMBLY
CONNECTOR E-037
TERMINAL GROUND VOLTAGE
B8
Ground Should not exist
• Check the harness for an open or short to ground in harness or connectors.
A/T ASSEMBLY
CONNECTOR E-037
TERMINAL TCM
CONNECTOR E-036
TERMINAL CONTINUITY
B8
9Yes
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground or short to power supply in harness or connectors.
6.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC P0758 present?
Ye s>>Replace the TCM.
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
DIAGNOSIS & TESTING
08
08–67Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T SOLENOID SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Monitor the value of the gear position as indicated in the following table while driving:
SEQUENCE SOLENOID (EVS) CONDITION
LEVER
POSITION EVS
EVS1 EVS2 EVS3 EVS4 EVS5 EVS6
R Not
active Not
active Not
active Not
active Not
active Not
active
N/P Not
active Not
active Active Not
active Not
active Not
active
1 Not
active Not
active Active Active Not
active Not
active
2 Not
active Active Not
active Active Not
active Not
active
3 Not
active Not
active Not
active Not
active Not
active Not
active
4 Active Active Not
active Not
active Not
active Not
active
Is the check result normal?
Ye s>>The condition that caused this DTC is intermittent (See Diagnostic Help in Section 08 Transaxle &
Transfer Case).
No
>>Go to the next step.
2.ACTUATE TEST
• With X-431, perform the solenoid actuate test.
• The solenoid should be heard.
Is the check result normal?
Ye s>>Go to step 6.
No
>>Go to the next step.
DIAGNOSIS & TESTING
08–70Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 3.CHECK SHIFT SOLENOID VALVE 3 (SSV3) RESISTANCE
• Check SSV3 resistance as follows:
NUMBER SOLENOID
1Shift Solenoid Valve 1
2 Shift Solenoid Valve 2
3 Shift Solenoid Valve 3
4 Shift Solenoid Valve 4
5 Shift Solenoid Valve 5
6 Shift Solenoid Valve 6
7 Pressure adjust solenoid
valve
8 Torque converter lock
solenoid valve
9 Manual valve
10 Valve body
• Check SSV3 resistance as shown in the following table:
SHIFT SOLENOID VALVE A/T ASSEMBLY
TERMINAL
VALVE 1 (SSV1) B11-B3
VALVE 2 (SSV2) B8-B3
VALVE 3 (SSV3) B10-B3
VALVE 4 (SSV4) B7-B3
VALVE 5 (SSV5) B5-B3
VALVE 6 (SSV6) B2-B3
RESISTANCE (23°C) 38-42()
Is the check result normal?
Ye s>>Replace the valve with a known good one.
With X-431, perform the solenoid actuate test.
If the solenoid can be heard, go to step 6.
If the solenoid can’t be heard, go to the next step.
No
>>Replace the damaged solenoid valve.
DIAGNOSIS & TESTING
08
08–71Chery Automobile Co., Ltd.

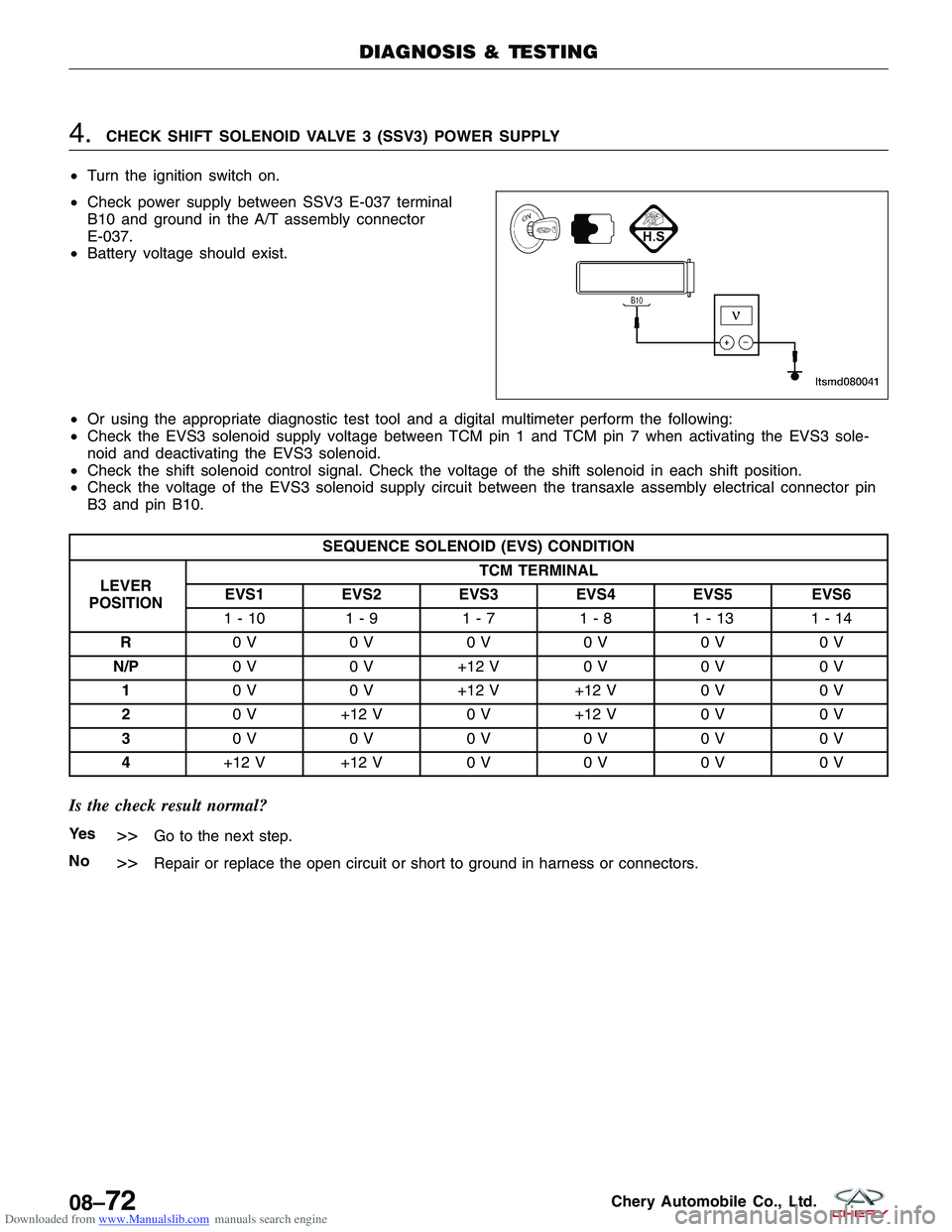

Downloaded from www.Manualslib.com manuals search engine 4.CHECK SHIFT SOLENOID VALVE 3 (SSV3) POWER SUPPLY
• Turn the ignition switch on.
• Check power supply between SSV3 E-037 terminal
B10 and ground in the A/T assembly connector
E-037.
• Battery voltage should exist.
• Or using the appropriate diagnostic test tool and a digital multimeter perform the following:
• Check the EVS3 solenoid supply voltage between TCM pin 1 and TCM pin 7 when activating the EVS3 sole-
noid and deactivating the EVS3 solenoid.
• Check the shift solenoid control signal. Check the voltage of the shift solenoid in each shift position.
• Check the voltage of the EVS3 solenoid supply circuit between the transaxle assembly electrical connector pin
B3 and pin B10.
SEQUENCE SOLENOID (EVS) CONDITION
LEVER
POSITION TCM TERMINAL
EVS1 EVS2 EVS3 EVS4 EVS5 EVS6
1-10 1-9 1-71-8 1-13 1-14
R 0V 0V0V0V0V 0V
N/P 0V0V+12V 0V0V 0V
1 0 V 0 V+12 V +12 V 0 V0 V
2 0 V+12 V 0 V+12 V 0 V0 V
3 0V 0V0V0V0V 0V
4 +12 V +12 V 0 V0 V0 V 0 V
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground in harness or connectors.
DIAGNOSIS & TESTING
LTSMD080041
08–72Chery Automobile Co., Ltd.

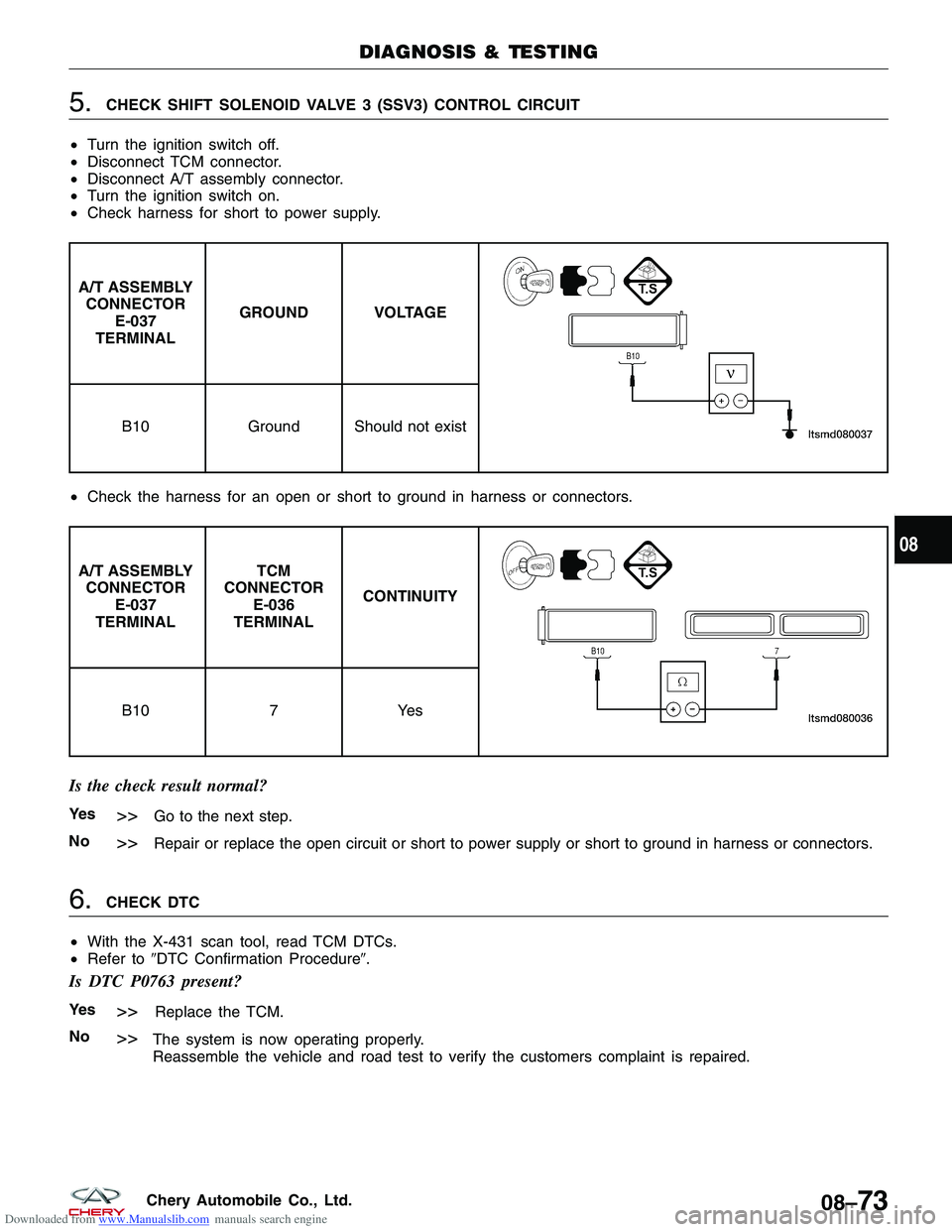

Downloaded from www.Manualslib.com manuals search engine 5.CHECK SHIFT SOLENOID VALVE 3 (SSV3) CONTROL CIRCUIT
• Turn the ignition switch off.
• Disconnect TCM connector.
• Disconnect A/T assembly connector.
• Turn the ignition switch on.
• Check harness for short to power supply.
A/T ASSEMBLY
CONNECTOR E-037
TERMINAL GROUND VOLTAGE
B10
Ground Should not exist
• Check the harness for an open or short to ground in harness or connectors.
A/T ASSEMBLY
CONNECTOR E-037
TERMINAL TCM
CONNECTOR E-036
TERMINAL CONTINUITY
B10
7Yes
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to power supply or short to ground in harness or connectors.
6.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC P0763 present?
Ye s>>Replace the TCM.
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
DIAGNOSIS & TESTING
08
08–73Chery Automobile Co., Ltd.

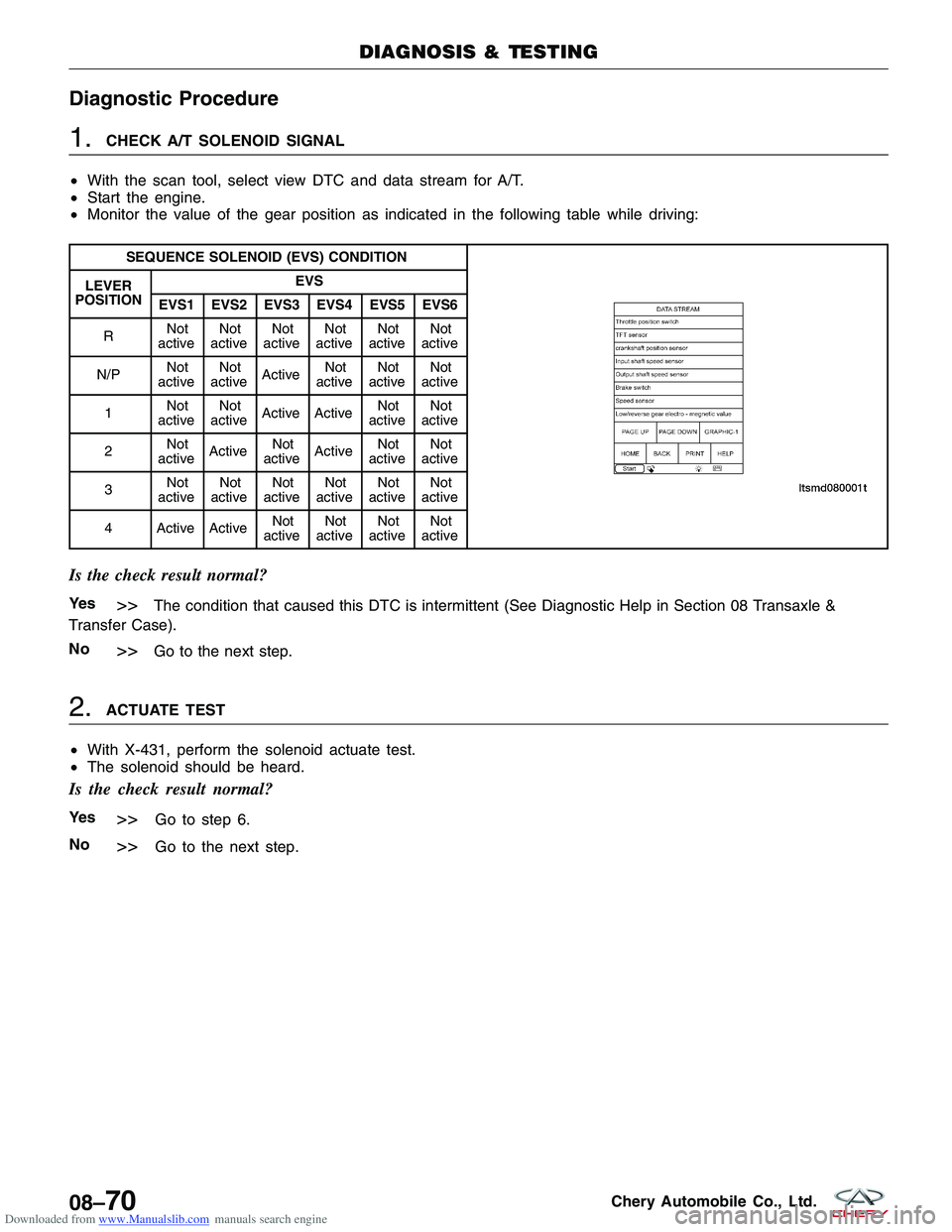

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T SOLENOID SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Monitor the value of the gear position as indicated in the following table while driving:
SEQUENCE SOLENOID (EVS) CONDITION
LEVER
POSITION EVS
EVS1 EVS2 EVS3 EVS4 EVS5 EVS6
R Not
active Not
active Not
active Not
active Not
active Not
active
N/P Not
active Not
active Active Not
active Not
active Not
active
1 Not
active Not
active Active Active Not
active Not
active
2 Not
active Active Not
active Active Not
active Not
active
3 Not
active Not
active Not
active Not
active Not
active Not
active
4 Active Active Not
active Not
active Not
active Not
active
Is the check result normal?
Ye s>>The condition that caused this DTC is intermittent (See Diagnostic Help in Section 08 Transaxle &
Transfer Case).
No
>>Go to the next step.
2.ACTUATE TEST
• With X-431, perform the solenoid actuate test.
• The solenoid should be heard.
Is the check result normal?
Ye s>>Go to step 6.
No
>>Go to the next step.
DIAGNOSIS & TESTING
08–76Chery Automobile Co., Ltd.

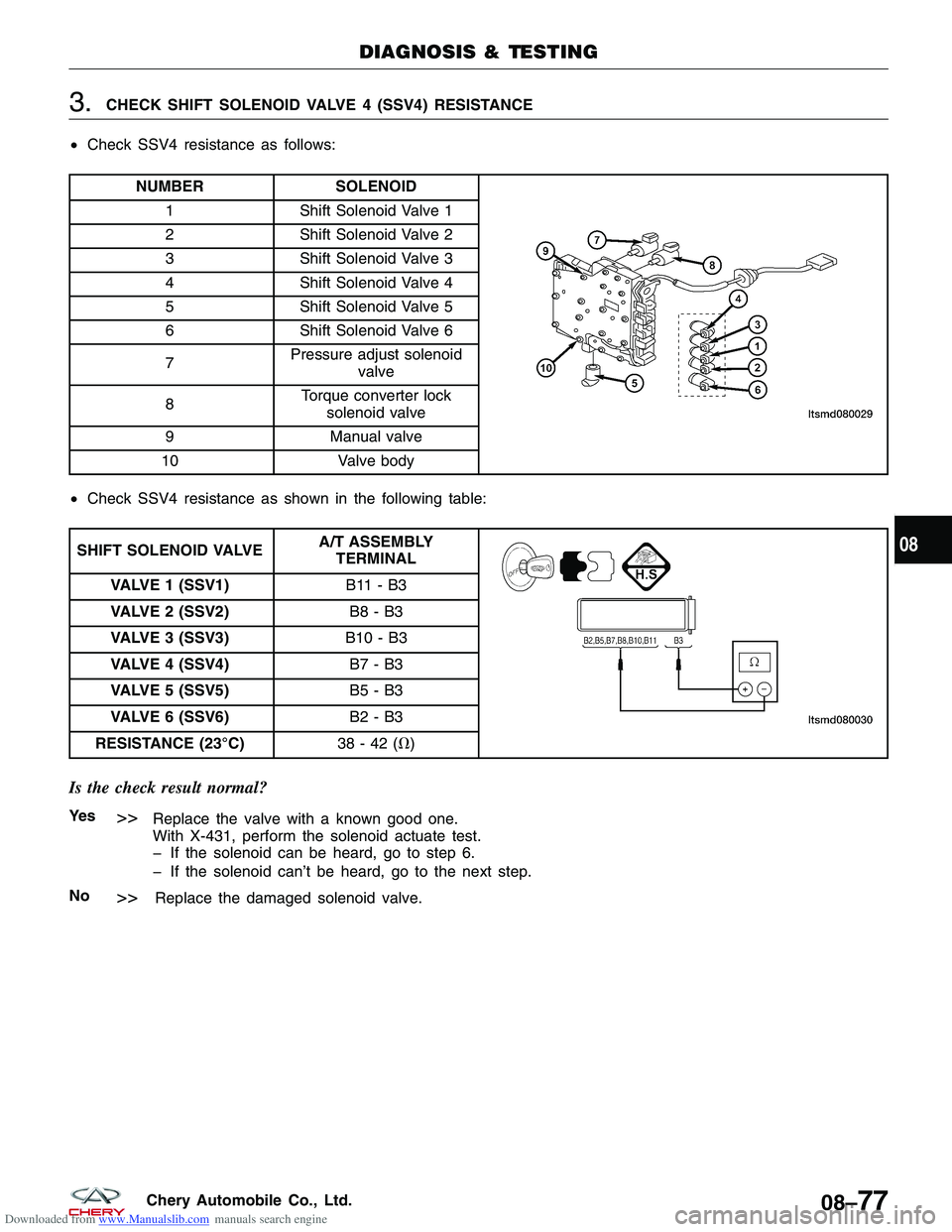

Downloaded from www.Manualslib.com manuals search engine 3.CHECK SHIFT SOLENOID VALVE 4 (SSV4) RESISTANCE
• Check SSV4 resistance as follows:
NUMBER SOLENOID
1Shift Solenoid Valve 1
2 Shift Solenoid Valve 2
3 Shift Solenoid Valve 3
4 Shift Solenoid Valve 4
5 Shift Solenoid Valve 5
6 Shift Solenoid Valve 6
7 Pressure adjust solenoid
valve
8 Torque converter lock
solenoid valve
9 Manual valve
10 Valve body
• Check SSV4 resistance as shown in the following table:
SHIFT SOLENOID VALVE A/T ASSEMBLY
TERMINAL
VALVE 1 (SSV1) B11-B3
VALVE 2 (SSV2) B8-B3
VALVE 3 (SSV3) B10-B3
VALVE 4 (SSV4) B7-B3
VALVE 5 (SSV5) B5-B3
VALVE 6 (SSV6) B2-B3
RESISTANCE (23°C) 38-42()
Is the check result normal?
Ye s>>Replace the valve with a known good one.
With X-431, perform the solenoid actuate test.
If the solenoid can be heard, go to step 6.
If the solenoid can’t be heard, go to the next step.
No
>>Replace the damaged solenoid valve.
DIAGNOSIS & TESTING
08
08–77Chery Automobile Co., Ltd.

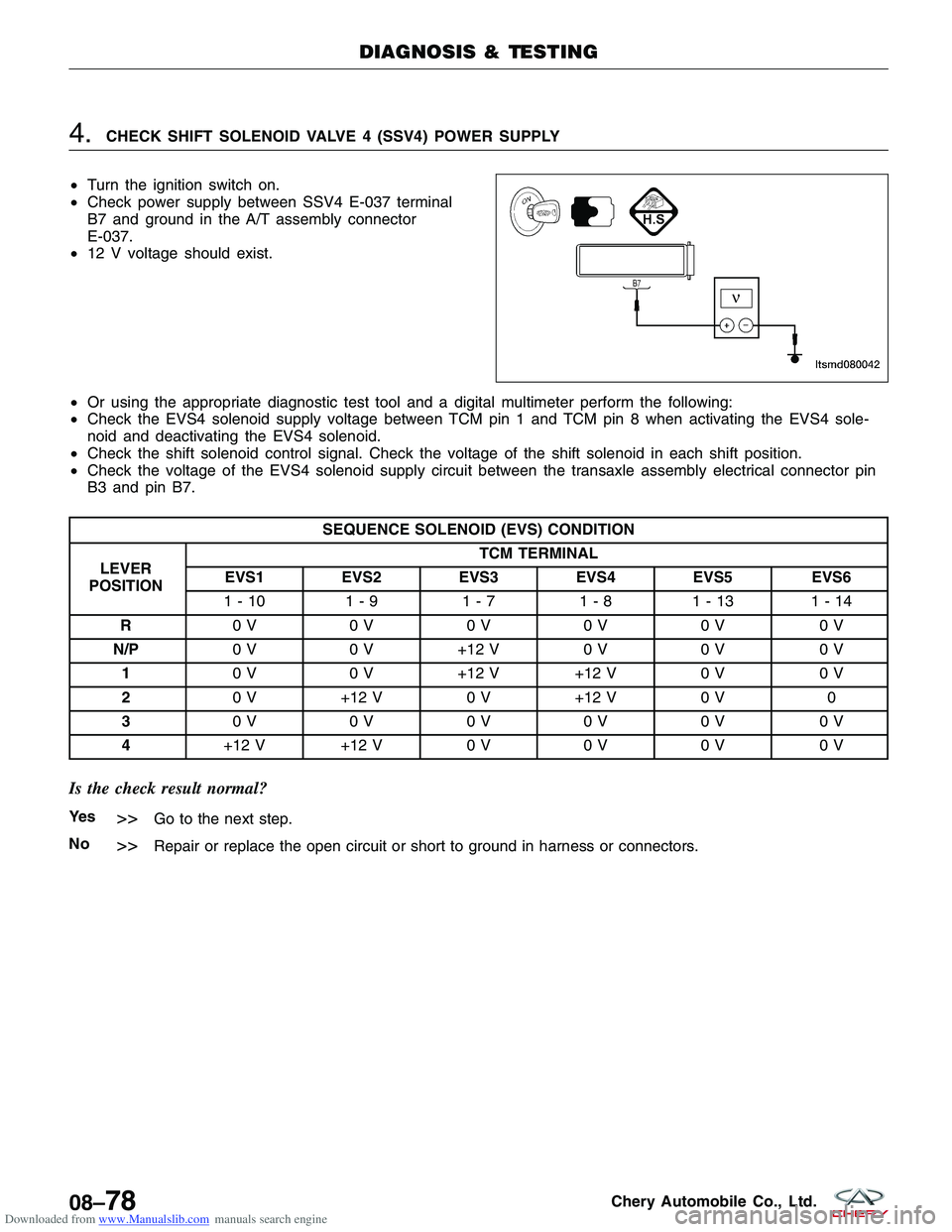

Downloaded from www.Manualslib.com manuals search engine 4.CHECK SHIFT SOLENOID VALVE 4 (SSV4) POWER SUPPLY
• Turn the ignition switch on.
• Check power supply between SSV4 E-037 terminal
B7 and ground in the A/T assembly connector
E-037.
• 12 V voltage should exist.
• Or using the appropriate diagnostic test tool and a digital multimeter perform the following:
• Check the EVS4 solenoid supply voltage between TCM pin 1 and TCM pin 8 when activating the EVS4 sole-
noid and deactivating the EVS4 solenoid.
• Check the shift solenoid control signal. Check the voltage of the shift solenoid in each shift position.
• Check the voltage of the EVS4 solenoid supply circuit between the transaxle assembly electrical connector pin
B3 and pin B7.
SEQUENCE SOLENOID (EVS) CONDITION
LEVER
POSITION TCM TERMINAL
EVS1 EVS2 EVS3 EVS4 EVS5 EVS6
1-10 1-9 1-71-8 1-13 1-14
R 0V 0V0V0V0V 0V
N/P 0V0V+12V 0V0V 0V
1 0 V 0 V+12 V +12 V 0 V0 V
2 0 V+12 V 0 V+12 V 0 V 0
3 0V 0V0V0V0V 0V
4 +12 V +12 V 0 V0 V0 V 0 V
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground in harness or connectors.
DIAGNOSIS & TESTING
LTSMD080042
08–78Chery Automobile Co., Ltd.
