Downloaded from www.Manualslib.com manuals search engine 7.CHECK DTC
• Assemble all the disassembled components.
• Install the Automatic Transaxle Assembly (See Automatic Transaxle Removal & Installation in Section 08 Trans-
axle & Transfer Case).
• Fill with new ATF.
• Fill the ATF from the refilling tube.
• Refit the hose connector disassembled in step 1 and refit the dipstick (clean the dipstick before refit).
• Shift the gear selector lever to each gear position and then shift to gear “N”.
• Drive the vehicle until the ATF reached working temperature (70° - 80°C) and re-check the fluid level. The fluid
level must be within the HOT range of dipstick.
• Refit the checking dipstick of transaxle.
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC P0730 still present?
Ye s>>Replace the TCM.
No
>>The system is now operating properly.
DIAGNOSIS & TESTING
08
08–55Chery Automobile Co., Ltd.

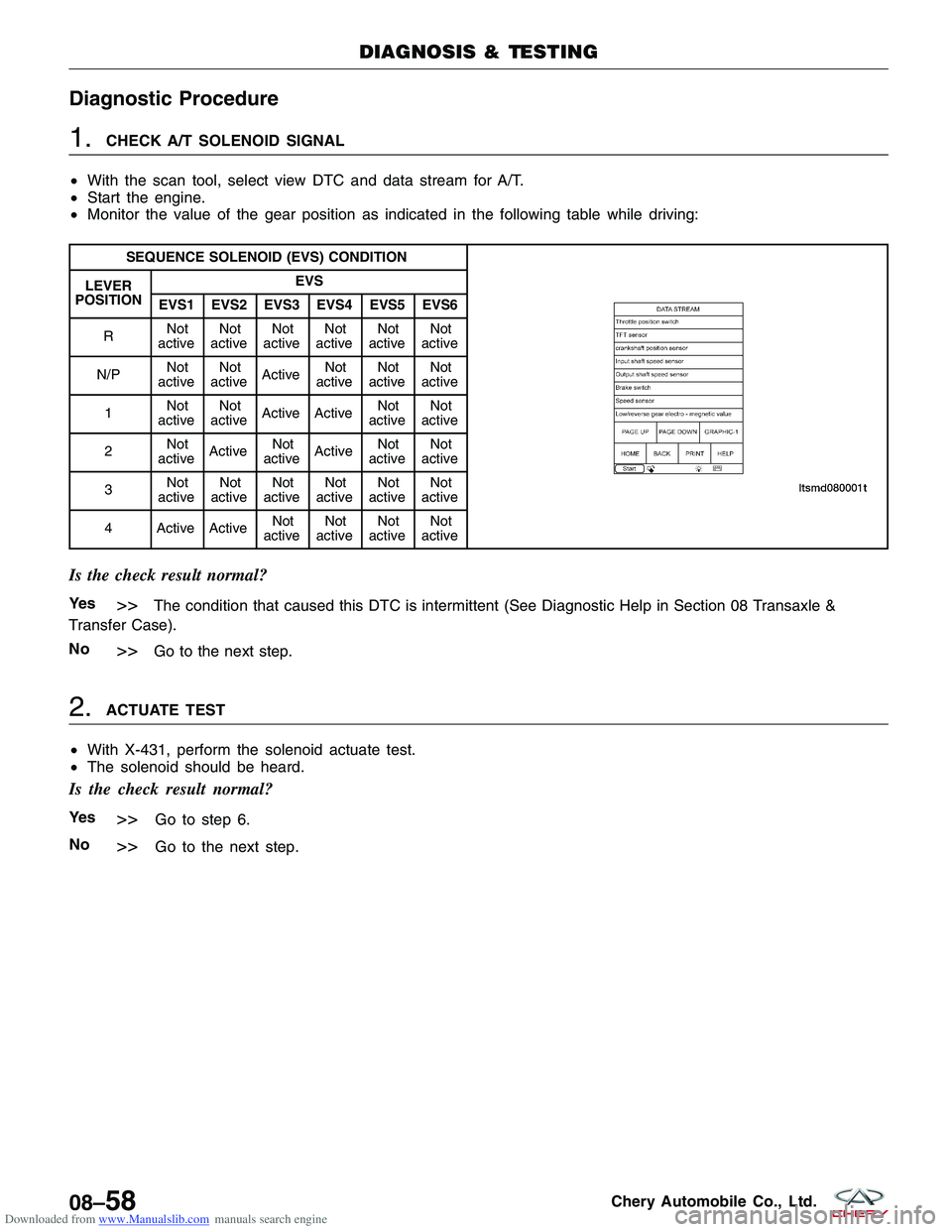

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T SOLENOID SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Monitor the value of the gear position as indicated in the following table while driving:
SEQUENCE SOLENOID (EVS) CONDITION
LEVER
POSITION EVS
EVS1 EVS2 EVS3 EVS4 EVS5 EVS6
R Not
active Not
active Not
active Not
active Not
active Not
active
N/P Not
active Not
active Active Not
active Not
active Not
active
1 Not
active Not
active Active Active Not
active Not
active
2 Not
active Active Not
active Active Not
active Not
active
3 Not
active Not
active Not
active Not
active Not
active Not
active
4 Active Active Not
active Not
active Not
active Not
active
Is the check result normal?
Ye s>>The condition that caused this DTC is intermittent (See Diagnostic Help in Section 08 Transaxle &
Transfer Case).
No
>>Go to the next step.
2.ACTUATE TEST
• With X-431, perform the solenoid actuate test.
• The solenoid should be heard.
Is the check result normal?
Ye s>>Go to step 6.
No
>>Go to the next step.
DIAGNOSIS & TESTING
08–58Chery Automobile Co., Ltd.

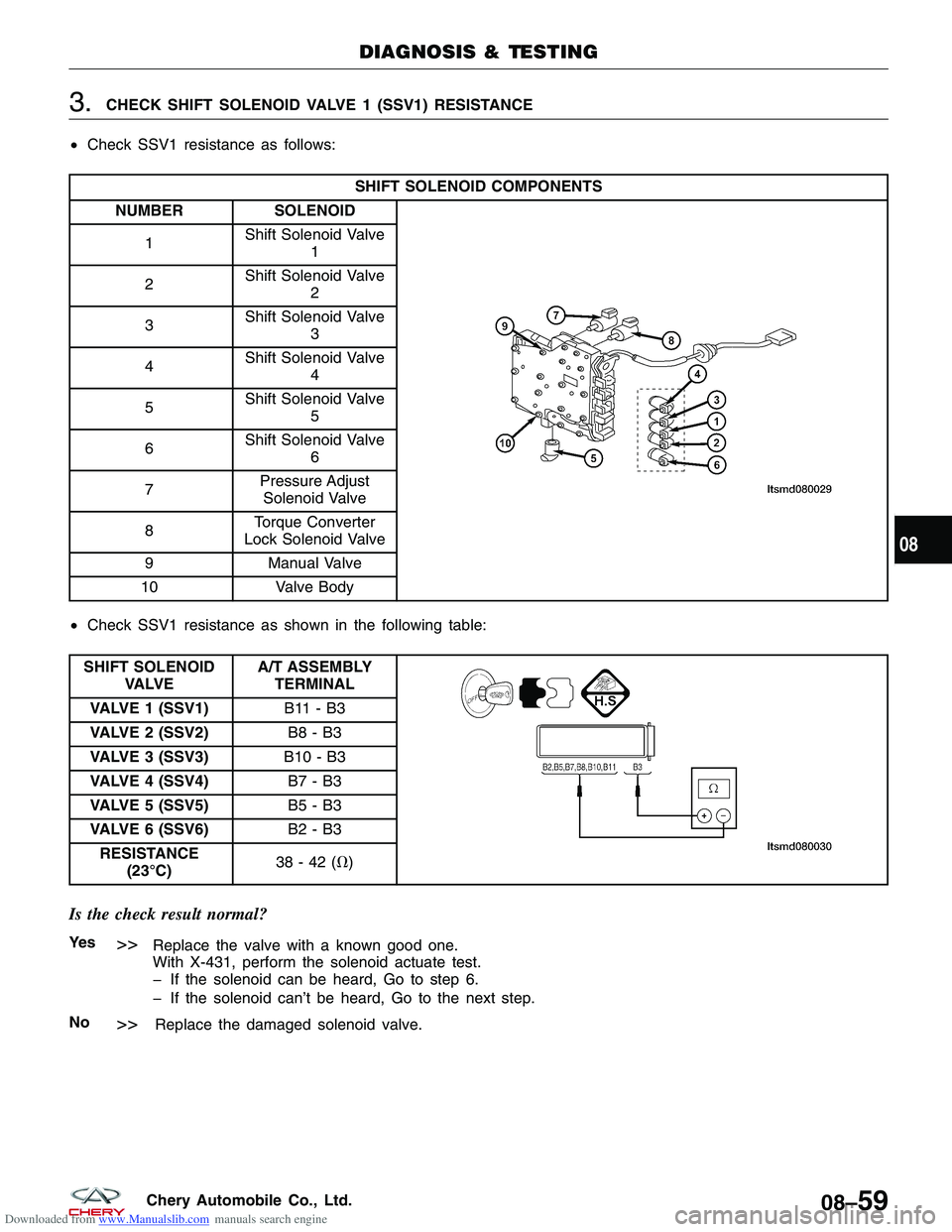

Downloaded from www.Manualslib.com manuals search engine 3.CHECK SHIFT SOLENOID VALVE 1 (SSV1) RESISTANCE
• Check SSV1 resistance as follows:
SHIFT SOLENOID COMPONENTS
NUMBER SOLENOID
1Shift Solenoid Valve
1
2 Shift Solenoid Valve
2
3 Shift Solenoid Valve
3
4 Shift Solenoid Valve
4
5 Shift Solenoid Valve
5
6 Shift Solenoid Valve
6
7 Pressure Adjust
Solenoid Valve
8 Torque Converter
Lock Solenoid Valve
9 Manual Valve
10 Valve Body
• Check SSV1 resistance as shown in the following table:
SHIFT SOLENOID
VA LV E A/T ASSEMBLY
TERMINAL
VALVE 1 (SSV1) B11-B3
VALVE 2 (SSV2) B8-B3
VALVE 3 (SSV3) B10-B3
VALVE 4 (SSV4) B7-B3
VALVE 5 (SSV5) B5-B3
VALVE 6 (SSV6) B2-B3
RESISTANCE (23°C) 38-42(
)
Is the check result normal?
Ye s>>Replace the valve with a known good one.
With X-431, perform the solenoid actuate test.
If the solenoid can be heard, Go to step 6.
If the solenoid can’t be heard, Go to the next step.
No
>>Replace the damaged solenoid valve.
DIAGNOSIS & TESTING
08
08–59Chery Automobile Co., Ltd.

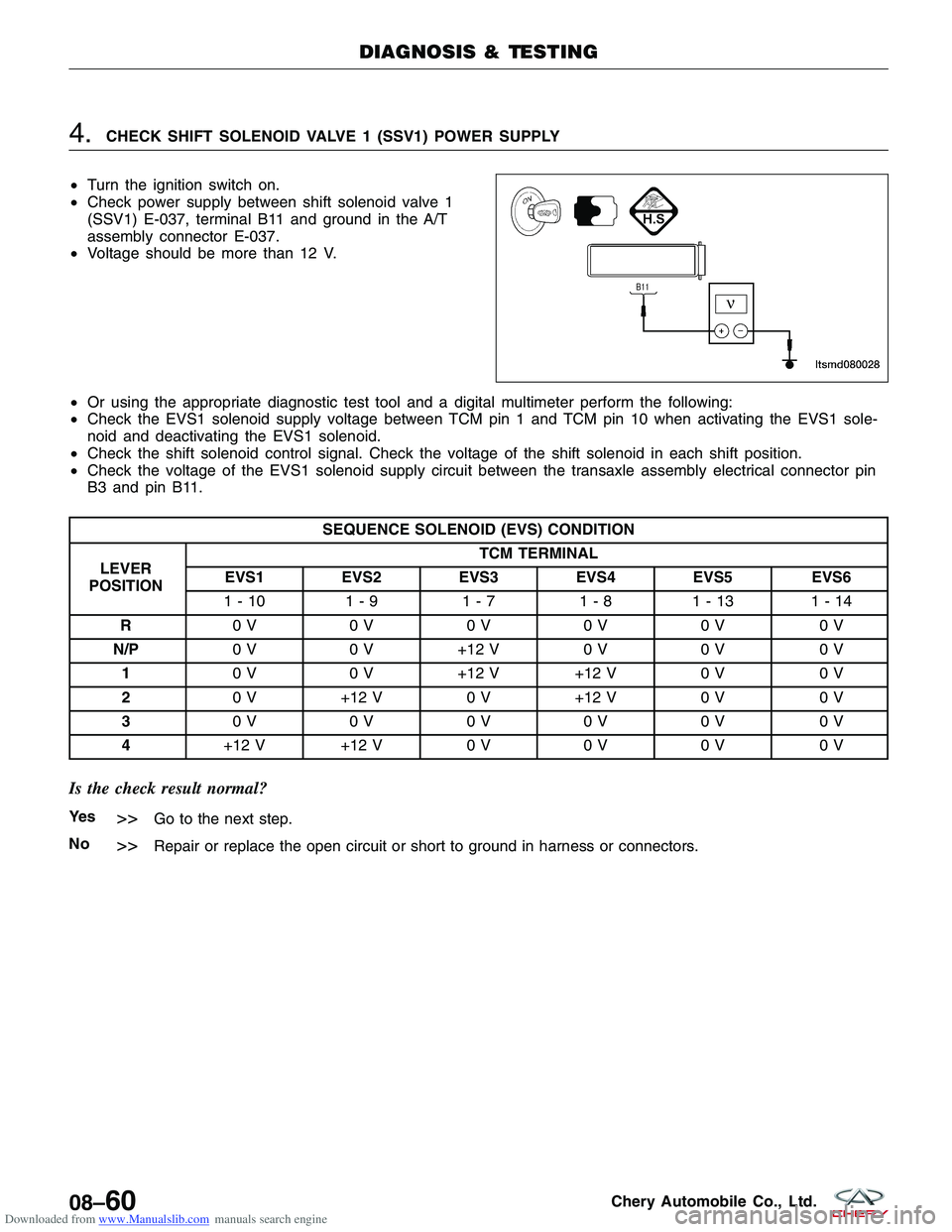

Downloaded from www.Manualslib.com manuals search engine 4.CHECK SHIFT SOLENOID VALVE 1 (SSV1) POWER SUPPLY
• Turn the ignition switch on.
• Check power supply between shift solenoid valve 1
(SSV1) E-037, terminal B11 and ground in the A/T
assembly connector E-037.
• Voltage should be more than 12 V.
• Or using the appropriate diagnostic test tool and a digital multimeter perform the following:
• Check the EVS1 solenoid supply voltage between TCM pin 1 and TCM pin 10 when activating the EVS1 sole-
noid and deactivating the EVS1 solenoid.
• Check the shift solenoid control signal. Check the voltage of the shift solenoid in each shift position.
• Check the voltage of the EVS1 solenoid supply circuit between the transaxle assembly electrical connector pin
B3 and pin B11.
SEQUENCE SOLENOID (EVS) CONDITION
LEVER
POSITION TCM TERMINAL
EVS1 EVS2 EVS3 EVS4 EVS5 EVS6
1-10 1-9 1-71-8 1-13 1-14
R 0V 0V0V0V0V 0V
N/P 0V0V+12V 0V0V 0V
1 0 V 0 V+12 V +12 V 0 V0 V
2 0 V+12 V 0 V+12 V 0 V0 V
3 0V 0V0V0V0V 0V
4 +12 V +12 V 0 V0 V0 V 0 V
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground in harness or connectors.
DIAGNOSIS & TESTING
LTSMD080028
08–60Chery Automobile Co., Ltd.

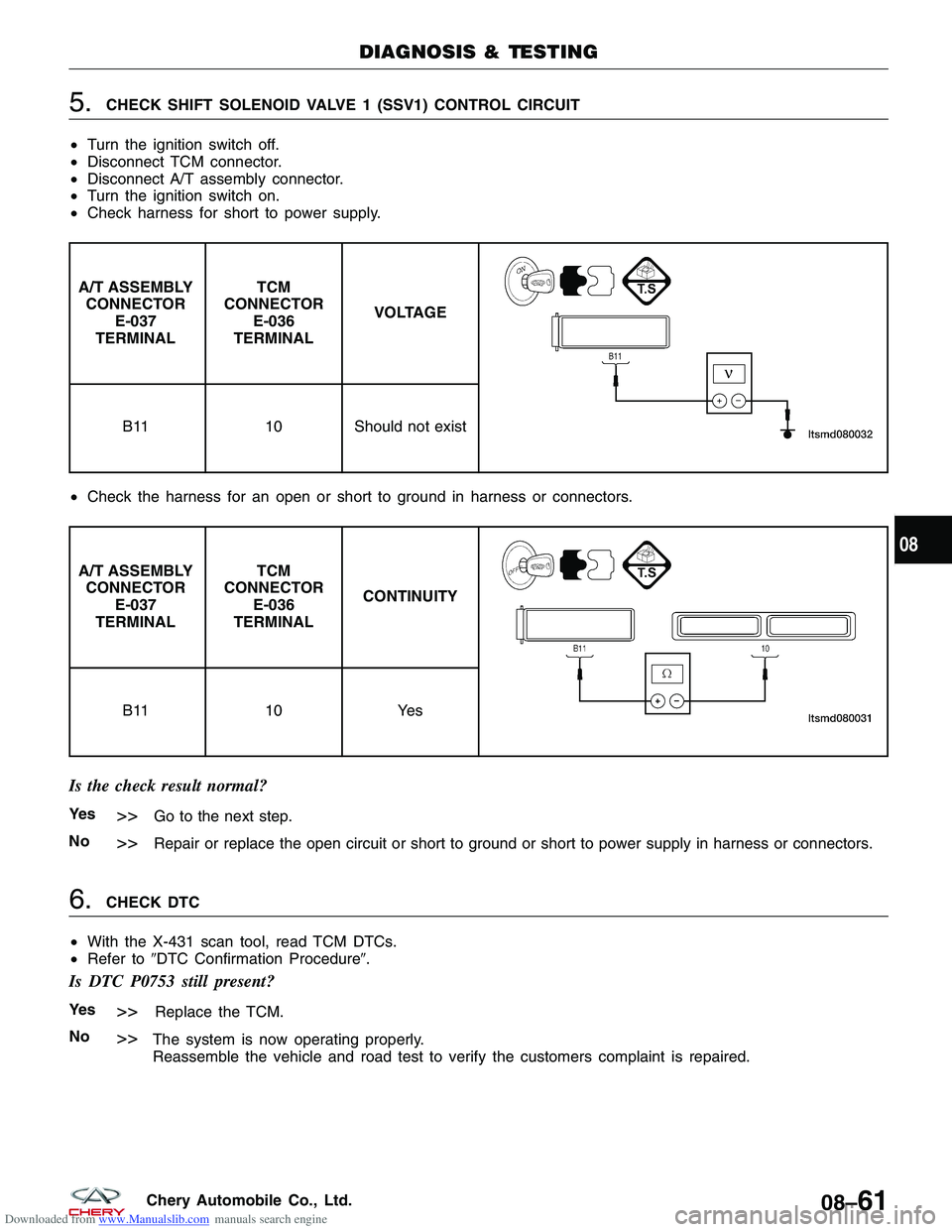

Downloaded from www.Manualslib.com manuals search engine 5.CHECK SHIFT SOLENOID VALVE 1 (SSV1) CONTROL CIRCUIT
• Turn the ignition switch off.
• Disconnect TCM connector.
• Disconnect A/T assembly connector.
• Turn the ignition switch on.
• Check harness for short to power supply.
A/T ASSEMBLY
CONNECTOR E-037
TERMINAL TCM
CONNECTOR E-036
TERMINAL VOLTAGE
B11
10 Should not exist
• Check the harness for an open or short to ground in harness or connectors.
A/T ASSEMBLY
CONNECTOR E-037
TERMINAL TCM
CONNECTOR E-036
TERMINAL CONTINUITY
B11
10Yes
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground or short to power supply in harness or connectors.
6.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC P0753 still present?
Ye s>>Replace the TCM.
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
DIAGNOSIS & TESTING
08
08–61Chery Automobile Co., Ltd.

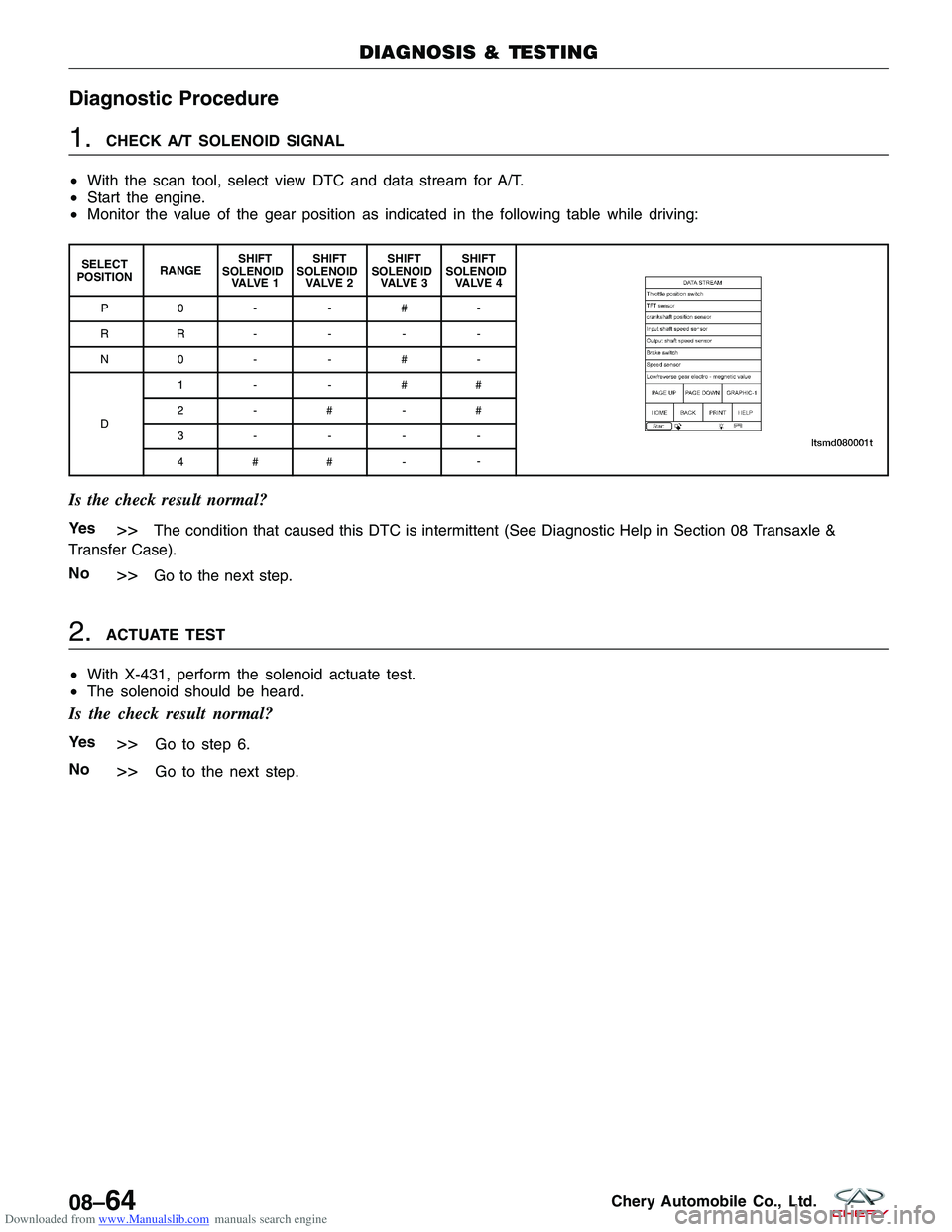

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T SOLENOID SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Monitor the value of the gear position as indicated in the following table while driving:
SELECT
POSITION RANGESHIFT
SOLENOID VA LV E 1 SHIFT
SOLENOID VA LV E 2 SHIFT
SOLENOID VA LV E 3 SHIFT
SOLENOID VA LV E 4
P0- -#-
RR----
N0 - - # -
D 1- -##
2-#-#
3----
4## -
-
Is the check result normal?
Ye s>>The condition that caused this DTC is intermittent (See Diagnostic Help in Section 08 Transaxle &
Transfer Case).
No
>>Go to the next step.
2.ACTUATE TEST
• With X-431, perform the solenoid actuate test.
• The solenoid should be heard.
Is the check result normal?
Ye s>>Go to step 6.
No
>>Go to the next step.
DIAGNOSIS & TESTING
08–64Chery Automobile Co., Ltd.

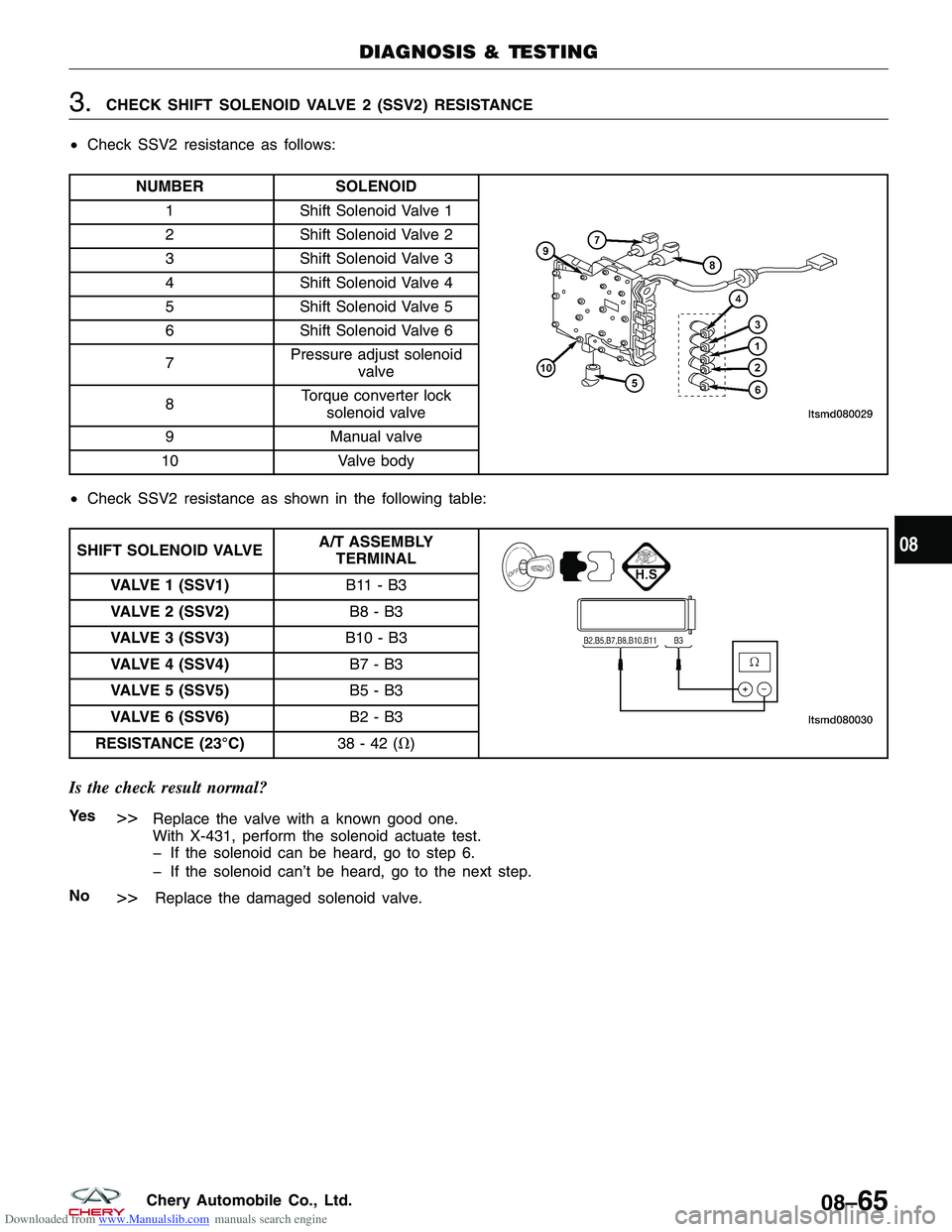

Downloaded from www.Manualslib.com manuals search engine 3.CHECK SHIFT SOLENOID VALVE 2 (SSV2) RESISTANCE
• Check SSV2 resistance as follows:
NUMBER SOLENOID
1Shift Solenoid Valve 1
2 Shift Solenoid Valve 2
3 Shift Solenoid Valve 3
4 Shift Solenoid Valve 4
5 Shift Solenoid Valve 5
6 Shift Solenoid Valve 6
7 Pressure adjust solenoid
valve
8 Torque converter lock
solenoid valve
9 Manual valve
10 Valve body
• Check SSV2 resistance as shown in the following table:
SHIFT SOLENOID VALVE A/T ASSEMBLY
TERMINAL
VALVE 1 (SSV1) B11-B3
VALVE 2 (SSV2) B8-B3
VALVE 3 (SSV3) B10-B3
VALVE 4 (SSV4) B7-B3
VALVE 5 (SSV5) B5-B3
VALVE 6 (SSV6) B2-B3
RESISTANCE (23°C) 38-42()
Is the check result normal?
Ye s>>Replace the valve with a known good one.
With X-431, perform the solenoid actuate test.
If the solenoid can be heard, go to step 6.
If the solenoid can’t be heard, go to the next step.
No
>>Replace the damaged solenoid valve.
DIAGNOSIS & TESTING
08
08–65Chery Automobile Co., Ltd.

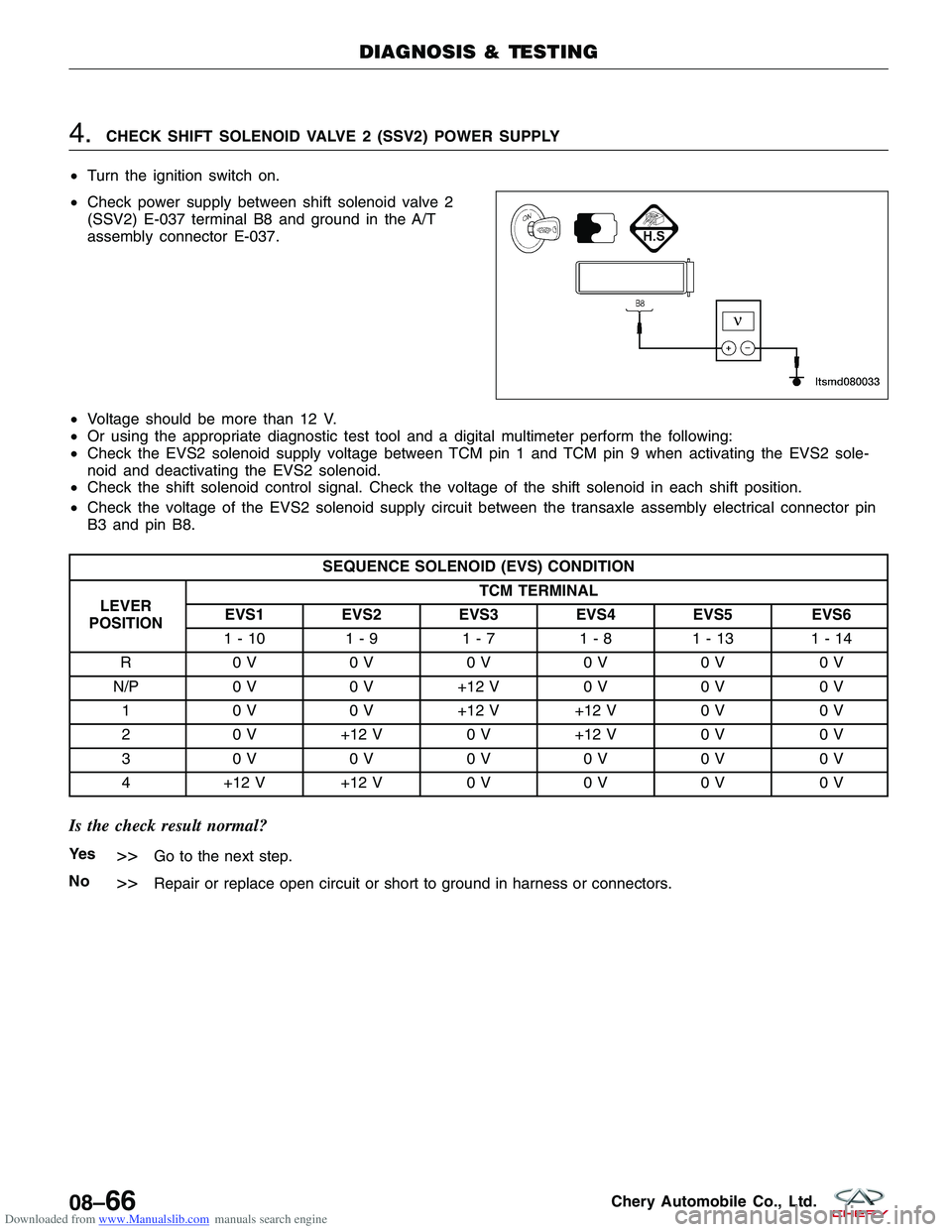

Downloaded from www.Manualslib.com manuals search engine 4.CHECK SHIFT SOLENOID VALVE 2 (SSV2) POWER SUPPLY
• Turn the ignition switch on.
• Check power supply between shift solenoid valve 2
(SSV2) E-037 terminal B8 and ground in the A/T
assembly connector E-037.
• Voltage should be more than 12 V.
• Or using the appropriate diagnostic test tool and a digital multimeter perform the following:
• Check the EVS2 solenoid supply voltage between TCM pin 1 and TCM pin 9 when activating the EVS2 sole-
noid and deactivating the EVS2 solenoid.
• Check the shift solenoid control signal. Check the voltage of the shift solenoid in each shift position.
• Check the voltage of the EVS2 solenoid supply circuit between the transaxle assembly electrical connector pin
B3 and pin B8.
SEQUENCE SOLENOID (EVS) CONDITION
LEVER
POSITION TCM TERMINAL
EVS1 EVS2 EVS3 EVS4 EVS5 EVS6
1-10 1-9 1-71-8 1-13 1-14
R 0 V0V0V0V0V 0 V
N/P 0 V0 V+12 V 0 V0 V 0 V
1 0 V 0 V+12 V +12 V 0 V0 V
2 0 V+12 V 0 V+12 V 0 V0 V
3 0 V0V0V0V0V 0 V
4 +12 V +12 V 0 V0 V0 V 0 V
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace open circuit or short to ground in harness or connectors.
DIAGNOSIS & TESTING
LTSMD080033
08–66Chery Automobile Co., Ltd.
