2009 CHERY TIGGO engine

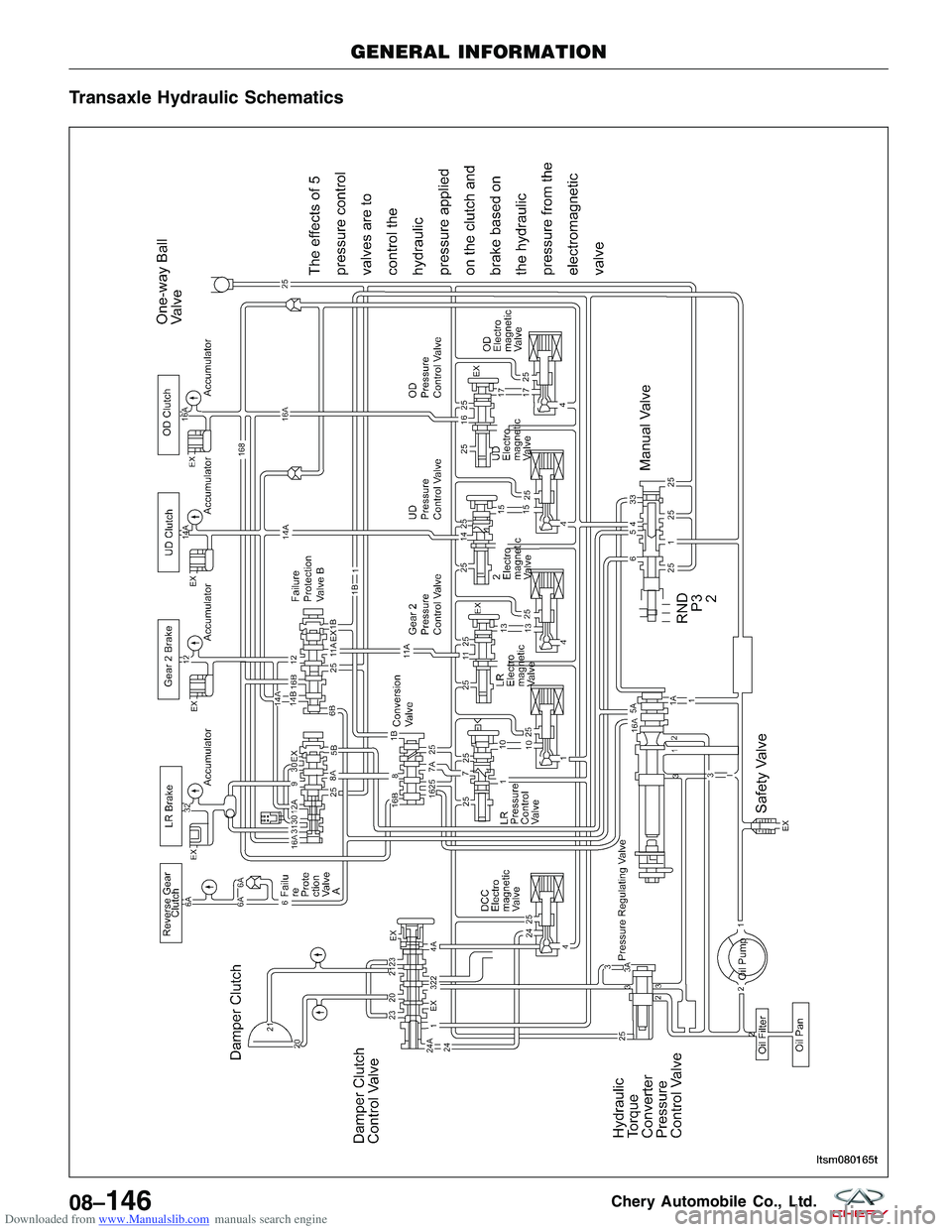

Downloaded from www.Manualslib.com manuals search engine Transaxle Hydraulic Schematics
GENERAL INFORMATION
LTSM080165T
08–146Chery Automobile Co., Ltd.

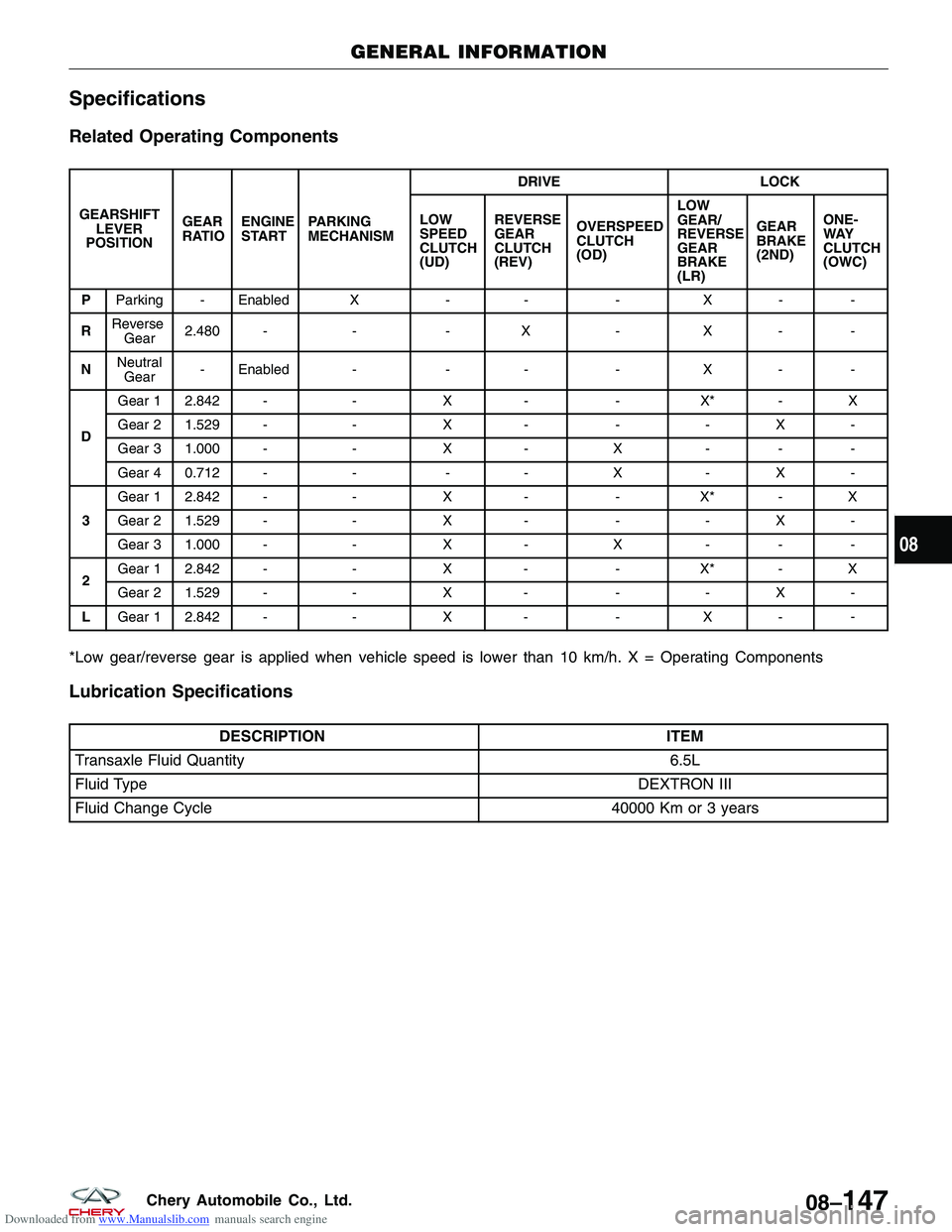

Downloaded from www.Manualslib.com manuals search engine Specifications
Related Operating Components
GEARSHIFTLEVER
POSITION GEAR
RATIO
ENGINE
START PARKING
MECHANISM DRIVE
LOCK
LOW
SPEED
CLUTCH
(UD) REVERSE
GEAR
CLUTCH
(REV)
OVERSPEED
CLUTCH
(OD) LOW
GEAR/
REVERSE
GEAR
BRAKE
(LR)GEAR
BRAKE
(2ND)
ONE-
WAY
CLUTCH
(OWC)
P Parking - Enabled X -- -X - -
R Reverse
Gear 2.480 -
--X -X - -
N Neutral
Gear - Enabled -
-- -X - -
D Gear 1 2.842 -
-X- -X* - X
Gear 2 1.529 - -X- -- X -
Gear 3 1.000 - -X- X - - -
Gear 4 0.712 - --- X - X -
3 Gear 1 2.842 -
-X- -X* - X
Gear 2 1.529 - -X- -- X -
Gear 3 1.000 - -X- X - - -
2 Gear 1 2.842 -
-X- -X* - X
Gear 2 1.529 - -X- -- X -
L Gear 1 2.842 - -X- -X - -
*Low gear/reverse gear is applied when vehicle speed is lower than 10 km/h. X = Operating Components
Lubrication Specifications
DESCRIPTION
ITEM
Transaxle Fluid Quantity 6.5L
Fluid Type DEXTRON III
Fluid Change Cycle 40000 Km or 3 years
GENERAL INFORMATION
08
08–147Chery Automobile Co., Ltd.

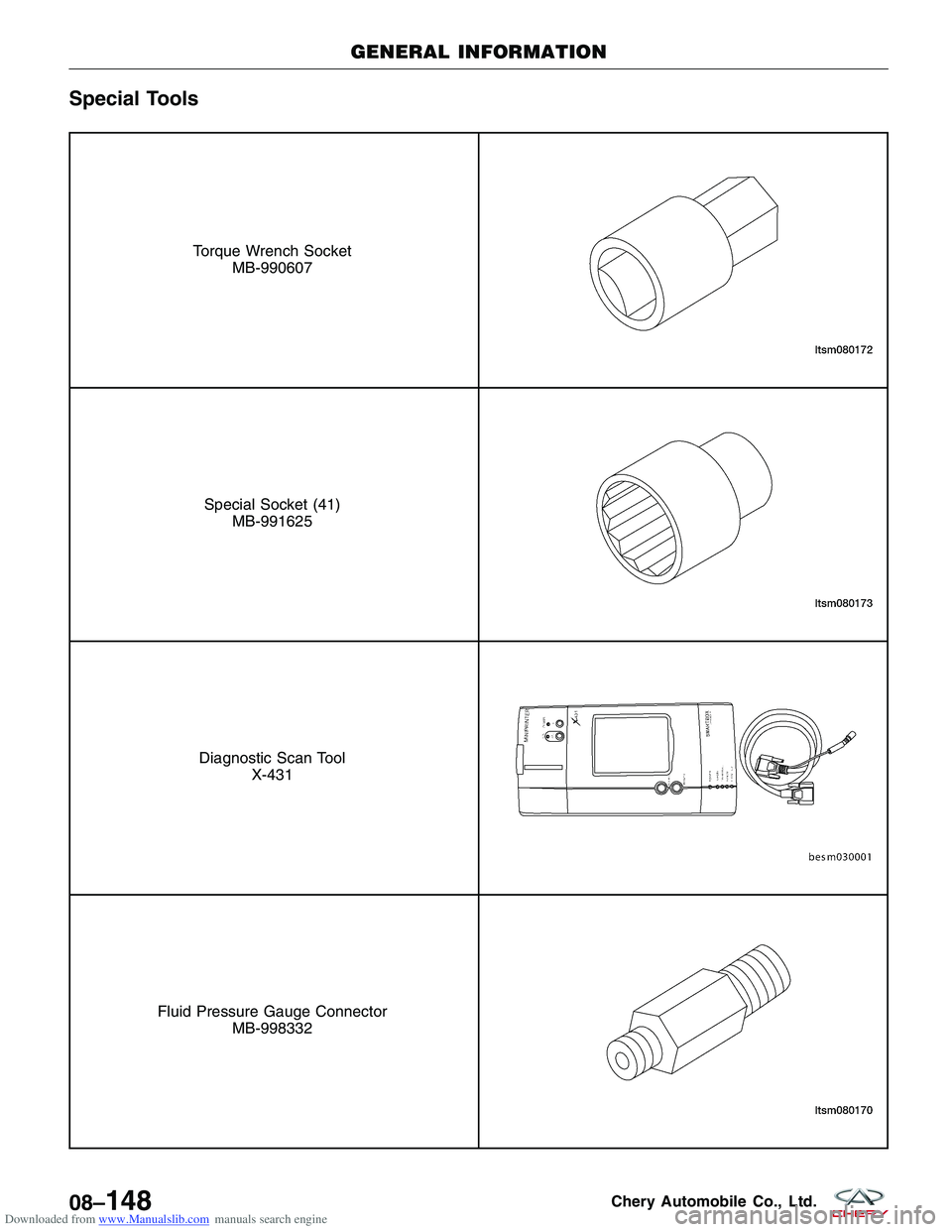

Downloaded from www.Manualslib.com manuals search engine Special Tools
Torque Wrench SocketMB-990607
Special Socket (41)MB-991625
Diagnostic Scan Tool X-431
Fluid Pressure Gauge Connector MB-998332
GENERAL INFORMATION
08–148Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Fluid Pressure Gauge ConnectorMB-998900
Spring CompressorMB-991625
Clearance Measurer MB-991631
Fluid Pump Dismounter MB-998333
GENERAL INFORMATION
08
08–149Chery Automobile Co., Ltd.

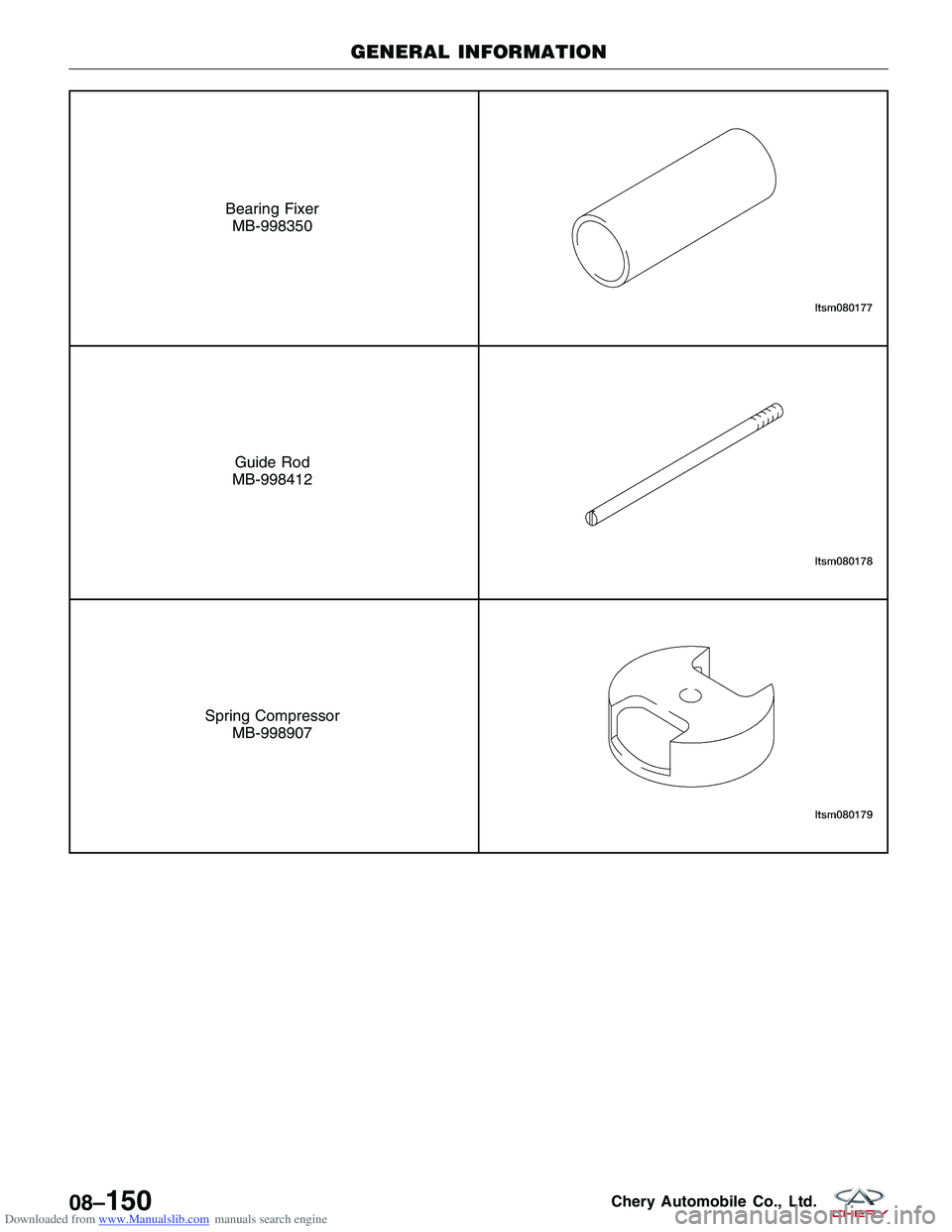

Downloaded from www.Manualslib.com manuals search engine Bearing FixerMB-998350
Guide Rod
MB-998412
Spring Compressor MB-998907
GENERAL INFORMATION
08–150Chery Automobile Co., Ltd.

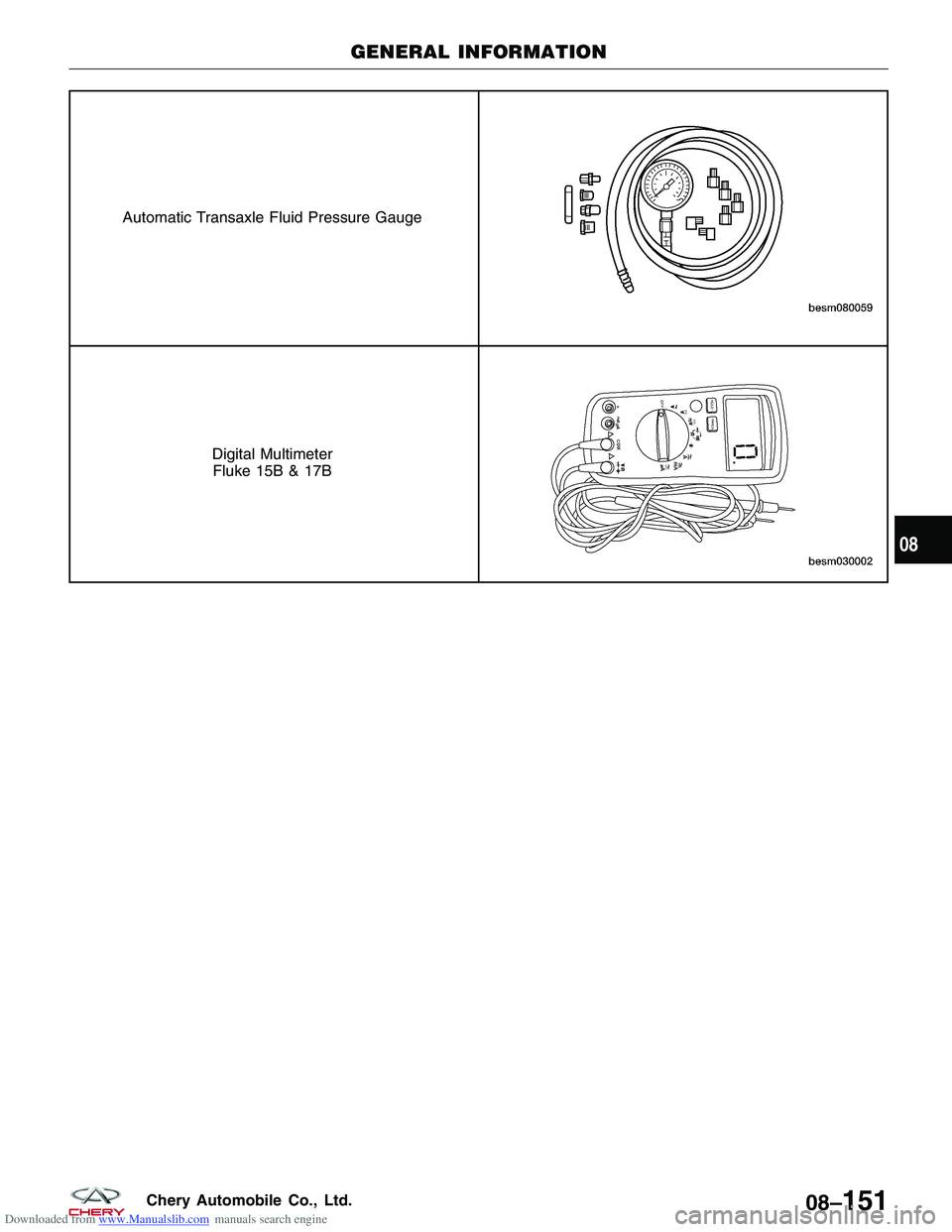

Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle Fluid Pressure Gauge
Digital MultimeterFluke 15B & 17B
GENERAL INFORMATION
08
08–151Chery Automobile Co., Ltd.

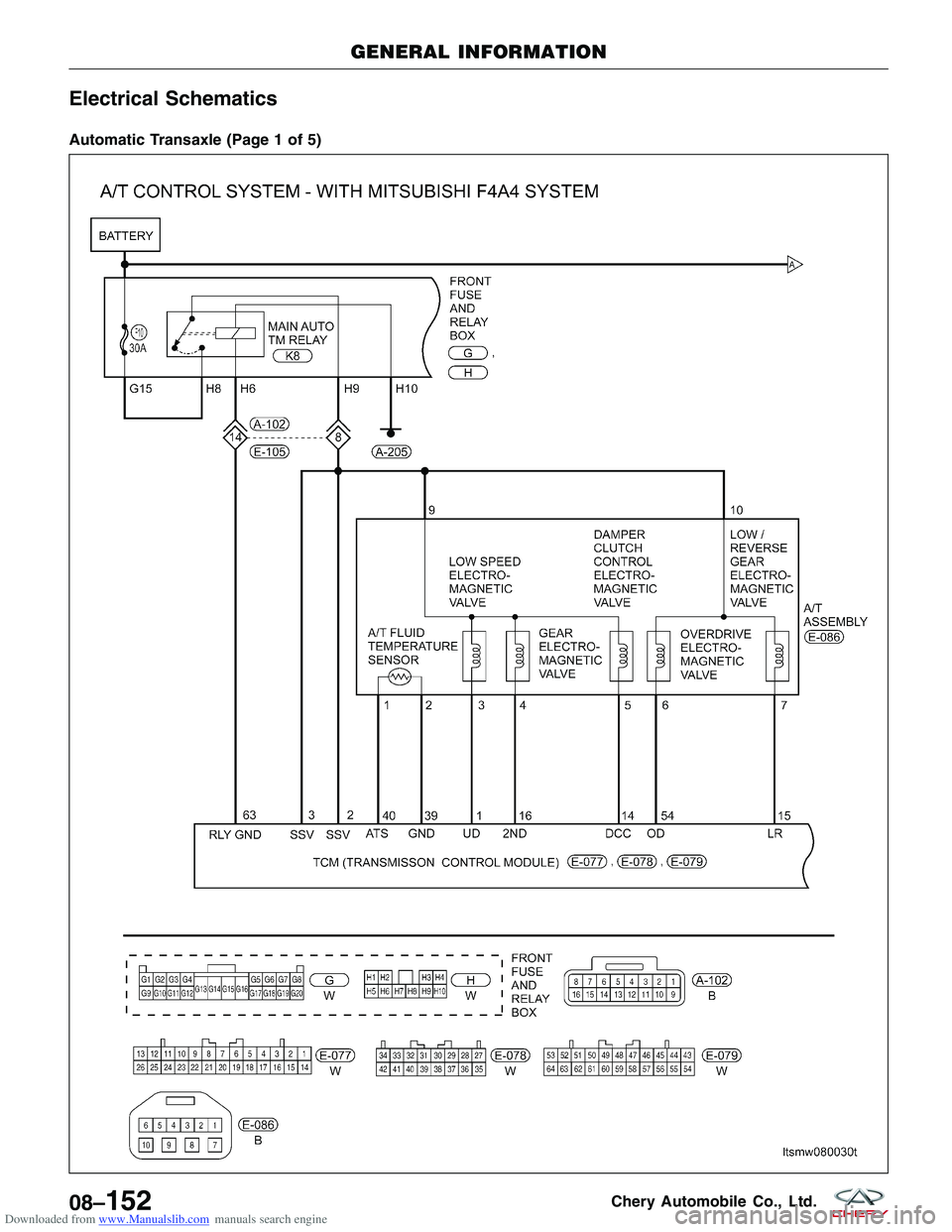

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics
Automatic Transaxle (Page 1 of 5)
GENERAL INFORMATION
LTSMW080030T
08–152Chery Automobile Co., Ltd.

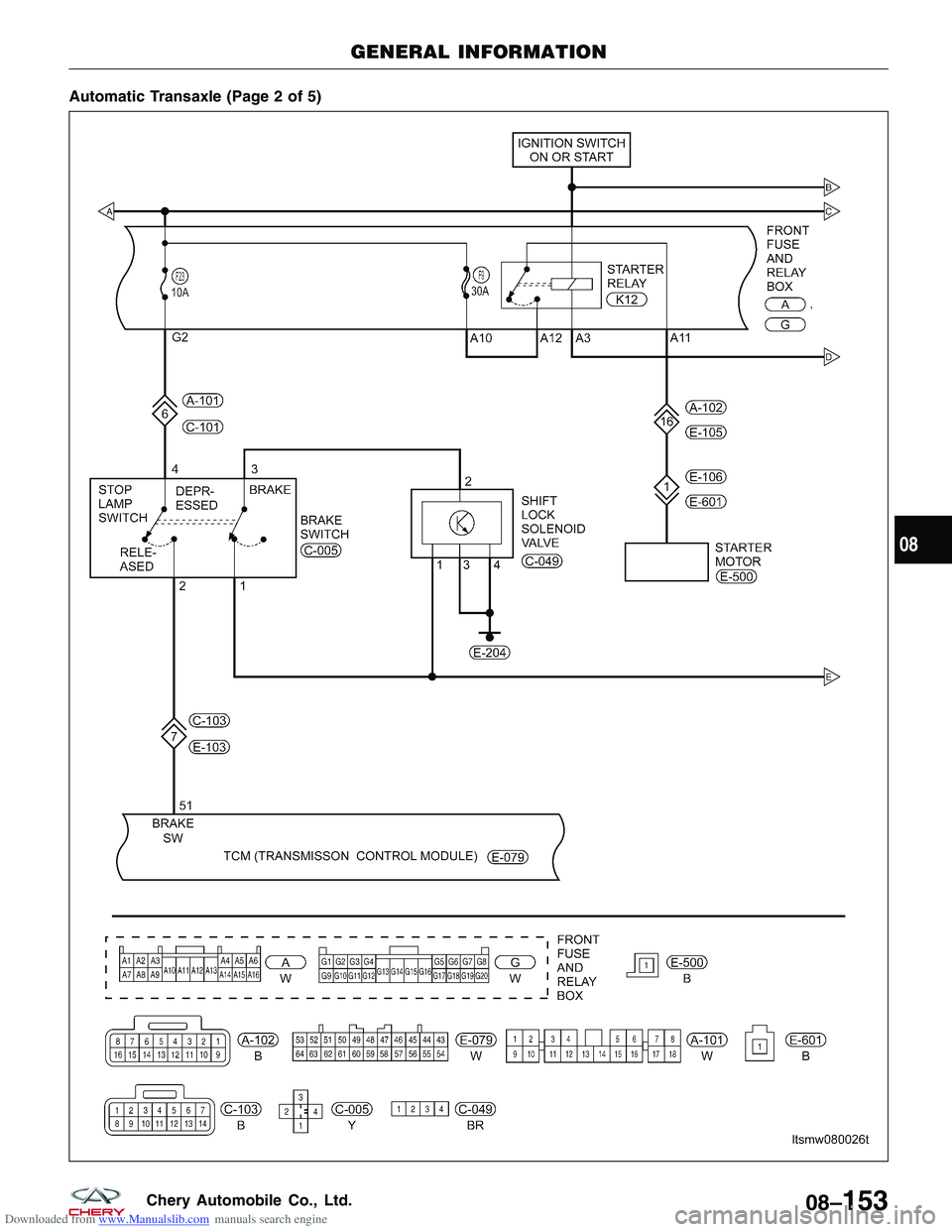

Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle (Page 2 of 5)
GENERAL INFORMATION
LTSMW080026T
08
08–153Chery Automobile Co., Ltd.
