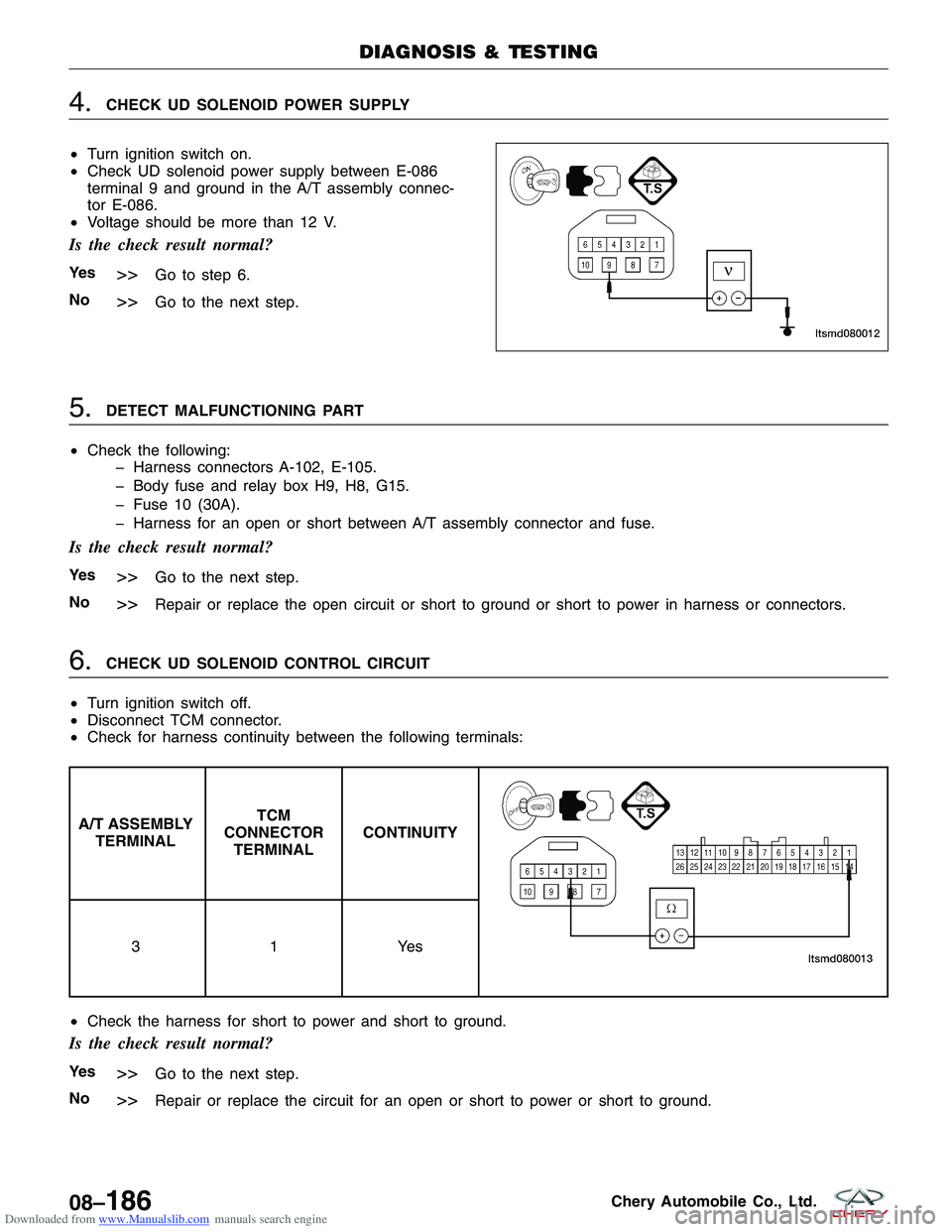

Downloaded from www.Manualslib.com manuals search engine 4.CHECK UD SOLENOID POWER SUPPLY
• Turn ignition switch on.
• Check UD solenoid power supply between E-086
terminal 9 and ground in the A/T assembly connec-
tor E-086.
• Voltage should be more than 12 V.
Is the check result normal?
Ye s>>Go to step 6.
No
>>Go to the next step.
5.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors A-102, E-105.
Body fuse and relay box H9, H8, G15.
Fuse 10 (30A).
Harness for an open or short between A/T assembly connector and fuse.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground or short to power in harness or connectors.
6.CHECK UD SOLENOID CONTROL CIRCUIT
• Turn ignition switch off.
• Disconnect TCM connector.
• Check for harness continuity between the following terminals:
A/T ASSEMBLY
TERMINAL TCM
CONNECTOR TERMINAL CONTINUITY
31Y
es
• Check the harness for short to power and short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the circuit for an open or short to power or short to ground.
DIAGNOSIS & TESTING
LTSMD080012
08–186Chery Automobile Co., Ltd.

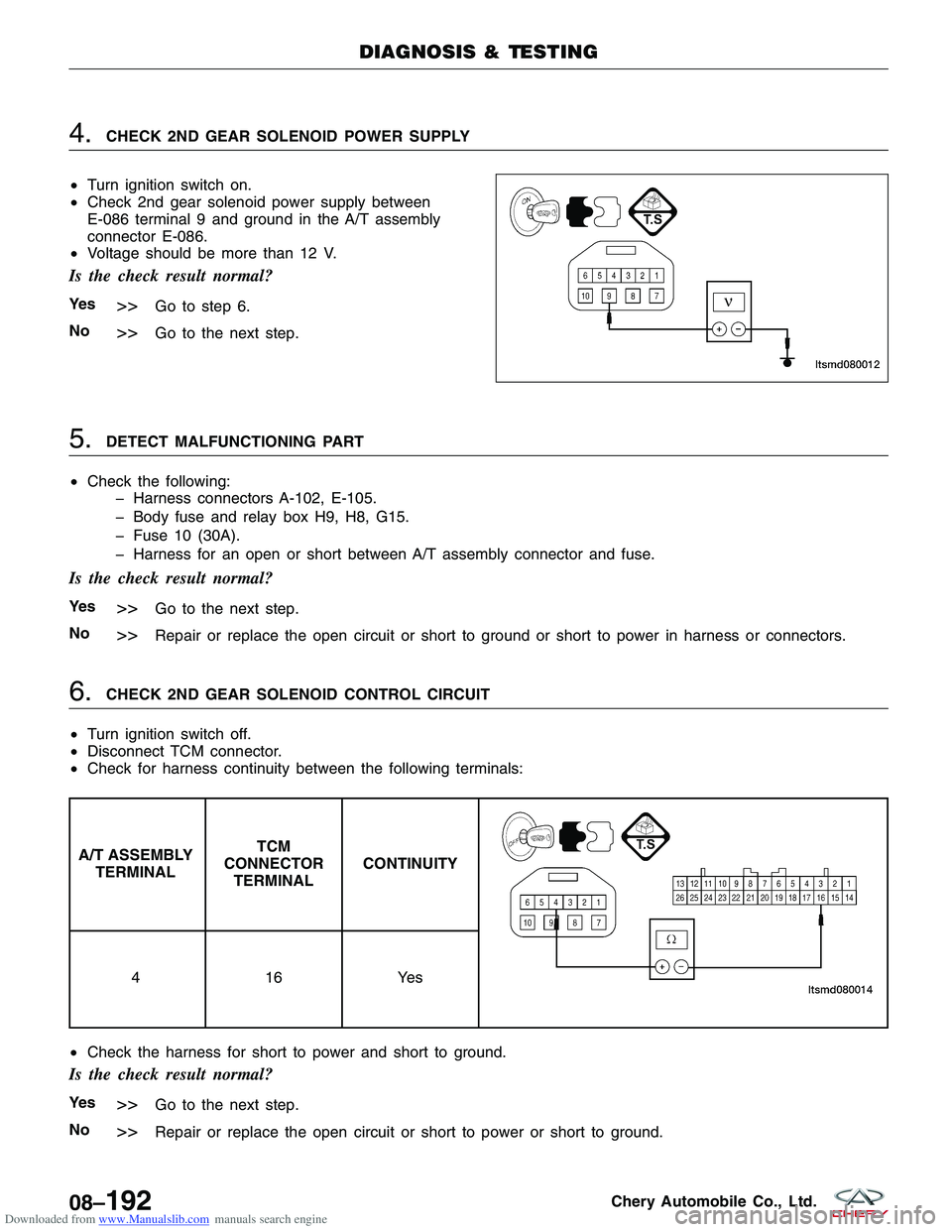

Downloaded from www.Manualslib.com manuals search engine 4.CHECK 2ND GEAR SOLENOID POWER SUPPLY
• Turn ignition switch on.
• Check 2nd gear solenoid power supply between
E-086 terminal 9 and ground in the A/T assembly
connector E-086.
• Voltage should be more than 12 V.
Is the check result normal?
Ye s>>Go to step 6.
No
>>Go to the next step.
5.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors A-102, E-105.
Body fuse and relay box H9, H8, G15.
Fuse 10 (30A).
Harness for an open or short between A/T assembly connector and fuse.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground or short to power in harness or connectors.
6.CHECK 2ND GEAR SOLENOID CONTROL CIRCUIT
• Turn ignition switch off.
• Disconnect TCM connector.
• Check for harness continuity between the following terminals:
A/T ASSEMBLY
TERMINAL TCM
CONNECTOR TERMINAL CONTINUITY
41
6Yes
• Check the harness for short to power and short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to power or short to ground.
DIAGNOSIS & TESTING
LTSMD080012
08–192Chery Automobile Co., Ltd.

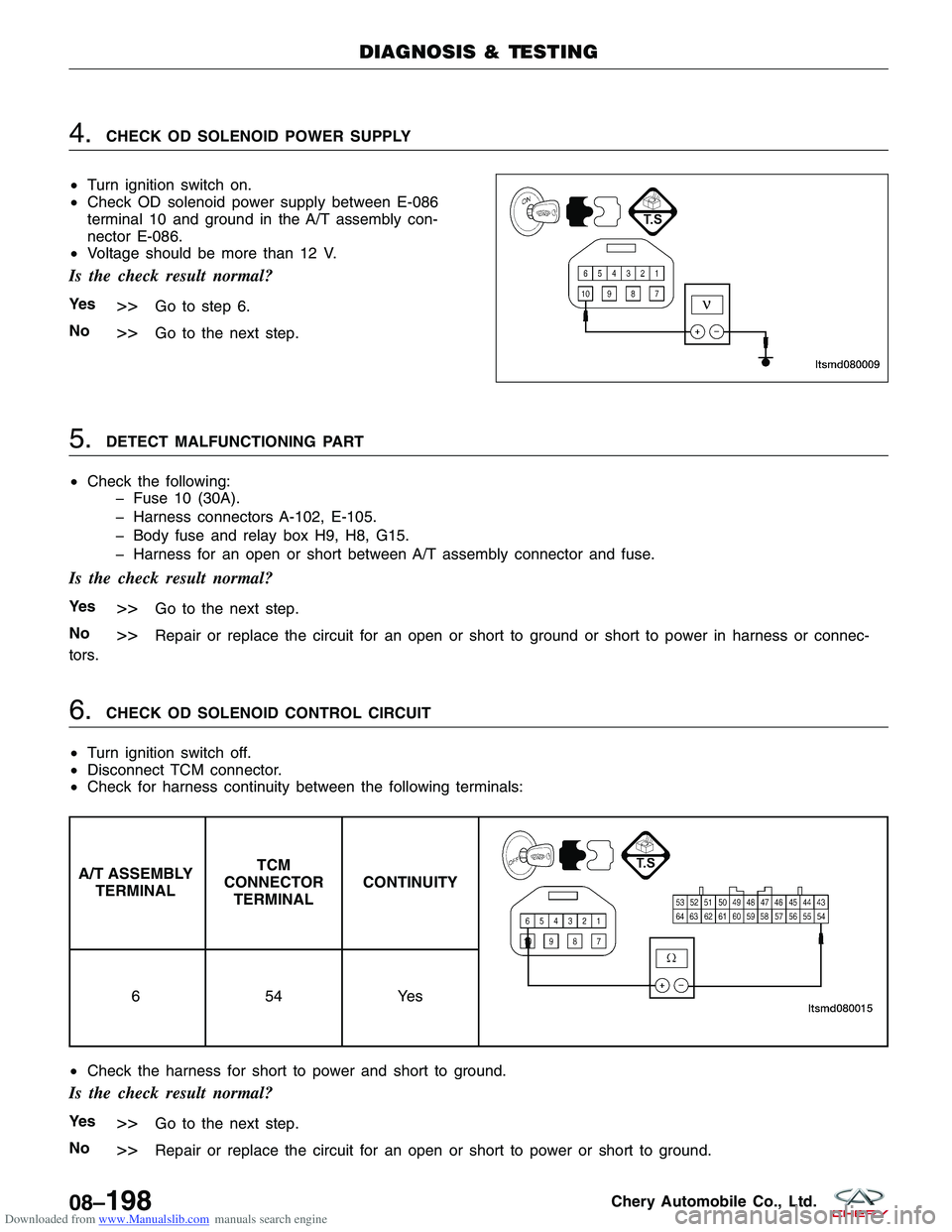

Downloaded from www.Manualslib.com manuals search engine 4.CHECK OD SOLENOID POWER SUPPLY
• Turn ignition switch on.
• Check OD solenoid power supply between E-086
terminal 10 and ground in the A/T assembly con-
nector E-086.
• Voltage should be more than 12 V.
Is the check result normal?
Ye s>>Go to step 6.
No
>>Go to the next step.
5.DETECT MALFUNCTIONING PART
• Check the following:
Fuse 10 (30A).
Harness connectors A-102, E-105.
Body fuse and relay box H9, H8, G15.
Harness for an open or short between A/T assembly connector and fuse.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the circuit for an open or short to ground or short to power in harness or connec-
tors.
6.CHECK OD SOLENOID CONTROL CIRCUIT
• Turn ignition switch off.
• Disconnect TCM connector.
• Check for harness continuity between the following terminals:
A/T ASSEMBLY
TERMINAL TCM
CONNECTOR TERMINAL CONTINUITY
65
4Yes
• Check the harness for short to power and short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the circuit for an open or short to power or short to ground.
DIAGNOSIS & TESTING
LTSMD080009
08–198Chery Automobile Co., Ltd.

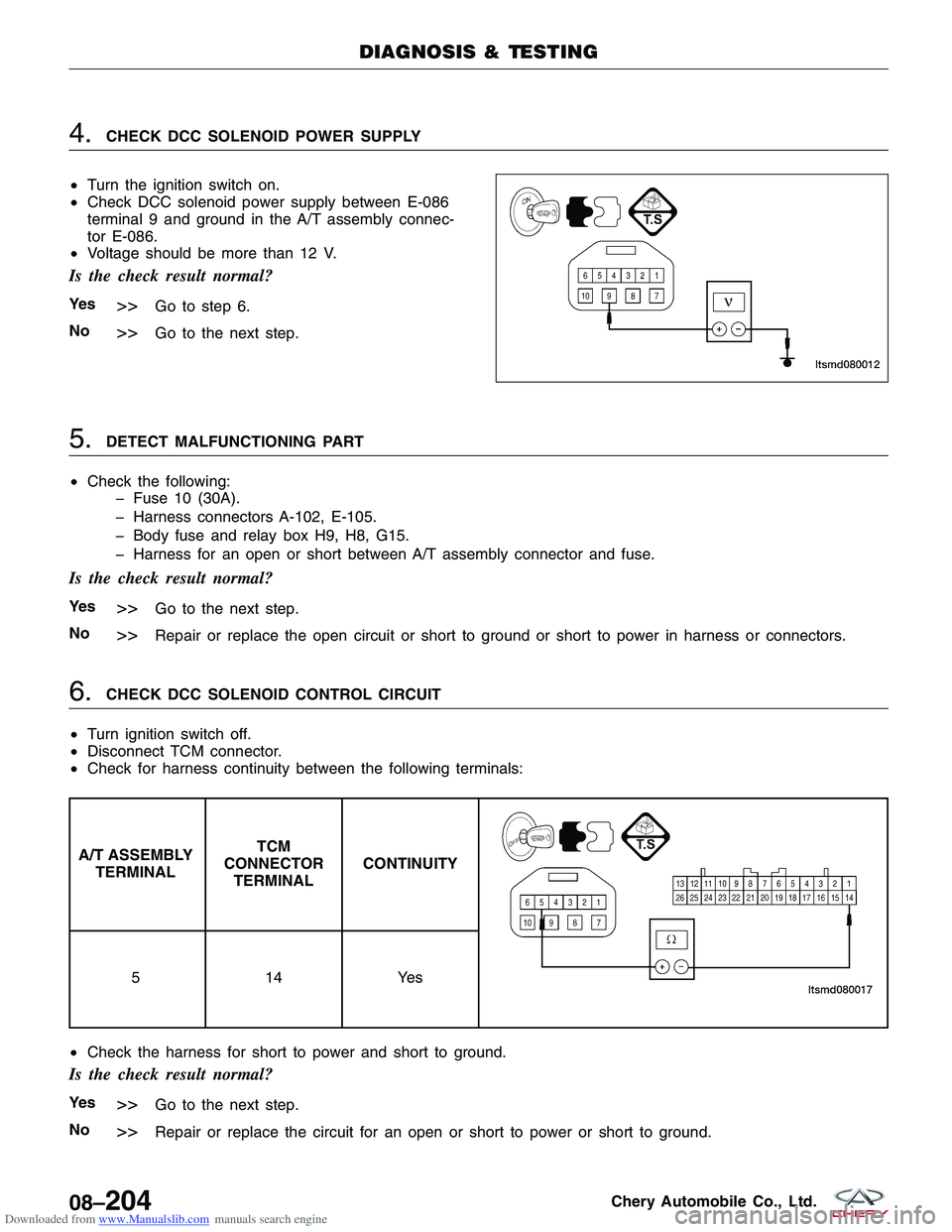

Downloaded from www.Manualslib.com manuals search engine 4.CHECK DCC SOLENOID POWER SUPPLY
• Turn the ignition switch on.
• Check DCC solenoid power supply between E-086
terminal 9 and ground in the A/T assembly connec-
tor E-086.
• Voltage should be more than 12 V.
Is the check result normal?
Ye s>>Go to step 6.
No
>>Go to the next step.
5.DETECT MALFUNCTIONING PART
• Check the following:
Fuse 10 (30A).
Harness connectors A-102, E-105.
Body fuse and relay box H9, H8, G15.
Harness for an open or short between A/T assembly connector and fuse.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground or short to power in harness or connectors.
6.CHECK DCC SOLENOID CONTROL CIRCUIT
• Turn ignition switch off.
• Disconnect TCM connector.
• Check for harness continuity between the following terminals:
A/T ASSEMBLY
TERMINAL TCM
CONNECTOR TERMINAL CONTINUITY
51
4Yes
• Check the harness for short to power and short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the circuit for an open or short to power or short to ground.
DIAGNOSIS & TESTING
LTSMD080012
08–204Chery Automobile Co., Ltd.

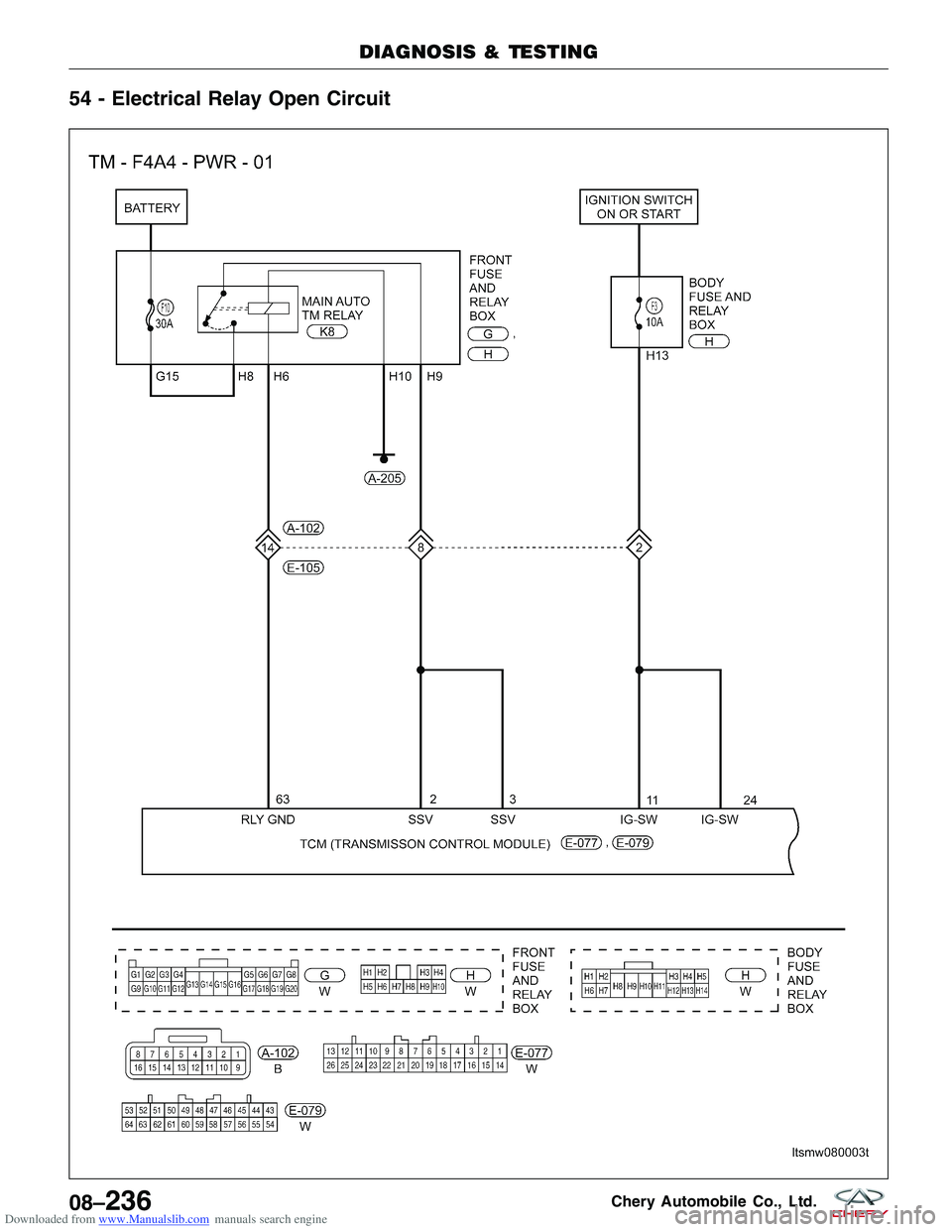

Downloaded from www.Manualslib.com manuals search engine 54 - Electrical Relay Open Circuit
DIAGNOSIS & TESTING
LTSMW080003T
08–236Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSES
54 Electrical relay open
circuit Ignition switch on •
The Transaxle
Control Module
(TCM) will set this
DTC when the TCM
detected that the
A/T control voltage
is below 7 V.
• If the DTC was
set, then the A/T will
be locked in 3rd
gear (D gear) or
shifted to low gear
when in sports
mode. •
A/T control relay
• Harness or
connectors (The
sensor circuit is open
or shorted)
• TCM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• After connection, press POWER key to start X-431.
• Turn the ignition switch on.
• With the scan tool, view and erase stored DTCs in the TCM.
• Start engine and warm it to normal operating temperature.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 08 Transaxle & Transfer Case for more information).
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
Diagnostic Procedure
1.CHECK GROUND CONNECTION
• Turn ignition switch off.
• Loosen and retighten ground screws on the body (See Ground Inspection in Section 12 Brakes).
• Inspect the ground connection C-201 mounting position (See Vehicle Wiring Harness Layout - Main Harness in
Section 16 Wiring).
Are the ground connections OK?
Ye s>>Go to the next step.
No
>>Repair or replace the ground connections.
DIAGNOSIS & TESTING
08
08–237Chery Automobile Co., Ltd.

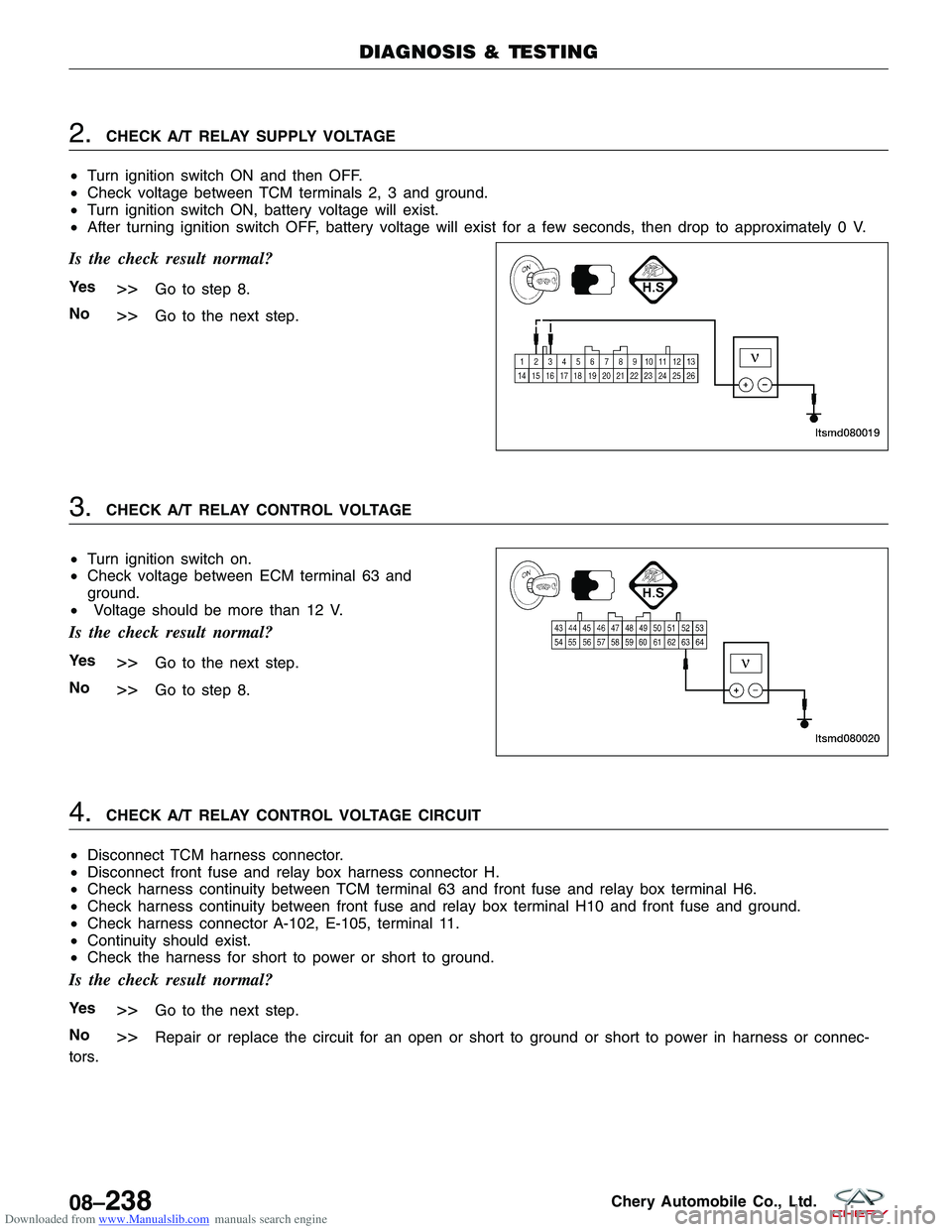

Downloaded from www.Manualslib.com manuals search engine 2.CHECK A/T RELAY SUPPLY VOLTAGE
• Turn ignition switch ON and then OFF.
• Check voltage between TCM terminals 2, 3 and ground.
• Turn ignition switch ON, battery voltage will exist.
• After turning ignition switch OFF, battery voltage will exist for a few seconds, then drop to approximately 0 V.
Is the check result normal?
Ye s>>Go to step 8.
No
>>Go to the next step.
3.CHECK A/T RELAY CONTROL VOLTAGE
• Turn ignition switch on.
• Check voltage between ECM terminal 63 and
ground.
• Voltage should be more than 12 V.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Go to step 8.
4.CHECK A/T RELAY CONTROL VOLTAGE CIRCUIT
• Disconnect TCM harness connector.
• Disconnect front fuse and relay box harness connector H.
• Check harness continuity between TCM terminal 63 and front fuse and relay box terminal H6.
• Check harness continuity between front fuse and relay box terminal H10 and front fuse and ground.
• Check harness connector A-102, E-105, terminal 11.
• Continuity should exist.
• Check the harness for short to power or short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the circuit for an open or short to ground or short to power in harness or connec-
tors.
DIAGNOSIS & TESTING
LTSMD080019
LTSMD080020
08–238Chery Automobile Co., Ltd.

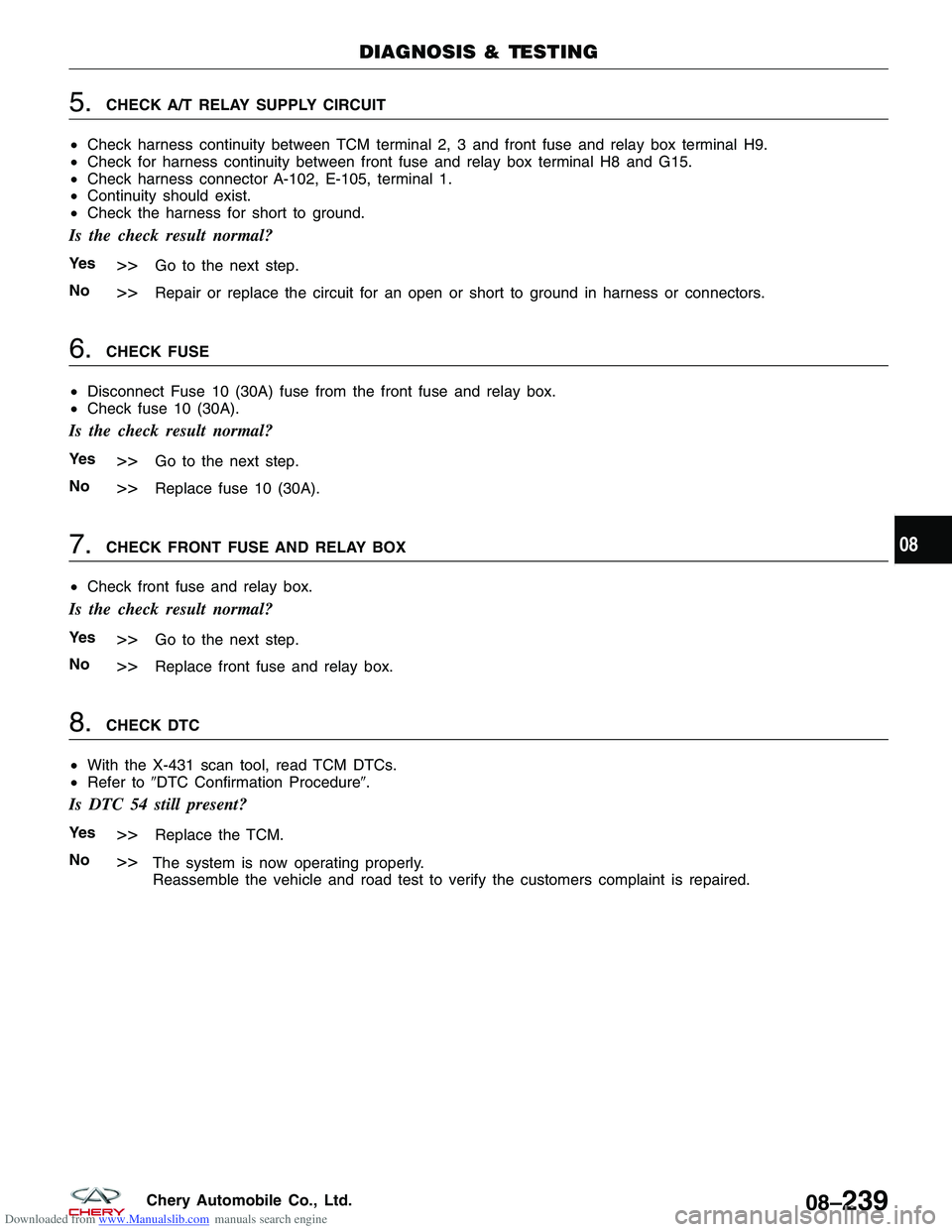

Downloaded from www.Manualslib.com manuals search engine 5.CHECK A/T RELAY SUPPLY CIRCUIT
• Check harness continuity between TCM terminal 2, 3 and front fuse and relay box terminal H9.
• Check for harness continuity between front fuse and relay box terminal H8 and G15.
• Check harness connector A-102, E-105, terminal 1.
• Continuity should exist.
• Check the harness for short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the circuit for an open or short to ground in harness or connectors.
6.CHECK FUSE
• Disconnect Fuse 10 (30A) fuse from the front fuse and relay box.
• Check fuse 10 (30A).
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace fuse 10 (30A).
7.CHECK FRONT FUSE AND RELAY BOX
• Check front fuse and relay box.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace front fuse and relay box.
8.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC 54 still present?
Ye s>>Replace the TCM.
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
DIAGNOSIS & TESTING
08
08–239Chery Automobile Co., Ltd.
