2009.5 Citroen C3 PICASSO Owner's Manual

10
i
i
111
CHECKS
BONNET

 Push the exterior safety catch B to
the left and raise the bonnet.
 Unclip the stay C from its housing.

 Fix the stay in the notch to hold the
bonnet open.
Closing

 Take the stay out of the support
notch.

 Clip the stay in its housing.

 Lower the bonnet and release it at
the end of its travel.

 Pull on the bonnet to check that it is
secured correctly.

 Open the front left door.

 Pull the interior bonnet release lever A ,
located at the bottom of the door
frame. The location of the interior bonnet
release lever prevents opening of
the bonnet while the front left door
is closed.
When the engine is hot, handle the
exterior safety catch and the bonnet
stay with care (risk of burns).
Opening
RUNNING OUT OF FUEL (DIESEL)
If your vehicle is fi tted with an HDI
engine, the fuel system must be primed
if you run out of fuel.
This system consists of a priming pump,
a transparent pipe and a bleed screw
under the bonnet.
HDi 90 and HDi 110 FAP engines

 Fill the fuel tank with at least fi ve litres
of Diesel.

 Open the bonnet.

 Depending on version, unclip the
cover to gain access to the priming
pump.

 Squeeze and release the prim-
ing pump until fuel appears in the
transparent pipe with the green
connector.

 Operate the starter until the engine
starts.

 Depending on version, put the cover
back in position and clip it in place.

 Close the bonnet.
If the engine does not start at the
fi rst attempt, do not try again.
Operate the priming pump again,
then the starter.

112
CHECKS
PETROL ENGINES

1. Screenwash reservoir.

2. Coolant header tank.

3. Air fi lter * .
4. Brake fl uid reservoir.

5. Battery.

6. Fusebox.
7. Engine oil dipstick.

8. Engine oil fi ller cap.
* According to engine.

10
113
CHECKS
DIESEL ENGINES

1. Screenwash reservoir.

2. Coolant header tank.

3. Air fi lter * .
4. Brake fl uid reservoir.

5. Battery.

6. Fusebox.
7. Engine oil dipstick.

8. Engine oil fi ller cap.

9. Priming pump * .
* According to engine.

!
114
CHECKS
CHECKING LEVELS Brake fluid level
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either when the
ignition is switched on using the oil level
indicator on the instrument panel, or
using the dipstick. The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.
Changing the fl uid
Refer to the Maintenance and Warranty
Guide for details of the interval for this
operation.
Coolant level The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan. This can operate with the
ignition off.

On vehicles which are fi tted with a
particle emission fi lter, the fan may
operate after the vehicle has been
switched off, even if the engine is
cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work. Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up or replaced with water.
Engine oil change
Refer to the Maintenance and Warranty
Guide for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
Oil grade
The oil must be suitable for your engine
and conform to the manufacturer's recom-
mendations. Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT4 standard.
Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.
Changing the coolant
The coolant does not have to be
changed.
Screenwash fluid level
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
CITROËN dealer.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Top up the level when necessary.
Take care when carrying out checks under the bonnet as some parts of
the engine can be very hot (risk of
burns).

10
i!
115
CHECKS
Avoid prolonged contact of used oil
or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a CITROËN dealer
(France) or an authorised waste
disposal site.
Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Used products
CHECKS
Battery
The battery does not require
any maintenance.
However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary (refer
to the "Engines" paragraph).
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission fi lter is carried out
by a CITROËN dealer.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, in exceptional cir-
cumstances, notice the emission
of water vapour at the exhaust on
acceleration. This does not affect
the behaviour of the vehicle or the
environment.
Topping up
This additive must be topped up by a
CITROËN dealer without delay.
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and according to your engine.
Otherwise, have them checked by a
CITROËN dealer.

10
i!
115
CHECKS
Avoid prolonged contact of used oil
or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a CITROËN dealer
(France) or an authorised waste
disposal site.
Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Used products
CHECKS
Battery
The battery does not require
any maintenance.
However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary (refer
to the "Engines" paragraph).
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission fi lter is carried out
by a CITROËN dealer.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, in exceptional cir-
cumstances, notice the emission
of water vapour at the exhaust on
acceleration. This does not affect
the behaviour of the vehicle or the
environment.
Topping up
This additive must be topped up by a
CITROËN dealer without delay.
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and according to your engine.
Otherwise, have them checked by a
CITROËN dealer.

!
116
CHECKS Only use products recommended
by CITROËN or products of equiva-
lent quality and specifi cations.
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and of-
fers very specifi c products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Brake disc wear
Brake pads Parking brake Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn. For information relating to
checking the brake disc wear,
contact a CITROËN dealer.
If a loss of effectiveness of this
system is noticed, the parking
brake must be checked, even
between two services.
This system must be checked
by a CITROËN dealer.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for the
details of the level checking
interval for this component.

i
117

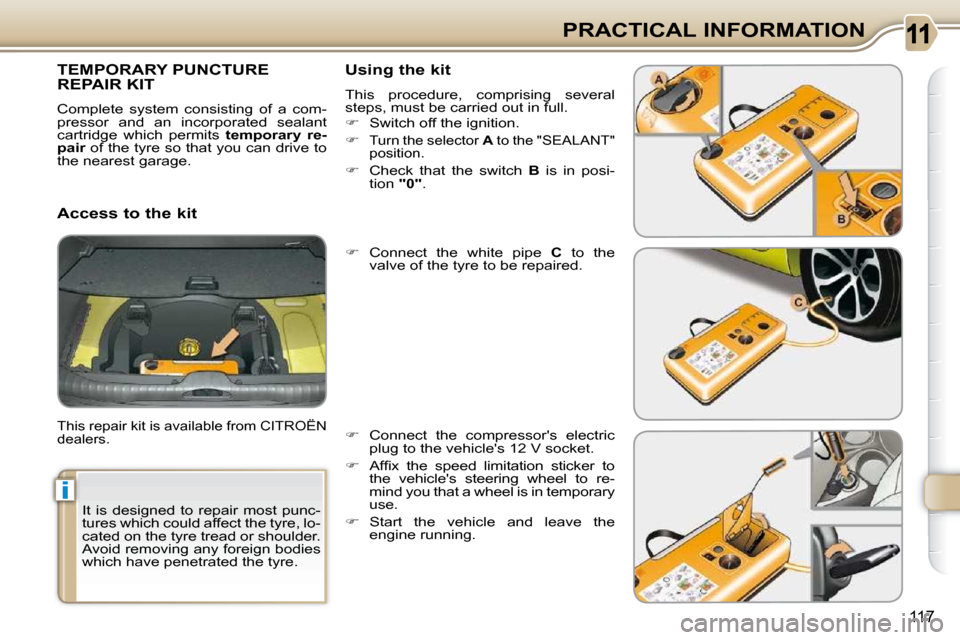

PRACTICAL INFORMATION
It is designed to repair most punc-
tures which could affect the tyre, lo-
cated on the tyre tread or shoulder.
Avoid removing any foreign bodies
which have penetrated the tyre.
TEMPORARY PUNCTURE REPAIR KIT
Complete system consisting of a com-
pressor and an incorporated sealant
cartridge which permits temporary re-
pair of the tyre so that you can drive to
the nearest garage. Using the kit
This procedure, comprising several
steps, must be carried out in full.

 Switch off the ignition.


Turn the selector A to the "SEALANT"
position.

 Check that the switch B is in posi-
tion "0" .

 Connect the white pipe C to the
valve of the tyre to be repaired.

 Connect the compressor's electric
plug to the vehicle's 12 V socket.

 Affi x the speed limitation sticker to
the vehicle's steering wheel to re-
mind you that a wheel is in temporary
use.

 Start the vehicle and leave the
engine running.
Access to the kit
This repair kit is available from CITROËN
dealers.
