2009.5 Citroen C3 PICASSO Owner's Manual

81
FITTINGS
Boot fittings

1. Storage net on right-hand boot trim.

2. Open storage compartments.

3. Torch.

4. Removable boot fl oor.

5. Carrier bag hook .

6. Securing rings.

7. Storage area under boot carpet .

8. Rear parcel shelf.

i
82
FITTINGS
2-position adjustable boot
The movable boot fl oor with two posi-
tions allows you to:
- maximise the volume of the boot,
- partition the boot (storing of the rear shelf...),
- obtain a fl at fl oor from the boot opening to the front seats, when the
rear bench seat is in the retracted
position. Placing the movable boot fl oor in
the low position

 Press to release the handle located
at the boot opening.

 Unlock the movable boot fl oor by lift-
ing the handle.

 Manoeuvre the movable boot fl oor
rearwards, then downwards, using
the handle, following the slides on
the sides.

 Lock it by folding down the handle. Placing the movable boot fl oor in
the high position

 Press to release the handle.

 Unlock the movable boot fl oor by lifting
the handle.

 Use the handle to manoeuvre the
movable boot fl oor rearwards, then
upwards to its high position.

 Lock it by folding down the handle.
In the high position, the movable boot
fl oor permits storing of the rear shelf
and fragile objects.
The movable boot fl oor is fi tted with four
stowing rings to secure your loads using
the net available as an accessory.
Ensure that your boot is empty
before handling the movable boot
fl oor.

83
FITTINGS
Hooks
The hooks can be used to hold shop-
ping bags. Rear parcel shelf
This consists of three sections.
The front section is fl exible, and the
central and rear sections are rigid.
The rear section is secured to the tail-
gate by two cords.
To remove it from the boot:

 unhook the two cords,

 gently lift up the cover to remove it
from its fi xings,

 remove the cover.
It can be stored under the movable boot
fl oor, if this is in its high position.

i
84

CITROËN recommends that chil-
dren should travel in the rear seats
of your vehicle, with the rear seats
in the fully back position:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the
age of 2.
TO CHILD SEATS
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate.
* The rules for carrying children are specifi c to each country. Refer to the
current legislation in your country.
Although one of CITROËN's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please follow
these precautions:
- in accordance with European regula-
tions, all children under the age of
12 or less than one and a half me-
tres tall must travel in approved
child seats suited to their weight ,
on seats fi tted with a seat belt or
ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transportation
of children are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT
Intermediate longitudinal position

85

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg


L1
"RÖMER
Baby-Safe Plus"
Installed in the
rearwards-facing position.


L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for carrying young children
(from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''

L4
"KLIPPAN Optima" From the age of 6 years
(approximately
22 kg), the booster is used on its own.


L5
"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX anchorages.
The child is restrained by the seat belt.
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which
are secured
using a three point seat belt :

85

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg


L1
"RÖMER
Baby-Safe Plus"
Installed in the
rearwards-facing position.


L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for carrying young children
(from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''

L4
"KLIPPAN Optima" From the age of 6 years
(approximately
22 kg), the booster is used on its own.


L5
"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX anchorages.
The child is restrained by the seat belt.
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which
are secured
using a three point seat belt :

86

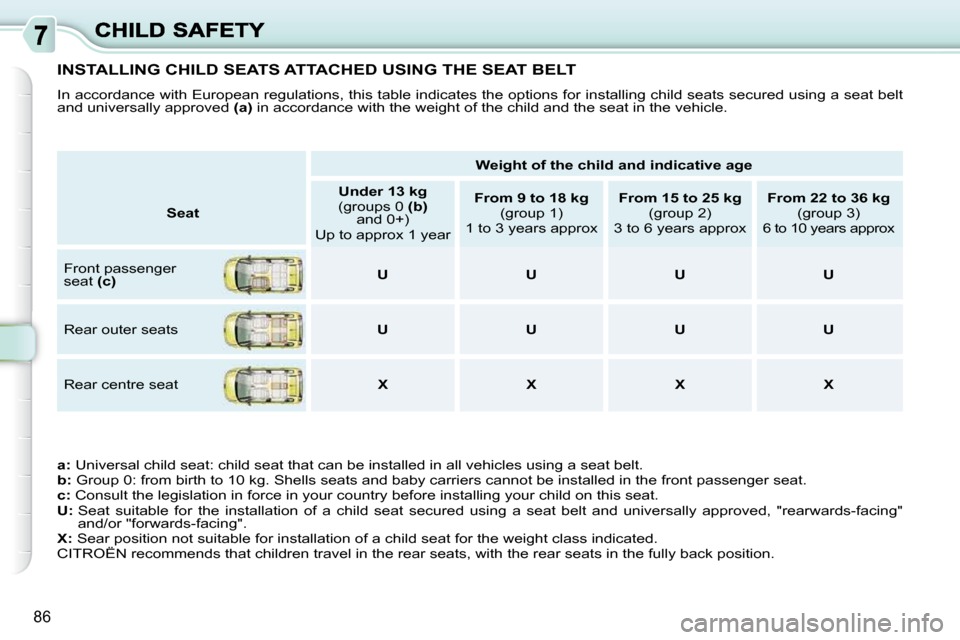

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat b elt
and universally approved (a) in accordance with the weight of the child and the seat in the vehicle.

a: Universal child seat: child seat that can be installed in all vehicles using a seat belt.

b: Group 0: from birth to 10 kg. Shells seats and baby carriers canno t be installed in the front passenger seat.

c: Consult the legislation in force in your country before inst alling your child on this seat.

U: Seat suitable for the installation of a child seat secure d using a seat belt and universally approved, "rearwards-facing"
and/or "forwards-facing".

X: Sear position not suitable for installation of a child se at for the weight class indicated.
CITROËN recommends that children travel in the rear seats, with the rear seats in the fully back position.

Weight of the child and indicative age

Seat
Under 13 kg
(groups 0 ( b )
and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( c )
U U U U
Rear outer seats
U U U U
Rear centre seat
X X X X

!
87
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of a
booster seat which has a back, fi tted
with a seat belt guide at shoulder level. As a safety precaution, do not leave:
- a child or children alone and unsu-
pervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an ac-
cident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rmly
on the seat of your vehicle.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking. Children under the age of 10 must not
travel in the "forwards-facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.
