2009.5 Citroen C3 PICASSO Owner's Manual

!
i
31
MULTIFUNCTION SCREENS Once the fuel consumption unit
has been changed to l/100 km or
km/l, the information relating to
speed and distance also changes
to kilometres.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).

 Once you have selected a setting,
press the "  " or "  " buttons to
change its value.

 Press the "  " or "  " buttons to
switch respectively to the previous
or next setting.

 Press the "OK" button to record
the change and return to the normal
display or press the "ESC" button to
cancel.
Vehicle confi guration
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not active,
faulty).
Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary.

32
MULTIFUNCTION SCREENS
MONOCHROME SCREEN A ASSOCIATED
WITH THE MYWAY SATELLITE
NAVIGATION COLOUR SCREEN
Main menu
Displays on screen A
This displays the following information:
- ambient temperature (this fl ashes if there is a risk of ice),
- trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button.
Controls
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-
menu required.
 Press the "MENU" button to scroll
through the various menus of the

main
menu :
- vehicle confi guration,
- options,
- language,
- units.

 Press the "OK" button to select the
menu required.
Vehicle confi guration
Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section),

i
i
!
!
33
MULTIFUNCTION SCREENS
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not active,
faulty).
Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or km/l).
Displays on MyWay satellite navigation colour screen
"SETUP" menu
Date and time
This menu allows you to adjust the date
and time, and their format (refer to the
"Audio and telematics section").
Display
This menu allows you to adjust the
brightness of the display, the display
contrast and the colour of the map (day/
night and auto mode).
System parameters
This menu allows you to restore the
factory settings, to display the software
version and to activate scrolling text.
This displays the following information:
- time,
- date,
- audio functions,
- guidance system information.
The chosen language will also be
used on the MyWay satellite navi-
gation colour screen.
Once the fuel consumption unit
has been changed to l/100 km or
km/l, the information relating to
speed and distance also changes
to kilometres.
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary. For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary.
Press the SETUP button to access the

"SETUP" menu. It gives you access to
the following functions:
- Date and time,
- Display,
- System parameters.

34
MULTIFUNCTION SCREENS
Displays on the screen
This displays the following information:
- time,
- date,
- ambient temperature (this fl ashes if there is a risk of ice),
- state of the openings (doors, boot, etc.),
- audio sources (radio, CD, USB socket, etc.),
- trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. From the audio equipment control pan-
el, you can:

 press the "MENU" button to gain
access to the main
menu ,

 press the "  " or "  " buttons to scroll
through the items on the screen,

 press the "MODE" button to change
the permanent application (trip com-
puter, audio source, ...),

 press the "  " or "  " buttons to
change a setting value,

 press the "OK" button to confi rm,
or

 press the "ESC" button to abandon
the operation in progress. Main menu

 Press the "MENU" button to gain
access to the main
menu :
- audio functions,
- the trip computer (refer to the end of the section),
- personalisation-confi guration,

 Press the "  " or "  " buttons to se-
lect the menu required, then confi rm
by pressing the "OK" button.
MONOCHROME SCREEN C Controls
"Audio functions" menu
With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText), the CD (introscan, shuffl e,
CD repeat) or the MP3 player (USB
port).
For more information on the "Audio
functions" application, refer to the Audio
systems part of the "Audio and Telemat-
ics" section.

35
MULTIFUNCTION SCREENS
"Trip computer" menu
Alert log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction screen.
Once this menu has been selected, you
can consult information concerning the
status of the vehicle (alert log, status of
functions, etc.)
Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- "guide-me-home" lighting "Personalisation-
Configuration" menu
Once this menu has been selected,
you can gain access to the following
functions:
- defi ne the vehicle parameters,
- display confi guration,
- choice of language.
Status of functions
This summarises the status (active or
inactive) of the vehicle’s functions.
Enter distance to destination
This allows you to enter an approximate
distance until your fi nal destination.
 Press the "MENU" button for ac-
cess to the general menu.

 Press the arrows, then the "OK"
button to select the " Trip computer "
menu.

 In the " Trip computer " menu, select
one of the following applications:

!
i

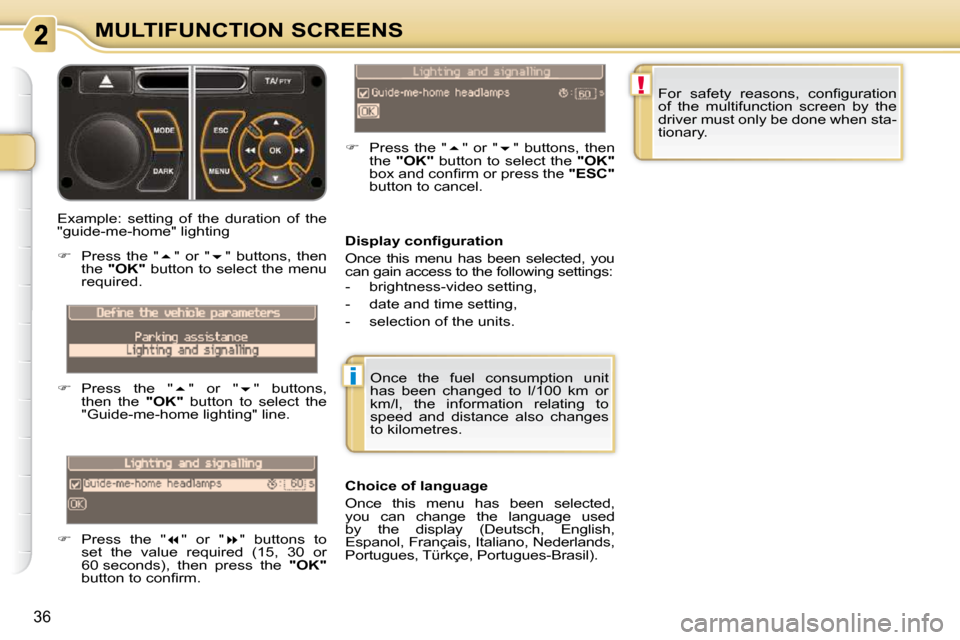

36
MULTIFUNCTION SCREENS
Display confi guration
Once this menu has been selected, you
can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Example: setting of the duration of the
"guide-me-home" lighting

 Press the "  " or "  " buttons, then
the "OK" button to select the menu
required.

 Press the "  " or "  " buttons,
then the "OK" button to select the
"Guide-me-home lighting" line.

 Press the "  " or "  " buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"
button to confi rm.
 Press the "  " or "  " buttons, then
the "OK" button to select the "OK"
box and confi rm or press the "ESC"
button to cancel. For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.
Choice of language
Once this menu has been selected,
you can change the language used
by the display (Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Türkçe, Portugues-Brasil). Once the fuel consumption unit
has been changed to l/100 km or
km/l, the information relating to
speed and distance also changes
to kilometres.

37
MULTIFUNCTION SCREENS
TRIP COMPUTER

 Press the button, located at the end
of the wiper stalk , to display the
various items of trip computer data
in succession. The trip computer provides the following
information:
System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).

 Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.
Monochrome screen A
Zero reset
Data displays - range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
 The next press then returns you to
the normal display.

38
MULTIFUNCTION SCREENS - the current information tab with:
