2009.5 Citroen C3 PICASSO reset

i
18
INSTRUMENTS and CONTROLS
PETROL - DIESEL INSTRUMENT PANEL
Panel grouping together the digital indicator, the multifunction screen and the vehicle
operation indicator lamps.

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Rev counter zone indicating that you
must change up a gear.

3. Speed limiter
or

Cruise control.
(mph or km/h)

4. Electric child lock indicator lamp.
Indicates, for a few seconds, the acti- vation of the electric child lock (deacti-
vation of the rear windows and doors).
Translucent digital instrument panel
This screen groups together the warning
and information messages.
Multifunction screen
Indicator lamps display zone
This zone groups together the vehicle
operation indicator lamps.
Display zero reset button
This permits resetting of the function
selected to zero (trip distance recorder
or service indicator).
Instrument panel lighting button
This adjusts the brightness of the lighting
of the instruments and controls.
For more information, refer to the
paragraph relating to the button or
function and its associated display.

5. Fuel level.
Indicates the quantity of fuel remaining in the tank.

6. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).

7. Trip distance recorder.
(miles or km)

8. Service indicator.
(miles or km) then,

Distance recorder.
(miles or km)

9. Engine oil level indicator.

26
INSTRUMENTS and CONTROLS
Service indicator
System which informs the driver when
the next service is due, in accordance
with the manufacturer's servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two parame-
ters:
- the distance travelled,
- the time elapsed since the last service.
5 seconds after the ignition is switched
on, the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances. Less than 600 miles (1 000 km)
remain before the next service is due

Example: 400 miles (900 km) remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes
its normal operation. The spanner
remains on to indicate that a service
must be carried out soon.
More than 600 miles (1 000 km)
remain before the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.

Example: 4 800 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:

i
i
27
INSTRUMENTS and CONTROLS Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be taken into ac-
count.
Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:

 switch off the ignition,

 press and hold the trip distance
recorder zero reset button,

 switch on the ignition; the distance
recorder display begins a count-
down,

 when the display indicates "=0" ,
release the button; the spanner
disappears.
The distance remaining may be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on,
the spanner fl ashes to
indicate that the service must be carried
out as soon as possible.

Example: the service is overdue by
300 km.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit . Retrieving the service information
You can access the service information
at any time.

 Press the trip distance recorder zero
reset button.
The service information is displayed for a few seconds, then disappears.

INSTRUMENTS and CONTROLS
Total distance recorder
System which measures the total
distance travelled by the vehicle during
its life. Lighting rheostat
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior bright-
ness.
The total and trip distances are dis-
played for thirty seconds when the igni-
tion is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
until it is reset to zero by the driver.

 With the ignition on, press the button
until zeros appear. Activation
When the lighting is on:

 press the button to change the
brightness of the instruments and
controls,

 when the level of brightness required
is reached, release the button.
Deactivation
When the lighting is off, or in day mode
on vehicles fi tted with daytime running
lamps, pressing the button does not
have any effect.

37
MULTIFUNCTION SCREENS
TRIP COMPUTER

 Press the button, located at the end
of the wiper stalk , to display the
various items of trip computer data
in succession. The trip computer provides the following
information:
System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).

 Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.
Monochrome screen A
Zero reset
Data displays - range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
 The next press then returns you to
the normal display.

i
i
!

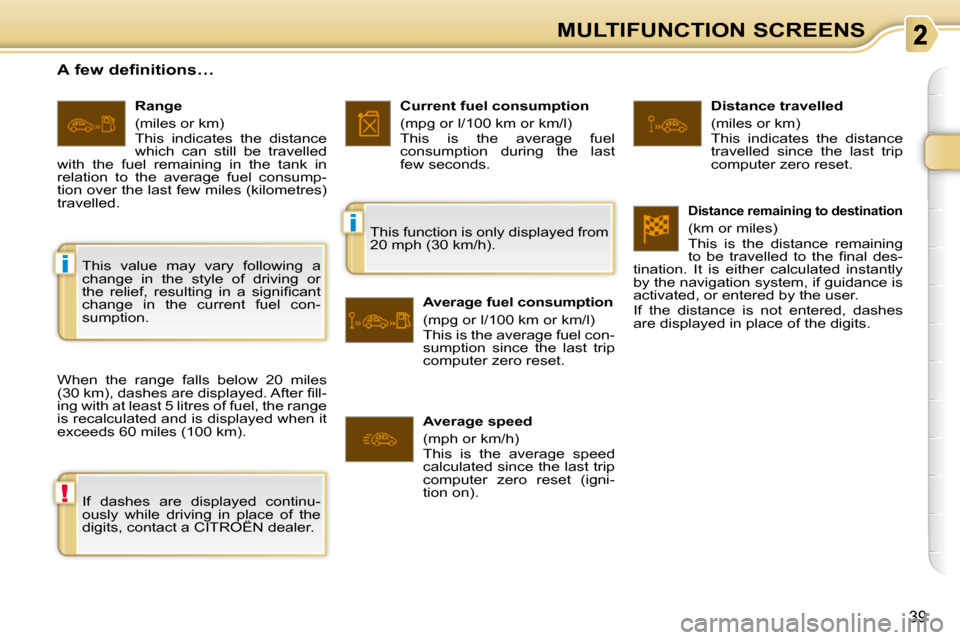

39
MULTIFUNCTION SCREENS
A few definitions…
When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a CITROËN dealer. This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi cant
change in the current fuel con-
sumption. Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption during the last
few seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset. Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed
calculated since the last trip
computer zero reset (igni-
tion on).
Distance remaining to destination
(km or miles)
This is the distance remaining
to be travelled to the fi nal des-
tination. It is either calculated instantly
by the navigation system, if guidance is
activated, or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
