2008 YAMAHA TZR50 Owners Manual

5WX-F8199-E2
TZR50
OWNER’S MANUAL
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 1

5WX-F8199-E2.qxd 29/05/2006 14:23 Página 2

EAU10100
Welcome to the Yamaha world of motorcycling!
As the owner of the TZR50, you are benefiting from Yamaha’s vast experience and newest technology regarding the
design and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your TZR50. The owner’s manual
does not only instruct you in how to operate, inspect and maintain your motorcycle, but also in how to safeguard your-
self and others from trouble and injury.
In addition, the many tips given in this manual will help keep your motorcycle in the best possible condition. If you have
any further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
INTRODUCTION
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 3

EAU10151
Particularly important information is distinguished in this manual by the following notations:
IMPORTANT MANUAL INFORMATION
CAUTION A CAUTION indicates special precautions that must be taken to avoid damage to
the motorcycle.
NOTE:A NOTE provides key information to make procedures easier or clearer.
NOTE:
This manual should be considered a permanent part of this motorcycle and should remain with it even if the
motorcycle is subsequently sold.
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the
most current product information available at the time of printing, there may be minor discrepancies between your
motorcycle and this manual. If you have any questions concerning this manual, please consult your Yamaha dea-
ler.
EWA10030
s s
WARNING
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS MOTORCYCLE.
*Product and specifications are subject to change without notice.
s s
WARNINGFailure to follow WARNING instructions could result in severe injury or deathto the
motorcycle operator, a bystander, or a person inspecting or repairing the motorcy-
cle.
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!t
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 4

IMPORTANT MANUAL INFORMATION
EAUS1172
TZR50
OWNER’S MANUAL
©2006 by YAMAHA MOTOR ESPAÑA S.A.
2nd edition, October 2006.
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
YAMAHA MOTOR ESPAÑA S.A.
is expressly prohibited.
Printed in Spain.
5WX-F8199-E2.qxd 13/9/06 11:01 Página 5

SAFETY INFORMATION.....................1-1
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Main switch/steering lock .................3-1
Indicator and warning lights .............3-1
Speedometer unit .............................3-2
Tachometer .......................................3-3
Handlebar switches ..........................3-3
Clutch lever .......................................3-4
Shift pedal.........................................3-4
Brake lever ........................................3-5
Brake pedal.......................................3-5
Fuel ...................................................3-5
Catalytic converter............................3-6
Fuel tank cap ....................................3-6
Fuel tank breather/overflow hose .....3-7
2-stroke engine oil ............................3-7
Fuel cock ..........................................3-8
Starter (choke) lever “
q” .................3-8
Seat...................................................3-9
Anti-theft device housing..................3-9
Rear view mirrors ..............................3-9
Sidestand ........................................3-10
Ignition circuit cut-off system .........3-10PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2
OPERATION AND IMPORTANT RIDING
POINTS................................................5-1
Starting a cold engine ......................5-1
Starting a warm engine ....................5-2
Shifting ..............................................5-2

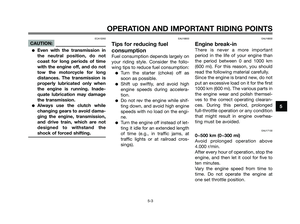

Tips for reducing fuel consumption..5-3
Engine break-in.................................5-3
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR...................................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and
lubrication chart ............................6-2
Removing and installing cowlings
and panels .....................................6-5
Checking the spark plug ..................6-7
Transmission oil ................................6-8
Coolant .............................................6-9
Air filter element ..............................6-12
Adjusting the carburetor .................6-12
Adjusting the throttle cable free
play ..............................................6-12
Adjusting the engine idling speed ..6-13
Tires ................................................6-14
Cast wheels ....................................6-16
Adjusting the clutch lever free
play ..............................................6-16Checking the front brake lever free
play ..............................................6-17
Adjusting the brake pedal free
play ..............................................6-17
Adjusting the shift pedal position ...6-18
Adjusting the rear brake light
switch ..........................................6-18
Checking the front and rear brake
pads.............................................6-18
Checking the brake fluid level ........6-19
Changing the brake fluid ................6-20
Drive chain slack.............................6-21
Cleaning and lubricating the drive
chain ............................................6-22
Checking and lubricating the
cables ..........................................6-23
Checking and lubricating the
throttle grip and cable .................6-23
Adjusting the Autolube pump .........6-24
Checking and lubricating the brake
and shift pedals ...........................6-24
Checking and lubricating the brake
and clutch levers .........................6-24
Checking and lubricating the
sidestand .....................................6-25
Checking the front fork ...................6-25
Checking the steering.....................6-26
Checking the wheel bearings .........6-26
Battery ............................................6-27
Replacing the fuse ..........................6-28
Replacing the headlight bulb..........6-28
TABLE OF CONTENTS
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 6

Replacing the license plate light
bulb .............................................6-29
Replacing a turn signal light bulb
or the tail/brake light bulb ...........6-30
Replacing a front turn signal light
bulb .............................................6-30
Troubleshooting ..............................6-31
Troubleshooting charts ...................6-32
MOTORCYCLE CARE AND
STORAGE............................................7-1
Care ..................................................7-1
Storage .............................................7-3
SPECIFICATIONS...............................8-1
CONSUMER INFORMATION.............9-1
Identification numbers ......................9-1
TABLE OF CONTENTS
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 7

EAU10251
MOTORCYCLES ARE SINGLE
TRACK VEHICLES. THEIR SAFE USE
AND OPERATION ARE DEPENDENT
UPON THE USE OF PROPER RIDING
TECHNIQUES AS WELL AS THE
EXPERTISE OF THE OPERATOR.
EVERY OPERATOR SHOULD KNOW
THE FOLLOWING REQUIREMENTS
BEFORE RIDING THIS MOTORCY-
CLE.
HE OR SHE SHOULD:
OBTAIN THOROUGH INSTRUC-
TIONS FROM A COMPETENT
SOURCE ON ALL ASPECTS OF
MOTORCYCLE OPERATION.
OBSERVE THE WARNINGS AND
MAINTENANCE REQUIRE-
MENTS IN THE OWNER’S
MANUAL.
OBTAIN QUALIFIED TRAINING
IN SAFE AND PROPER RIDING
TECHNIQUES.
OBTAIN PROFESSIONAL TECH-
NICAL SERVICE AS INDICATED
BY THE OWNER’S MANUAL
AND/OR WHEN MADE NECES-
SARY BY MECHANICAL CONDI-
TIONS.Safe riding
Always make pre-operation
checks. Careful checks may help
prevent an accident.
This motorcycle is designed to
carry the operator and a passen-
ger.
The failure of motorists to detect
and recognize motorcycles in
traffic is the predominating cause
of automobile/motorcycle acci-
dents. Many accidents have
been caused by an automobile
driver who did not see the
motorcycle. Making yourself
conspicuous appears to be very
effective in reducing the chance
of this type of accident.
Therefore:
• Wear a brightly colored jacket.
• Use extra caution when appro-
aching and passing through
intersections, since intersec-
tions are the most likely places
for motorcycle accidents to
occur.
• Ride where other motorists can
see you. Avoid riding in anot-
her motorist’s blind spot.
Many motorcycle accidents
involve inexperienced operators.
In fact, many operators who have
been involved in accidents do not
even have a current motorcycle
license.
• Make sure that you are quali-
fied and that you only lend your
motorcycle to other qualified
operators.
• Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
• We recommend that you prac-
tice riding your motorcycle
where there is no traffic until
you have become thoroughly
familiar with the motorcycle
and all of its controls.
Many motorcycle accidents have
been caused by error of the
motorcycle operator. A typical
error made by the operator is
veering wide on a turn due to
EXCESSIVE SPEED or undercor-
nering (insufficient lean angle for
the speed).
• Always obey the speed limit
and never travel faster than
1
tSAFETY INFORMATION
1-1
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 8
