2008 YAMAHA RHINO 700 fuse

General maintenance and lubrication
chart ................................................... 8-8
Hood ................................................... 8-17
Console .............................................. 8-21
Engine oil and oil filter cartridge ......... 8-25
Final gear oil ....................................... 8-39
Differential gear oil ............................. 8-47
Coolant ............................................... 8-53
Axle boots........................................... 8-57
Spark plug inspection ......................... 8-59
Cleaning the air filter element............. 8-65
Drive select lever box check hose ...... 8-77
V-belt cooling duct check hose........... 8-77
V-belt case drain plug......................... 8-79
Cleaning the spark arrester ................ 8-81
Valve clearance .................................. 8-83
Brakes ................................................ 8-85
Checking the front and rear brake
pads ................................................. 8-87
Checking the parking brake pads ....... 8-89
Checking the brake fluid level ............ 8-91
Brake fluid replacement...................... 8-95
Checking the brake pedal................... 8-95
Parking brake lever free play
adjustment........................................ 8-97
Brake light switch adjustment ........... 8-101
Cable inspection and lubrication ...... 8-103Brake pedal and accelerator pedal
lubrication ...................................... 8-105
Rear knuckle upper and lower pivot
lubrication ...................................... 8-107
Steering shaft lubrication ................. 8-111
Wheel removal ................................. 8-111
Tire replacement .............................. 8-113
Wheel installation ............................. 8-115
Battery.............................................. 8-119
Battery maintenance ........................ 8-123
Jump-starting ................................... 8-125
Fuse replacement ............................ 8-131
Replacing a headlight bulb............... 8-137
Headlight beam adjustment ............. 8-143
Tail/brake light bulb replacement ..... 8-145
Troubleshooting ............................... 8-151
Troubleshooting charts .................... 8-153
CLEANING AND STORAGE ................... 9-1
A. Cleaning .......................................... 9-1
B. Storage ............................................ 9-7
SPECIFICATIONS................................. 10-1
CONSUMER INFORMATION ............... 11-1
Identification number records............. 11-1
91011
EE.book Page 3 Wednesday, November 7, 2007 2:40 PM

3-1
EVU00080
1 -DESCRIPTION
1. Headlights
2. Front shock absorber assembly
3. Brake fluid reservoir
4. Air filter element
5. V-belt case
6. Driver seat
7. Driver seat belt
8. Cargo bed
9. Tail/brake lights
10. Rear shock absorber assembly
11. Cargo bed release levers
12. Spark plug
13. Door
CBA 089
14. Spark arrester
15. Passenger seat belt
16. Passenger seat
17. Passenger handhold
18. Engine oil dipstick
19. Battery
20. Fuses
21. Coolant reservoir
22. Radiator cap
23. Oil filter cartridge
24. Fuel tank cap
H G F EIJKL
AC M N D
EE.book Page 1 Wednesday, November 7, 2007 2:40 PM

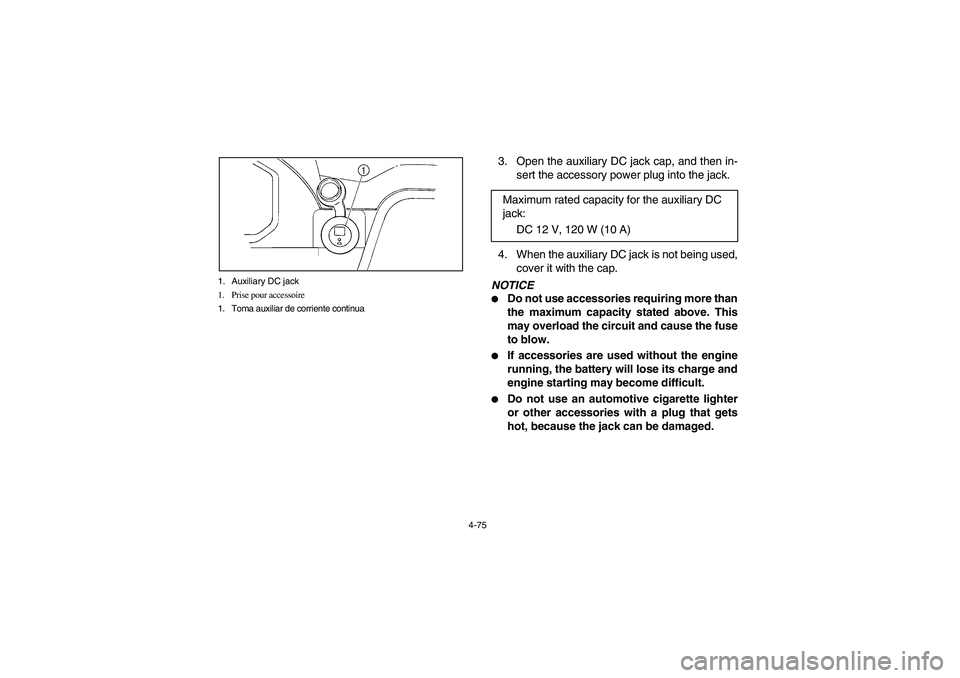

4-75 1. Auxiliary DC jack
1. Prise pour accessoire
1. Toma auxiliar de corriente continua
3. Open the auxiliary DC jack cap, and then in-
sert the accessory power plug into the jack.
4. When the auxiliary DC jack is not being used,
cover it with the cap.NOTICE

Do not use accessories requiring more than
the maximum capacity stated above. This
may overload the circuit and cause the fuse
to blow.


If accessories are used without the engine
running, the battery will lose its charge and
engine starting may become difficult.


Do not use an automotive cigarette lighter
or other accessories with a plug that gets
hot, because the jack can be damaged. Maximum rated capacity for the auxiliary DC
jack:
DC 12 V, 120 W (10 A)
EE.book Page 75 Wednesday, November 7, 2007 2:40 PM

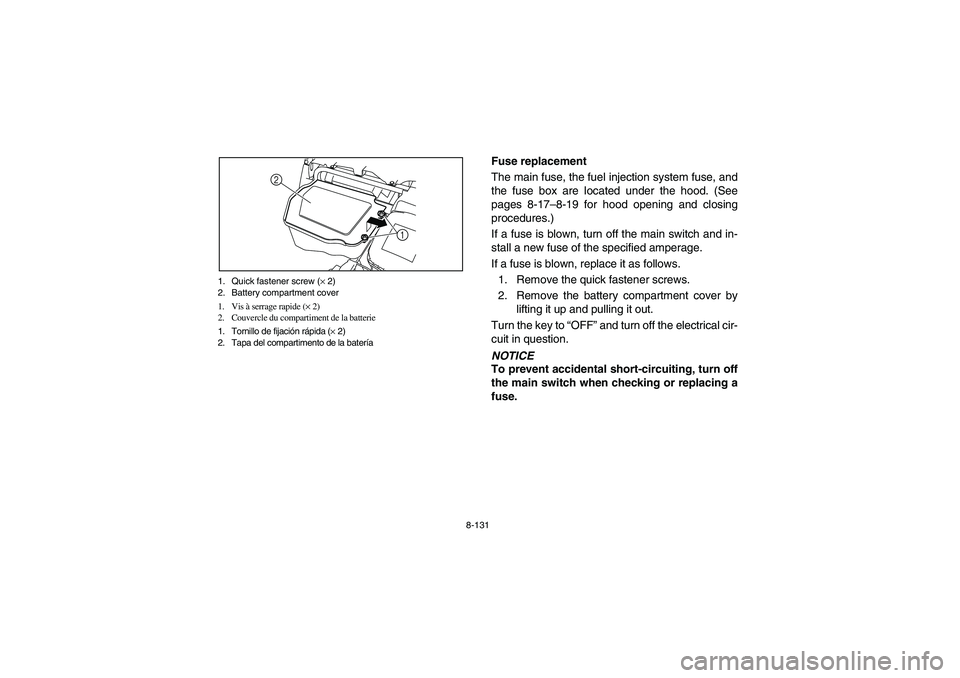

8-131 1. Quick fastener screw (× 2)
2. Battery compartment cover
1. Vis à serrage rapide (× 2)
2. Couvercle du compartiment de la batterie
1. Tornillo de fijación rápida (× 2)
2. Tapa del compartimento de la batería
1
2
5B410023
Fuse replacement
The main fuse, the fuel injection system fuse, and
the fuse box are located under the hood. (See
pages 8-17–8-19 for hood opening and closing
procedures.)
If a fuse is blown, turn off the main switch and in-
stall a new fuse of the specified amperage.
If a fuse is blown, replace it as follows.
1. Remove the quick fastener screws.
2. Remove the battery compartment cover by
lifting it up and pulling it out.
Turn the key to “OFF” and turn off the electrical cir-
cuit in question.NOTICE
To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.
EE.book Page 131 Wednesday, November 7, 2007 2:40 PM

8-133
1. Fuel injection system spare fuse 2. Fuel injection system fuse
3. Main fuse 4. Headlight fuse “HEAD”
5. Signaling system fuse “SIGNAL”
6. Auxiliary DC jack fuse “TERMINAL”
7. Four-wheel-drive motor fuse “DIFF”
8. Ignition fuse “IGNITION”
9. Backup fuse “BACK UP” (for odometer and clock)
10. Spare fuse (× 3) 11. Radiator fan fuse “FAN”
1. Fusible de rechange du système d’injection de carburant
2. Fusible du système d’injection de carburant
3. Fusible principal 4. Fusible des phares “HEAD”
5. Fusible du système de signalisation “SIGNAL”
6. Fusible de la prise pour accessoire “TERMINAL”
7. Fusible du moteur du dispositif quatre roues motrices “DIFF”
8. Fusible d’allumage “IGNITION”
9. Fusible de sauvegarde “BACK UP” (pour le compteur kilométrique et
la montre) 10. Fusible de rechange (× 3)
11. Fusible du ventilateur de radiateur “FAN”
1. Fusible de repuesto del sistema de inyección
2. Fusible del sistema de inyección
3. Fusible principal 4. Fusible de los faros “HEAD”
5. Fusible del sistema de intermitencia “SIGNAL”
6. Fusible de la toma auxiliar de corriente continua “TERMINAL”
7. Fusible de la tracción a las cuatro ruedas “DIFF”
8. Fusible del encendido “IGNITION”
9. Fusible de repuesto “BACK UP” (cuentakilómetros y reloj)
10. Fusible de reserva (× 3)
11. Fusible del ventilador del radiador “FAN”
3 2 17
9 5 468
A
@
0
3. Remove the blown fuse, and then install a
new fuse of the specified amperage. WARN-
ING! Always use a fuse of the specified
amperage. Never use any material in
place of the proper fuse. Using an improp-
er fuse can cause damage to the electrical
system and may lead to a fire.
Specified fuses:
Main fuse: 40.0 A
Fuel injection system fuse: 10.0 A
Headlight fuse: 15.0 A
Ignition fuse: 10.0 A
Auxiliary DC jack fuse: 10.0 A
Signaling system fuse: 10.0 A
Four-wheel-drive motor
fuse: 10.0 A
Radiator fan fuse: 25.0 A
Backup fuse: 10.0 A
EE.book Page 133 Wednesday, November 7, 2007 2:40 PM

8-135
4. Turn the key to “ON” and turn on the electrical
circuit in question to check if the device oper-
ates.
5. If the fuse blows again immediately, have a
Yamaha dealer check the electrical system.
6. Reinstall the battery compartment cover by
installing the quick fastener screws.
7. Close the hood.
EE.book Page 135 Wednesday, November 7, 2007 2:40 PM

10-8
Specified fuses:
Main fuse 40.0 A
Fuel injection system fuse 10.0 A
Headlight fuse 15.0 A
Ignition fuse 10.0 A
Auxiliary DC jack fuse 10.0 A
Four-wheel-drive motor fuse 10.0 A
Signaling system fuse 10.0 A
Backup fuse 10.0 A
Radiator fan fuse 25.0 AModel YXR70FSP2X
