Wheel installation
1. Install the wheel and the nuts.
The arrow mark on the tire must point to-
ward the rotating direction of the wheel.
Tapered nuts are used for both the front and
rear wheels. Install the nuts with their tapered
side towards the wheel.
2. Lower the vehicle so that the wheel is on the
ground.
3. Tighten the wheel nuts to the specified
torque.WARNING
Do not reverse the rims on the Rhino to widen
the track width. Installing wheels improperly
increases the risk of wheel failure and acci-
dents.
EE.book Page 115 Wednesday, November 7, 2007 2:40 PM
10-1
EVU01050

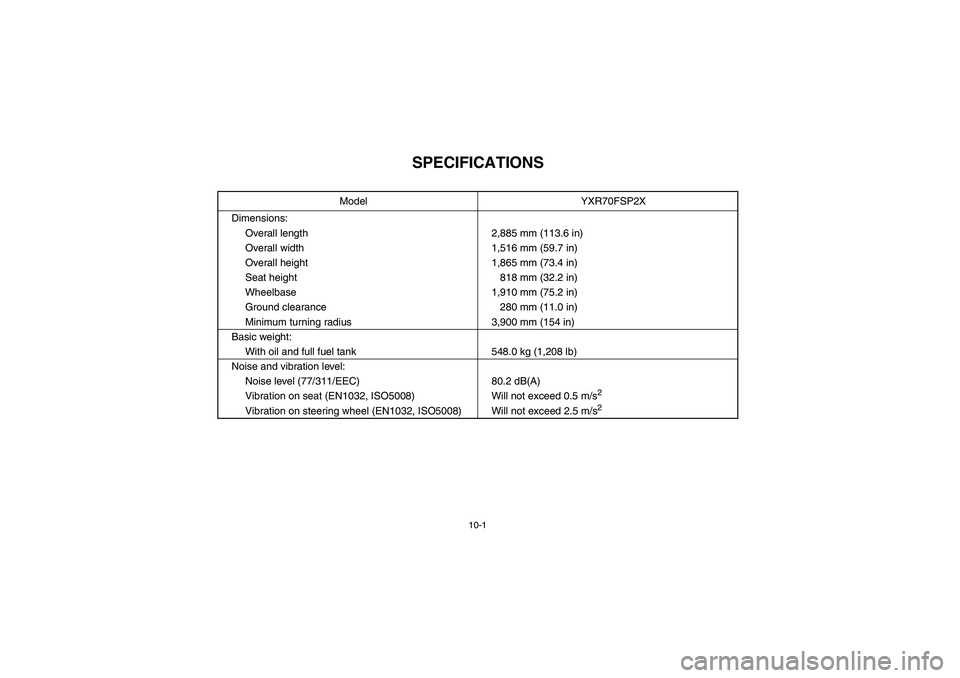

1 -SPECIFICATIONS
Model YXR70FSP2X
Dimensions:
Overall length 2,885 mm (113.6 in)
Overall width 1,516 mm (59.7 in)
Overall height 1,865 mm (73.4 in)
Seat height 818 mm (32.2 in)
Wheelbase 1,910 mm (75.2 in)
Ground clearance 280 mm (11.0 in)
Minimum turning radius 3,900 mm (154 in)
Basic weight:
With oil and full fuel tank 548.0 kg (1,208 lb)
Noise and vibration level:
Noise level (77/311/EEC) 80.2 dB(A)
Vibration on seat (EN1032, ISO5008) Will not exceed 0.5 m/s
2
Vibration on steering wheel (EN1032, ISO5008) Will not exceed 2.5 m/s
