2008 YAMAHA MAJESTY 400 Owners Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-9
2
34
5
6
7
8
9 Ambient temperature display
This display shows the ambient tem-
perature from –10 °C to 50 °C in 1 °C
increments. The temperature displayed
may vary from the ambient tempera-
ture. Pushing the “SELECT” button for
at least two seconds switches the am-
bient temperature display to the clock
display.
NOTE:


If the ambient temperature falls be-
low –10 °C, a lower temperature
than –10 °C will not be displayed.

If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.

The accuracy of the temperature
reading may be affected when
riding slowly (approximately under
20 km/h (12.5 mi/h)) or when
stopped at traffic signals, railroad
crossings, etc.
EAU12331
Anti-theft alarm (optional)
This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12347
Handlebar switches
Left
1. Pass switch “PASS”
2. Dimmer switch “/”
3. Turn signal switch “/”
4. Horn switch “”
1
2
3
4

INSTRUMENT AND CONTROL FUNCTIONS
3-10
1
2
3
4
5
6
7
8
9Right

EAU12360
Pass switch “PASS”
Press this switch to flash the headlight.
EAU12400
Dimmer switch “/”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12720
Start switch “”
With the sidestand up, push this switch
while applying the front or rear brake to
crank the engine with the starter.
CAUTION:

ECA10050
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAU42810
(for ABS models)
The engine trouble warning light and
ABS warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
EAU12733
Hazard switch “”
With the key in the “ON” or “” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
CAUTION:

ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
1. Engine stop switch “/”
2. Hazard switch “”
3. Start switch “”
1
2
3

INSTRUMENT AND CONTROL FUNCTIONS
3-11
2
34
5
6
7
8
9

EAU12900
Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
EAU12950
Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the handle-
bar grip.
EAU12962
Rear brake lock lever
This vehicle is equipped with a rear
brake lock lever to prevent the rear
wheel from moving while stopped at
traffic signals, railroad crossings, etc.
To lock the rear wheel
Push the rear brake lock lever to the left
until it snaps into place.
To unlock the rear wheel
Push the rear brake lock lever back to
the original position.
NOTE:


Be sure to check that the rear
wheel does not move when the
1. Front brake lever
1

1. Rear brake lever1

1. Rear brake lock lever
1

INSTRUMENT AND CONTROL FUNCTIONS
3-12
1
2
3
4
5
6
7
8
9
rear brake lock lever is applied.


To provide secure locking of the
rear wheel, apply the rear brake le-
ver first before moving the rear
brake lock lever to the left.
WARNING

EWA12361
Never move the rear brake lock lever
to the left while the vehicle is mov-
ing, otherwise loss of control or an
accident may result. Make sure that
the vehicle is stopped before mov-
ing the rear brake lock lever to the
left.
EAU12991
ABS (for ABS models)
The Yamaha ABS (Anti-lock Brake
System) features a dual electronic con-
trol system, which acts on the front and
rear brakes independently. The ABS
securely controls wheel lockup during
emergency braking on changing road
surfaces and under various weather
conditions, thereby maximizing tire ad-
hesion and performance while provid-
ing a smooth braking action. The ABS
is monitored by an ECU (Electronic
Control Unit), which will have recourse
to manual braking if a malfunction oc-
curs.
WARNING

EWA10090

The ABS performs best on long
braking distances.

On certain (rough or gravel)
roads, the braking distance may
be longer with than without the
ABS. Therefore, always keep a
sufficient distance to the vehi-
cle ahead to match the riding
speed.
NOTE:


When the ABS is activated, the
brakes are operated in the usual
way. A pulsating action may be felt
at the brake levers, but this does
not indicate a malfunction.

This ABS has a test mode which
allows the owner to experience the
pulsating at the brake levers when
the ABS is operating. However,
special tools are required, so
please consult your Yamaha deal-
er when performing this test.

INSTRUMENT AND CONTROL FUNCTIONS
3-13
2
34
5
6
7
8
9

EAU13162
Fuel tank cap
To open the fuel tank cap
1. Open the lid by sliding the lever
forward, and then pull the lever up.
2. Insert the key into the lock and turn
it clockwise. The lock will be re-
leased and the fuel tank cap can
be removed.
To install the fuel tank cap
1. Align the match marks, insert the
fuel tank cap into the tank opening,
and then push down on the cap.
2. Turn the key counterclockwise to
the original position, and then re-move it.
3. Close the lid.
WARNING

EWA11120
Be sure that the fuel tank cap is
properly installed and locked before
riding the scooter.
1. Lid
2. Opening lever
2 1

1. Fuel tank cap
1. Match marks
1
1

INSTRUMENT AND CONTROL FUNCTIONS
3-14
1
2
3
4
5
6
7
8
9

EAU13211
Fuel
Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING

EWA10880

Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.

Avoid spilling fuel on the hot en-
gine.
CAUTION:

ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, sincefuel may deteriorate painted surfac-
es or plastic parts.
EAU33520
CAUTION:

ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAU13442
Catalytic converters
This vehicle is equipped with catalytic
converters in the exhaust system.
WARNING

EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-
ing any maintenance work.
CAUTION:

ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.

Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.

Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.

Do not allow the engine to idle
too long.
1. Fuel tank filler tube
2. Fuel level
21

Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
14.0 L (3.70 US gal) (3.08 Imp.gal)

INSTRUMENT AND CONTROL FUNCTIONS
3-15
2
34
5
6
7
8
9

EAU34140
Seats
Rider seat
To open the rider seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise.
NOTE:

Do not push inward when turning the
key.
3. Fold the rider seat up.To close the rider seat
1. Fold the rider seat down, and then
push it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left un-
attended.NOTE:

Make sure that the rider seat is properly
secured before riding.
Passenger seat
To remove the passenger seat
1. Open the rider seat.
2. Remove the bolt, and then pull the
passenger seat forward.

1. Rider seat
2. Passenger seat
2 1

1. Open.
1. Rider seat
1
1

1. Passenger seat
2. Bolt
2
1

INSTRUMENT AND CONTROL FUNCTIONS
3-16
1
2
3
4
5
6
7
8
9

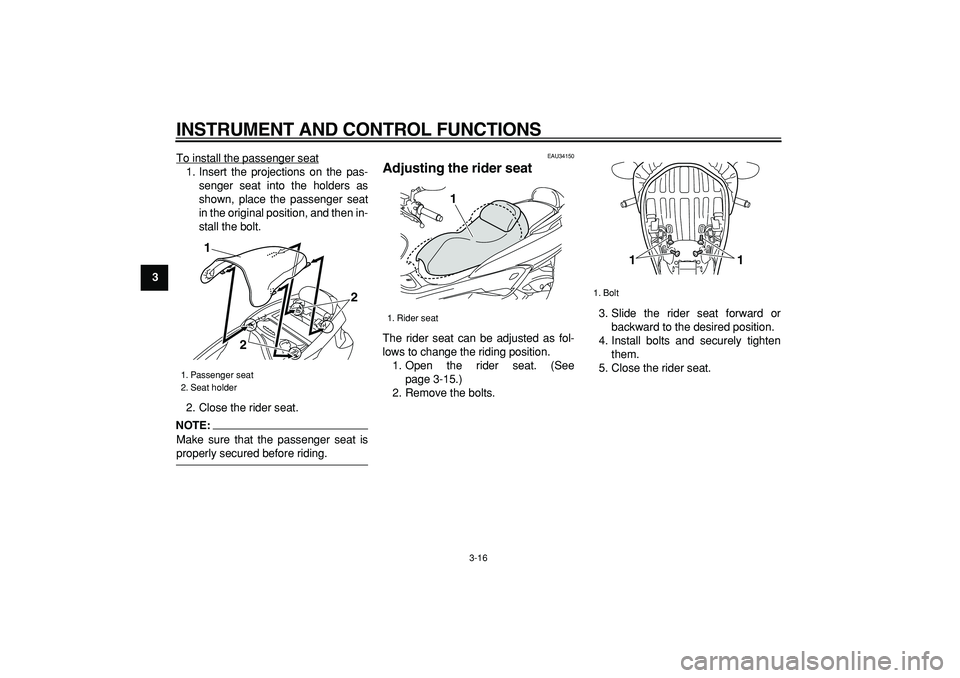

To install the passenger seat
1. Insert the projections on the pas-
senger seat into the holders as
shown, place the passenger seat
in the original position, and then in-
stall the bolt.
2. Close the rider seat.NOTE:

Make sure that the passenger seat is
properly secured before riding.
EAU34150
Adjusting the rider seat
The rider seat can be adjusted as fol-
lows to change the riding position.
1. Open the rider seat. (See
page 3-15.)
2. Remove the bolts.3. Slide the rider seat forward or
backward to the desired position.
4. Install bolts and securely tighten
them.
5. Close the rider seat.
1. Passenger seat
2. Seat holder
1
2
2

1. Rider seat
1

1. Bolt
11
