TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
Further safe-riding points .................1-4
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Immobilizer system ..........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Speedometer ...................................3-5
Tachometer .....................................3-5
Multi-function display .......................3-5
Anti-theft alarm (optional) ................3-9
Handlebar switches .........................3-9
Front brake lever ...........................3-11
Rear brake lever ............................3-11
Rear brake lock lever .....................3-11
ABS (for ABS models) ...................3-12
Fuel tank cap .................................3-13
Fuel ................................................3-14
Catalytic converters .......................3-14
Seats .............................................3-15
Adjusting the rider seat ..................3-16
Storage compartments ..................3-17
Adjusting the shock absorber
assemblies .................................3-18
Sidestand .......................................3-19Ignition circuit cut-off system ......... 3-20
PRE-OPERATION CHECKS
.............. 4-1
Pre-operation check list ................... 4-2
OPERATION AND IMPORTANT RIDING
POINTS
............................................... 5-1
Starting the engine .......................... 5-1
Starting off ....................................... 5-2
Acceleration and deceleration ......... 5-2
Braking ............................................ 5-2
Tips for reducing fuel
consumption ................................ 5-3
Engine break-in ............................... 5-4
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND MINOR
REPAIR
............................................... 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance and lubrication
chart ............................................. 6-3
Removing and installing cowlings and
panels .......................................... 6-7
Checking the spark plug ................ 6-11
Engine oil and oil filter element ..... 6-13
Final transmission oil ..................... 6-16
Coolant .......................................... 6-17
Air filter elements and check hoses and
V-belt case air filter element ...... 6-19
Checking the throttle cable free
play ............................................ 6-22Valve clearance ............................ 6-22
Tires .............................................. 6-22
Cast wheels .................................. 6-24
Front and rear brake lever free
play ............................................ 6-25
Adjusting the rear brake lock lever
cable .......................................... 6-26
Checking the front and rear brake
pads ........................................... 6-26
Checking the brake fluid level ....... 6-27
Changing the brake fluid ............... 6-28
Checking and lubricating the
cables ........................................ 6-28
Checking and lubricating the throttle
grip and cable ............................ 6-29
Lubricating the front and rear brake
levers ......................................... 6-29
Checking and lubricating the
centerstand and sidestand ........ 6-29
Checking the front fork .................. 6-30
Checking the steering ................... 6-31
Checking the wheel bearings ........ 6-31
Battery ........................................... 6-32
Replacing the fuses ...................... 6-33
Replacing a headlight bulb ........... 6-35
Tail/brake light ............................... 6-36
Replacing a front turn signal light
bulb ............................................ 6-36
Replacing a rear turn signal light
bulb ............................................ 6-37

DESCRIPTION
2-3
1
2
3
4
5
6
7
8
9

EAU10430

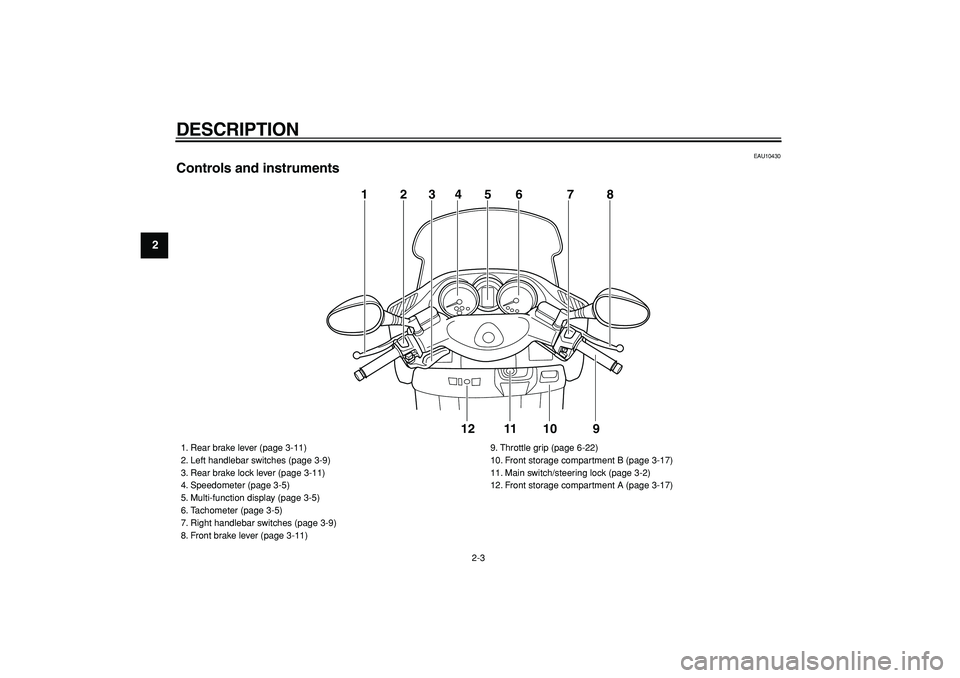

Controls and instruments
1345678
9 10 11 12
2

1. Rear brake lever (page 3-11)
2. Left handlebar switches (page 3-9)
3. Rear brake lock lever (page 3-11)
4. Speedometer (page 3-5)
5. Multi-function display (page 3-5)
6. Tachometer (page 3-5)
7. Right handlebar switches (page 3-9)
8. Front brake lever (page 3-11)9. Throttle grip (page 6-22)
10. Front storage compartment B (page 3-17)
11. Main switch/steering lock (page 3-2)
12. Front storage compartment A (page 3-17)

INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9

EAU11601
Speedometer
The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.
EAU11872
Tachometer
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.
CAUTION:

ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 8250 r/min and above
EAU34136
Multi-function display
WARNING

EWA12311
Be sure to stop the vehicle before
making any setting changes to the
multi-function display.
1. Speedometer
1

1. Tachometer
2. Tachometer red zone
12

1. Clock/ambient temperature display
2. Coolant temperature meter
3. Fuel meter
4. Odometer/tripmeters
5. “SELECT” button
6. “RESET” button
1
2
3
4
5
6

INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
2
3
4
5
6
7
8
9
The multi-function display is equipped
with the following:


a fuel meter

a coolant temperature meter

an odometer (which shows the to-
tal distance traveled)

two tripmeters (which show the
distance traveled since they were
last set to zero)

a fuel reserve tripmeter (which
shows the distance traveled since
the bottom segment of the fuel
meter and fuel level warning indi-cator started flashing)

a self-diagnosis device

a clock

an ambient temperature display

an oil change indicator

a V-belt replacement indicator
NOTE:


Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.

When the key is turned to “ON”, all
of the display segments of the
multi-function display will appear
one after the other and then disap-
pear, in order to test the electrical
circuit.
Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP” in the following order:
ODO
→
TRIP (top)
→
TRIP (bottom)
→
ODO
When approximately 2.8 L (0.74 US
gal) (0.62 Imp.gal) of fuel remains in the
fuel tank, the bottom segment of the
fuel meter and fuel level warning indica-tor will start flashing, and the display will
automatically change to the fuel re-
serve tripmeter mode “TRIP F” and
start counting the distance traveled
from that point. In that case, pushing
the “SELECT” button switches the dis-
play between the various tripmeter and
odometer modes in the following order:
TRIP F
→
TRIP (top)
→
TRIP (bottom)
→
ODO
→
TRIP F
To reset a tripmeter, select it by push-
ing the “SELECT” button until “TRIP” or
“TRIP F” begins flashing (“TRIP” or
“TRIP F” will only flash for five sec-
onds). While “TRIP” or “TRIP F” is
flashing, push the “RESET” button for
at least one second. If you do not reset

1. V-belt replacement indicator “V-BELT”
2. Fuel level warning indicator “”
3. Coolant temperature warning indicator
“”
4. Oil change indicator “OIL”
123
4

1. Fuel reserve tripmeter
1

INSTRUMENT AND CONTROL FUNCTIONS
3-7
2
34
5
6
7
8
9
the fuel reserve tripmeter manually, it
will reset itself automatically and the
display will return to the prior mode af-
ter refueling and traveling 5 km (3 mi).
NOTE:

The display cannot be changed back to
“TRIP F” after pushing the “RESET”
button.
Fuel meter
With the key in the “ON” position, the
fuel meter indicates the amount of fuel
in the fuel tank. The display segments
of the fuel meter disappear towards “E”
(Empty) as the fuel level decreases.
When the fuel level reaches the bottom
segment near “E”, the fuel level warn-
ing indicator and the bottom segment
will flash. Refuel as soon as possible.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with chang-
es in the weather and engine load. If
the top segment and coolant tempera-
ture warning indicator flash, stop thevehicle and let the engine cool. (See
page 6-40.)
CAUTION:

ECA10020
Do not operate the engine if it is
overheated.
Oil change indicator “OIL”
This indicator flashes at the initial 1000
km (600 mi), then at 5000 km (3000 mi)
and every 5000 km (3000 mi) thereafter
to indicate that the engine oil should be
changed.
After changing the engine oil, reset the
oil change indicator. (See page 6-13.)
If the engine oil is changed before the
oil change indicator comes on (i.e. be-
fore the periodic oil change interval hasbeen reached), the indicator must be
reset after the oil change for the next
periodic oil change to be indicated at
the correct time. (See page 6-13.)
The electrical circuit of the indicator can
be checked according to the following
procedure.
1. Set the engine stop switch to “”
and turn the key to “ON”.
2. Check that the indicator comes on
for a few seconds and then goes
off.
3. If the indicator does not come on,
have a Yamaha dealer check the
electrical circuit.
NOTE:

The oil change indicator may flash
when the engine is revved with the
scooter on the centerstand, but this
does not indicate a malfunction.
V-belt replacement indicator
“V-BELT”
This indicator flashes every 20000 km
(12500 mi) when the V-belt needs to be
replaced.
The electrical circuit of the indicator can
be checked according to the following

INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8
9
procedure.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
2. If the indicator does not come on,
have a Yamaha dealer check the
electrical circuit.
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
multi-function display will indicate a
two-digit error code.
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
CAUTION:

ECA11790
If the multi-function display indi-
cates an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine dam-
age.
This model is also equipped with a
self-diagnosis device for the immobiliz-er system.
If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
multi-function display will indicate a
two-digit error code when the key is
turned to “ON”.
NOTE:

If the multi-function display indicates er-
ror code 52, this could be caused by
transponder interference. If this error
appears, try the following.
1. Use the code re-registering key to
start the engine.
NOTE:

Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take thevehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the vehicle.
Clock mode
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.
Pushing the “SELECT” button for
at least two seconds switches the
clock display to the ambient tem-
perature display.

INSTRUMENT AND CONTROL FUNCTIONS
3-9
2
34
5
6
7
8
9 Ambient temperature display
This display shows the ambient tem-
perature from –10 °C to 50 °C in 1 °C
increments. The temperature displayed
may vary from the ambient tempera-
ture. Pushing the “SELECT” button for
at least two seconds switches the am-
bient temperature display to the clock
display.
NOTE:


If the ambient temperature falls be-
low –10 °C, a lower temperature
than –10 °C will not be displayed.

If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.

The accuracy of the temperature
reading may be affected when
riding slowly (approximately under
20 km/h (12.5 mi/h)) or when
stopped at traffic signals, railroad
crossings, etc.
EAU12331
Anti-theft alarm (optional)
This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12347
Handlebar switches
Left
1. Pass switch “PASS”
2. Dimmer switch “/”
3. Turn signal switch “/”
4. Horn switch “”
1
2
3
4

INDEX
A
ABS (for ABS models) .............................3-12
ABS warning light (for ABS models) ..........3-4
Acceleration and deceleration ...................5-2
Air filter elements and check hoses and
V-belt case air filter element ..................6-19
Anti-theft alarm (optional) ..........................3-9
Auxiliary light bulb, replacing ...................6-38
B
Battery .....................................................6-32
Brake fluid, changing ...............................6-28
Brake fluid level, checking .......................6-27
Brake lever, front .....................................3-11
Brake lever, rear ......................................3-11
Brake levers, lubricating ..........................6-29
Braking ......................................................5-2
C
Cables, checking and lubricating .............6-28
Care ...........................................................7-1
Catalytic converters .................................3-14
Centerstand and sidestand, checking and
lubricating ..............................................6-29
Coolant ....................................................6-17
Cowlings and panels, removing and
installing ..................................................6-7
D
Dimmer switch .........................................3-10
E
Engine break-in .........................................5-4
Engine oil and oil filter element ................6-13
Engine stop switch...................................3-10
Engine trouble warning light ......................3-4
F
Final transmission oil ...............................6-16Front and rear brake lever free play ........ 6-25
Front and rear brake pads, checking....... 6-26
Front fork, checking ................................. 6-30
Fuel ......................................................... 3-14
Fuel consumption, tips for reducing .......... 5-3
Fuel tank cap ........................................... 3-13
Fuses, replacing ...................................... 6-33
H
Handlebar switches ................................... 3-9
Hazard switch .......................................... 3-10
Headlight bulb, replacing ......................... 6-35
High beam indicator light ........................... 3-3
Horn switch.............................................. 3-10
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-20
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-4
Indicator and warning lights....................... 3-3
K
Key identification number .......................... 9-1
L
License plate light bulb, replacing ........... 6-38
M
Main switch/steering lock .......................... 3-2
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-5
P
Parking ...................................................... 5-4
Part locations............................................. 2-1
Pass switch ............................................. 3-10
Periodic maintenance and lubrication
chart ........................................................ 6-3Pre-operation check list............................. 4-2
R
Rear brake lock lever .............................. 3-11
Rear brake lock lever cable, adjusting .... 6-26
Rider seat, adjusting ............................... 3-16
S
Safe-riding points ...................................... 1-4
Safety information ..................................... 1-1
Seats ....................................................... 3-15
Shock absorber assemblies, adjusting.... 3-18
Sidestand ................................................ 3-19
Spark plug, checking ............................... 6-11
Specifications ............................................ 8-1
Speedometer............................................. 3-5
Starting off ................................................. 5-2
Starting the engine .................................... 5-1
Start switch.............................................. 3-10
Steering, checking................................... 6-31
Storage...................................................... 7-3
Storage compartments ............................ 3-17
T
Tachometer ............................................... 3-5
Tail/brake light ......................................... 6-36
Throttle cable free play, checking ........... 6-22
Throttle grip and cable, checking and
lubricating ............................................. 6-29
Tires ........................................................ 6-22
Tool kit....................................................... 6-1
Troubleshooting ...................................... 6-39
Troubleshooting charts............................ 6-40
Turn signal indicator lights ........................ 3-3
Turn signal light bulb (front), replacing .... 6-36
Turn signal light bulb (rear), replacing..... 6-37
Turn signal switch ................................... 3-10
