2008 VOLVO S60 Owners Manual

To program (store) a seat position in button 1:
1. Move the seat to the desired position using the seat adjustment controls (see the previous page).
2. Press and hold down the MEM (memory) button.
96 04 Interior
Front seats
3. With the MEM button depressed, press button 1 briefly to store the seat's current position.
To move the seat to the position that it was in when button 1 was programmed:
Press and hold down button 1 until the seat stops moving.
As a safety precaution, the seat will stop automatically if the button is released before the seat has reached the preset
position.
97 04 Interior
Interior lighting
Reading lights and courtesy light
1. Driver's side front reading lamp
2. Courtesy lights
3. Passenger's side front reading lamp
The reading lights can be switched on or off by pressing buttons 1 or 3.
The courtesy lighting (including footwell lighting) can be turned on or off by pressing button 2. This also activates the
automatic function.
ProCarManuals.com

4. Driver's side rear reading light
5. Passenger's side rear reading light
The rear reading lights can be switched on and off by pressing buttons 4 or 5.
Automatic function
The reading lights and courtesy lights will switch off automatically approximately 10 minutes after the engine has been
turned off. The lights can be turned off sooner by pressing the respective buttons.
The courtesy lights come on automatically
1 and remain on for approximately 30 seconds when:
The vehicle has been unlocked from the outside with the remote control or key
If the engine has been switched off and the ignition key has been turned to position 0
The courtesy lights will come on and remain on for approximately 10 minutes when:
One of the doors is opened (assuming the courtesy lighting has not previously been switched off)
The courtesy lighting will go off when:
The engine is started
The vehicle is locked from the outside with the remote control or key
The automatic function can be disconnected by pressing button 2 for more than 3 seconds.
Briefly pressing the button again automatically reconnects the function.
The courtesy light timer periods can be changed. Contact a trained and qualified Volvo service technician.
1This function is light dependent and is only activated in dark conditions.
98 04 Interior
Interior lighting

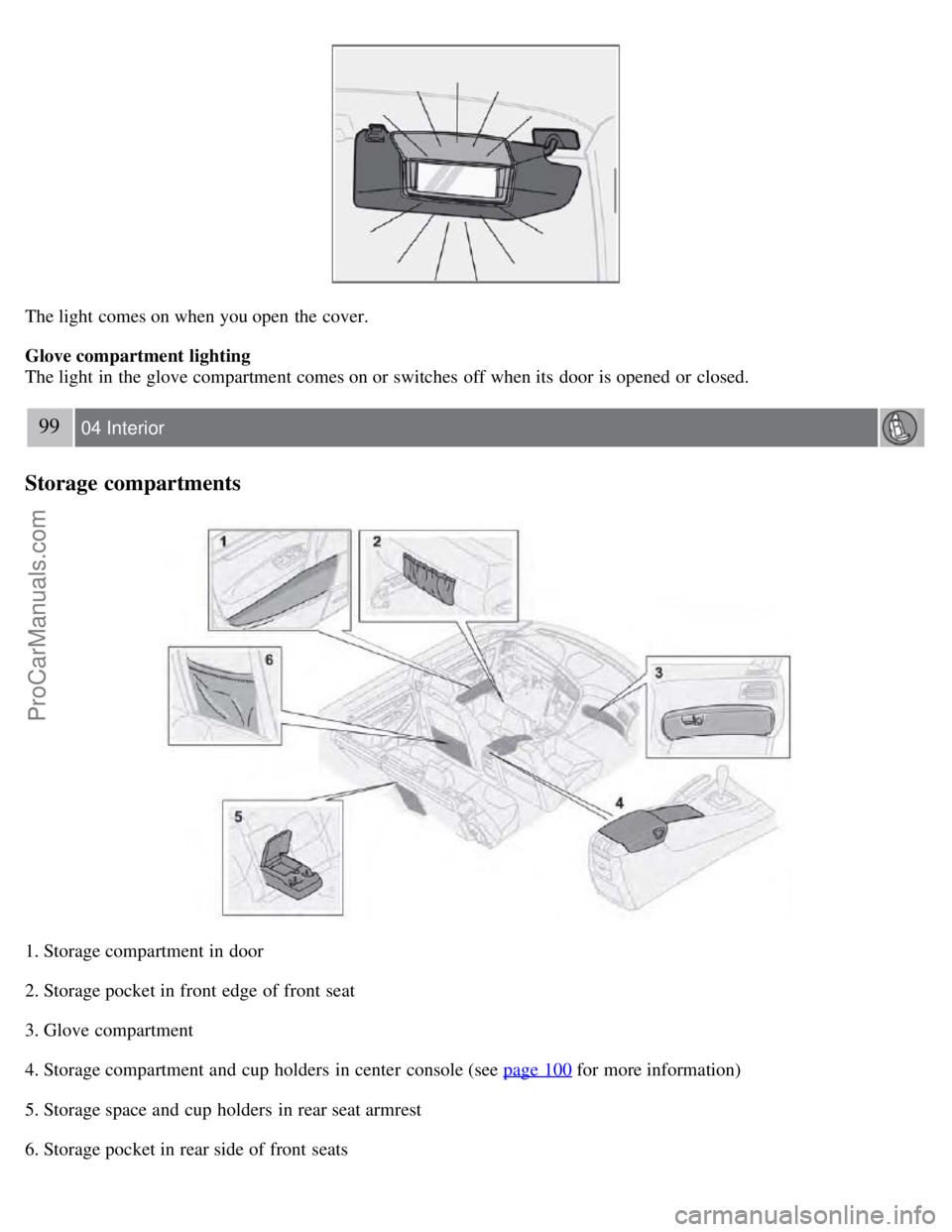

Vanity mirror
ProCarManuals.com

The light comes on when you open the cover.
Glove compartment lighting
The light in the glove compartment comes on or switches off when its door is opened or closed.
99 04 Interior
Storage compartments
1. Storage compartment in door
2. Storage pocket in front edge of front seat
3. Glove compartment
4. Storage compartment and cup holders in center console (see page 100
for more information)
5. Storage space and cup holders in rear seat armrest
6. Storage pocket in rear side of front seats
ProCarManuals.com

100 04 Interior

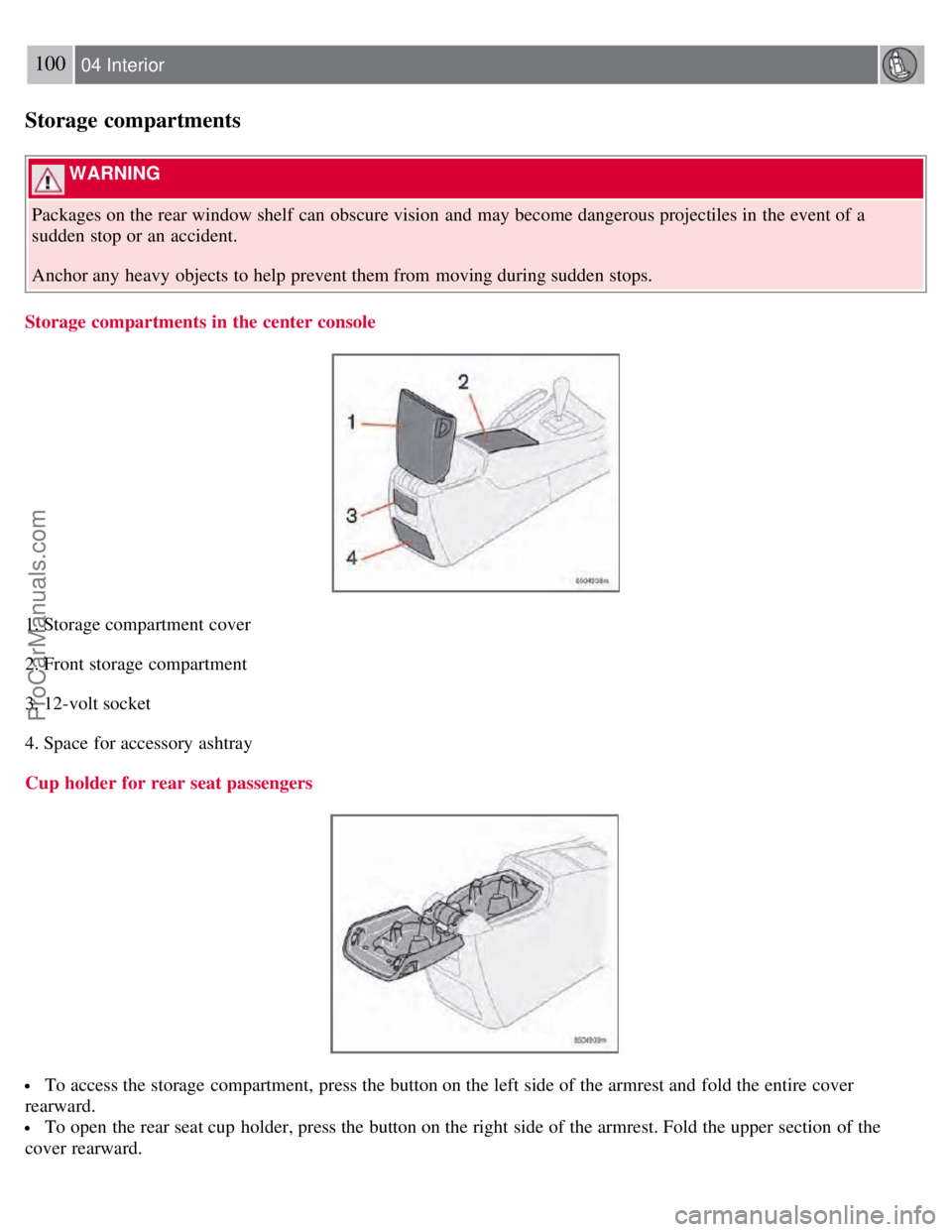

Storage compartments
WARNING
Packages on the rear window shelf can obscure vision and may become dangerous projectiles in the event of a
sudden stop or an accident.
Anchor any heavy objects to help prevent them from moving during sudden stops.
Storage compartments in the center console
1. Storage compartment cover
2. Front storage compartment
3. 12-volt socket
4. Space for accessory ashtray
Cup holder for rear seat passengers
To access the storage compartment, press the button on the left side of the armrest and fold the entire cover
rearward.
To open the rear seat cup holder, press the button on the right side of the armrest. Fold the upper section of the
cover rearward.
ProCarManuals.com

The two sections of the cover can be closed separately.
101 04 Interior

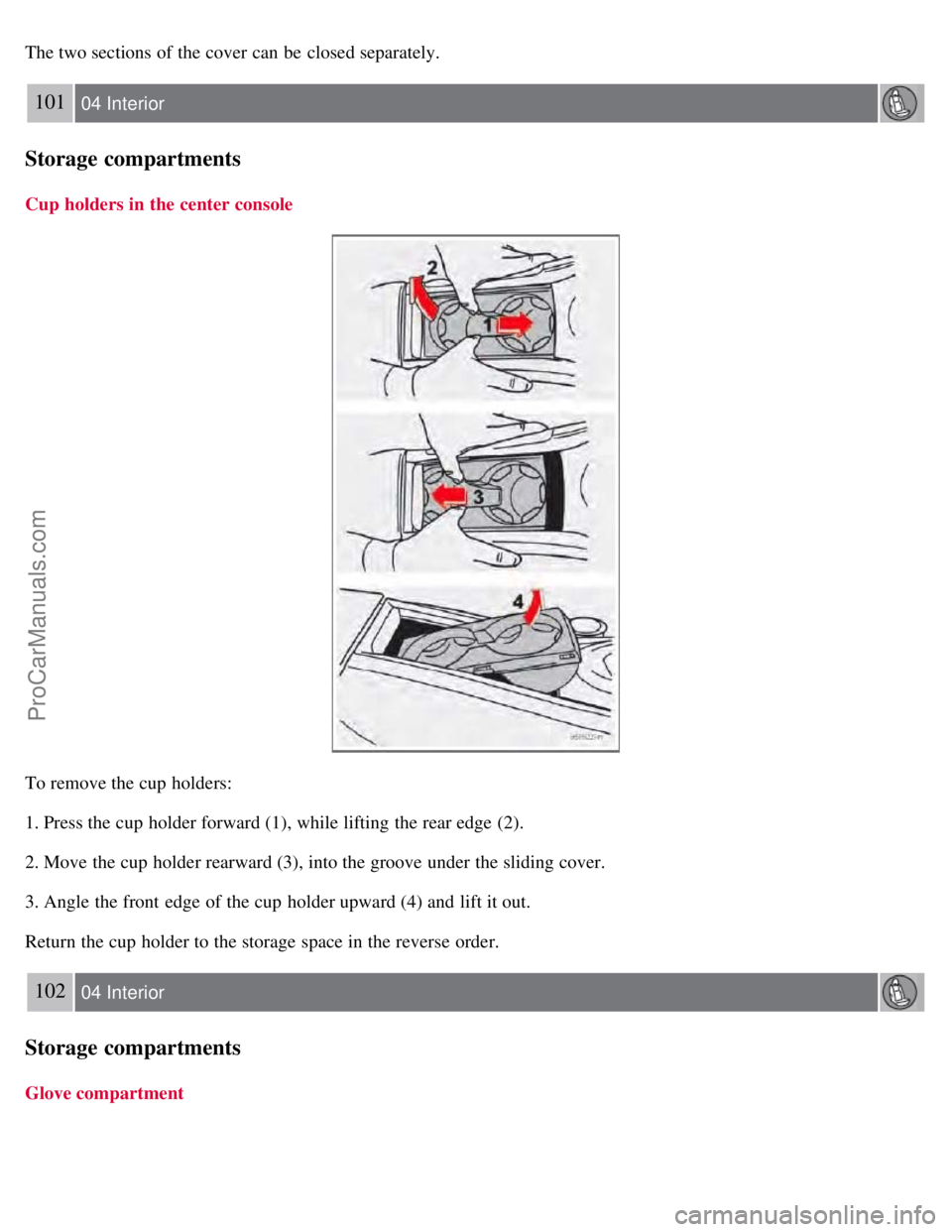

Storage compartments
Cup holders in the center console
To remove the cup holders:
1. Press the cup holder forward (1), while lifting the rear edge (2).
2. Move the cup holder rearward (3), into the groove under the sliding cover.
3. Angle the front edge of the cup holder upward (4) and lift it out.
Return the cup holder to the storage space in the reverse order.
102 04 Interior
Storage compartments

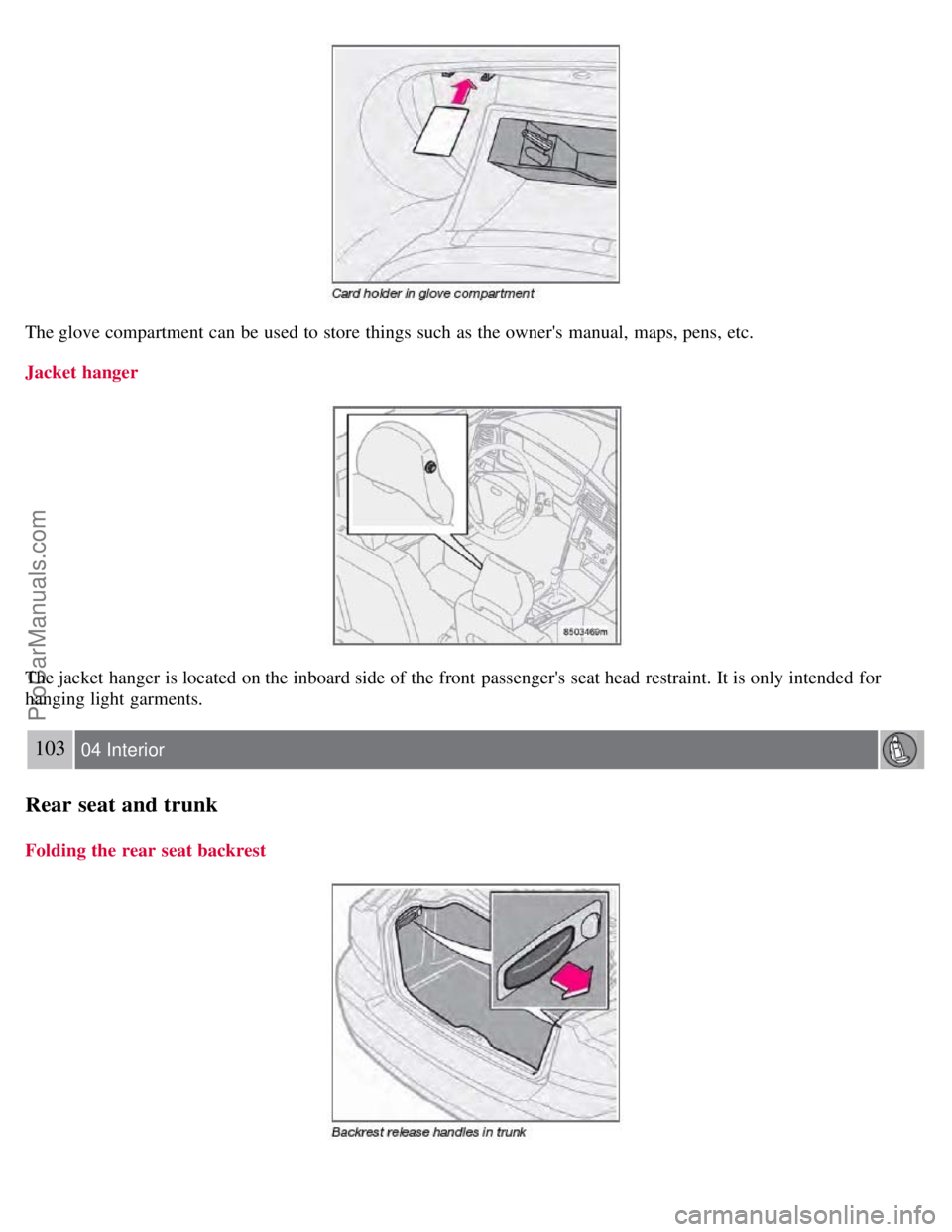

Glove compartment
ProCarManuals.com

The glove compartment can be used to store things such as the owner's manual, maps, pens, etc.
Jacket hanger
The jacket hanger is located on the inboard side of the front passenger's seat head restraint. It is only intended for
hanging light garments.
103 04 Interior
Rear seat and trunk
Folding the rear seat backrest
ProCarManuals.com

Both rear seat backrests can be folded down, together or individually to enable you to transport long objects.
Fold the rear seat backrests as follows:
1. Check first that the head restraint is folded down.
2. Pull the handle in the cargo compartment as shown in the illustration.
3. Fold the backrest down.
WARNING
Keep vehicle doors and the luggage compartment locked and keep keys out of a child's reach. Unsupervised children
could lock themselves in an open trunk and risk injury. Children should be taught not to play in vehicles.
On hot days, the temperature in the trunk or vehicle interior can rise very quickly. Exposure of people to these high
temperatures for even a short period of time can cause heat-related injury or death. Small children are particularly at
risk.
WARNING
When the backrest is returned to the upright position, check that it is properly locked in place. Return the head
restraints to the upright position.
Long loads should always be securely anchored to help avoid injury in the event of a sudden stop.
Always turn the engine off and apply the parking brake when loading/unloading the vehicle.
Place the transmission in the P position (automatic transmission) to help prevent inadvertent movement of the gear
selector.
The vehicle features a 60/40 split fold-down rear seat. This function is performed by handles inside the trunk, and
also provides a means for children and adults to enter the passenger compartment in the event they become locked
inside the trunk.
Adults are advised to familiarize themselves with the operation and location of the release handles.
To fold down the rear seats from inside the trunk, pull the release control handles located on either side of the
trunk.
104 04 Interior
Rear seat and trunk
Carrying long loads (ski hatch)
ProCarManuals.com

The center backrest cushion folds forward, allowing you to transport long, light cargo such as skis in the trunk of your
vehicle. To lower the backrest:
1. Pull the right release control handle in the trunk to release the backrest (see page 103
).
2. From the rear seat, fold down the right section of the backrest slightly.
3. Release the flap by pushing the catch (located on the rear side of the backrest) upward and pulling the flap forward.
4. Return the backrest to the upright position.
The cover on the rear seat armrest does not have hinges and should be removed before the ski hatch is used.
To remove:
1. Open the cover approximately 30°.
2. Pull it straight up.
To put in place:
1. Press the cover into the groove behind the upholstery.
2. Close the cover.
Grocery bag holder (option)
Open the trunk lid. Hang or secure your grocery bags using the tensioning straps or holders.
105 04 Interior
