3. Reinstall the plastic cover.
Turn signal, driver's side
Removing the defective bulb:
1. Switch off the headlights and turn the ignition switch to position 0.
2. Pull out the bulb holder by twisting it counterclockwise.
3. Remove the bulb from the holder by pressing it in and turning it counterclockwise.
Installing the new bulb:
1. Insert the new bulb into the holder by pressing it in and turning it clockwise.
205 09 Maintenance and servicing
Replacing bulbs
2. Reinsert the bulb holder in the headlight housing and twist it clockwise until it seats properly.
Turn signal, passenger's side
1. Switch off the headlights and turn the ignition switch to position 0.
2. Remove radiator pipe (1) from the box.
3. Remove filler pipe screw (2).
4. Pull the filler pipe (3) straight up.
ProCarManuals.com

5. Remove vent hose (4) from filler pipe.
Installing the new bulb:
1. Replace the bulb (same procedure as the driver's side bulb).
2. Ensure that the seal between the washer fluid reservoir and the filler pipe is correctly positioned.
3. Press the filler pipe (3) back into position.
4. Press the vent hose (4) into place on the filler pipe.
5. Reinstall and tighten the filler pipe screw (2).
6. Reinstall the radiator pipe to the box (1).
206 09 Maintenance and servicing
Replacing bulbs
Side marker light
1. Turn the lamp holder counterclockwise and pull it out.
2. Pull out the defective bulb and insert a new one.
3. Reinsert the lamp holder and turn it clockwise until it seats properly.
207 09 Maintenance and servicing
Replacing bulbs
Front fog lights (option)
ProCarManuals.com

Removing the defective bulb:
1. Switch off the headlights and turn the ignition switch to position 0.
2. Turn the bulb holder slightly counterclockwise.
3. Pull out and remove the bulb.
Installing the new bulb:
1. Insert the new bulb (it can only be inserted in one position).
2. Reinsert the bulb holder and turn it clockwise. "TOP" must be upward.
208 09 Maintenance and servicing
Replacing bulbs
Replacing bulbs in the tail light cluster
All bulbs in the tail light cluster can be replaced from inside the trunk.
1. Switch off all lights and turn ignition key to position 0.
2. Unlock and fold down the side panel to access the bulbs.
The bulbs are located in two separate bulb holders, an upper and a lower. Each bulb holder has a locking pin.
Replace bulbs in the upper and lower bulb holders as follows:
1. To ease the work: disconnect the cable from the bulb holder.
2. Press the catches together and pull out the holder.
ProCarManuals.com

3. Replace the bulb.
4. Reconnect the cable.
5. Close and secure the side panel.
NOTE
If the message indicating a burned out bulb remains in the information display after the bulb has been replaced, consult
a trained and qualified Volvo service technician.
High level brake light
These bulbs are of a special type. We recommend that you ask a trained and qualified Volvo service technician to replace
this bulb.
209 09 Maintenance and servicing
Replacing bulbs
License plate lights
1. Switch off the ignition.
2. Loosen the screws with a torx screwdriver.
3. Carefully pull out the lamp housing.
4. Turn the bulb holder counterclockwise and pull it out.
5. Pull out the defective bulb and insert a new one.
6. Reinsert the bulb holder into the housing and turn it clockwise.
7. Reinstall the housing and screw it in place.
Door step courtesy lights
ProCarManuals.com

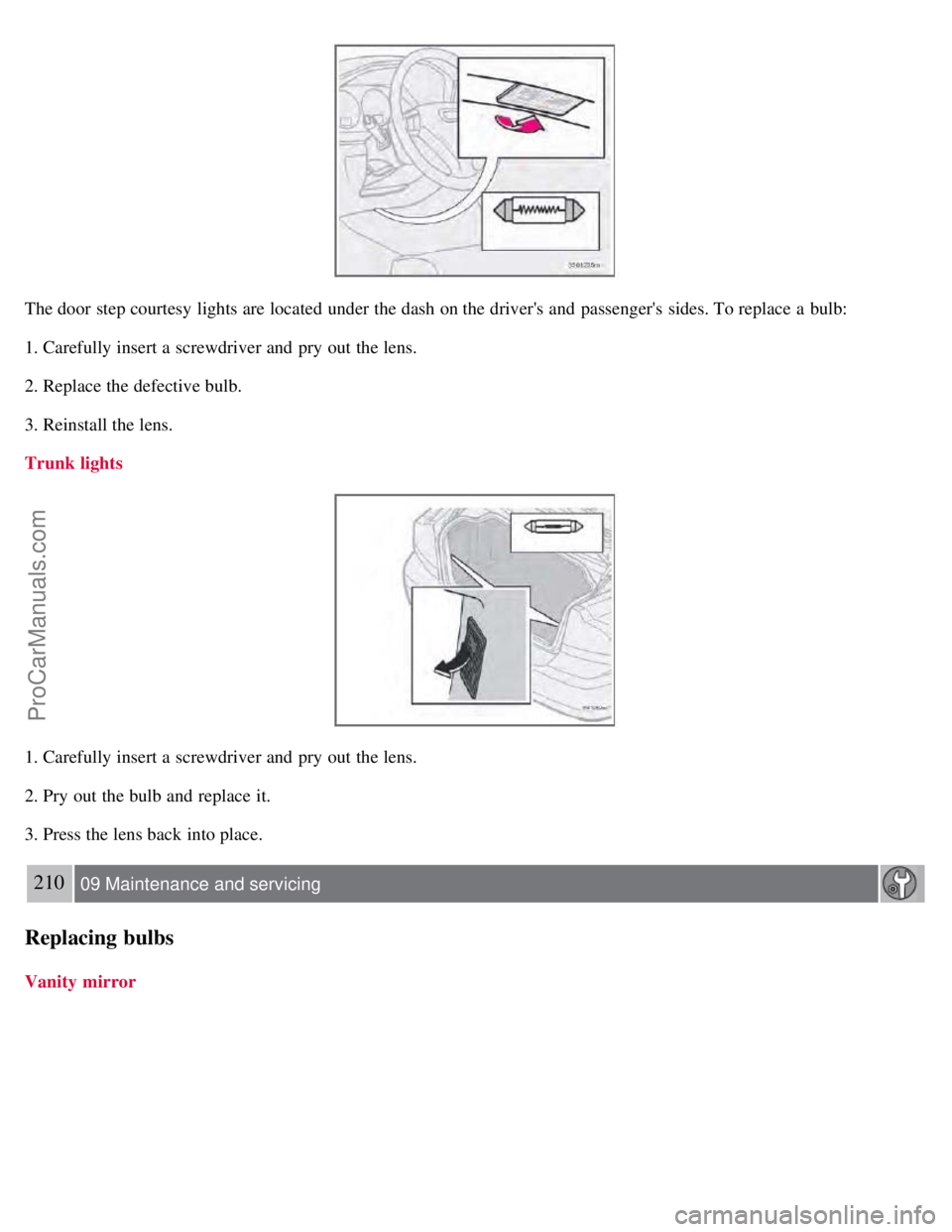

The door step courtesy lights are located under the dash on the driver's and passenger's sides. To replace a bulb:
1. Carefully insert a screwdriver and pry out the lens.
2. Replace the defective bulb.
3. Reinstall the lens.
Trunk lights
1. Carefully insert a screwdriver and pry out the lens.
2. Pry out the bulb and replace it.
3. Press the lens back into place.
210 09 Maintenance and servicing
Replacing bulbs
Vanity mirror
ProCarManuals.com

1. Carefully insert a screwdriver and pry out the lens.
2. Pry out the defective bulb and replace it.
3. Carefully press the lower edge of the lens onto the four tabs and press the upper edge of the lens into place.
NOTE
Other bulbs may be difficult for you to replace yourself. Let a trained and qualified Volvo service technician replace
these bulbs if necessary.
211 09 Maintenance and servicing
Fuses
Replacing fuses
If an electrical component fails to function, it is possible that a fuse has blown.
Fuses are located in four different places:
1. Relays/fuse box in the engine compartment
2. Fuse box in the passenger compartment, behind plastic cover
3. Fuse box in the passenger compartment, on the edge of the dashboard
4. Fuse box in the cargo area
ProCarManuals.com

A label on the inside of each cover indicates the amperage and the electrical components that are connected to each fuse.
The easiest way to see if a fuse is blown is to remove it. Pull the fuse straight out. If a fuse is difficult to remove, you will
find a special fuse removal tool (and several extra fuses) in the passenger compartment fuse box on the driver's end of
dashboard. From the side, examine the curved metal wire (see the illustration above) to see if it is broken. If so, put in a
new fuse of the same color and amperage (written on the fuse). Spare fuses are stored in the fuse box in the passenger
compartment. If fuses burn out repeatedly, have the electrical system inspected by a trained and qualified Volvo service
technician.
WARNING
Never use metal objects or fuses with higher amperage than those stated on the following pages. Doing so could
seriously damage or overload the vehicle's electrical system.
212 09 Maintenance and servicing
Fuses
Relay/Fuse box in the engine compartment
When replacing fuses, be sure to replace a blown fuse with a new one of the same color and amperage (written on the
fuse).
Fuses in the engine compartment
213 09 Maintenance and servicing
ProCarManuals.com

Fuses
214 09 Maintenance and servicing
Fuses
Fuse box in the passenger compartment, behind the plastic cover
This fuse box is located behind the plastic cover below the steering wheel. When replacing a blown fuse, be sure to
replace it with a new one of the same color and amperage (written on the fuse).
215 09 Maintenance and servicing
Fuses
ProCarManuals.com
