2008 TOYOTA YARIS SEDAN Owners Manual

49
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Anti-glare inside rear view mirror
CAUTION
nCaution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, resulting in
death or serious injury.
Glare from the headlights of vehicles behind can be reduced by
using the following functions.
Normal position
Anti-glare position

50
1-3. Adjustable components (seats, mirrors, steering wheel)

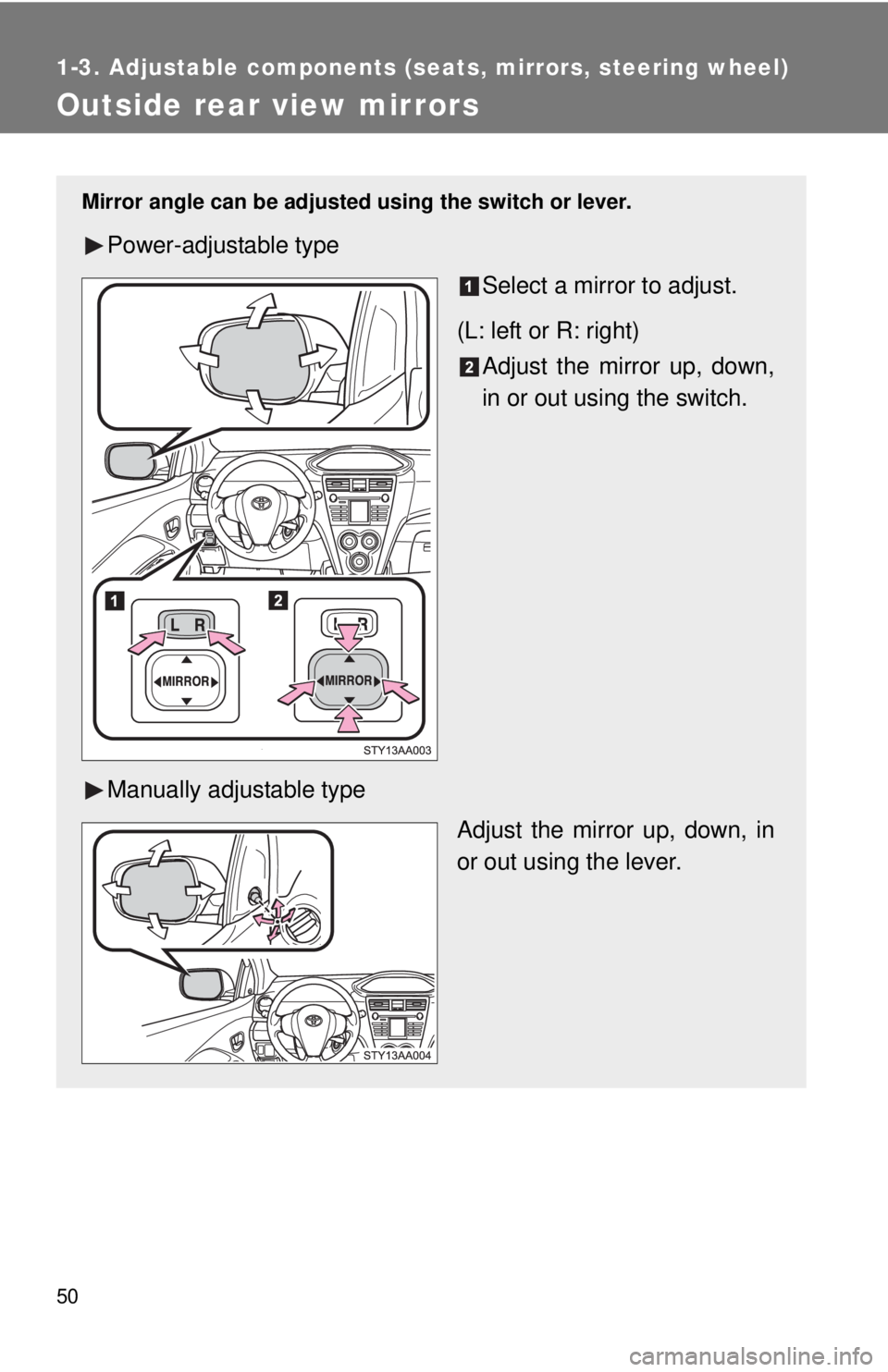

Outside rear view mirrors
Mirror angle can be adjusted using the switch or lever.
Power-adjustable type
Select a mirror to adjust.
(L: left or R: right) Adjust the mirror up, down,
in or out using the switch.
Manually adjustable type Adjust the mirror up, down, in
or out using the lever.

51
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Folding back the mirrors
Push backward to fold the mir-
rors.
nMirror operating conditions (wit h power-adjustable type only)
The engine switch is in the ACC or ON position.
CAUTION
n When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
lDo not adjust the mirrors while driving.
l Do not drive with the mirrors folded back.
l Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.

52 1-3. Adjustable components (seats, mirrors, steering wheel)
NOTICE
nIf ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.

53
1
Before driving
1-4. Opening and closing the windows

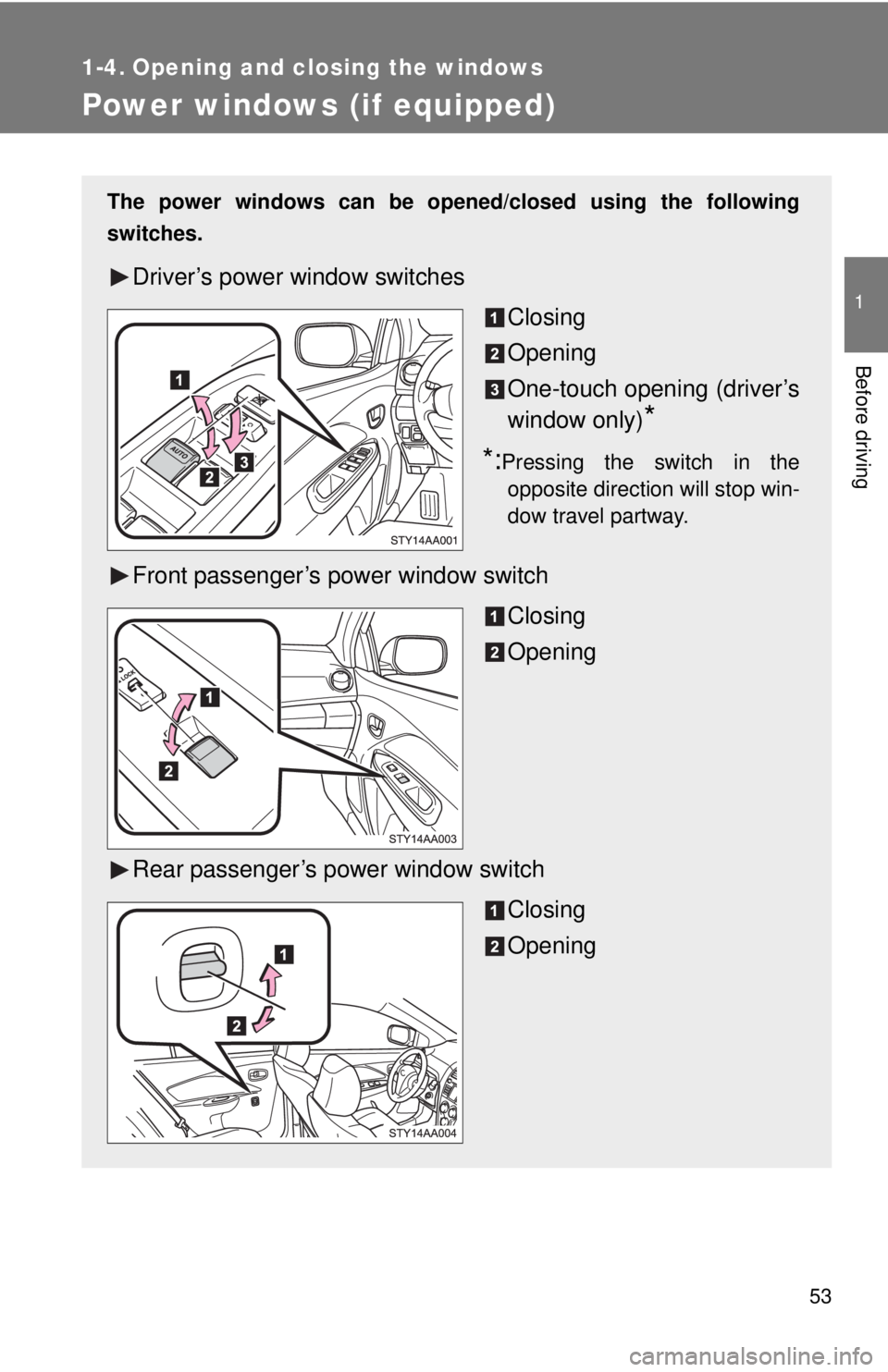

Power windows (if equipped)
The power windows can be opened/closed using the following
switches.
Driver’s power window switches
Closing
Opening
One-touch opening (driver’s
window only)
*
*:Pressing the switch in theopposite direction will stop win-
dow travel partway.
Front passenger’s power window switch
Closing
Opening
Rear passenger’s power window switch Closing
Opening

54 1-4. Opening and closing the windows
Lock switchPress the switch down to lock
passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
nThe power windows can be operated when
The engine switch is in the ON position.
n Operating the power windows after turning the engine switch off
(driver’s window only)
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned off. They cannot, however, be operated
once either front door is opened.
CAUTION
n Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
lCheck to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
l Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.

55
1
Before driving

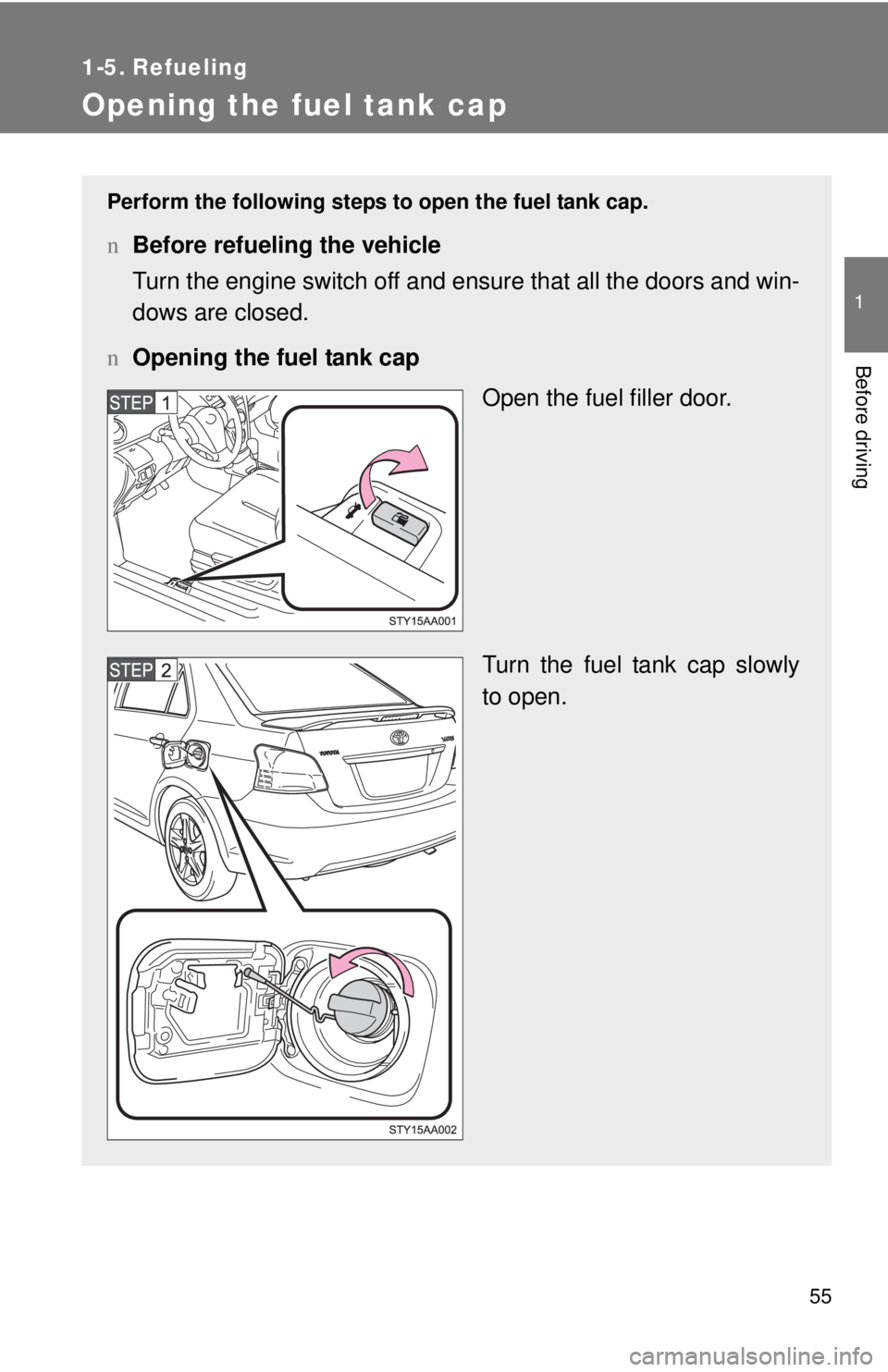

1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
nBefore refueling the vehicle
Turn the engine switch off and ensure that all the doors and win-
dows are closed.
n Opening the fuel tank cap
Open the fuel filler door.
Turn the fuel tank cap slowly
to open.

56 1-5. Refueling
Closing the fuel tank capWhen replacing the fuel tank
cap, turn it until a clicking sound
is heard.
After releasing your hand, the cap
will turn slightly to the opposite
direction.
Hang the fuel tank cap on the
back of the fuel filler door.
nFuel types
Unleaded gasoline. (87 Octane Rating [Research Octane Number 91] or
higher)
n Fuel tank capacity
Approximately 11.1 gal. (42.0 L, 9.2 Imp. gal.)
