268 4-3. Do-it-yourself maintenance
NOTICE
nBefore replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer as soon as possible.

269
4-3. Do-it-yourself maintenance
4
Maintenance and care

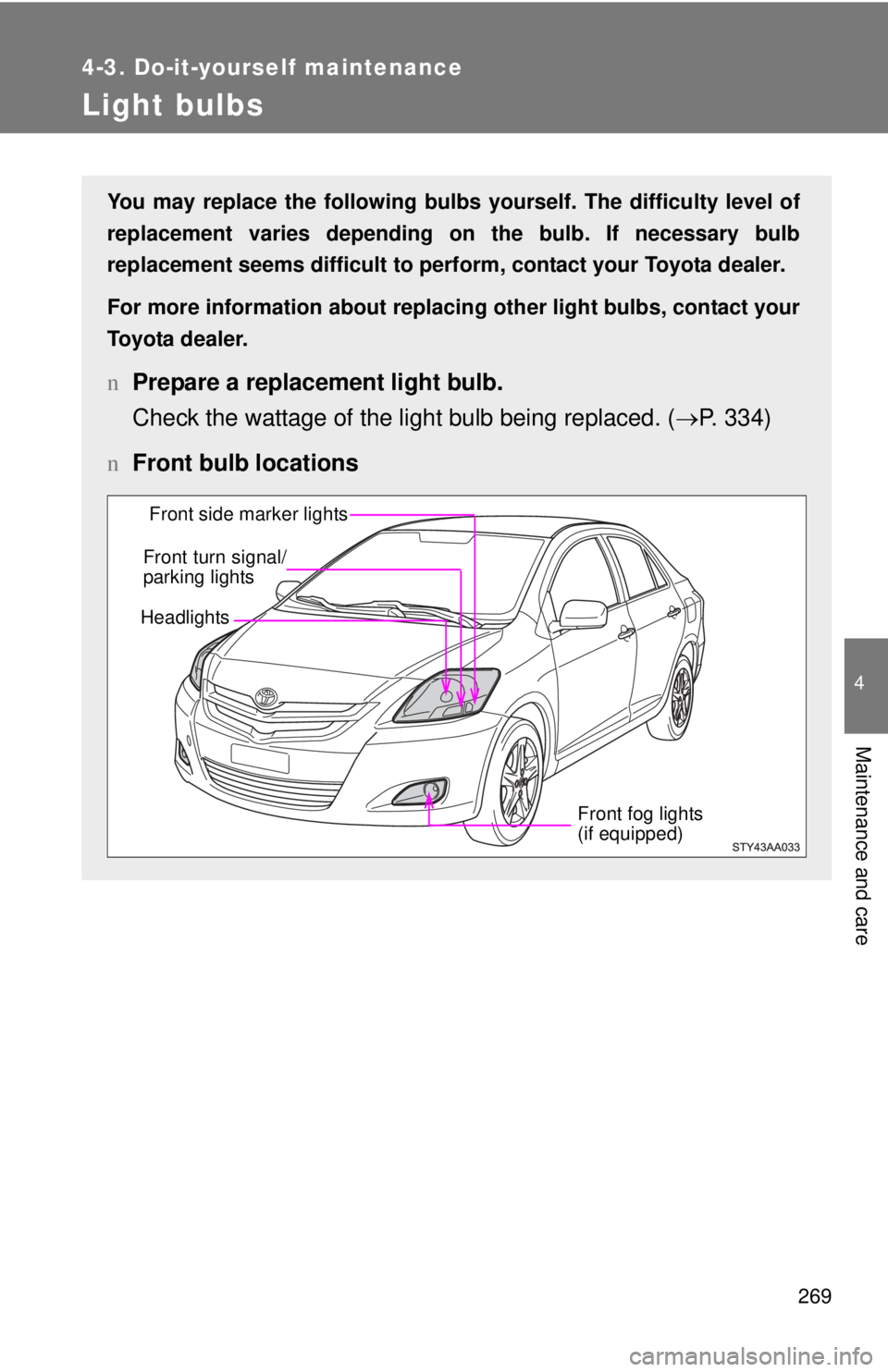

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
n Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( →P. 334)
n Front bulb locations
Headlights
Front fog lights
(if equipped)
Front side marker lights
Front turn signal/
parking lights

270 4-3. Do-it-yourself maintenance
Replacing light bulbsn Headlights
Unplug the connector.
Remove the rubber cover.
nRear bulb locations
Back-up lights
Rear turn signal lights
Stop/tail and rear
side marker lights
License
plate lights
High mounted stoplight
(vehicles without the
rear spoiler)

271
4-3. Do-it-yourself maintenance
4
Maintenance and care
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
n
Front fog lights (if equipped)
Remove the bolts and clips.
Partly remove the fender liner.

272 4-3. Do-it-yourself maintenance
Unplug the connector while
depressing the lock release.
Turn the bulb counterclockwise.
Reinstall the bolts and clips.
n Front side marker lights
Remove the bolts and clips.

273
4-3. Do-it-yourself maintenance
4
Maintenance and care
Partly remove the fender liner.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
Reinstall the bolts and clips.

274 4-3. Do-it-yourself maintenance
nFront turn signal/parking lights
Remove the bolts and clips.
Partly remove the fender liner.
Turn the bulb base counterclock-
wise.
Remove the light bulb.

275
4-3. Do-it-yourself maintenance
4
Maintenance and care
Reinstall the bolts and clips.
n Back-up lights, stop/tail and rear side marker lights and rear
turn signal lights
Open the trunk lid and remove
the clip.
Partly remove the cover and turn
the bulb bases counterclock-
wise.
Stop/tail and rear side marker
lights
Rear turn signal light
Back-up light
