2008 TOYOTA YARIS SEDAN Owners Manual

334 6-1. Specifications
Light bulbs
A: HB2 halogen bulbs
B: H11 halogen bulbs
C: Wedge base bulbs
D: Wedge base bulbs (amber)
E: Double end bulbs
Light BulbsBulb NoWTy p e
ExteriorHeadlights — 60/55 A
Front fog lights
(if equipped)
—55 B
Front side marker
lights —5 C
Front turn signal/park-
ing lights — 21/5 C
Rear turn signal lights — 21 D
Stop/tail and rear side
marker lights — 21/5 C
Buck-up lights — 18 C
License plate lights — 5 C
High mounted stop-
light (vehicles without
a rear spoiler) —18 C
InteriorInterior light — 8 E
Personal lights — 8 E
Trunk light — 3.8 E

335
6-1. Specifications
6
Vehicle specifications
Fuel information
nFuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
n If your engine knocks
lConsult your Toyota dealer.
l You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
n Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
n Gasoline quality standards
lAutomotive manufacturers in the US, Europe and Japan have developed
a specification for fuel quality called World-Wide Fuel Charter (WWFC)
that is expected to be applied worldwide.
l The WWFC consists of four categories that are based on required emis-
sion levels. In the US, category 4 has been adopted.
l The WWFC improves air quality by lowering emissions in vehicle fleets,
and customer satisfaction through better performance.
Your vehicle must use only unleaded gasoline.
Unleaded gasoline with an octane rating of 87 (Research Octane
Number 91) or higher.
At minimum, the gasoline you us e should meet the specifications
of ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

336 6-1. Specifications
nToyota recommends the use of gaso line containing detergent additives
l Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
l All gasoline sold in the US contains detergent additives to clean and/or
keep clean intake systems.
n Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
n Toyota does not recomm end blended gasoline
l Toyota allows the use of oxygenate blended gasoline where the oxygen-
ate content is up to 10 % ethanol or 15 % MTBE.
l If you use gasohol in your Toyota, be sure that it has an octane rating no
lower than 87.
l Toyota does not recommend the use of gasoline containing methanol.
n Toyota does not recommen d gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.

337
6-1. Specifications
6
Vehicle specifications
NOTICE
n
Notice on gasoline quality
lDo not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
l Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.
l Use of unleaded gasoline with an octane rating lower than 87 may result in
engine knocking. Persistent knocking can lead to engine damage and
should be corrected by refueling with higher octane unleaded gasoline.
n Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
n When refueling with gasohol
Take care not to spill gasohol.
It can damage your vehicle’s paint.

338
6-1. Specifications

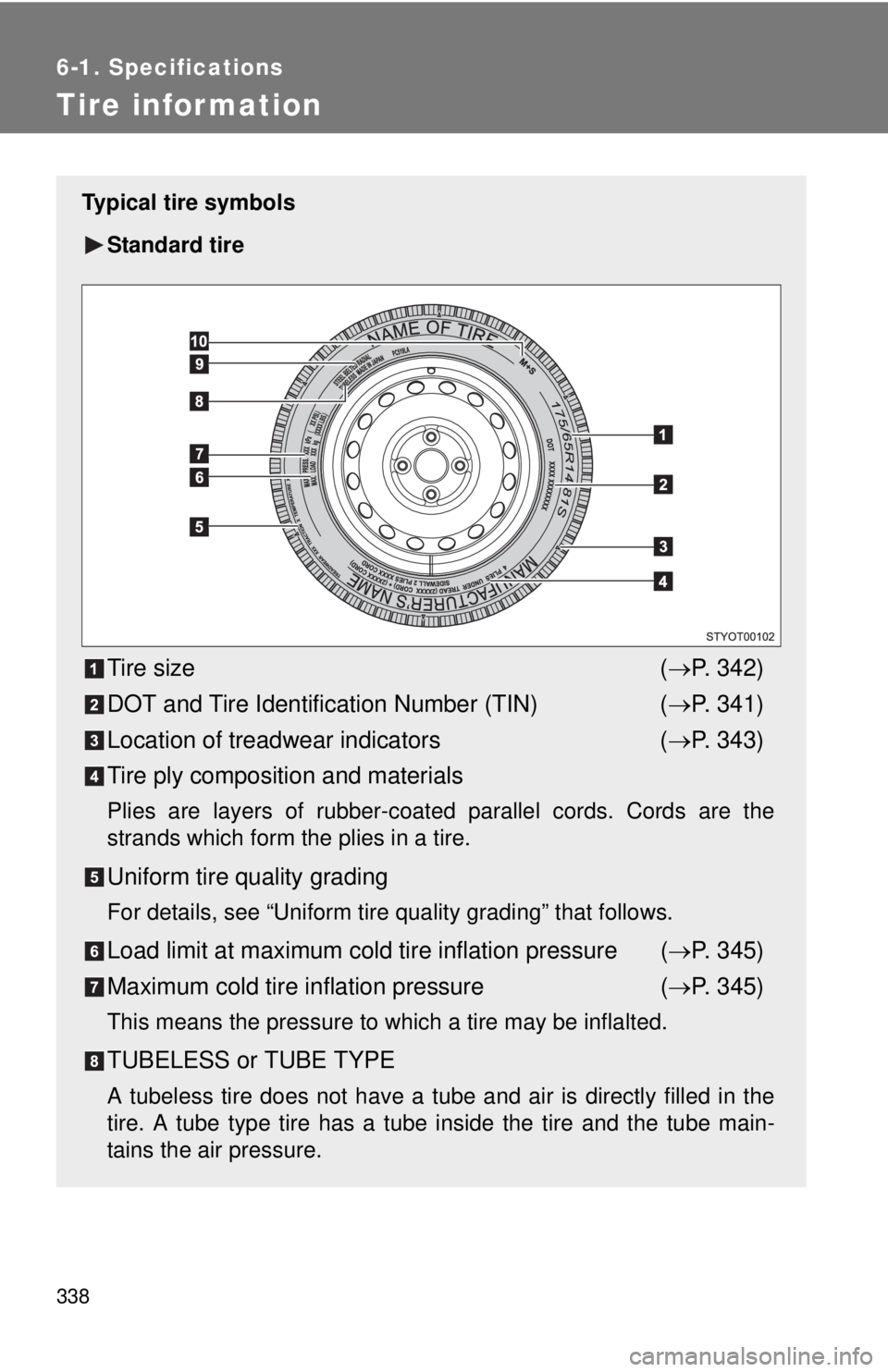

Tire information
Typical tire symbolsStandard tire
Tire size (→ P. 342)
DOT and Tire Identification Number (TIN) (→ P. 341)
Location of treadwear indicators (→ P. 343)
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the
strands which form the plies in a tire.
Uniform tire quality grading
For details, see “Uniform tire quality grading” that follows.
Load limit at maximum cold tire inflation pressure ( →P. 345)
Maximum cold tire inflation pressure ( →P. 345)
This means the pressure to which a tire may be inflalted.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly filled in the
tire. A tube type tire has a tube inside the tire and the tube main-
tains the air pressure.

339
6-1. Specifications
6
Vehicle specifications

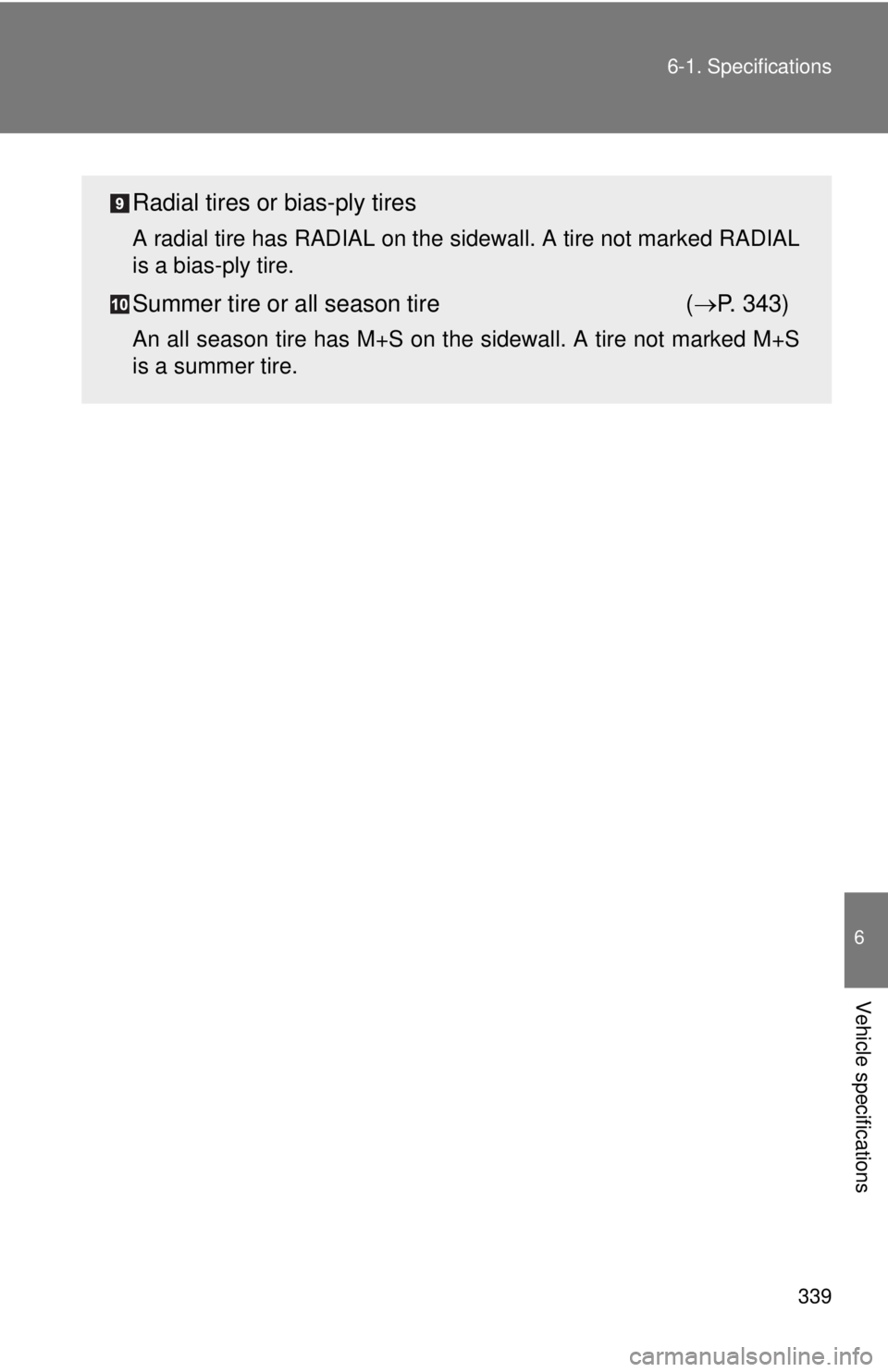

Radial tires or bias-ply tires
A radial tire has RADIAL on the sidewall. A tire not marked RADIAL
is a bias-ply tire.
Summer tire or all season tire
(→ P. 343)
An all season tire has M+S on the sidewall. A tire not marked M+S
is a summer tire.

340 6-1. Specifications

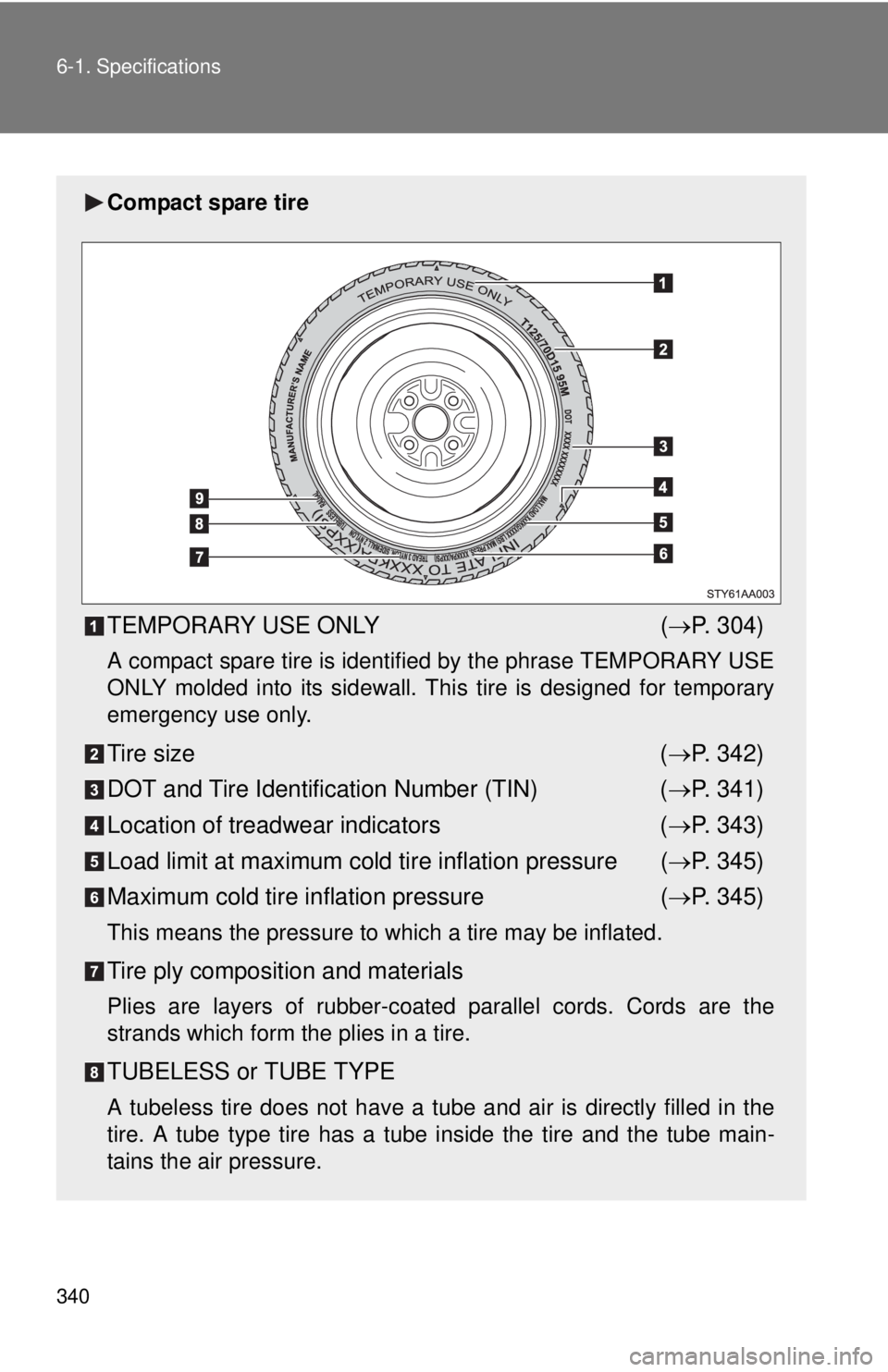

Compact spare tire
TEMPORARY USE ONLY(→ P. 304)
A compact spare tire is identified by the phrase TEMPORARY USE
ONLY molded into its sidewall. Th is tire is designed for temporary
emergency use only.
Tire size (→ P. 342)
DOT and Tire Identification Number (TIN) (→ P. 341)
Location of treadwear indicators (→ P. 343)
Load limit at maximum cold tire inflation pressure ( →P. 345)
Maximum cold tire inflation pressure (→ P. 345)
This means the pressure to which a tire may be inflated.
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the
strands which form the plies in a tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly filled in the
tire. A tube type tire has a tube inside the tire and the tube main-
tains the air pressure.

341
6-1. Specifications
6
Vehicle specifications
Typical DOT and tire identification number (TIN)
DOT symbol
*
Tire Identification Number
(TIN)
Tire manufacturer’s identifica-
tion mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
*:The DOT symbol certifies thatthe tire conforms to applicable
Federal Motor Vehicle Safety
Standards.
Radial tires or bias-ply tires
A radial tire has RADIAL on the sidewall. A tire not marked RADIAL
is a bias-ply tire.
