2008 TOYOTA SEQUOIA Navigation Manual

1
Introduction
Thank you for your purchase of the Navigation System. Please read
this manual carefully to ensure proper use. Keep this manual in your
vehicle at all times.
The Navigation System is one of the most technologically advanced
vehicle accessories ever developed. The system receives satellite sig-
nals from the Global Positioning System (GPS) operated by the U.S.
Department of Defense. Using these signals and other vehicle sen-
sors, the system indicates your present position and assists in locating
a desired destination.
The navigation system is designed to select efficient routes from your
present starting location to your destination. The system is also designed
to direct you to a destination that is unfamiliar to you in an efficient manner.
The system uses DENSO maps. The calculated routes may not be the
shortest nor the least traffic congested. Your own personal local knowl-
edge or “short cut” may at times be faster than the calculated routes.
The navigation system’s database includes about 75 Point of Interest
categories to allow you to easily select destinations such as restaurants
and banks. If a destination is not in the database, you can enter the street
address or a major intersection close to it and the system will guide you
there. The system will provide both a visual map and audio instructions.
The audio instructions will announce the distance remaining and the di-
rection to turn in approaching a fork or intersection. These voice instruc-
tions will help you keep your eyes on the road and are timed to provide
enough time to allow you to maneuver, change lanes or slow down.

2
Please be aware that all current vehicle navigation systems have
certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite con-
dition, road configuration, vehicle condition or other circumstan-
ces. For more information on the limitations of the system, refer to
pages 248 through 250.

3
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or
must not do in order to reduce the
risk of injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in or-
der to avoid or reduce the risk of dam-
age to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.
0U5020F
To use this system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist in reach-
ing the destination and, if used properly,
can do so. The driver is solely responsible
for the safe operation of your vehicle and
the safety of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and pre-
vents safe driving. The first priority while
driving should always be the safe opera-
tion of the vehicle. While driving, be sure
to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire Navigation Sys-
tem Owner’s Manual to make sure you un-
derstand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able touch−screen buttons are dimmed.
Only when the vehicle is not moving, can
the destination and route selection be
done.
Important information about
this manualSafety Instruction

4
CAUTION
For safety, the driver should not
operate the navigation system
while he/she is driving.
Insufficient attention to the road
and traffic may cause an accident.
While driving, be sure to obey the
traffic regulations and maintain
awareness of the road conditions.
If a traffic sign on the road has
been changed, route guidance
may provide wrong information
such as the direction of a one way
street.
While driving, listen to the voice instruc-
tions as much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice guid-
ance. Use it just for reference. If the sys-
tem cannot determine the current vehicle
position correctly, there is a possibility of
incorrect, late, or non−voice guidance.
The data in the system may occasionally
be incomplete. Road conditions, including
driving restrictions (no left turns, street clo-
sures, etc.) frequently change. Therefore,
before following any instruction from the
system, look to see whether the instruction
can be done safely and legally.
This system cannot warn about such
things as the safety of an area, condition of
streets, and availability of emergency ser-
vices. If unsure about the safety of an
area, do not drive into it. Under no cir-
cumstances is this system a substitute
for the driver’s personal judgement.
Use this system only in locations where it
is legal to do so. Some states/provinces
may have laws prohibiting the use of video
and navigation screens next to the driver.

5
XS00300
No.NameFunctionPage
1
Northup or
headingup
symbolThis symbol indicates a map view with
north−up or heading−up. Touching this
symbol changes the map orientation.
31
2Scale indicatorThis figure indicates the map scale.29
3“DISP” buttonPush this button to display the “Display”
screen.171
4
Zoom out
touchscreen
buttonTouch this touch−screen button to re-
duce the map scale.29
5“Mark”
Touch this touch−screen button to reg-
ister the current position or the cursor
position as a memory point.
24
6“Route”Touch this touch−screen button to
change the route.66, 68
Quick guide —
— Overview buttons and guidance screen

6
No.NameFunctionPage
7“Map View”
Touch this touch−screen button to
browse information about guidance
route, to set the Points of Interest to be
displayed on the screen, or to record the
route.
72, 74, 75, 76
8“OFF”
Touch this touch−screen button to ob-
tain a broader view. Some of the but-
tons on the screen are not displayed.
They are displayed again by touching
“ON”.
104
9
Zoom in
touchscreen
buttonTouch this touch−screen button to mag-
nify the map scale.29
10
Foot print map
touchscreen
buttonTouch this touch−screen button to dis-
play the foot print map and the building
information.
30
11“INFO” buttonPush this button to display the
“Information” screen.11 2 , 11 6 , 1 2 6 ,
173
12“MENU” buttonPush this button to display the “Menu”
screen.80, 82, 260
13
Screen
configuration
touchscreen
button
Touch this touch−screen button to
change the screen mode.27
14“DEST” buttonPush this button to display the
“Destination” screen.34, 35
15“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and display the current posi-
tion.
22, 23, 63
16Distance and time
to destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
65

7
17
“GPS” mark
(Global
Positioning
System)Whenever your vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.248
18
Speech
command system
indicatorThis indicator is shown by pushing the
talk switch. The speech command sys-
tem can be operated while this indicator
is shown.
167

8
XS00301
0U5002F
0U5003F
0U5004F

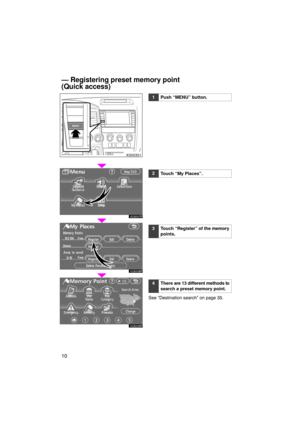

1Push “MENU” button.
2Touch “My Places”.
3Touch “Register” of the home.
4There are 13 different methods to
search your home.
See “Destination search” on page 35.
— Registering home
