Page 166 of 400
168
2−5. Driving information
Vehicle load limits
Total load capacity and seating capacity
These details are also described on the tire and loading information
label.(
P. 292)
CAUTION
Overloading the vehicle
Do not overload the vehicle.
It may not only cause damage to the ti
res, but also degrade steering and
braking ability, resulting in an accident.
Vehicle load limits include total load capacity, seating capacity,
towing capacity and cargo capacity.
Total load capacity: 1190 lb. (540 kg)
Total load capacity means the combined weight of occupants,
cargo and luggage.
Seating capacity: 5 occupants (Front 2, Rear 3)
Seating capacity means the ma ximum number of occupants
whose estimated average weight is 150 lb. (68 kg) per person.
Even if the number of occupants are within the seating capacity,
do not exceed the total load capacity.
Towing capacity: 5000 lb. (2265 kg)
Towing capacity means the maximum gross trailer weight (trailer
weight plus its cargo weight) that your vehicle is able to tow.
Cargo capacity
Cargo capacity may increase or decrease depending on the
weight and the number of occupants.
Page 170 of 400
172
2−5. Driving information

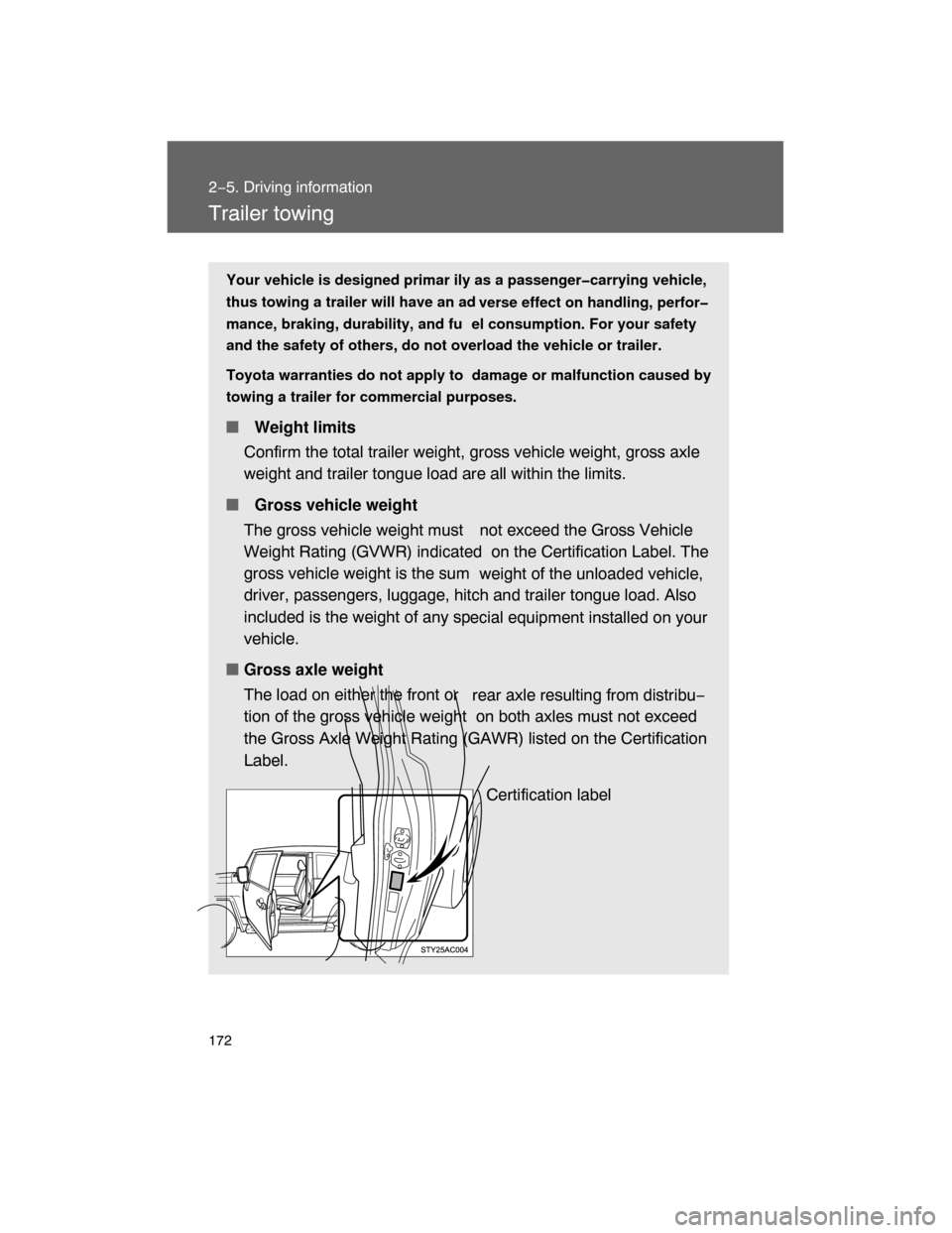

Trailer towing
Your vehicle is designed primar ily as a passenger carrying vehicle,
thus towing a trailer will have an ad
verse effect on handling, perfor
mance, braking, durability, and fu el consumption. For your safety
and the safety of others, do not overload the vehicle or trailer.
Toyota warranties do not apply to damage or malfunction caused by
towing a trailer for commercial purposes.
Weight limits
Confirm the total trailer weight, gross vehicle weight, gross axle
weight and trailer tongue load are all within the limits.
Gross vehicle weight
The gross vehicle weight must not exceed the Gross Vehicle
Weight Rating (GVWR) indicated on the Certification Label. The
gross vehicle weight is the sum
weight of the unloaded vehicle,
driver, passengers, luggage, hitch and trailer tongue load. Also
included is the weight of any sp
ecial equipment installed on your
vehicle.
Gross axle weight
The load on either the front or
rear axle resulting from distribu−
tion of the gross vehicle weight on both axles must not exceed
the Gross Axle Weight Rating (GAWR) listed on the Certification
Label.
Certification label
Page 171 of 400
173
2−5. Driving information
2
When driving
Towing a trailer
Consult your Toyota dealer for further information about additional
requirements such as a towing kits, etc.
Hitch and tow hitch receiver
Hitch
Trailer hitch assemblies have different weight capacities estab−
lished by the hitch manufacturer
. Even though the vehicle may be
rated for towing a higher weight, the operator must never exceed
the maximum weight rating specified for the trailer hitch. Trailer tongue load
The trailer cargo load should be distributed so that the tongue
load is 9 to 11% of the total trailer weight, not exceeding the
maximum 500 lb. (227 kg) (Tongue load / Total trailer weight
100 = 9 to 11%)
The total trailer weight and tongue load can be measured with
platform scales found at a highway weighing stations, building
supply company, trucking company, junk yards, etc.
Total trailer weight
Tongue load
Page 173 of 400
175
2−5. Driving information
2
When driving
Before towing
Check that the following conditions are met:
Ensure that your vehicle’s tires are properly inflated. ( P. 370)
Trailer tires should be inflated according to the trailer manufacturer ’s rec−
ommendation.
All trailer lights work to be legal.
Confirm all lights work each time you connect them.
The trailer ball is set up at the proper height for the coupler on the trailer.
Check that your vehicle remains level when a loaded or unloaded trailer
is hitched. Do not drive if the vehicle is not level, and check for improper
tongue load, overloading, worn suspension, or other possible causes.
Make sure the trailer cargo is securely loaded.
Check that your rear view mirrors conform to any federal, state/provincial
or local regulations. If they do not, in
stall rear view mirrors appropriate for
towing purposes.
Break in schedule
Toyota recommends that you do not use a new vehicle or a vehicle with
any new power train components (engine, transmission, differential,
wheel bearings, etc.) to tow a trailer for the first 500 miles (800 km) of
driving.
Maintenance
If you tow a trailer, your vehicle will require more frequent maintenance
due to the additional load. (See “Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”.)
Retighten the fixing bolts of the towing ball and bracket after approxi−
mately 600 miles (1000 km).
Page 174 of 400
176 2−5. Driving information
CAUTION
To avoid accident or injury
The total trailer weight (trailer weight plus the weight of cargo) must not
exceed 5000 lb. (2265 kg)
If a trailer and cargo weight over 2000 lb. (907 kg), use a sway control
device with sufficient capacity.
The gross combined weight (sum of your vehicle weight plus its load and
the total trailer weight) must not exceed the following.
2WD models
9200 lb. (4173 kg)
4WD models
9500 lb. (4309 kg)
Do not exceed the trailer hitch assembly weight, gross vehicle weight,
gross axle weight and trailer tongue load capacities.
Never load more weight in the back than in the front of the trailer. About
60% of the load should be in the front half of the trailer, and the remaining
40% in the rear.
The tow hitch receiver installed on your vehicle must never be used on
another vehicle.
Hitches
If you wish to install a trailer hitch, your Toyota dealer should be consulted.
Use only a hitch that conforms to the total trailer weight requirement.
Follow the directions supplied by the hitch manufacturer.
Lubricate the hitch ball with a light coat of grease.
Remove the trailer hitch whenever y ou are not towing a trailer to reduce
the possibility of additional damage caused by the hitch if your vehicle is
struck from behind.
Page 175 of 400
177
2−5. Driving information
2
When driving
CAUTION
When towing a trailer
If the total trailer weight exceeds 1000 lb. (453 kg), trailer brakes are
required.
Never tap into your vehicle’s hydraulic system, as this will lower the vehi−
cle’s braking effectiveness.
Never tow a trailer without using a safety chain securely attached to both
the trailer and the vehicle. If damage occurs to the coupling unit or hitch
ball, there is danger of the trailer wandering into another lane.
NOTICE
When installing a trailer hitch
Use only the position recommended by your Toyota dealer. Do not install the
trailer hitch on the bumper; this may cause body damage.
Brakes
Toyota recommends trailers with brakes that conform to any applicable fed−
eral and state/provincial regulations.
Safety chain
A safety chain must always be used between the towing vehicle and the
trailer. Leave sufficient slack in the chain for turns. The chain should cross
under the trailer tongue to prevent the tongue from dropping to the ground in
the case that it becomes damaged or separated. For the correct safety chain
installation procedure, ask your Toyota dealer.
Do not directly splice trailer lights
Directly splicing trailer lights may damage your vehicle’s electrical system
and cause a malfunction.
Page 176 of 400
178 2−5. Driving information
Trailer towing tips
Your vehicle will handle differently when towing a trailer. The three
main causes of vehicle−trailer ac cidents are driver error, excessive
speed and improper trailer loading. Keep these in mind when towing.
Before starting out, check the trailer ’s light and the vehicle−trailer
connections. Recheck after driving a short distance.
Practice turning, stopping and reve rsing with the trailer attached in
an area away from traffic until you become accustomed to the feel
of the vehicle.
Reversing with a trailer attached is
difficult and requires practice.
Grip the bottom of the steering wheel and move your hand to the
left to move the trailer to the left. Move your hand to the right to
move the trailer to the right. (This generally opposite to reversing
without a trailer attached.) Avoid sharp or prolonged turning. Have
someone guide you when reversing to reduce the risk of an acci−
dent.
As stopping distance is increased when towing a trailer, vehicle−to−
vehicle distance should be increased. For each 10 mph (16 km/h)
of speed, allow at least o
ne vehicle and trailer length.
Avoid sudden braking as you may skid, resulting in jackknifing and
loss of control. This is especially true on wet or slippery surfaces.
Avoid jerky starts or sudden acceleration. Vehicles with a manual
transmission, prevent excessive cl
utch slippage by keeping engine
rpm low and not racing the engine. Always start out in first gear.
Avoid jerky steering and sharp turns, and slow down before mak−
ing a turn.
Page 179 of 400
181
2−5. Driving information
2
When driving
CAUTION
To avoid an accident
Do not exceed 45 mph (72 km/h) or posted towing speed limit, whichever
is lower. As instability (swaying) of the towing vehicle−trailer combination
increases as speed increases, exceeding 45 mph (72 km/h) may cause
loss of control.
Slow down and downshift before descending steep or long downhill
grades. Do not make sudden downshifts.
Avoid holding the brake pedal down too long or too frequently. This could
cause the brakes to overheat and result in reduced braking efficiency.
