8
102
TYRE UNDER-INFLATION DETECTION
Sensors check the tyre pressure dur-
ing driving and trigger a warning in the
event of malfunction.
Pressure Check With the ignition on and the
vehicle having been stationary
for approximately 15 minutes,
and after the engine oil level,
this indicator light comes on
on the instrument panel screen to indi-
cate that the system is measuring the
tyre pressures.
Pressure OK
This indicator light comes
on on the instrument panel
screen if all of the tyre pres-
sure values measured are
correct.
If this indicator light does not appear,
contact a PEUGEOT dealer to have
the system checked. Puncture
This warning light, accom-
panied by the audible signal
and the message on the
multi-function display loca-
ting the wheel concerned, is
followed by illumination of the STOP
warning light.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d h a v e
the tyre pressure checked as soon as
possible.
Note: this message is also dis-
played when one of the wheels
is away from the vehicle (be-
ing repaired) or when one or
more wheels without a sensor
a r e fi t t e d . All repairs and changing of
t y r e s o n a w h e e l fi t t e d w i t h t h i s
system must be carried out by
a PEUGEOT dealer.
If, when changing a tyre, you install a
wheel which is not detected by your
vehicle, you must have the system
reinitialised by a PEUGEOT dealer.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n s y s -
tem is an aid to driving which does not
replace the need for the driver to be
vigilant or to drive responsibly.
This system does not eliminate the
need to have the tyre pressure checked
regularly (see manufacturer's label) to
ensure that the optimum dynamic per-
formance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous driving
conditions (heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month. Remember
to check the pressure of the spare
wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n s y s -
tem may experience temporary inter-
ference due to radioelectric emissions
on a frequency close to that used by
the system.
Flat tyre
This warning light is accom-
panied by the audible si gnal
and the message on the
multi-function display loca-
ting the wheel concerned.
If this warning light comes on, have
the tyre pressure checked as soon as
possible. Sensor(s) not detected or faulty
This warning light is accom-
panied by the audible si gnal
and the message on the
multi-function display which
i n d i c a t e s t h a t u n d e r - i n fl a t i o n
detection is absent from one (or seve-
ral) wheel(s) or that there is a fault in
the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
Page 122 of 211
1010
111

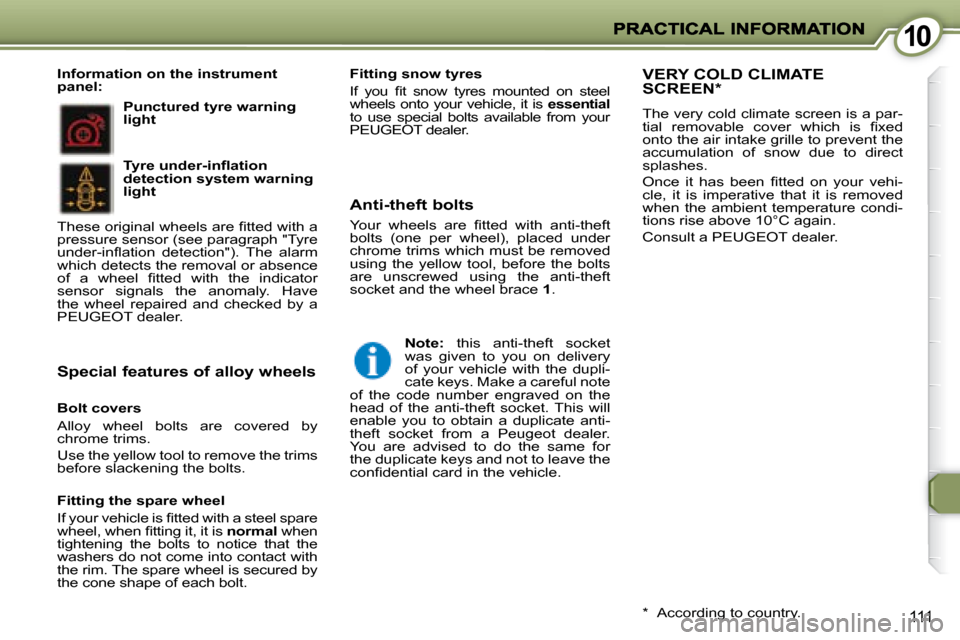

Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use the yellow tool to remove the trims
before slackening the bolts.
Fitting the spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a s t e e l s p a r e
w h e e l , w h e n fi t t i n g i t , i t i s normal when
tightening the bolts to notice that the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone shape of each bolt.
VERY COLD CLIMATE SCREEN *
The very cold climate screen is a par-
t i a l r e m o v a b l e c o v e r w h i c h i s fi x e d
onto the air intake grille to prevent the
accumulation of snow due to direct
splashes.
O n c e i t h a s b e e n fi t t e d o n y o u r v e h i -
cle, it is imperative that it is removed
when the ambient temperature condi-
tions rise above 10°C again.
Consult a PEUGEOT dealer.
* According to country.
Special features of alloy wheels
Anti-theft bolts
Y o u r w h e e l s a r e fi t t e d w i t h a n t i - t h e f t
bolts (one per wheel), placed under
chrome trims which must be removed
using the yellow tool, before the bolts
are unscrewed using the anti-theft
socket and the wheel brace 1 .
Fitting snow tyres
I f y o u fi t s n o w t y r e s m o u n t e d o n s t e e l
wheels onto your vehicle, it is
essential
to use special bolts available from your
PEUGEOT dealer.
Note: this anti-theft socket
was given to you on delivery
of your vehicle with the dupli-
cate keys. Make a careful note
of the code number engraved on the
head of the anti-theft socket. This will
enable you to obtain a duplicate anti-
theft socket from a Peugeot dealer.
You are advised to do the same for
the duplicate keys and not to leave the
c o n fi d e n t i a l c a r d i n t h e v e h i c l e .
Punctured tyre warning
light
Information on the instrument
panel:
T y r e u n d e r - i n fl a t i o n
detection system warning
light
T h e s e o r i g i n a l w h e e l s a r e fi t t e d w i t h a
pressure sensor (see paragraph "Tyre
u n d e r - i n fl a t i o n d e t e c t i o n " ) . T h e a l a r m
which detects the removal or absence
o f a w h e e l fi t t e d w i t h t h e i n d i c a t o r
sensor signals the anomaly. Have
the wheel repaired and checked by a
PEUGEOT dealer.
Page 123 of 211
1010
111
Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use the yellow tool to remove the trims
before slackening the bolts.
Fitting the spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a s t e e l s p a r e
w h e e l , w h e n fi t t i n g i t , i t i s normal when
tightening the bolts to notice that the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone shape of each bolt.
VERY COLD CLIMATE SCREEN *
The very cold climate screen is a par-
t i a l r e m o v a b l e c o v e r w h i c h i s fi x e d
onto the air intake grille to prevent the
accumulation of snow due to direct
splashes.
O n c e i t h a s b e e n fi t t e d o n y o u r v e h i -
cle, it is imperative that it is removed
when the ambient temperature condi-
tions rise above 10°C again.
Consult a PEUGEOT dealer.
* According to country.
Special features of alloy wheels
Anti-theft bolts
Y o u r w h e e l s a r e fi t t e d w i t h a n t i - t h e f t
bolts (one per wheel), placed under
chrome trims which must be removed
using the yellow tool, before the bolts
are unscrewed using the anti-theft
socket and the wheel brace 1 .
Fitting snow tyres
I f y o u fi t s n o w t y r e s m o u n t e d o n s t e e l
wheels onto your vehicle, it is
essential
to use special bolts available from your
PEUGEOT dealer.
Note: this anti-theft socket
was given to you on delivery
of your vehicle with the dupli-
cate keys. Make a careful note
of the code number engraved on the
head of the anti-theft socket. This will
enable you to obtain a duplicate anti-
theft socket from a Peugeot dealer.
You are advised to do the same for
the duplicate keys and not to leave the
c o n fi d e n t i a l c a r d i n t h e v e h i c l e .
Punctured tyre warning
light
Information on the instrument
panel:
T y r e u n d e r - i n fl a t i o n
detection system warning
light
T h e s e o r i g i n a l w h e e l s a r e fi t t e d w i t h a
pressure sensor (see paragraph "Tyre
u n d e r - i n fl a t i o n d e t e c t i o n " ) . T h e a l a r m
which detects the removal or absence
o f a w h e e l fi t t e d w i t h t h e i n d i c a t o r
sensor signals the anomaly. Have
the wheel repaired and checked by a
PEUGEOT dealer.
Page 126 of 211
1010
114
CHANGING A FUSE
The fuse boxes are placed in the lower
part of the fascia (driver's side), in the
engine compartment (left-hand side)
and in the left boot trim.
Fascia fuses
To access the fuses, open the cover
of the storage compartment on the
driver's side. Tilt the fuse box down-
wards.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
on the fuse box. Always replace a faulty fuse
with a fuse of the same rating
(same colour). Use the special pliers located on the
support next to the fuse box, this sup-
port also contains the replacement
fuses.
Fuse N° Rating Functions
G29 - Not used.
G30 5 A Heated rear screen.
G31 5 A T y r e u n d e r - i n fl a t i o n d e t e c t i o n , C D c h a n g e r .
G32 - Not used.
G33 5 A Power steering electropump unit, dual-function
brake switch.
G34 5 A Dual-function brake switch, automatic gearbox
relay.
G35 5 A
Steering wheel angle sensor and ESP gyrometer senso r.
G36 25 A H i - F i a m p l i fi e r .
G37 15 A Automatic gearbox.
G38 20 A Heated seats.
G39 30 A Passenger seat memory unit.
G40 30 A Driver's seat memory unit.
Page 127 of 211
1010
114
CHANGING A FUSE
The fuse boxes are placed in the lower
part of the fascia (driver's side), in the
engine compartment (left-hand side)
and in the left boot trim.
Fascia fuses
To access the fuses, open the cover
of the storage compartment on the
driver's side. Tilt the fuse box down-
wards.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
on the fuse box. Always replace a faulty fuse
with a fuse of the same rating
(same colour). Use the special pliers located on the
support next to the fuse box, this sup-
port also contains the replacement
fuses.
Fuse N° Rating Functions
G29 - Not used.
G30 5 A Heated rear screen.
G31 5 A T y r e u n d e r - i n fl a t i o n d e t e c t i o n , C D c h a n g e r .
G32 - Not used.
G33 5 A Power steering electropump unit, dual-function
brake switch.
G34 5 A Dual-function brake switch, automatic gearbox
relay.
G35 5 A
Steering wheel angle sensor and ESP gyrometer senso r.
G36 25 A H i - F i a m p l i fi e r .
G37 15 A Automatic gearbox.
G38 20 A Heated seats.
G39 30 A Passenger seat memory unit.
G40 30 A Driver's seat memory unit.
Page 128 of 211
1010
115
Fuse N° Rating
Functions
F1 - Not used.
F2 30 A Locking and deadlocking.
F3 5 A Air bags and pre-tensioners control unit.
F4 10 A Automatic gearbox switch, diagnostic socket, electrochromatic mirror .
F5 30 A Driver and passenger electric windows.
F6 30 A Sunroof.
F7 5 A Glove box light, map reading lights, courtesy lights, court esy mirrors.
F8 20 A Multifunction display, audio equipment, top-of-column, trai
ler fuse box (accessory), alarm,
alarm siren.
F9 30 A Front lighter, 12 V rear socket, glove box light, map reading
lights, courtesy lights, courtesy
mirrors.
F10 15 A T y r e u n d e r - i n fl a t i o n d e t e c t i o n , C D c h a n g e r .
F11 15 A Diagnostic socket, ignition switch.
F12 15 A Trailer fuse box (accessory), parking assistance control unit supply,
passenger seat
memory unit, rain and brightness sensor.
F13 5 A Windscreen wipers relay control, engine fuse box.
F14 15 A Driver's seat memory unit, instrument panel, air bags and pre-tensi
oners control unit, air
conditioning control panel, steering wheel adjustment switch , hands-free kit.
F15 30 A Locking and deadlocking.
F16 - PARC shunt.
Page 130 of 211
1010
117
The electrical system of your
vehicle is designed to operate
with standard or optional equip-
ment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer. PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying the mal-
functions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and not
installed in accordance with its instruc-
tions, in particular where the equip-
ment in question consumes more than
10 milliamperes. The maxi-fuses provide additional
protection for the electrical systems.
All work must be carried out by a
PEUGEOT dealer.
Fuse N° Rating
Functions
9 10 A Directional headlamps control unit, additional heat
ing switching and protection control unit, clutch
switch.
10 30 A A Engine management actuators (ignition coil, injec
tors, thermostats, solenoid valves, oxygen
sensors), diesel additive pump, fuel pump, engine c ontrol unit, Blow-by heater.
11 40 A Air conditioning blower.
.
12 30 A Windscreen wipers..
13 40 ABuilt-in systems interface supply (ignition positiv e).
14 30 A Not used.
.
