1. Steering lock and ignition.
2. Audio equipment steering wheel
control.
3. Wipers/wash-wipe and trip computer
controls.
4. Adjustable and closing central vents.
5. Air diffuser vent grille.
6. Sunshine sensor.
7. Windscreen deicing and demisting
vent.
8. Speakers (tweeters).
9. Adjustable and closing side vent.
10. Disarming of the passenger air bag * .
11. Passenger air bag.
12. Glove box/Video sockets.
13. Passenger footwell air outlet.
14. Passenger heated seat control.
15. Passenger seat electric controls.
* According to country.
Page 22 of 211
1
25
T y r e u n d e r - i n fl a t i o n
detection system warning
light
This indicates the absence or
malfunction of one or more
tyre pressure sensors or a system
fault.
Consult a PEUGEOT dealer.
Electronic engine
immobiliser warning light
This indicates an electronic
engine immobiliser system
malfunction.
Consult a PEUGEOT dealer. Front brake pads wear
warning light
This indicates that the brake
pads are worn.
For your safety, have them replaced
by a PEUGEOT dealer.
Fuel tank cap warning light
(according to version)
With the engine running, this
indicates that the fuel tank
cap is incorrectly secured or
absent.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and in
red if the vehicle speed is above 6 mph
(10 km/h).
Door/boot open warning
light
With the engine running, this
indicates that an access has
not been closed correctly.
An illustration on the multifunction
d i s p l a y i d e n t i fi e s t h e a c c e s s ( e s ) c o n -
cerned.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and in
red if the vehicle speed is above 6 mph
(10 km/h). Air bags warning light
This indicates an air bag
fault.
Consult a PEUGEOT dealer.
Automatic headlamp
beam adjustment system
warning light
This indicates that the auto-
matic headlamp height ad-
juster is faulty.
Consult a PEUGEOT dealer.
Punctured tyre warning
light
This indicates that one or
more punctured tyres have
been detected.
A message on the multifunction display
i d e n t i fi e s t h e w h e e l ( s ) c o n c e r n e d .
It is linked with the STOP warning
light.
Stop immediately.
Change the damaged wheel and have
it repaired by a PEUGEOT dealer.
Engine oil pressure
warning light
This indicates that the engine
oil pressure is too low.
It is linked with the STOP warning
light.
Stop immediately if it comes on while
the engine is running.
If there is a lack of oil in the lubrication
circuit, top up the level and contact a
PEUGEOT dealer as soon as possible.
Page 37 of 211
3
38
screen, the vents, the air outlets under
the front seats and the air extractor
l o c a t e d b e h i n d t h e fl a p s i n t h e b o o t .
I n c e r t a i n c a s e s o f p a r t i c u l a r l y a r d u o u s
use (towing the maximum load on a
s t e e p g r a d i e n t i n h o t w e a t h e r ) , c u t t i n g
o f f t h e a i r c o n d i t i o n i n g p e r m i t s r e c o v -
e r y o f t h e e n g i n e p o w e r a n d t h e r e f o r e
i m p r o v e m e n t o f t h e t o w i n g c a p a c i t y .
C l o s e t h e w i n d o w s t o b e n e fi t f r o m t h e
f u l l e f f e c t i v e n e s s o f t h e a i r c o n d i t i o n i n g .
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t -
m e n t fi l t e r i s i n g o o d c o n d i t i o n . H a v e
t h e fi l t e r e l e m e n t s r e p l a c e d p e r i o d i c a l l y .
I f y o u d r i v e i n a d u s t y e n v i r o n m e n t ,
r e p l a c e i t t w i c e a s o f t e n .
T h e a i r c o n d i t i o n i n g s y s t e m d o e s n o t
contain chlorine and is not harmful to
t h e o z o n e l a y e r .
O p e r a t e t h e a i r c o n d i t i o n i n g s y s t e m
for 5 to 10 minutes, once or twice a
m o n t h , t o k e e p i t i n p e r f e c t w o r k i n g
o r d e r .
T h e w a t e r f o r m e d b y t h e a i r c o n d i t i o n i n g
c o n d e n s a t i o n i s d i s c h a r g e d v i a a n o p e n -
i n g p r o v i d e d f o r t h i s p u r p o s e . T h e r e f o r e ,
a p u d d l e o f w a t e r m a y f o r m u n d e r n e a t h
t h e v e h i c l e w h e n s t a t i o n a r y .
I f t h e s y s t e m d o e s n o t p r o d u c e c o l d a i r ,
do not use it and contact a PEUGEOT
d e a l e r .
1. C e n t r e p a n e l v e n t s .
2. Adjustment of the glove box air
fl o w ( s e e s e c t i o n " I n t e r i o r l a y o u t " ) .
3. A i r o u t l e t t o p a s s e n g e r f o o t w e l l s .
4. Two ventilation vents at the rear at
t h e b a s e o f t h e c e n t r e c o n s o l e b e -
t w e e n t h e p a s s e n g e r s .
5. S i d e v e n t s .
6. F r o n t w i n d o w s d e - i c i n g o r d e m i s t -
i n g v e n t s .
7. W i n d s c r e e n d e - i c i n g o r d e m i s t i n g
v e n t s .
8. S u n s h i n e s e n s o r .
9. A i r d i f f u s e r g r i l l e . AUTOMATIC REGULATION OF THE AIR CONDITIONING
Air diffuser
The air diffuser grille, located at the
t o p o f t h e c e n t r e c o n s o l e , s i g n i fi c a n t l y
i m p r o v e s d i s t r i b u t i o n a n d fl o w s a n d
p r e v e n t s a i r c u r r e n t s , w h i l e m a i n t a i n -
i n g a n o p t i m u m t e m p e r a t u r e i n s i d e t h e
p a s s e n g e r c o m p a r t m e n t .
Advice on operation
To obtain even ventilation,
avoid closing the air diffuser
grille 9 .
I n h o t w e a t h e r , i n o r d e r t o o b t a i n i n -
t e n s e v e n t i l a t i o n , y o u c a n c l o s e t h e a i r
diffuser grille 10 and use vents 1 and
5 o n l y .
I f , w h e n t h e v e h i c l e h a s b e e n p a r k e d
in the sun for a long time, the interior
t e m p e r a t u r e r e m a i n s v e r y h i g h , d o n o t
h e s i t a t e t o v e n t i l a t e t h e p a s s e n g e r
c o m p a r t m e n t f o r a f e w m i n u t e s .
For even air distribution, take care
not to obstruct the exterior air intake
g r i l l e l o c a t e d a t t h e b o t t o m o f t h e w i n d -
Use of the automatic regulation of the
a i r c o n d i t i o n i n g i s r e c o m m e n d e d . I t
p e r m i t s a u t o m a t i c a n d o p t i m i s e d c o n -
trol of all of the following functions: air
fl o w , p a s s e n g e r c o m p a r t m e n t t e m p e r -
a t u r e a n d a i r d i s t r i b u t i o n , b y m e a n s
o f v a r i o u s s e n s o r s , s o p r e v e n t i n g t h e
n e e d f o r y o u t o c h a n g e y o u r r e f e r -
e n c e s e t t i n g s o t h e r t h a n t h e v a l u e d i s -
p l a y e d .
Do not cover the sunshine sensor
8 .
It is required for regulation of the air
c o n d i t i o n i n g .
Page 83 of 211
5
75
The timed duration must also
be set, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
A u t o m a t i c s w i t c h i n g o n o f t h e lights
To switch the function on
or off, use the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
Activation
Deactivation When this function is activa-
ted, the indicator light on the
instrument panel comes on.
When the function is deacti-
vated, the indicator light on the
instrument panel comes on.
Cancellation:
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
M a n u a l " f o l l o w - m e - h o m e " l i g h t i n g
If the automatic switching on of the lights
is not activated, the manual "follow-me-
home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
switch off the engine,
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Deactivation:
fl a s h t h e h e a d l a m p s a g a i n ,
get out of the vehicle and lock it.
A u t o m a t i c " f o l l o w - m e - h o m e "
lighting
When you leave your vehicle with
the
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
activated , the side lights and dipped
headlamps remain on for the duration
selected when the ignition is switched
off.
To activate or deactivate this func-
tion, pass via the multifunction display
" P e r s o n a l i s a t i o n - C o n f i g u r a t i o n "
menu.
In foggy weather, the bright-
n e s s s e n s o r c a n d e t e c t s u f fi -
cient light. As a consequence,
the lights will not come on au-
tomatically.
This function is active when the vehi-
cle is supplied to the customer.
If the brightness sensor does not
f u n c t i o n c o r r e c t l y , if the system is
activated, the dipped headlamps and
the side lights come on.
Contact a PEUGEOT dealer to have
the system checked.
D a y t i m e l i g h t s *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes on
on the instrument panel.
* According to country.
This function is available di-
rectly at the lights stalk on
certain versions depending on
the type of lights stalk.
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor, or during operation of the wind-
screen wipers. They switch off as soon
as the light becomes bright enough or
the windscreen wipers stop.
Page 84 of 211
5
75
The timed duration must also
be set, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
A u t o m a t i c s w i t c h i n g o n o f t h e lights
To switch the function on
or off, use the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
Activation
Deactivation When this function is activa-
ted, the indicator light on the
instrument panel comes on.
When the function is deacti-
vated, the indicator light on the
instrument panel comes on.
Cancellation:
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
M a n u a l " f o l l o w - m e - h o m e " l i g h t i n g
If the automatic switching on of the lights
is not activated, the manual "follow-me-
home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
switch off the engine,
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Deactivation:
fl a s h t h e h e a d l a m p s a g a i n ,
get out of the vehicle and lock it.
A u t o m a t i c " f o l l o w - m e - h o m e "
lighting
When you leave your vehicle with
the
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
activated , the side lights and dipped
headlamps remain on for the duration
selected when the ignition is switched
off.
To activate or deactivate this func-
tion, pass via the multifunction display
" P e r s o n a l i s a t i o n - C o n f i g u r a t i o n "
menu.
In foggy weather, the bright-
n e s s s e n s o r c a n d e t e c t s u f fi -
cient light. As a consequence,
the lights will not come on au-
tomatically.
This function is active when the vehi-
cle is supplied to the customer.
If the brightness sensor does not
f u n c t i o n c o r r e c t l y , if the system is
activated, the dipped headlamps and
the side lights come on.
Contact a PEUGEOT dealer to have
the system checked.
D a y t i m e l i g h t s *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes on
on the instrument panel.
* According to country.
This function is available di-
rectly at the lights stalk on
certain versions depending on
the type of lights stalk.
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor, or during operation of the wind-
screen wipers. They switch off as soon
as the light becomes bright enough or
the windscreen wipers stop.
Page 86 of 211
5
77

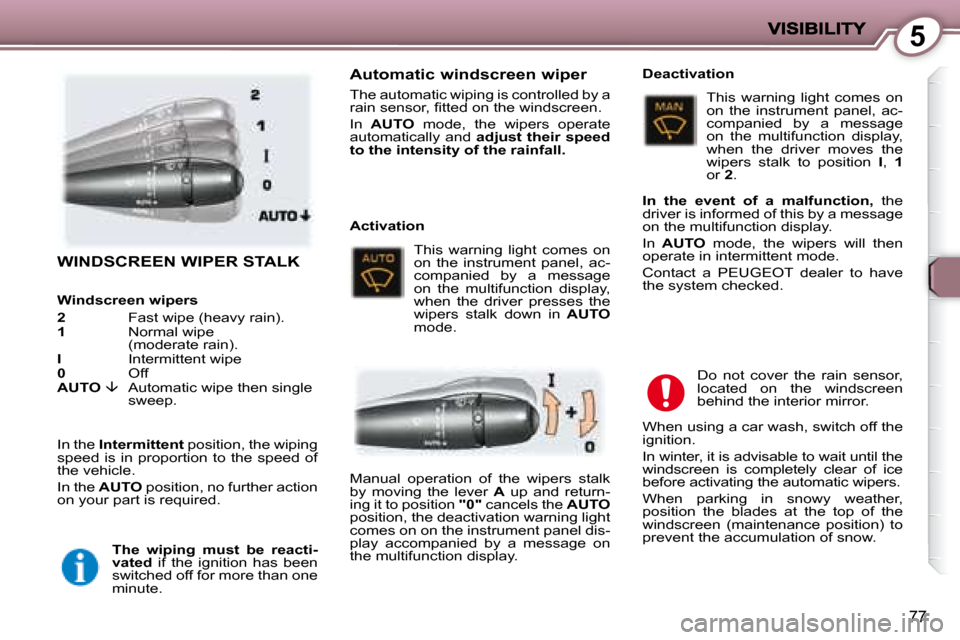

WINDSCREEN WIPER STALK
In the Intermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In the AUTO position, no further action
on your part is required.
A u t o m a t i c w i n d s c r e e n w i p e r
The automatic wiping is controlled by a
r a i n s e n s o r , fi t t e d o n t h e w i n d s c r e e n .
In AUTO mode, the wipers operate
automatically and a d j u s t t h e i r s p e e d
t o t h e i n t e n s i t y o f t h e r a i n f a l l .
Activation Deactivation
This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver presses the
wipers stalk down in AUTO
mode. This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver moves the
wipers stalk to position
I , 1
or 2 .
I n t h e e v e n t o f a m a l f u n c t i o n , the
driver is informed of this by a message
on the multifunction display.
In AUTO mode, the wipers will then
operate in intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Do not cover the rain sensor,
located on the windscreen
behind the interior mirror.
When using a car wash, switch off the
ignition.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wipers.
When parking in snowy weather,
position the blades at the top of the
windscreen (maintenance position) to
prevent the accumulation of snow.
T h e w i p i n g m u s t b e r e a c t i -
vated if the ignition has been
switched off for more than one
minute . Manual operation of the wipers stalk
by moving the lever
A up and return-
ing it to position "0" cancels the AUTO
position, the deactivation warning light
comes on on the instrument panel dis-
play accompanied by a message on
the multifunction display.
W i n d s c r e e n w i p e r s
2 Fast wipe (heavy rain).
1 Normal wipe
(moderate rain).
I Intermittent wipe
0 Off
AUTO
Automatic wipe then single
sweep.
Page 88 of 211
5
77
WINDSCREEN WIPER STALK
In the Intermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In the AUTO position, no further action
on your part is required.
A u t o m a t i c w i n d s c r e e n w i p e r
The automatic wiping is controlled by a
r a i n s e n s o r , fi t t e d o n t h e w i n d s c r e e n .
In AUTO mode, the wipers operate
automatically and a d j u s t t h e i r s p e e d
t o t h e i n t e n s i t y o f t h e r a i n f a l l .
Activation Deactivation
This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver presses the
wipers stalk down in AUTO
mode. This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver moves the
wipers stalk to position
I , 1
or 2 .
I n t h e e v e n t o f a m a l f u n c t i o n , the
driver is informed of this by a message
on the multifunction display.
In AUTO mode, the wipers will then
operate in intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Do not cover the rain sensor,
located on the windscreen
behind the interior mirror.
When using a car wash, switch off the
ignition.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wipers.
When parking in snowy weather,
position the blades at the top of the
windscreen (maintenance position) to
prevent the accumulation of snow.
T h e w i p i n g m u s t b e r e a c t i -
vated if the ignition has been
switched off for more than one
minute . Manual operation of the wipers stalk
by moving the lever
A up and return-
ing it to position "0" cancels the AUTO
position, the deactivation warning light
comes on on the instrument panel dis-
play accompanied by a message on
the multifunction display.
W i n d s c r e e n w i p e r s
2 Fast wipe (heavy rain).
1 Normal wipe
(moderate rain).
I Intermittent wipe
0 Off
AUTO
Automatic wipe then single
sweep.
Page 111 of 211
8
100
VISUAL AND AUDIBLE FRONT AND/OR REAR PARKING ASSISTANCE
This system consists of proximity sen-
sors:
- six in the front bumper,
and/or
- four in the rear bumper.
It detects any obstacle (person, ve-
hicle, tree, gate, etc.) in front of or be-
hind the vehicle. However, it cannot
detect obstacles located directly under
the bumper.
An object, such as a stake, cone or any
other similar object may be detected
at the beginning of the manoeuvre but
may no longer be detected when the
vehicle comes close to it. The proximity of the obstacle is indi-
cated by:
- an audible signal which becomes
more rapid as the vehicle ap-
proaches the obstacle,
- a graphic on the multifunction display, with blocks which become
increasingly close to the vehicle.
The obstacle is located in relation to
the emission of the audible signal by
the speakers; that is, front or rear and
right or left.
When the distance between the ve-
hicle and the obstacle is less than
approximately thirty centimetres, the
audible signal becomes continuous
and/or the "Danger" symbol appears
on the multifunction display.
The system becomes inactive again:
- when you exit reverse gear,
- when the speed is above 6 mph (10 km/h),
- at the end of the manoeuvre, when stationary, after a few seconds
(front parking assistance only).
Detection zone
To guarantee optimum opera-
tion, in bad weather or in win-
ter, ensure that the sensors
are not covered with mud,
frost or snow. The system is deactivated if
the vehicle is stationary for
more than 3 seconds.
Detection
The system is activated when:
- reverse gear is engaged,
- the speed is below 6 mph (10 km/h)
in forward gear.
It is accompanied by an audible signal
and/or displaying of the vehicle on the
multifunction display.
