INSTRUMENTS and CONTROLS
The displaying of certain warning
lights may be accompanied by an
audible signal and a message on
the multifunction display.

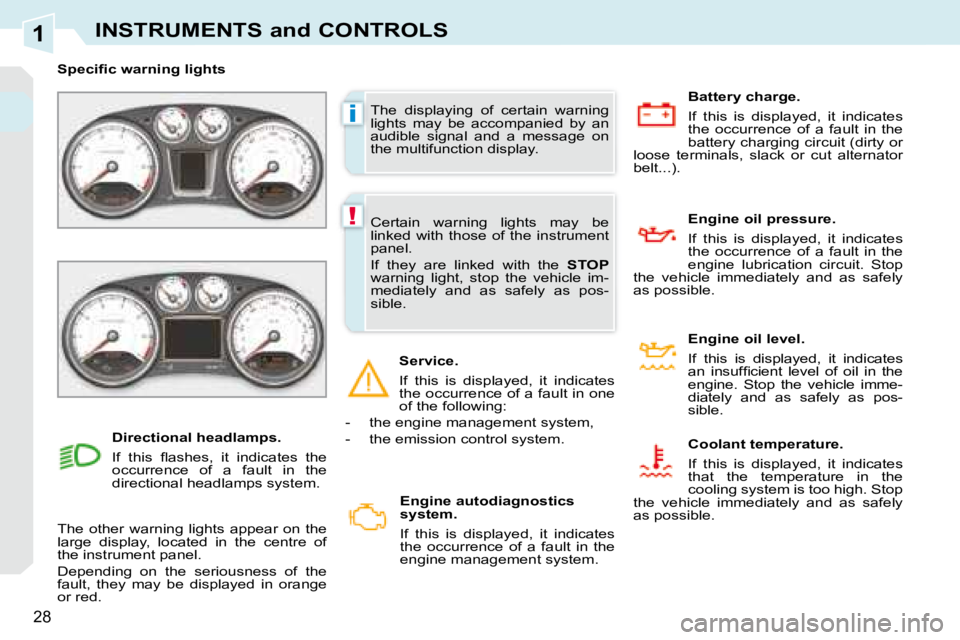

Specifi c warning lights
The other warning lights appear on the
large display, located in the centre of
the instrument panel.
Depending on the seriousness of the
fault, they may be displayed in orange
or red. Certain warning lights may be
linked with those of the instrument
panel.
If they are linked with the
STOP
warning light, stop the vehicle im-
mediately and as safely as pos-
sible.
Directional headlamps.
If this fl ashes, it indicates the
occurrence of a fault in the
directional headlamps system. Engine oil pressure.
If this is displayed, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle immediately and as safely
as possible.
Service.
If this is displayed, it indicates
the occurrence of a fault in one
of the following:
Engine autodiagnostics
system.
If this is displayed, it indicates
the occurrence of a fault in the
engine management system. Engine oil level.
If this is displayed, it indicates
an insuffi cient level of oil in the
engine. Stop the vehicle imme-
diately and as safely as pos-
sible.
Coolant temperature.
If this is displayed, it indicates
that the temperature in the
cooling system is too high. Stop
the vehicle immediately and as safely
as possible. Battery charge.
If this is displayed, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt...).
- the engine management system,
- the emission control system.

1INSTRUMENTS and CONTROLS
Air bags.
If this is displayed, it indicates the
occurrence of a fault in one of the
air bag, roll-over hoop or preten-
sioning seat belt systems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- signifi cant drop in the level in the circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous lighting
of the ABS warning light).
Stop the vehicle immediately and as
safely as possible.
If the vehicle is moving, check that the
handbrake is released fully. Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent opera-
tion of the vehicle's assisted braking.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deacti-
vated, if this warning light and the indi-
cator light on the button come on, this
indicates the occurrence of a fault in the
ESP/ASR system.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
immediately and as safely as
possible.
Door open.
A door, the boot or the bonnet *
is open:
Ice warning.
If this is displayed, it indicates
that there is risk of the formation
of ice on the road below a temperature
of 3 °C.
Drive carefully.
Handbrake.
If this is displayed, while the ve-
hicle is moving, it indicates that
the handbrake has not been re-
leased fully.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control battery
is fl at.
* Only with alarm. Fuel level.
If this is displayed, it indicates
that there is only enough fuel
remaining to drive approxima-
tely 30 miles (50 km).
The capacity of the tank is approxima-
tely 60 litres. Screenwash fl uid level.
If this is displayed, following an
action on the wipers stalk, it in-
dicates an insuffi cient level of
fl uid.
Fill the screenwash/headlamp wash fl uid
reservoir when you stop. -
if the speed is below 6 mph (10 km/h), this
warning light is displayed in orange,

if the speed is higher than 6 mph (10 km/h), this warning light is displayed in red.
Coolant level.
If this is displayed, it indicates
an insuffi cient level of coolant
in the circuit. Stop the vehicle
immediately and as safely as
possible.

1
30
INSTRUMENTS and CONTROLS
Water in diesel ** .
If this is displayed, it indicates
the presence of water in the
diesel fi lter.
There is a risk of damage to the injec-
tion system on Diesel engines.
Automatic headlamp
adjustment.
If this is displayed, it indicates the
occurrence of a fault in the auto-
matic headlamp adjustment. Particle emission fi lter
(Diesel).
If this is displayed, linked with
the service warning light, it in-
dicates the start of saturation of the
particle emission fi lter or a low diesel
additive reservoir level.
As soon as traffi c conditions permit, re-
generate the fi lter by driving at a speed
of at least 40 mph (60 km/h) until the
service warning light is switched off.
If the service warning light is still dis-
played, the additive level is low. Have it
topped up by a PEUGEOT dealer with-
out delay.
Defl ated wheel.
If this is displayed, it indicates
an insuffi cient pressure in one
or more wheels.
Check the pressure of the tyres as soon
as possible. Punctured wheel.
If this is displayed, it indicates
that one or more wheels are
punctured. Stop the vehicle
immediately and as safely as possible.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
Tyre under-infl ation
detection.
If this is displayed, it indicates
the occurrence of a fault on one
of the sensors or in the tyre under-infl a-
tion detection system.
It may also indicate the absence of a
sensor when the spare wheel, which
does not have a sensor, is fi tted in place
of a punctured wheel.
Automatic switching on of
the lights.
If this comes on, it indicates the
occurrence of a fault in the auto-
matic switching on of the lights.
Use the other positions of the lights
stalk.
Visual and/or audible
parking assistance.
If this comes on, in forward and/
or reverse gear, it indicates a
fault in the parking assistance
system.

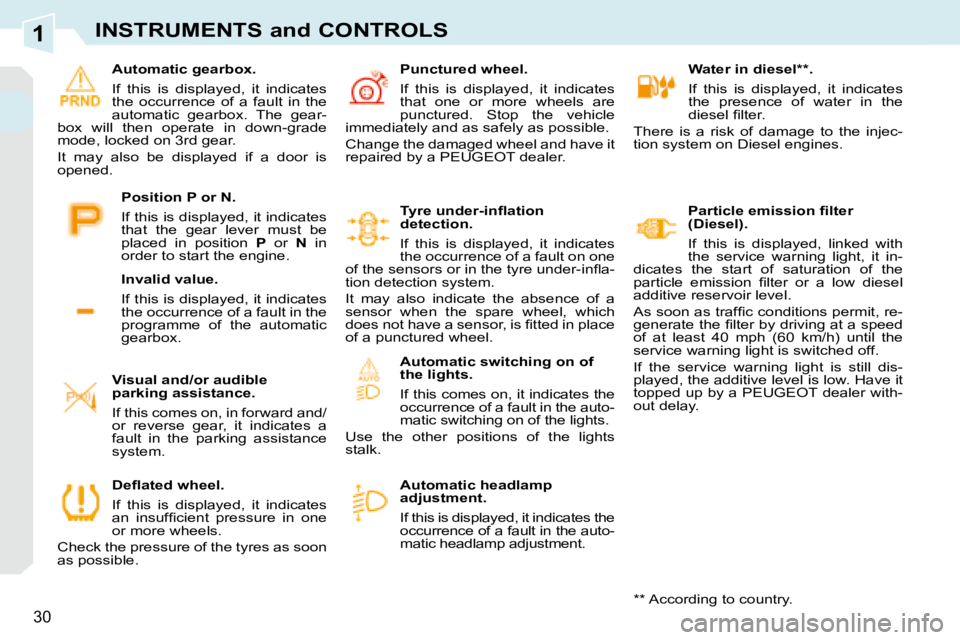

Automatic gearbox.
If this is displayed, it indicates
the occurrence of a fault in the
automatic gearbox. The gear-
box will then operate in down-grade
mode, locked on 3rd gear.
It may also be displayed if a door is
opened.
Invalid value.
If this is displayed, it indicates
the occurrence of a fault in the
programme of the automatic
gearbox.
Position P or N.
If this is displayed, it indicates
that the gear lever must be
placed in position
P or N in
order to start the engine.
** According to country.

1
31
INSTRUMENTS and CONTROLS
Coolant temperature indicator
System which informs the driver of
the changes in the temperature of the
engine coolant while driving. With the engine running, when the
needle is:
- in zone
A , the temperature is
correct,
- in zone B , the temperature is too
high; the max temperature warning
light 1 and the central STOP warning
light come on, accompanied by an
audible signal and a message on
the multifunction display.

You MUST stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Consult a PEUGEOT dealer.
After driving for a few minutes, the
tempe rature and pressure in the coo ling
system increase.
To top up the level:

 wait for the engine to cool,

 unscrew the cap by two turns to allow the pressure to drop,

 when the pressure has dropped, remove the cap,

 top up the level to the "MAX" mark.

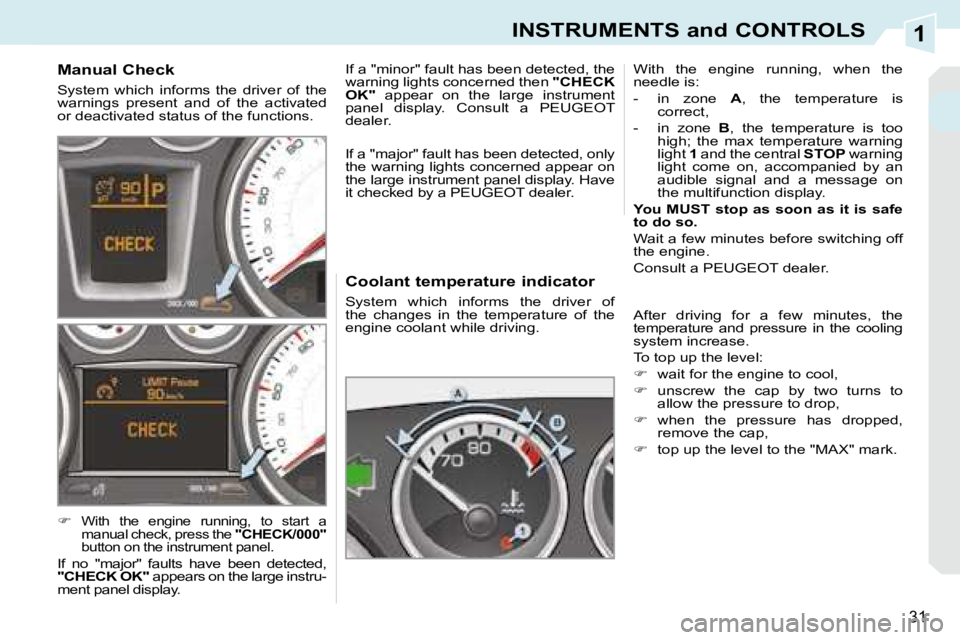

Manual Check
System which informs the driver of the
warnings present and of the activated
or deactivated status of the functions.

 With the engine running, to start a
manual check, press the
"CHECK/000"
button on the instrument panel.
If no "major" faults have been detected,

"CHECK OK" appears on the large instru-
ment panel display. If a "minor" fault has been detected, the
warning lights concerned then
"CHECK
OK" appear on the large instrument
panel display. Consult a PEUGEOT
dealer.
If a "major" fault has been detected, only
the warning lights concerned appear on
the large instrument panel display. Have
it checked by a PEUGEOT dealer.

1
32
INSTRUMENTS and CONTROLS

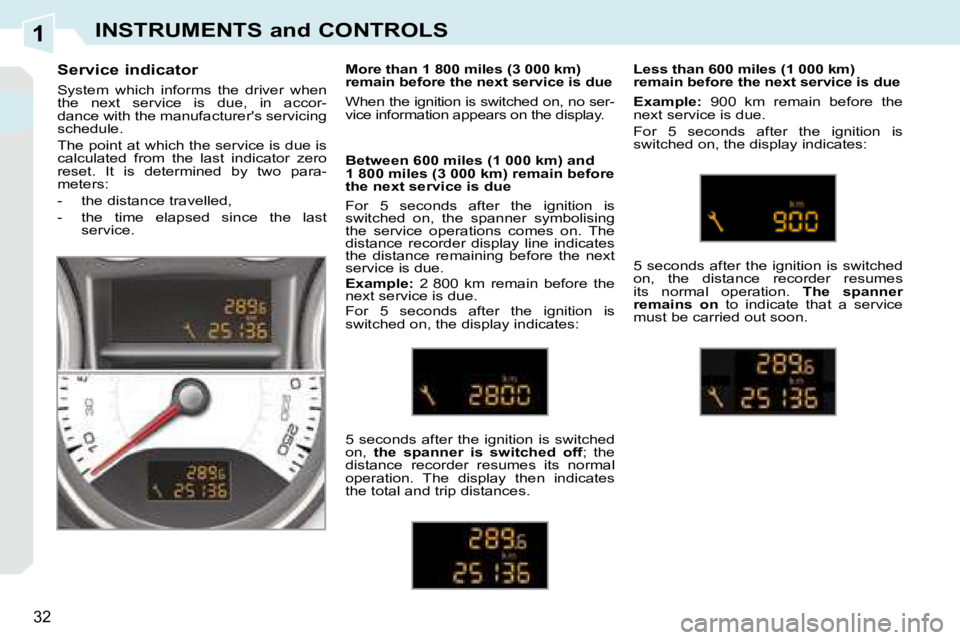

Service indicator
System which informs the driver when
the next service is due, in accor-
dance with the manufacturer's servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two para-
meters:
- the distance travelled,
- the time elapsed since the last service. Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.

Example: 2 800 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances. Less than 600 miles (1 000 km)
remain before the next service is due

Example: 900 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes
its normal operation. The spanner
remains on to indicate that a service
must be carried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no ser-
vice information appears on the display.

1
i
i
33
INSTRUMENTS and CONTROLS
Following this operation, if you
wish to disconnect the battery, lock
the vehicle and wait at least fi ve
mi nutes for the zero reset to be
taken into account.
Service indicator zero reset
After each service, the service indicator
must be reset to zero.
To do this, carry out the following pro-
cedure:

 switch off the ignition,

 press and hold the trip distance recorder zero reset button,

 switch on the ignition; the distance recorder display begins a count-
down,

 when the display indicates "=0" ,
release the button; the spanner dis-
appears.
The distance remaining may be
weighted by the time factor, depen-
ding on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on,
the spanner fl ashes to
indicate that the service must be carried
out as soon as possible.

Example: the service is overdue by
300 miles (km).
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes
its normal operation. The spanner
remains lit . Retrieving the service information
You can access the service information
at any time.

 Press the trip distance recorder zero
reset button.
The service information is displayed for a few seconds, then disappears.

1
i
34
INSTRUMENTS and CONTROLS

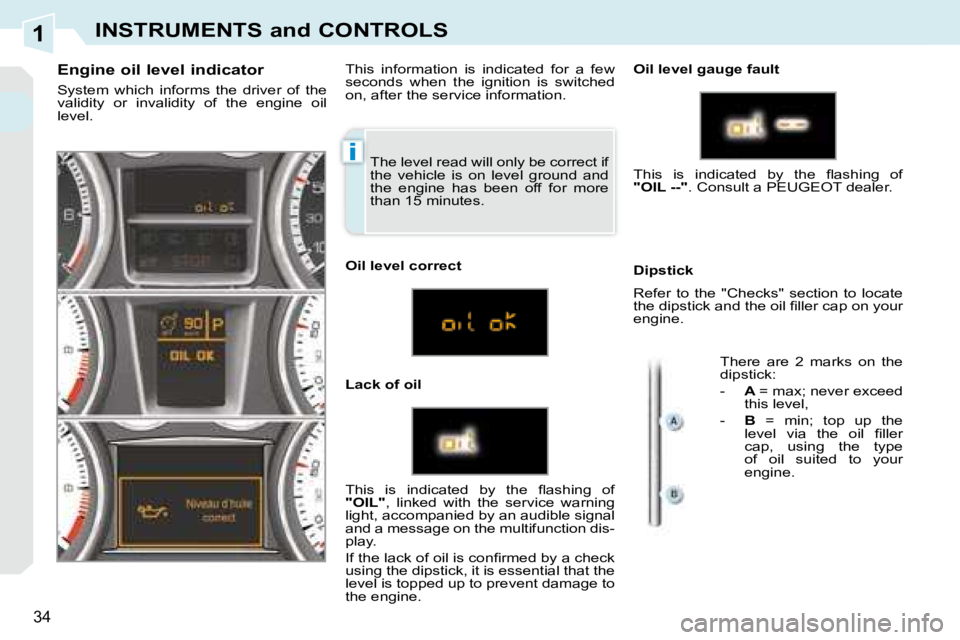

The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Engine oil level indicator
System which informs the driver of the
validity or invalidity of the engine oil
level.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Lack of oil Oil level gauge fault
Dipstick
This is indicated by the fl ashing of

"OIL" , linked with the service warning
light, accompanied by an audible signal
and a message on the multifunction dis-
play.
If the lack of oil is confi rmed by a check
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. This is indicated by the fl ashing of
"OIL --"
. Consult a PEUGEOT dealer.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine. There are 2 marks on the
dipstick:
- A = max; never exceed
this level,
- B = min; top up the
level via the oil fi ller
cap, using the type
of oil suited to your
engine.

1
35
INSTRUMENTS and CONTROLS

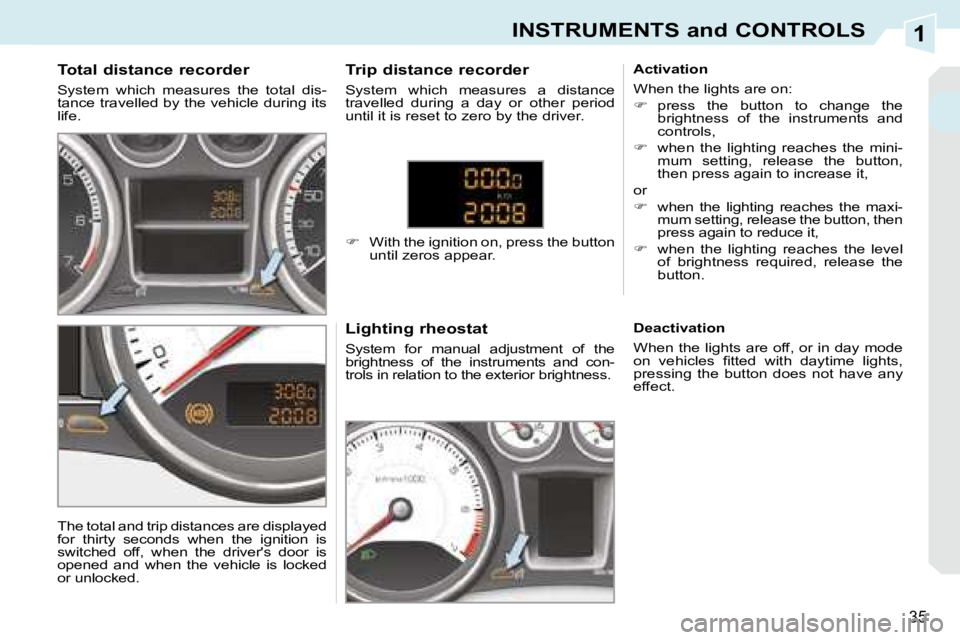

Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life. Lighting rheostat
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior brightness.
The total and trip distances are displayed
for thirty seconds when the ignition is
switched off, when the driver's door is
opened and when the vehicle is locked
or unlocked. Trip distance recorder
System which measures a distance
travelled during a day or other period
until it is reset to zero by the driver.

 With the ignition on, press the button
until zeros appear. Activation
When the lights are on:

 press the button to change the
brightness of the instruments and
controls,

 when the lighting reaches the mini- mum setting, release the button,
then press again to increase it,
or

 when the lighting reaches the maxi-
mum setting, release the button, then
press again to reduce it,


when the lighting reaches the level
of brightness required, release the
button.
Deactivation
When the lights are off, or in day mode
on vehicles fi tted with daytime lights,
pressing the button does not have any
effect.
