2008 PEUGEOT 308 CC DAG Owners Manual

10
!
140
PRACTICAL INFORMATION
Changing the third brake light
(diodes)
For the replacement of this type of di-
odes light, contact a PEUGEOT dealer. Changing the number plate light
bulbs (W 5 W)

 Insert a thin screwdriver in one of
the exterior holes of the lens.

 Push it towards the outside to unclip it.

 Remove the lens.

 Pull the bulb and change it.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lights and their
surrounds to avoid damaging their
varnish and their seal.

10
!
i
141
PRACTICAL INFORMATION
PEUGEOT will not accept re-
sponsibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by PEUGEOT and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
al equipment connected exceeds
10 milliamperes.
Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
The extraction pliers and the spare fus-
es are installed on the back of the fascia
fuse box cover.
To gain access to them:

 turn the screw a quarter of a turn to
the left,

 unclip the cover by pulling at the top
right,

 remove the cover completely,

 remove the pliers. Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.

 Identify the faulty fuse by checking
the condition of its fi lament.

 Use the special pliers to extract the
fuse from its housing.

 Always replace the faulty fuse with a
fuse of the same rating.

 Check the correspondence between
the number etched on the box, the
rating etched on the fuse and the
tables below.
Correct Incorrect

10PRACTICAL INFORMATION
Fascia fuses
The fuse box is placed in the lower
section of the fascia (left-hand side).
Access to the fuses

 refer to the paragraph "Access to
the tools". Fuse tables

Fuse N° Rating Functions

G36 30 A Driver and passenger heated seats.

G37 5 A Trailer fuse box.

G38 30 A Driver's seat memory unit.

G39 - Not used.

G40 30 A Hi-Fi amplifi er, passenger's seat memory unit.

Fuse N° Rating Functions

F1 - Not used.

F2 - Not used.

F3 5 A Air bags and pretensioners control unit.

F4 10 A Clutch pedal and dual-function brake switches,
electrochromatic interior mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.

F5 30 A Front one-touch electric windows, folding mirrors
supply.

F6 30 A Rear one-touch electric windows, exterior door
opening controls.

F7 5 A Front and rear courtesy lights, map reading lights,
sun visor lighting, glove box lighting.

10
143
PRACTICAL INFORMATION

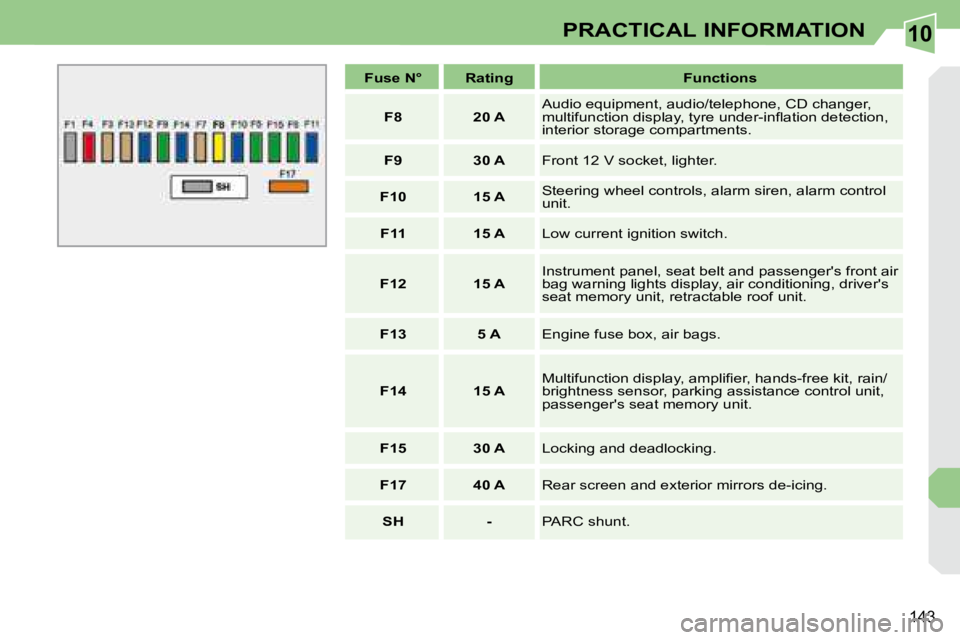

Fuse N° Rating Functions

F8 20 A Audio equipment, audio/telephone, CD changer,
multifunction display, tyre under-infl ation detection,
interior storage compartments.

F9 30 A Front 12 V socket, lighter.

F10 15 A Steering wheel controls, alarm siren, alarm control
unit.

F11 15 A Low current ignition switch.

F12 15 A Instrument panel, seat belt and passenger's front air
bag warning lights display, air conditioning, driver's
seat memory unit, retractable roof unit.

F13 5 A Engine fuse box, air bags.

F14 15 A Multifunction display, amplifi er, hands-free kit, rain/
brightness sensor, parking assistance control unit,
passenger's seat memory unit.

F15 30 A Locking and deadlocking.

F17 40 A Rear screen and exterior mirrors de-icing.

SH - PARC shunt.

10
144
PRACTICAL INFORMATION

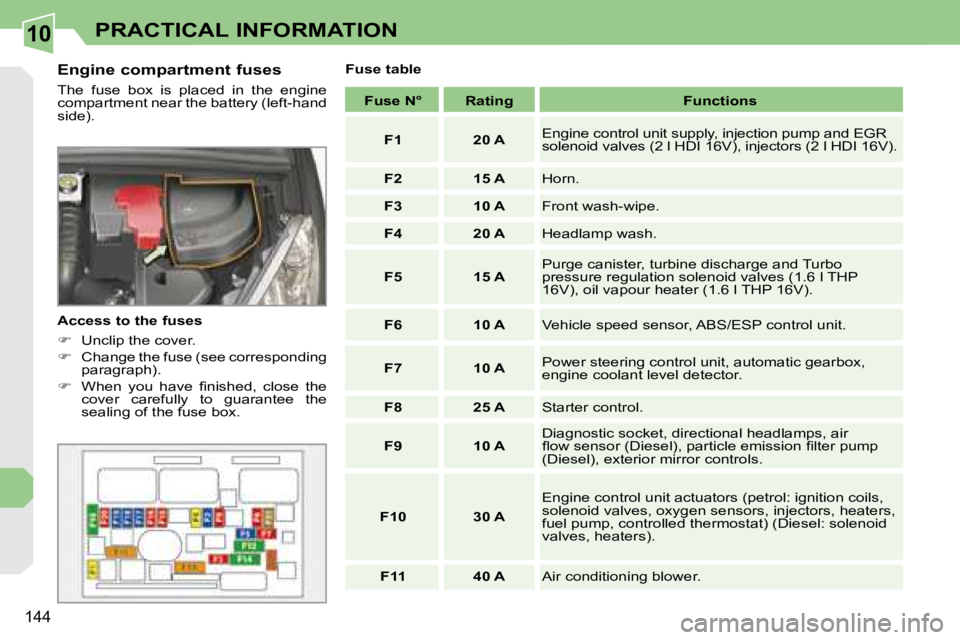

Engine compartment fuses
The fuse box is placed in the engine
compartment near the battery (left-hand
side).
Access to the fuses

 Unclip the cover.

 Change the fuse (see corresponding
paragraph).

 When you have fi nished, close the
cover carefully to guarantee the
sealing of the fuse box. Fuse table

Fuse N° Rating Functions

F1 20 A Engine control unit supply, injection pump and EGR

solenoid valves (2 l HDI 16V), injectors (2 l HDI 1 6V).

F2 15 A Horn.

F3 10 A Front wash-wipe.

F4 20 A Headlamp wash.

F5 15 A Purge canister, turbine discharge and Turbo
pressure regulation solenoid valves (1.6 l THP
16V), oil vapour heater (1.6 l THP 16V).

F6 10 A Vehicle speed sensor, ABS/ESP control unit.

F7 10 A Power steering control unit, automatic gearbox,
engine coolant level detector.

F8 25 A Starter control.

F9 10 A Diagnostic socket, directional headlamps, air
fl ow sensor (Diesel), particle emission fi lter pump
(Diesel), exterior mirror controls.

F10 30 A Engine control unit actuators (petrol: ignition coils,
solenoid valves, oxygen sensors, injectors, heaters,
fuel pump, controlled thermostat) (Diesel: solenoid
valves, heaters).

F11 40 A Air conditioning blower.

10
145
PRACTICAL INFORMATION

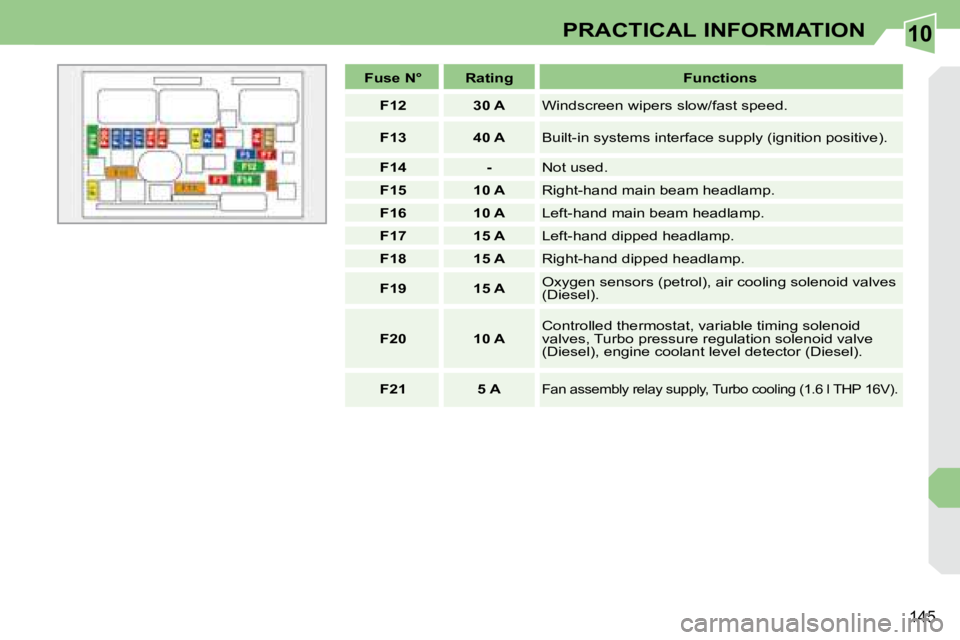

Fuse N° Rating Functions

F12 30 A Windscreen wipers slow/fast speed.

F13 40 A Built-in systems interface supply (ignition positive).

F14 - Not used.

F15 10 A Right-hand main beam headlamp.

F16 10 A Left-hand main beam headlamp.

F17 15 A Left-hand dipped headlamp.

F18 15 A Right-hand dipped headlamp.

F19 15 A Oxygen sensors (petrol), air cooling solenoid valves
(Diesel).

F20 10 A Controlled thermostat, variable timing solenoid
valves, Turbo pressure regulation solenoid valve
(Diesel), engine coolant level detector (Diesel).

F21 5 A
Fan assembly relay supply, Turbo cooling (1.6 l THP 16V).

10
146
PRACTICAL INFORMATION
Table of mini and midi-fuses above the battery
* The maxi-fuses provide additional protection for the electrical systems.
All work on the maxi-fuses must be
carried out by a PEUGEOT dealer.
Fuse N° Rating Functions

F1 15 A Automatic gearbox.

F2 15 A Diagnostic socket, daytime lights.

F3 5 A Dual-function brake switch.

F4 - Not used.

F5 * 80 A Power steering electropump assembly.

F6 * 70 A Heating unit (Diesel).

F7 * 100 A Switching and protection unit.

F8 *
50 A Driver and passenger neck heater.

F9 - Not used.

F10 * 30 A Valvetronic electric motor (1.6 l THP 16V).
Table of maxi-fuses
Fuse N° Rating Functions

MF1 * 50 A Retractable roof electropump assembly and unit.

MF2 * 50 A Passenger compartment fuse box.

MF3 * 50 A Fan assembly.

MF4 * 80 A Built-in systems interface.

MF5 * 80 A Built-in systems interface.

MF6 * 40 A ABS/ESP control unit.

MF7 * 30 A ABS/ESP solenoid valves.

MF8 * - Not used.

10
147
PRACTICAL INFORMATION

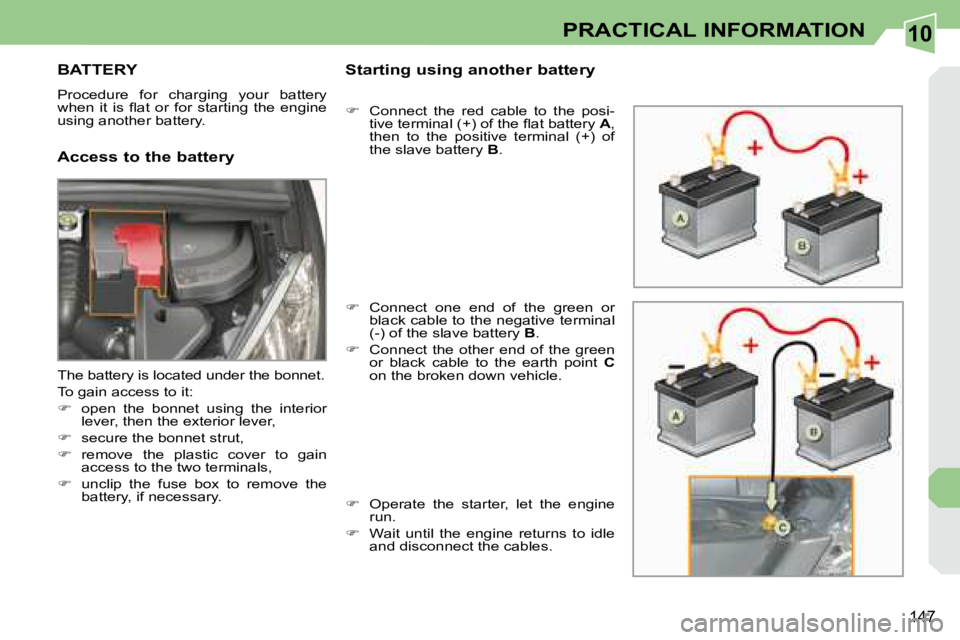

BATTERY
Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.
Access to the battery Starting using another battery

 Connect the red cable to the posi-
tive terminal (+) of the fl at battery A ,
then to the positive terminal (+) of
the slave battery B .

 Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B .

 Connect the other end of the green
or black cable to the earth point C
on the broken down vehicle.

 Operate the starter, let the engine
run.

 Wait until the engine returns to idle
and disconnect the cables.
The battery is located under the bonnet.
To gain access to it:

 open the bonnet using the interior
lever, then the exterior lever,

 secure the bonnet strut,

 remove the plastic cover to gain
access to the two terminals,

 unclip the fuse box to remove the
battery, if necessary.
