INSTRUMENTS and CONTROLS

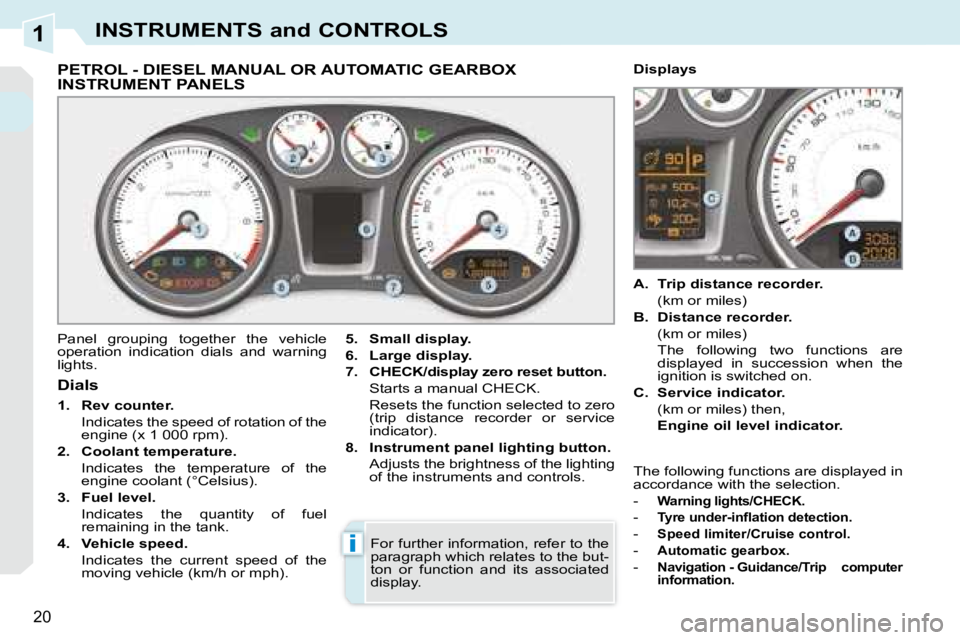

PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Small display.

6. Large display.

7. CHECK/display zero reset button.
Starts a manual CHECK.
Resets the function selected to zero (trip distance recorder or service
indicator).

8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).

3. Fuel level.
Indicates the quantity of fuel remaining in the tank.

4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(km or miles)

B. Distance recorder.
(km or miles)
The following two functions are displayed in succession when the
ignition is switched on.

C. Service indicator.
(km or miles) then,
Engine oil level indicator.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-

Warning lights/CHECK.
-

Tyre under-infl ation detection.
- Speed limiter/Cruise control.
-
Automatic gearbox.
-
Navigation - Guidance/Trip computer
information.

1
i
21
INSTRUMENTS and CONTROLS

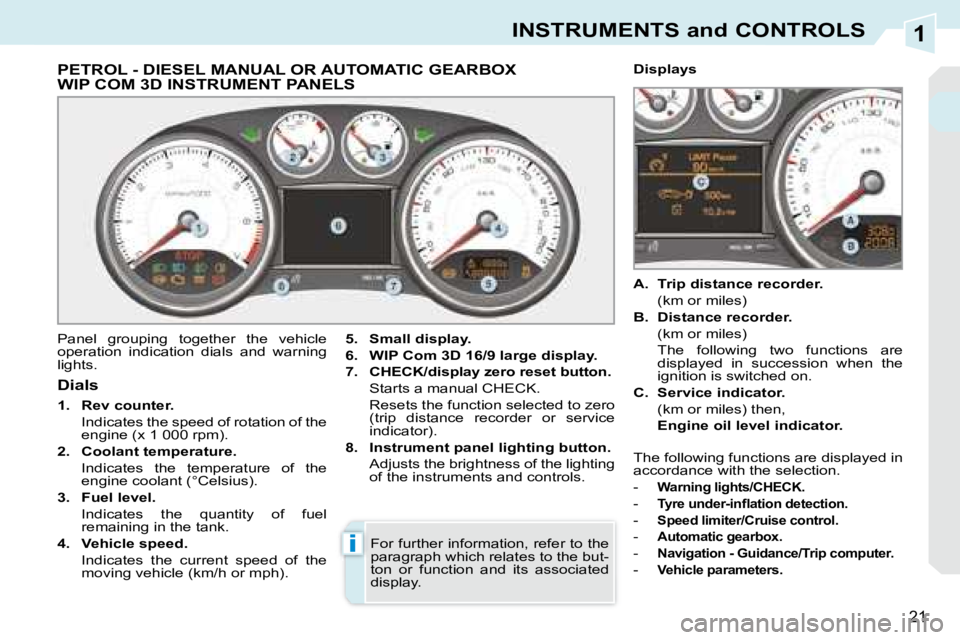

PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX WIP COM 3D INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Small display.

6. WIP Com 3D 16/9 large display.

7. CHECK/display zero reset button.
Starts a manual CHECK.
Resets the function selected to zero (trip distance recorder or service
indicator).

8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).

3. Fuel level.
Indicates the quantity of fuel remaining in the tank.

4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(km or miles)

B. Distance recorder.
(km or miles)
The following two functions are displayed in succession when the
ignition is switched on.

C. Service indicator.
(km or miles) then,
Engine oil level indicator.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-

Warning lights/CHECK.

- Tyre under-infl ation detection.

- Speed limiter/Cruise control.

- Automatic gearbox.

- Navigation - Guidance/Trip computer.

- Vehicle parameters.

1
i
22
INSTRUMENTS and CONTROLS
* According to country.

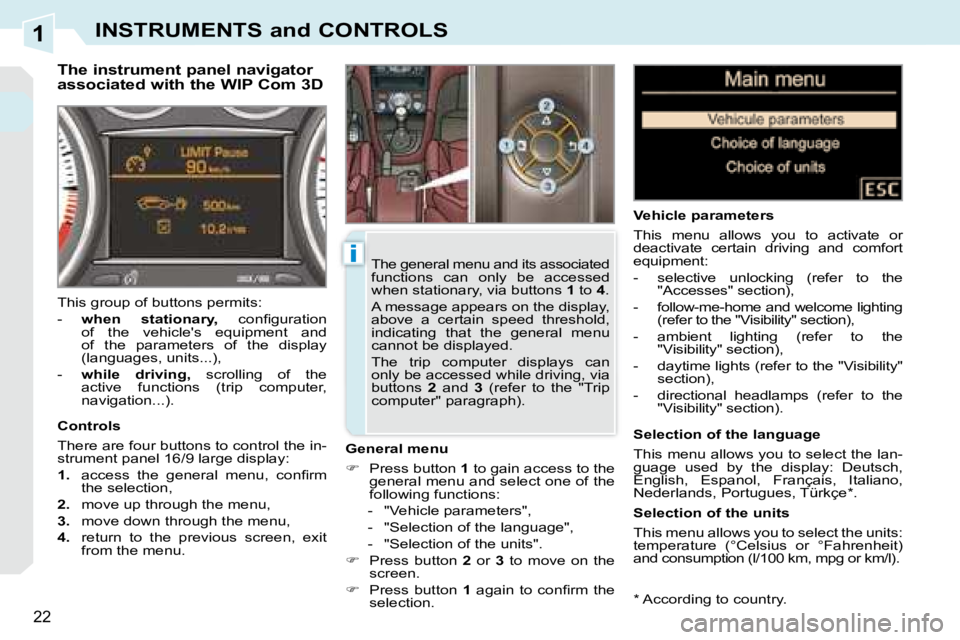

The instrument panel navigator
associated with the WIP Com 3D
General menu

 Press button 1 to gain access to the
general menu and select one of the
following functions:
- "Vehicle parameters",
- "Selection of the language",
- "Selection of the units".

 Press button 2 or 3 to move on the
screen.

 Press button 1 again to confi rm the
selection. Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- selective unlocking (refer to the
"Accesses" section),
- follow-me-home and welcome lighting (refer to the "Visibility" section),
- ambient lighting (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section).
Selection of the language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .
Selection of the units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and consumption (l/100 km, mpg or km/l).

This group of buttons permits:
-
when stationary
,stationary confi guration
of the vehicle's equipment and
of the parameters of the display
(languages, units...),
- while driving
, scrolling of the
active functions (trip computer,
navigation...).
Controls
There are four buttons to control the in-
strument panel 16/9 large display:

1. access the general menu, confi rm
the selection,

2. move up through the menu,

3. move down through the menu,

4. return to the previous screen, exit
from the menu. The general menu and its associated
functions can only be accessed
when stationary, via buttons
1 to 4 .
A message appears on the display,
above a certain speed threshold,
indicating that the general menu
cannot be displayed.
The trip computer displays can
only be accessed while driving, via
buttons 2 and 3 (refer to the "Trip
computer" paragraph).

1
!
23
INSTRUMENTS and CONTROLS
The warning lights may come on
continuously or fl ash.
Certain warning lights may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situa-
tion is normal or whether a fault
has occurred.

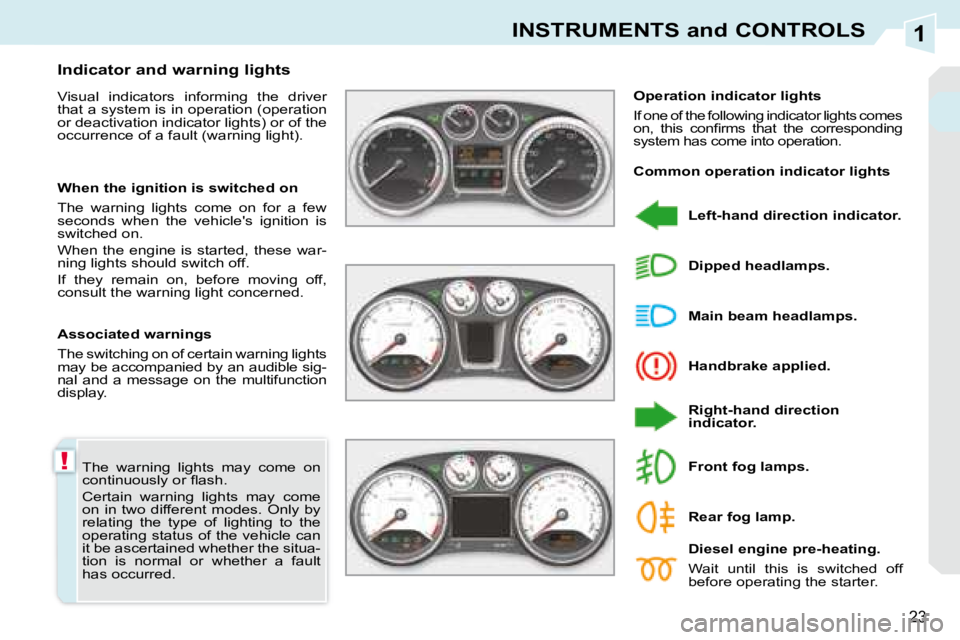

Indicator and warning lights
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lights) or of the
occurrence of a fault (warning light).
Associated warnings
The switching on of certain warning lights
may be accompanied by an audible sig-
nal and a message on the multifunction
display.
Operation indicator lights
If one of the following indicator lights comes
on, this confi rms that the corresponding
system has come into operation.
Left-hand direction indicator.
Handbrake applied.
Right-hand direction
indicator.
Main beam headlamps.
Dipped headlamps.
Diesel engine pre-heating.
Wait until this is switched off
before operating the starter.
Front fog lamps.
Rear fog lamp.
When the ignition is switched on
The warning lights come on for a few
seconds when the vehicle's ignition is
switched on.
When the engine is started, these war-
ning lights should switch off.
If they remain on, before moving off,
consult the warning light concerned.
Common operation indicator lights

1
24
INSTRUMENTS and CONTROLS
Foot on brake.
Press the brake pedal to start
the engine with the automatic
gearbox.

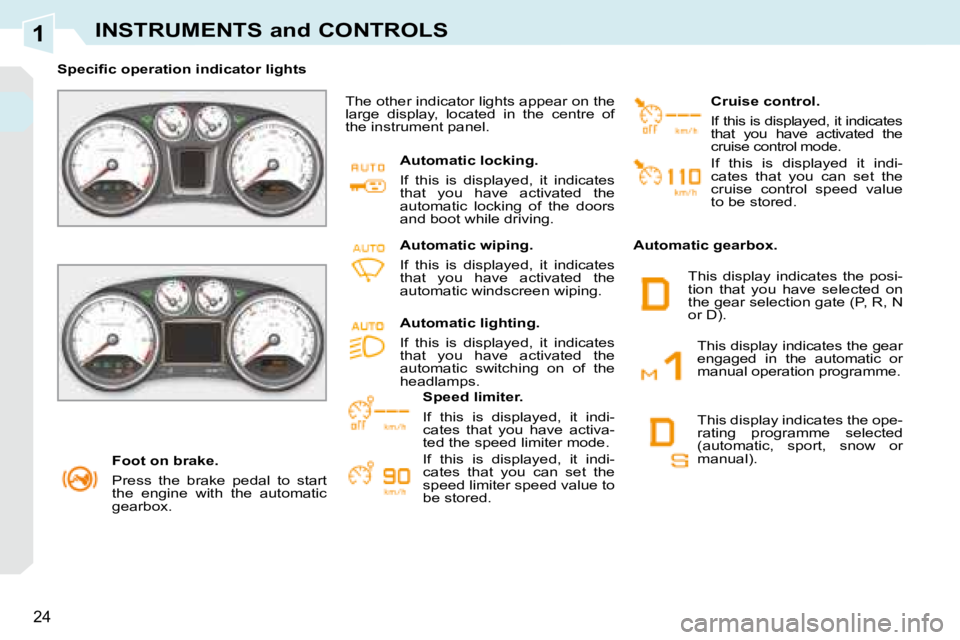

Specifi c operation indicator lights
The other indicator lights appear on the
large display, located in the centre of
the instrument panel.
Automatic locking.
If this is displayed, it indicates
that you have activated the
automatic locking of the doors
and boot while driving.
Speed limiter.
If this is displayed, it indi-
cates that you have activa-
ted the speed limiter mode.
If this is displayed, it indi-
cates that you can set the
speed limiter speed value to
be stored. Cruise control.
If this is displayed, it indicates
that you have activa ted the
cruise control mode.
If this is displayed it indi-
cates that you can set the
cruise control speed value
to be stored.
Automatic gearbox.
Automatic wiping.
If this is displayed, it indicates
that you have activated the
automatic windscreen wiping.
Automatic lighting.
If this is displayed, it indicates
that you have activated the
automatic switching on of the
headlamps. This display indicates the gear
engaged in the automa tic or
manual operation programme.
This display indicates the ope-
rating programme selected
(automatic, sport, snow or
manual).
This display indicates the posi-
tion that you have selected on
the gear selection gate (P, R, N
or D).

1
25
INSTRUMENTS and CONTROLS

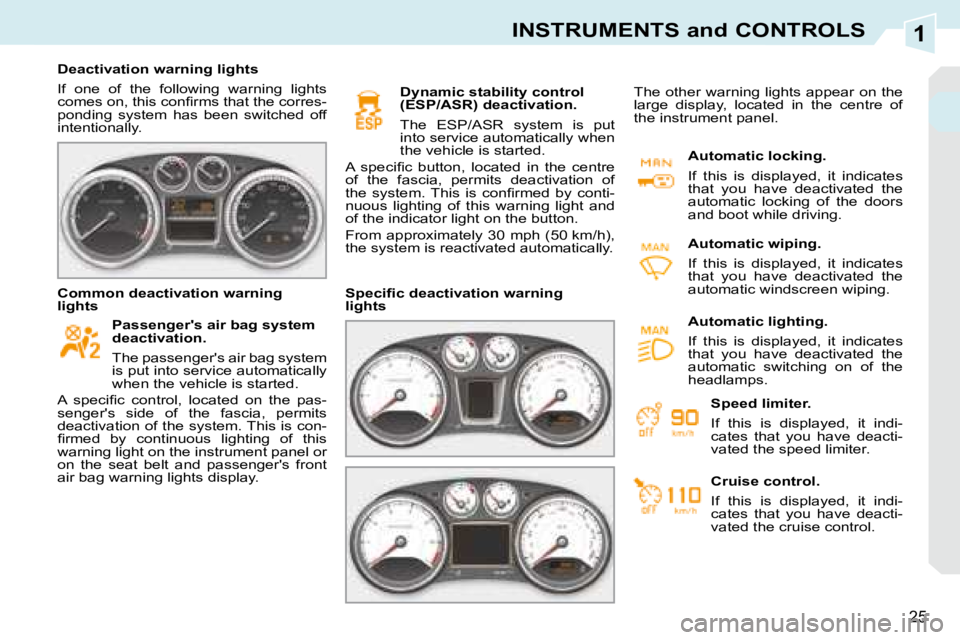

Deactivation warning lights
If one of the following warning lights
comes on, this confi rms that the corres-
ponding system has been switched off
intentionally. Passenger's air bag system
deactivation.
The passenger's air bag system
is put into service automatically
when the vehicle is started.
A specifi c control, located on the pas-
senger's side of the fascia, permits
deactivation of the system. This is con-
fi rmed by continuous lighting of this
warning light on the instrument panel or
on the seat belt and passenger's front
air bag warning lights display. Dynamic stability control
(ESP/ASR) deactivation.
The ESP/ASR system is put
into service automatically when
the vehicle is started.
A specifi c button, located in the centre
of the fascia, permits deactivation of
the system. This is confi rmed by conti-
nuous lighting of this warning light and
of the indicator light on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
Common deactivation warning
lights Specifi c deactivation warning
lights Automatic locking.
If this is displayed, it indicates
that you have deactivated the
automatic locking of the doors
and boot while driving.
Automatic wiping.
If this is displayed, it indicates
that you have deactivated the
automatic windscreen wiping.
The other warning lights appear on the
large display, located in the centre of
the instrument panel.
Speed limiter.
If this is displayed, it indi-
cates that you have deacti-
vated the speed limiter.
Cruise control.
If this is displayed, it indi-
cates that you have deacti-
vated the cruise control.
Automatic lighting.
If this is displayed, it indicates
that you have deactivated the
automatic switching on of the
headlamps.

1
!
26
INSTRUMENTS and CONTROLS
When the engine is running or the ve-
hicle is moving, the lighting of one of the
following warning lights indicates the
occurrence of a fault requiring interven-
tion on the part of the driver. Central alert.
Lighting is associated with
the displaying of another
warning light:
- punctured wheel,
- braking,
- power steering,
- engine oil pressure,
- coolant temperature,
stop the vehicle immediately and as
safely as possible.
Service.
If this comes on, it indicates the
occurrence of a problem in one
of the systems which does not
have a specifi c warning light.
In order to identify it, consult the mes-
sage on the multifunction display. Braking.
If this comes on, it indicates the
occurrence of a fault in one of
the braking systems:
- signifi cant drop in the level in the circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous lighting
of the ABS warning light),
stop the vehicle immediately and as
safely as possible.
When the vehicle is moving, check that
the handbrake is fully released.
Any fault resulting in the displaying
of a warning light must be the sub-
ject of further diagnostics by read-
ing the associated message on the
multifunction display.
Should you encounter any prob-
lems, do not hesitate to contact a
PEUGEOT dealer.

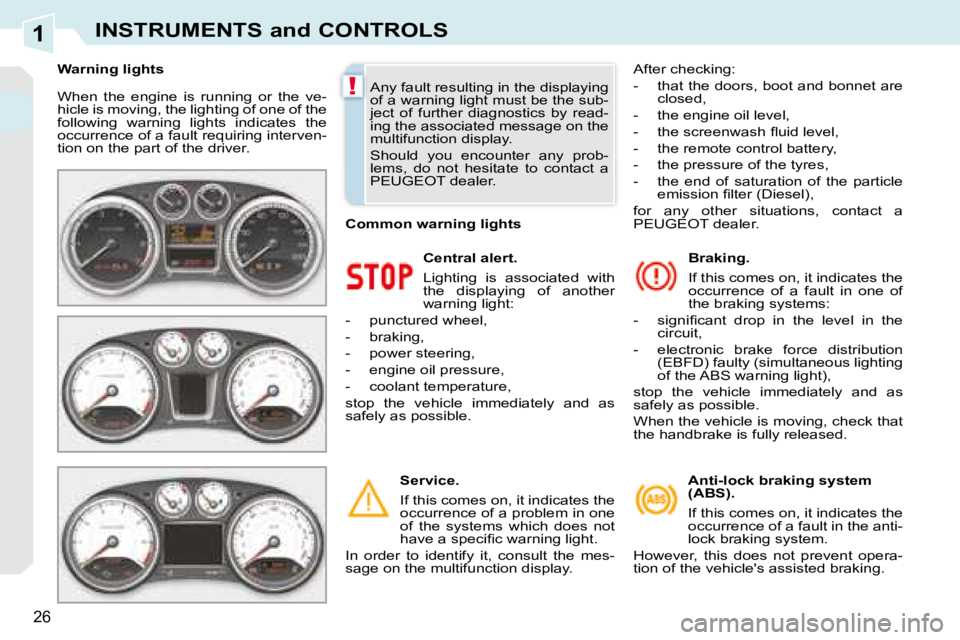

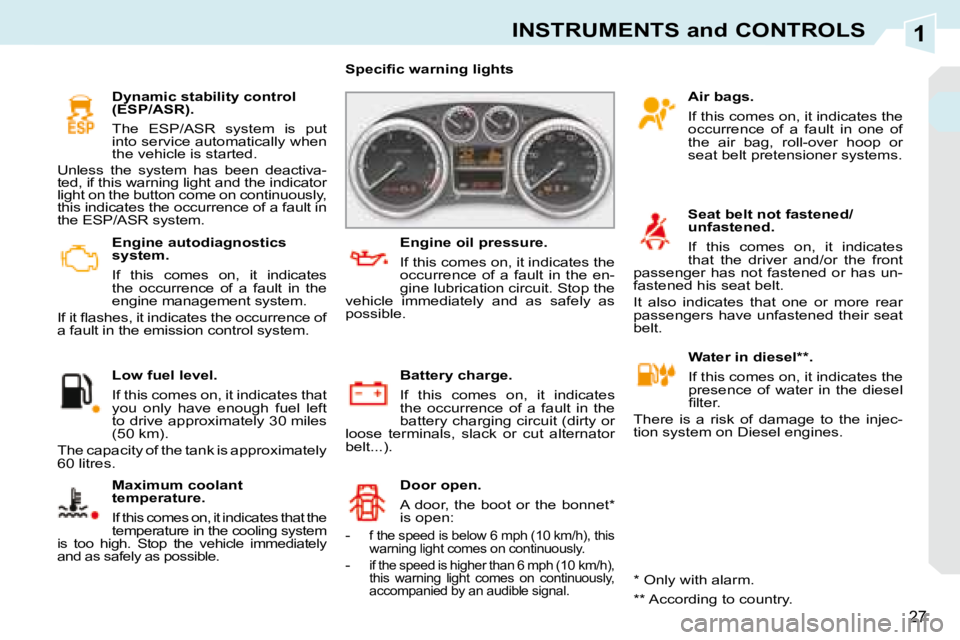

Warning lights
Anti-lock braking system
(ABS).
If this comes on, it indicates the
occurrence of a fault in the anti-
lock braking system.
However, this does not prevent opera-
tion of the vehicle's assisted braking.
Common warning lights

After checking:
- that the doors, boot and bonnet are
closed,
- the engine oil level,
- the screenwash fl uid level,
- the remote control battery,
- the pressure of the tyres,
- the end of saturation of the particle emission fi lter (Diesel),
for any other situations, contact a
PEUGEOT dealer.

1
27
INSTRUMENTS and CONTROLS
Engine autodiagnostics
system.
If this comes on, it indicates
the occurrence of a fault in the
engine management system.
If it fl ashes, it indicates the occurrence of
a fault in the emission control system.
Low fuel level.
If this comes on, it indicates that
you only have enough fuel left
to drive approximately 30 miles
(50 km).
The capacity of the tank is approximately
60 litres.
Maximum coolant
temperature.
If this comes on, it indicates that the
temperature in the coo ling system
is too high. Stop the vehicle immediately
and as safely as possible.
Air bags.
If this comes on, it indicates the
occurrence of a fault in one of
the air bag, roll-over hoop or
seat belt pretensioner systems.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened his seat belt.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Water in diesel ** .
If this comes on, it indicates the
presence of water in the diesel
fi lter.
There is a risk of damage to the injec-
tion system on Diesel engines.
Door open.
A door, the boot or the bonnet *
is open:
Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt...). Engine oil pressure.
If this comes on, it indicates the
occurrence of a fault in the en-
gine lubrication circuit. Stop the
vehicle immediately and as safely as
possible.
Specifi c warning lights
* Only with alarm.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactiva-
ted, if this warning light and the indicator
light on the button come on continuously,
this indicates the occurrence of a fault in
the ESP/ASR system.
** According to country.
-
f the speed is below 6 mph (10 km/h), this
warning light comes on continuously.

- if the speed is higher than 6 mph (10 km/h),
this warning light comes on continuously,
accompanied by an audible signal.
