Page 17 of 97
1
20
INSTRUMENTS and CONTROLS
DISPLAY
To reset the trip recorder to zero,
when it is displayed, press and hold
button 1 . "2 Tronic" gearbox indicator
Lever in EASY mode
(automatic mode)
"E" is displayed when this
operating mode is selected.
It is switched off on switching to man-
ual mode.
Lever in manual mode
"M" is displayed when this
operating mode is selected.
It is switched off on switching
to EASY mode.
"Neutral"
"Reverse"
Total/trip distance recorder
When the ignition is switched on, the
distance recorder selected when the
engine was switched off is displayed.
Press button
1 to alternate the distance
display:
- total with "ODO" displayed,
- trip with "TRIP" displayed.
Page 18 of 97
1
20
INSTRUMENTS and CONTROLS
DISPLAY
To reset the trip recorder to zero,
when it is displayed, press and hold
button 1 . "2 Tronic" gearbox indicator
Lever in EASY mode
(automatic mode)
"E" is displayed when this
operating mode is selected.
It is switched off on switching to man-
ual mode.
Lever in manual mode
"M" is displayed when this
operating mode is selected.
It is switched off on switching
to EASY mode.
"Neutral"
"Reverse"
Total/trip distance recorder
When the ignition is switched on, the
distance recorder selected when the
engine was switched off is displayed.
Press button
1 to alternate the distance
display:
- total with "ODO" displayed,
- trip with "TRIP" displayed.

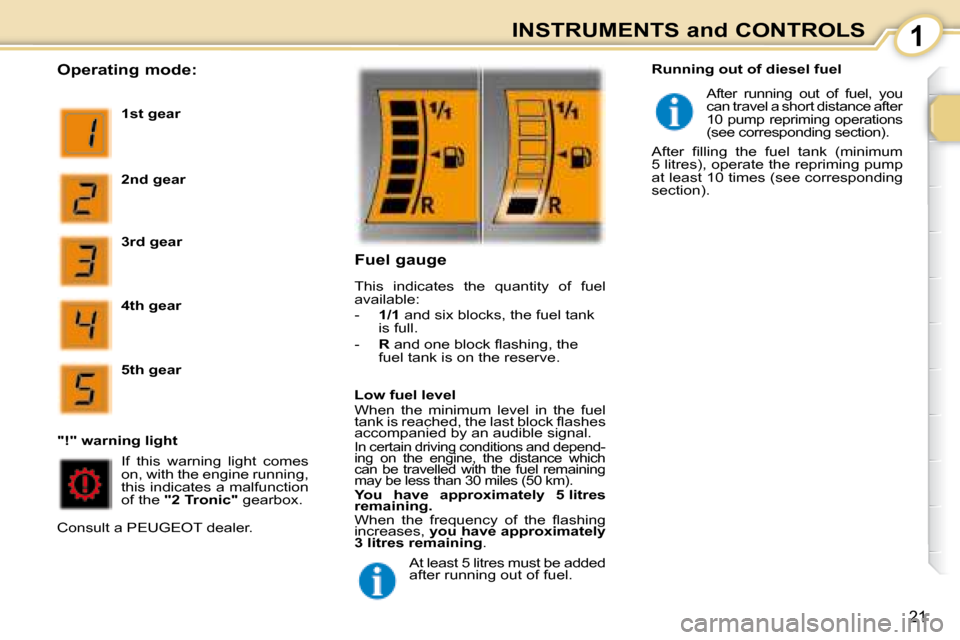

Page 19 of 97
1
21
INSTRUMENTS and CONTROLS
Operating mode:
1st gear
2nd gear
3rd gear
4th gear
5th gear
If this warning light comes
on, with the engine running,
this indicates a malfunction
of the "2 Tronic" gearbox. Fuel gauge
This indicates the quantity of fuel
available:
-
1/1 and six blocks, the fuel tank
is full.
- R a n d o n e b l o c k fl a s h i n g , t h e
fuel tank is on the reserve.
Low fuel level
When the minimum level in the fuel
t a n k i s r e a c h e d , t h e l a s t b l o c k fl a s h e s
accompanied by an audible signal.
In certain driving conditions and depend-
ing on the engine, the distance which
can be travelled with the fuel remaining
may be less than 30 miles (50 km).
You have approximately 5 litres
remaining.
W h e n t h e f r e q u e n c y o f t h e fl a s h i n g
increases, you have approximately
3 litres remaining .
At least 5 litres must be added
after running out of fuel. Running out of diesel fuel
After running out of fuel, you
can travel a short distance after
10 pump repriming operations
(see corresponding section).
A f t e r fi l l i n g t h e f u e l t a n k ( m i n i m u m
5 litres), operate the repriming pump
at least 10 times (see corresponding
section).
"!" warning light
Consult a PEUGEOT dealer.

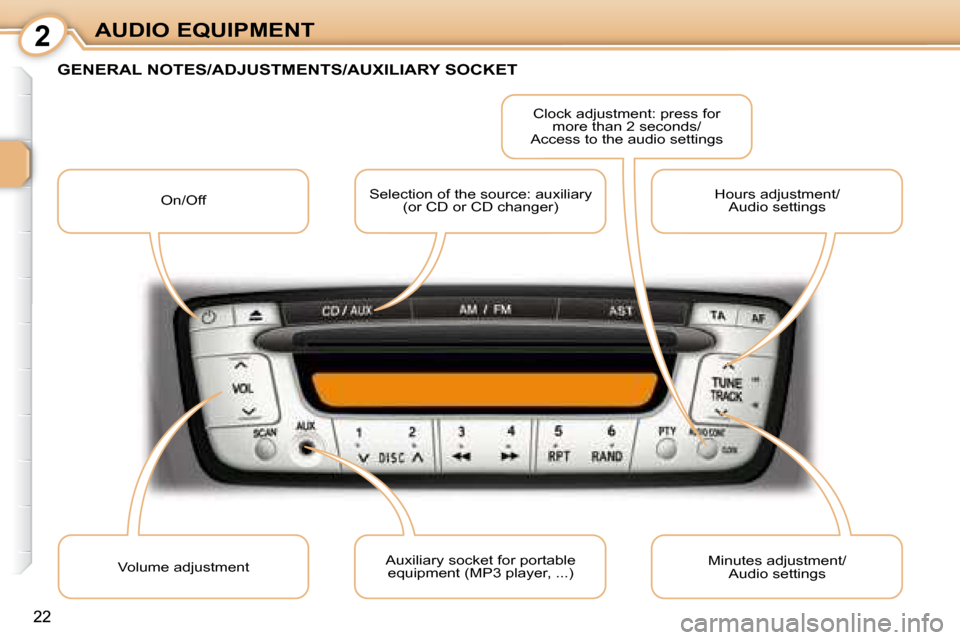

Page 20 of 97
2
22
AUDIO EQUIPMENT
GENERAL NOTES/ADJUSTMENTS/AUXILIARY SOCKET
On/Off Selection of the source: auxiliary
(or CD or CD changer) Clock adjustment: press for
more than 2 seconds/
Access to the audio settings
Volume adjustment Auxiliary socket for portable
equipment (MP3 player, ...) Hours adjustment/
Audio settings
Minutes adjustment/ Audio settings
22
Page 21 of 97
2
23
AUDIO EQUIPMENT
GENERAL
FUNCTIONS
On/off
With the ignition key in
the accessories posi-
tion or with the ignition on, press this
button to switch the audio equipment
on or off.
After the engine has been switched
off, the audio equipment can only op-
erate for approximately 30 minutes,
to prevent discharging of the battery.
Press the upper part
of this button several
times in succession to
increase the volume of
the audio equipment
or the lower part of this
button to decrease it.
VOLUME ADJUSTMENT
CLOCK ADJUSTMENT
Press this button sev-
eral times in succes-
sion to gain access
to the bass (BASS) ,
treble (TREB) , front/rear balance
(FAD) and left/right balance (BAL)
settings.
AUDIO SETTINGS
Press this button for
more than 2 seconds, the
c l o c k d i s p l a y fl a s h e s :
AUXILIARY SOCKET
An auxiliary socket
"AUX" is provided for
the connection of port-
able equipment (MP3
player, etc.).
When the parameter
is displayed, change
the setting using these
two buttons.
You exit from this mode automatically
after a few seconds without any action.
In order to listen to it,
connect your equipment
then press this button.
The audio equipment controls enable
you to adjust the volume and the audio
settings.
To exit from the AUX source, press
AM/FM .
When using an MP3 player: in-
c r e a s e t h e v o l u m e o f t h e r a d i o s i g n i fi -
cantly (between 30 and 60) to obtain
a satisfactory playing volume.
- to adjust the hours, press this button,
-
to adjust the minutes,
press this button.
You exit from this mode automati-
cally after a few seconds without any
action.

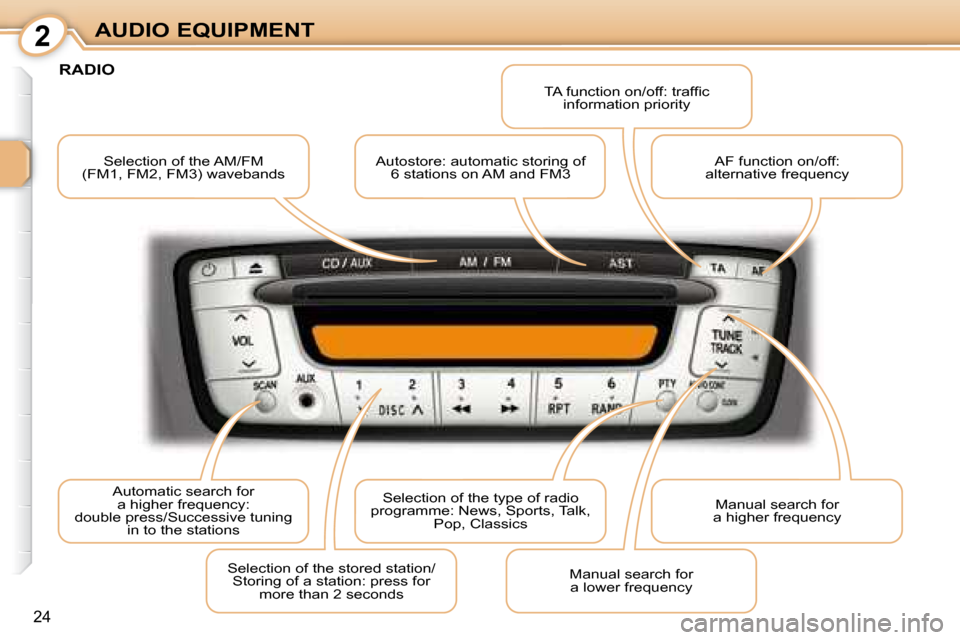

Page 22 of 97
2
24
AUDIO EQUIPMENT Selection of the AM/FM
(FM1, FM2, FM3) wavebands Autostore: automatic storing of
6 stations on AM and FM3 T A f u n c t i o n o n / o f f : t r a f fi c
information priority
Automatic search for a higher frequency:
double press/Successive tuning in to the stations Selection of the type of radio
programme: News, Sports, Talk, Pop, Classics AF function on/off:
alternative frequency
Manual search for
a higher frequency
Selection of the stored station/ Storing of a station: press for more than 2 seconds Manual search for
a lower frequency
RADIO
Page 23 of 97

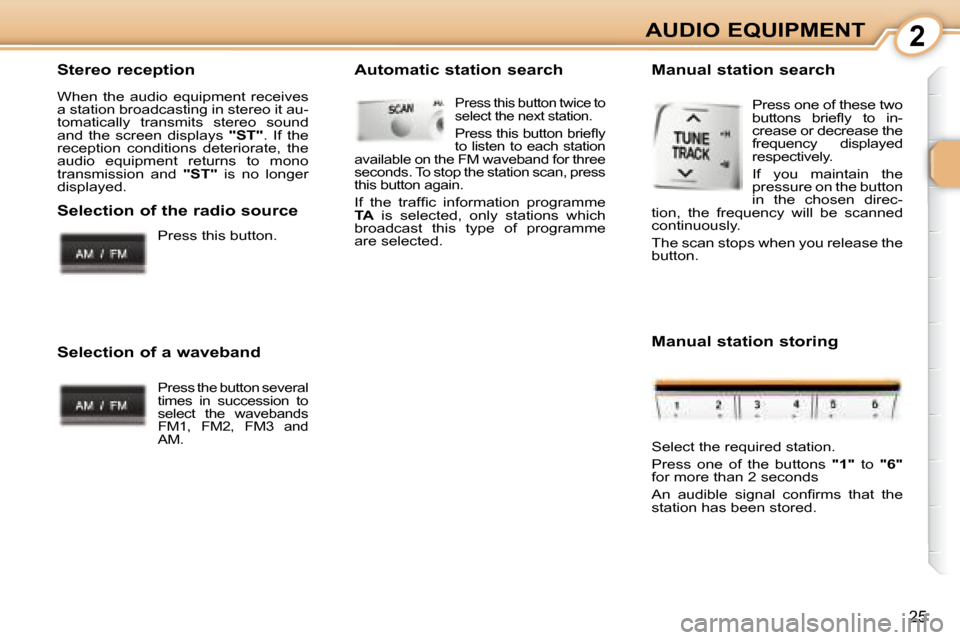

2
25
AUDIO EQUIPMENT
Stereo reception
When the audio equipment receives
a station broadcasting in stereo it au-
tomatically transmits stereo sound
and the screen displays "ST" . If the
reception conditions deteriorate, the
audio equipment returns to mono
transmission and "ST" is no longer
displayed. Press one of these two
b u t t o n s b r i e fl y t o i n -
crease or decrease the
frequency displayed
respectively.
If you maintain the
pressure on the button
in the chosen direc-
tion, the frequency will be scanned
continuously.
The scan stops when you release the
button.
Manual station search
Automatic station search
Manual station storing
Selection of the radio source
Selection of a waveband
Press this button.
Press this button twice to
select the next station.
P r e s s t h i s b u t t o n b r i e fl y
to listen to each station
available on the FM waveband for three
seconds. To stop the station scan, press
this button again.
I f t h e t r a f fi c i n f o r m a t i o n p r o g r a m m e
TA is selected, only stations which
broadcast this type of programme
are selected.
Press the button several
times in succession to
select the wavebands
FM1, FM2, FM3 and
AM.
Select the required station.
Press one of the buttons "1" to "6"
for more than 2 seconds
A n a u d i b l e s i g n a l c o n fi r m s t h a t t h e
station has been stored.

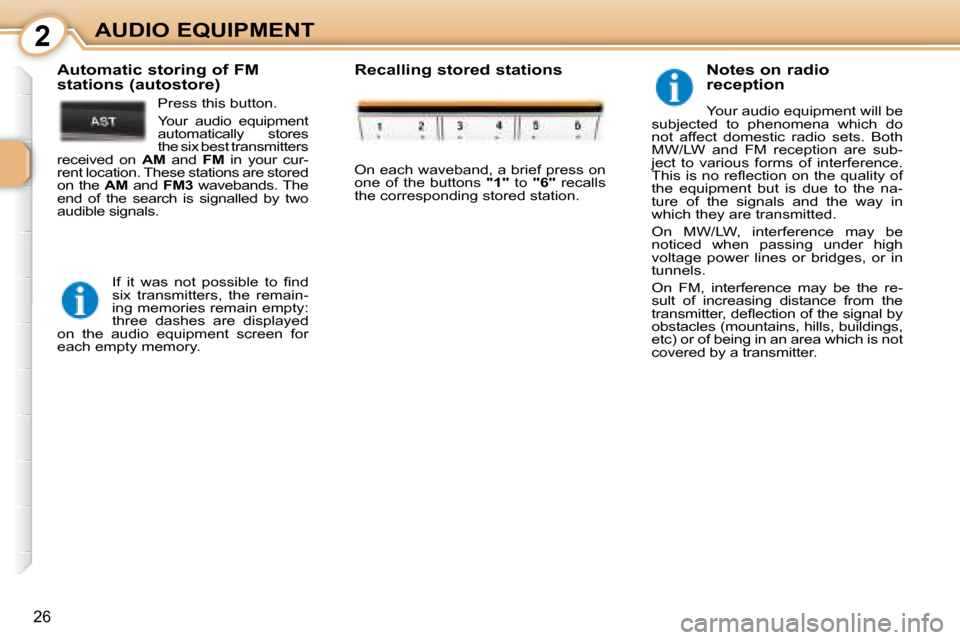

Page 24 of 97
2
26
AUDIO EQUIPMENT Notes on radio
reception
Your audio equipment will be
subjected to phenomena which do
not affect domestic radio sets. Both
MW/LW and FM reception are sub-
ject to various forms of interference.
T h i s i s n o r e fl e c t i o n o n t h e q u a l i t y o f
the equipment but is due to the na-
ture of the signals and the way in
which they are transmitted.
On MW/LW, interference may be
noticed when passing under high
voltage power lines or bridges, or in
tunnels.
On FM, interference may be the re-
sult of increasing distance from the
t r a n s m i t t e r , d e fl e c t i o n o f t h e s i g n a l b y
obstacles (mountains, hills, buildings,
etc) or of being in an area which is not
covered by a transmitter.
Automatic storing of FM
stations (autostore)
Press this button.
Your audio equipment
automatically stores
the six best transmitters
received on AM and FM in your cur-
rent location. These stations are stored
on the AM and FM3 wavebands. The
end of the search is signalled by two
audible signals. Recalling stored stations
On each waveband, a brief press on
one of the buttons
"1" to "6" recalls
the corresponding stored station.
I f i t w a s n o t p o s s i b l e t o fi n d
six transmitters, the remain-
ing memories remain empty:
three dashes are displayed
on the audio equipment screen for
each empty memory.
