Page 49 of 97
4
48
ACCESS ELECTRIC WINDOWS
The driver and front passenger each
have an electric window.
After the ignition has been switched
on, press or pull control 1 . The window
stops when you release the control.
Always remove the key from
the ignition when leaving
the vehicle, even for a short
time.
The driver must ensure that the front
passenger uses his electric window
correctly.
Be aware of children when operating
the windows.
DOORS
Simultaneous central locking/
unlocking of the doors and boot.
To lock/unlock the vehicle, press/pull
button A on the driver's door.
For the other doors, carry out the
same operation as for normal locking/unlocking.
Driver's door open
If the driver's door is open,
the courtesy light remains
on if the button is in this po-
sition.
Locking/unlocking a door
from the inside
Normal locking/unlocking: the
doors lock/unlock independently.
To lock/unlock a door, press/pull
button A .
Note: operating the handle does not
unlock the door, pull button A to un-
lock.
Page 50 of 97
4
49
ACCESS
CHILD LOCK
This prevents the opening of each of
the rear doors from the inside.
Push control 1 towards the outside of
the vehicle.
LOCKING/UNLOCKING THE
BOOT USING THE KEY*
To open, operate the lock B using the
key and raise the tailgate.
LOCKING/UNLOCKING THE
BOOT USING THE REMOTE
CONTROL *
The boot is locked/unlocked using
the buttons on the remote control.
Then, to open, press button C and
raise the tailgate.
Note: the boot can be locked/un-
locked using control A on the driver's
door.
REAR WINDOWS
(5-DOOR)
To partially open the rear windows,
pull the lever then push the window.
To close the window, pull then press
the lever to lock the window.
Check the status of this safety
device before switching on the
ignition.
This system is independent
of the central locking.
Always remove the key from the ignition
when leaving the vehicle. * According to version.
Page 51 of 97
4
49
ACCESS
CHILD LOCK
This prevents the opening of each of
the rear doors from the inside.
Push control 1 towards the outside of
the vehicle.
LOCKING/UNLOCKING THE
BOOT USING THE KEY*
To open, operate the lock B using the
key and raise the tailgate.
LOCKING/UNLOCKING THE
BOOT USING THE REMOTE
CONTROL *
The boot is locked/unlocked using
the buttons on the remote control.
Then, to open, press button C and
raise the tailgate.
Note: the boot can be locked/un-
locked using control A on the driver's
door.
REAR WINDOWS
(5-DOOR)
To partially open the rear windows,
pull the lever then push the window.
To close the window, pull then press
the lever to lock the window.
Check the status of this safety
device before switching on the
ignition.
This system is independent
of the central locking.
Always remove the key from the ignition
when leaving the vehicle. * According to version.
Page 52 of 97
4
50
ACCESS
BOOT
2. Spare wheel/Additional storage compartments
Located under the carpet and a plas-
tic cover, this contains the tools for
wheel changing and towing.
There are two shelf storage options:
- either behind the rear seats,
- o r fl a t i n t h e b o o t .
1. Rear shelf
To remove the shelf:
- u n h o o k t h e s h e l f f r o m i t s fi x i n g
A ,
- pull upwards on each side to d e t a c h i t f r o m i t s fi x i n g s ,
- raise then tilt the shelf slightly to remove it. In order to obtain additional
space, the spare wheel can be
removed temporarily (boot tray
available as an accessory).
Page 53 of 97
4
51
ACCESS
FILLING THE FUEL TANK
O p e n t h e f u e l fi l l e r fl a p .
Insert the key, turn it slightly to the
left then return to the right. The
key returns to its initial position
and the cap is unlocked.
Low fuel level
When the fuel tank minimum
level is reached, the last
b l o c k fl a s h e s , a c c o m p a n i e d
by an audible signal.
You have approximately 5 litres
remaining.
In certain driving conditions and de-
pending on the engine, the distance
which can be travelled with the fuel
remaining may be less than 30 miles
(50 km).
W h e n t h e f r e q u e n c y o f t h e fl a s h i n g
increases, you have approximately
3 litres remaining .
Unscrew the cap and hook it onto
the clip located on the inside of
t h e fl a p .
A l a b e l a f fi x e d o n t h e i n s i d e o f t h e
fl a p r e m i n d s y o u w h i c h t y p e o f f u e l
to use.
W h e n y o u fi l l t h e f u e l t a n k , d o n o t
continue after the 3rd cut-off of the
pump. This could cause malfunctions.
Remove the key.
Note: if you run out of fuel,
the emission control system
warning light may come on
on the instrument panel. It
will switch off automatically after the
engine has been started a few times.
T h e f u e l t a n k m u s t b e fi l l e d
with the engine switched
off .
The capacity of the fuel tank is approxi-
mately 35 litres.
A f t e r fi l l i n g t h e f u e l t a n k , s c r e w
the cap back on fully to the right
u n t i l i t c l i c k s a n d c l o s e t h e fl a p .
Page 54 of 97
5
52
VISIBILITY

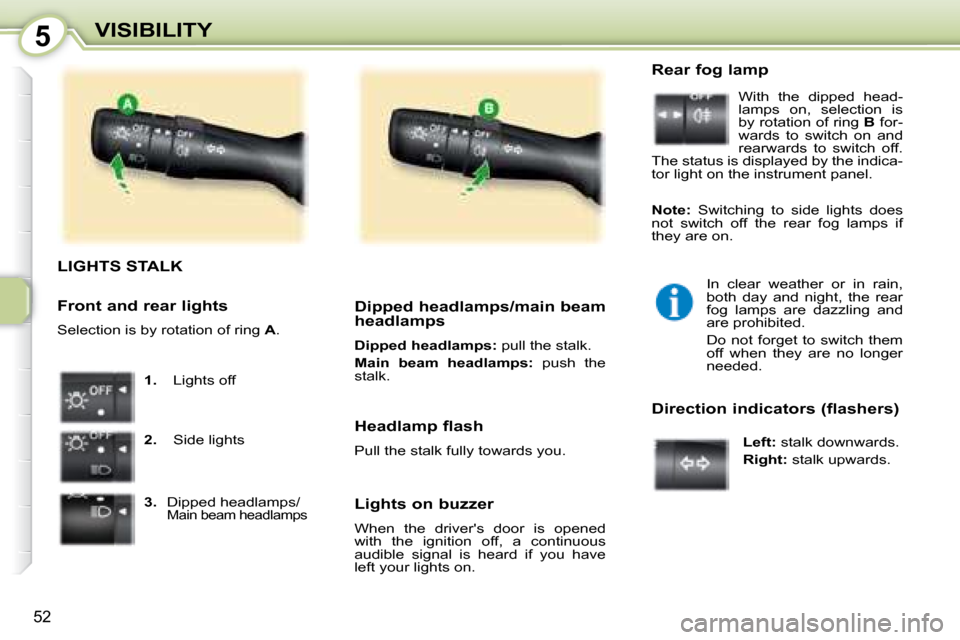

LIGHTS STALK
1. Lights off
2. Side lights
3. Dipped headlamps/
Main beam headlamps
Dipped headlamps/main beam
headlamps
Dipped headlamps: pull the stalk.
Main beam headlamps: push the
stalk.
Lights on buzzer
When the driver's door is opened
with the ignition off, a continuous
audible signal is heard if you have
left your lights on. Rear fog lamp
With the dipped head-
lamps on, selection is
by rotation of ring B for-
wards to switch on and
rearwards to switch off.
The status is displayed by the indica-
tor light on the instrument panel.
In clear weather or in rain,
both day and night, the rear
fog lamps are dazzling and
are prohibited.
Do not forget to switch them
off when they are no longer
needed.
Direction indicators (flashers)
Left: stalk downwards.
Right: stalk upwards.
Headlamp flash
Pull the stalk fully towards you.
Front and rear lights
Selection is by rotation of ring
A .
Note: Switching to side lights does
not switch off the rear fog lamps if
they are on.
Page 55 of 97
5
53
VISIBILITY

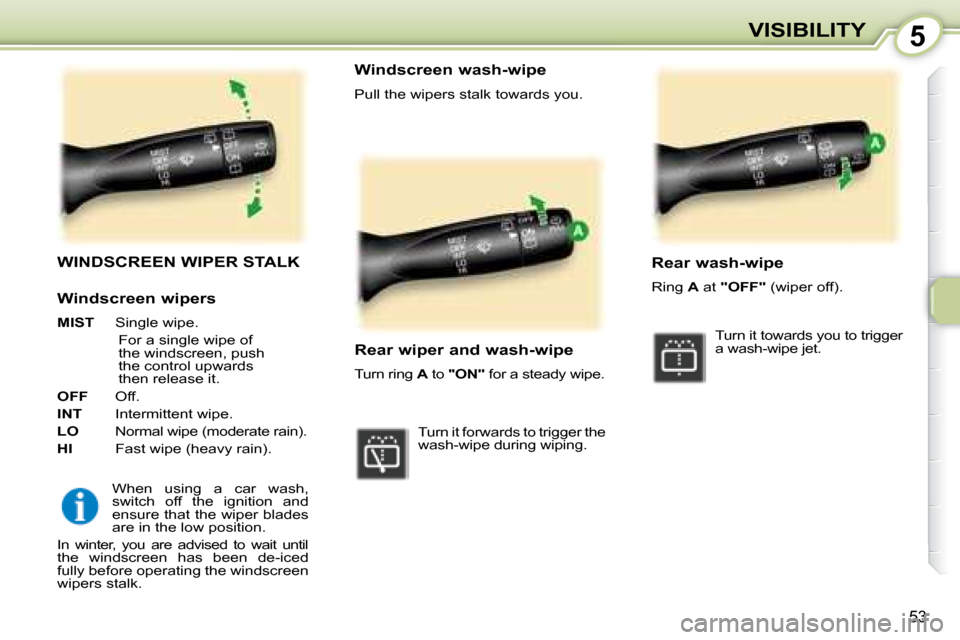

WINDSCREEN WIPER STALK
When using a car wash,
switch off the ignition and
ensure that the wiper blades
are in the low position.
In winter, you are advised to wait until
the windscreen has been de-iced
fully before operating the windscreen
wipers stalk. Windscreen wash-wipe
Pull the wipers stalk towards you.
Rear wiper and wash-wipe
Turn ring
A to "ON" for a steady wipe.
Turn it forwards to trigger the
wash-wipe during wiping. Rear wash-wipe
Ring
A at "OFF" (wiper off).
Turn it towards you to trigger
a wash-wipe jet.
Windscreen wipers
MIST Single wipe.
For a single wipe of
the windscreen, push
the control upwards
then release it.
OFF Off.
INT Intermittent wipe.
LO Normal wipe (moderate rain).
HI Fast wipe (heavy rain).
Page 56 of 97
5
54
VISIBILITY

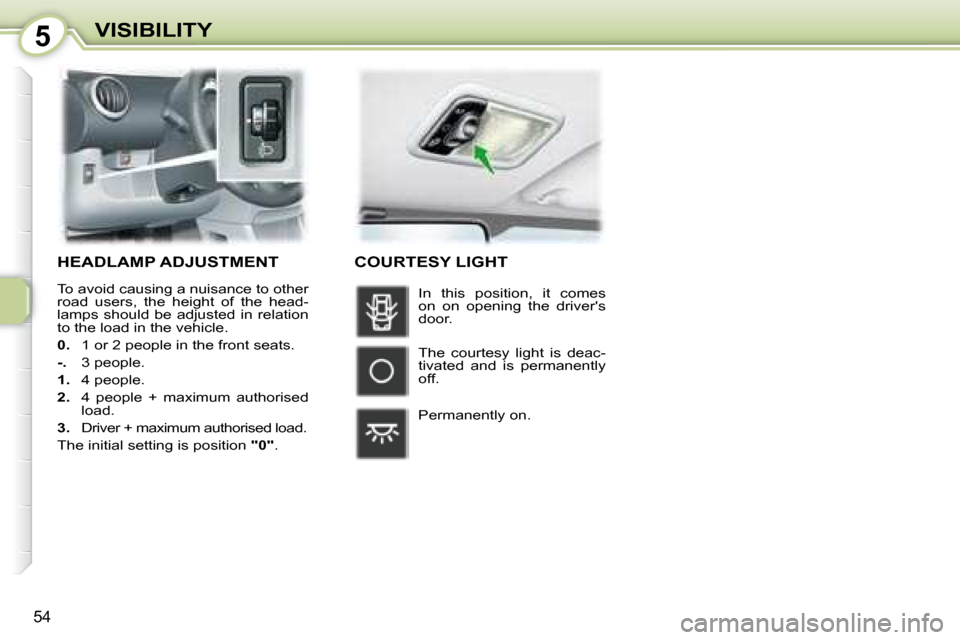

HEADLAMP ADJUSTMENT
To avoid causing a nuisance to other
road users, the height of the head-
lamps should be adjusted in relation
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 people.
2. 4 people + maximum authorised
load.
3. Driver + maximum authorised load.
The initial setting is position "0" . In this position, it comes
on on opening the driver's
door.
The courtesy light is deac-
tivated and is permanently
off.
COURTESY LIGHT
Permanently on.
