Page 65 of 97
6
61
SAFETY
For the front, side and cur-
tain air bags to be fully
effective, observe the fol-
lowing safety rules:
Wear a correctly adjusted seat belt.
Sit in a normal upright position.
Do not leave anything between the
occupants and the air bags (child,
animal, object...). This could hamper
the operation of the air bags or injure
the occupants.
All work on the air bag systems is
strictly prohibited unless it is car-
r i e d o u t b y q u a l i fi e d p e r s o n n e l o f t h e
PEUGEOT network.
After an accident or if the vehicle has
been stolen or broken into, have the
air bag systems checked. Front air bags
Do not drive holding the steering wheel
by its spokes or resting your hands on
the centre part of the wheel.
Passengers must not place their feet
on the fascia.
Smoke as little as possible; deploy-
ment of the air bags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Curtain air bags
D o n o t fi x o r g l u e a n y t h i n g t o t h e p i l l a r s
or the roof. This could cause injury to
the head when the curtain air bag in-
fl a t e s .
The triggering of an air bag or air
bags is accompanied by a slight
emission of harmless smoke and
a noise due to the activation of the
pyrotechnic cartridge incorporated in
the system. This smoke is not harm-
ful but sensitive individuals may ex-
perience some irritation.
The detonation noise may result in a
slight loss of hearing for a short time.
Even if all of the precautions men-
tioned are observed, injury or slight
burns to the head, chest or arms
when the air bag is triggered can-
not be ruled out. Indeed, the bag in-
fl a t e s a l m o s t i n s t a n t l y ( a p p r o x i m a t e l y
3 0 m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging hot gas
via the openings provided for this
purpose.
This equipment will only operate once.
If a second impact occurs (during the
same or a subsequent accident), the
a i r b a g w i l l n o t i n fl a t e .
Side air bags
Only put approved covers on the
seats, these will not hamper the in-
fl a t i o n o f t h e s i d e a i r b a g s . C o n s u l t a
PEUGEOT dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e f r o n t
seat backs. This could cause injury
to the chest or arms when the side
a i r b a g i n fl a t e s .
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Page 66 of 97
6
60
SAFETY

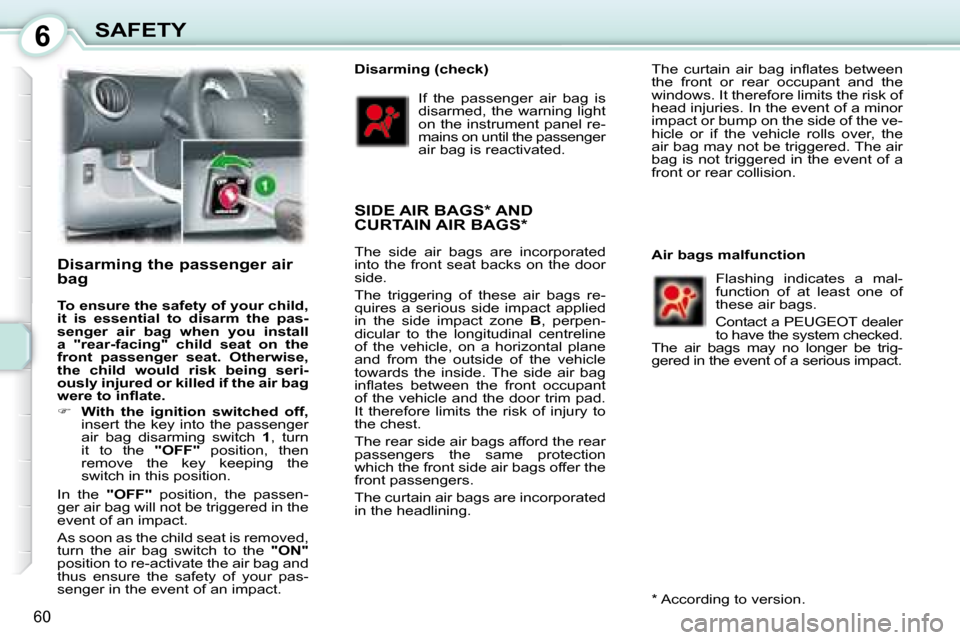

Disarming the passenger air
bag
To ensure the safety of your child,
it is essential to disarm the pas-
senger air bag when you install
a "rear-facing" child seat on the
front passenger seat. Otherwise,
the child would risk being seri-
ously injured or killed if the air bag
w e r e t o i n fl a t e .
With the ignition switched off ,
insert the key into the passenger
air bag disarming switch 1 , turn
it to the "OFF" position, then
remove the key keeping the
switch in this position.
In the "OFF" position, the passen-
ger air bag will not be triggered in the
event of an impact.
As soon as the child seat is removed,
turn the air bag switch to the "ON"
position to re-activate the air bag and
thus ensure the safety of your pas-
senger in the event of an impact. If the passenger air bag is
disarmed, the warning light
on the instrument panel re-
mains on until the passenger
air bag is reactivated.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant and the
windows. It therefore limits the risk of
head injuries. In the event of a minor
impact or bump on the side of the ve-
hicle or if the vehicle rolls over, the
air bag may not be triggered. The air
bag is not triggered in the event of a
front or rear collision.
Flashing indicates a mal-
function of at least one of
these air bags.
Contact a PEUGEOT dealer
to have the system checked.
The air bags may no longer be trig-
gered in the event of a serious impact.
Disarming (check)
Air bags malfunction
* According to version.
SIDE AIR BAGS * AND
CURTAIN AIR BAGS *
The side air bags are incorporated
into the front seat backs on the door
side.
The triggering of these air bags re-
quires a serious side impact applied
in the side impact zone B , perpen-
dicular to the longitudinal centreline
of the vehicle, on a horizontal plane
and from the outside of the vehicle
towards the inside. The side air bag
i n fl a t e s b e t w e e n t h e f r o n t o c c u p a n t
of the vehicle and the door trim pad.
It therefore limits the risk of injury to
the chest.
The rear side air bags afford the rear
passengers the same protection
which the front side air bags offer the
front passengers.
The curtain air bags are incorporated
in the headlining.
Page 67 of 97
6
61
SAFETY

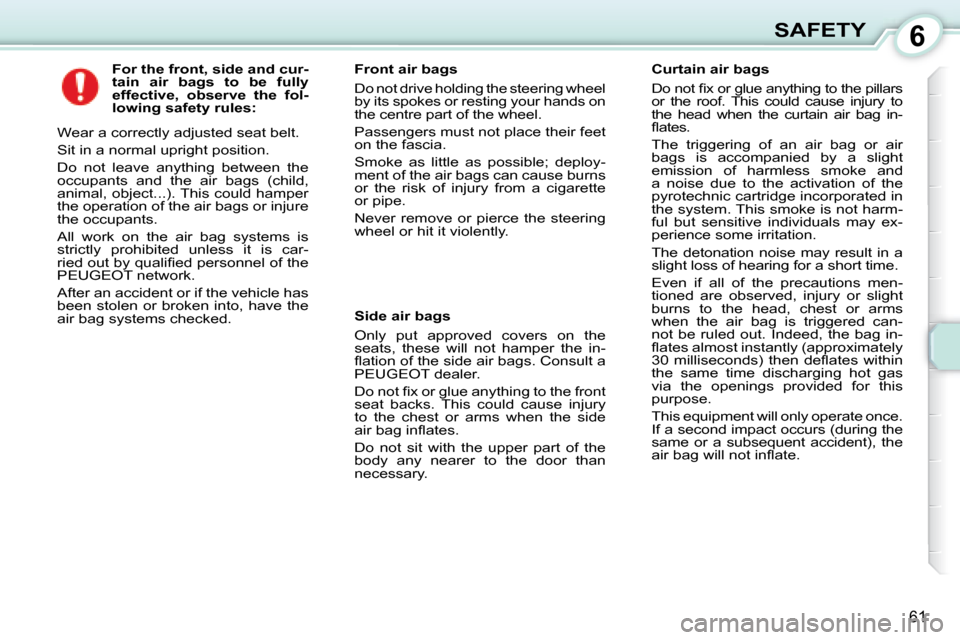

For the front, side and cur-
tain air bags to be fully
effective, observe the fol-
lowing safety rules:
Wear a correctly adjusted seat belt.
Sit in a normal upright position.
Do not leave anything between the
occupants and the air bags (child,
animal, object...). This could hamper
the operation of the air bags or injure
the occupants.
All work on the air bag systems is
strictly prohibited unless it is car-
r i e d o u t b y q u a l i fi e d p e r s o n n e l o f t h e
PEUGEOT network.
After an accident or if the vehicle has
been stolen or broken into, have the
air bag systems checked. Front air bags
Do not drive holding the steering wheel
by its spokes or resting your hands on
the centre part of the wheel.
Passengers must not place their feet
on the fascia.
Smoke as little as possible; deploy-
ment of the air bags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Curtain air bags
D o n o t fi x o r g l u e a n y t h i n g t o t h e p i l l a r s
or the roof. This could cause injury to
the head when the curtain air bag in-
fl a t e s .
The triggering of an air bag or air
bags is accompanied by a slight
emission of harmless smoke and
a noise due to the activation of the
pyrotechnic cartridge incorporated in
the system. This smoke is not harm-
ful but sensitive individuals may ex-
perience some irritation.
The detonation noise may result in a
slight loss of hearing for a short time.
Even if all of the precautions men-
tioned are observed, injury or slight
burns to the head, chest or arms
when the air bag is triggered can-
not be ruled out. Indeed, the bag in-
fl a t e s a l m o s t i n s t a n t l y ( a p p r o x i m a t e l y
3 0 m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging hot gas
via the openings provided for this
purpose.
This equipment will only operate once.
If a second impact occurs (during the
same or a subsequent accident), the
a i r b a g w i l l n o t i n fl a t e .
Side air bags
Only put approved covers on the
seats, these will not hamper the in-
fl a t i o n o f t h e s i d e a i r b a g s . C o n s u l t a
PEUGEOT dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e f r o n t
seat backs. This could cause injury
to the chest or arms when the side
a i r b a g i n fl a t e s .
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Page 68 of 97
7
62

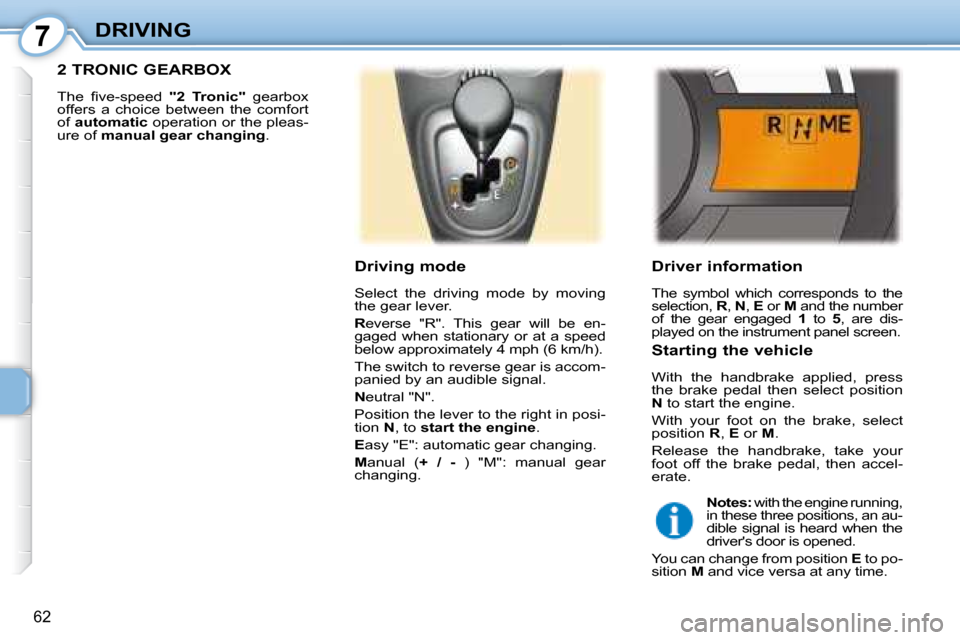

DRIVING Driver information
The symbol which corresponds to the
selection, R , N , E or M and the number
of the gear engaged 1 to 5 , are dis-
played on the instrument panel screen.
2 TRONIC GEARBOX
T h e fi v e - s p e e d "2 Tronic" gearbox
offers a choice between the comfort
of automatic operation or the pleas-
ure of manual gear changing .
Driving mode
S e l e c t t h e d r i v i n g m o d e b y m o v i n g
t h e g e a r l e v e r .
R e v e r s e " R " . T h i s g e a r w i l l b e e n -
gaged when stationary or at a speed
below approximately 4 mph (6 km/h).
T h e s w i t c h t o r e v e r s e g e a r i s a c c o m -
panied by an audible signal.
N e u t r a l " N " .
P o s i t i o n t h e l e v e r t o t h e r i g h t i n p o s i -
tion N , to start the engine .
E a s y " E " : a u t o m a t i c g e a r c h a n g i n g .
M anual ( + / - ) " M " : m a n u a l g e a r
changing. Starting the vehicle
With the handbrake applied, press
the brake pedal then select position
N to start the engine.
With your foot on the brake, select
position R , E or M .
R e l e a s e t h e h a n d b r a k e , t a k e y o u r
foot off the brake pedal, then accel-
erate.
Notes: with the engine running,
in these three positions, an au-
dible signal is heard when the
d r i v e r ' s d o o r i s o p e n e d .
You can change from position E to po-
sition M a n d v i c e v e r s a a t a n y t i m e .
Page 69 of 97
7
63
DRIVING

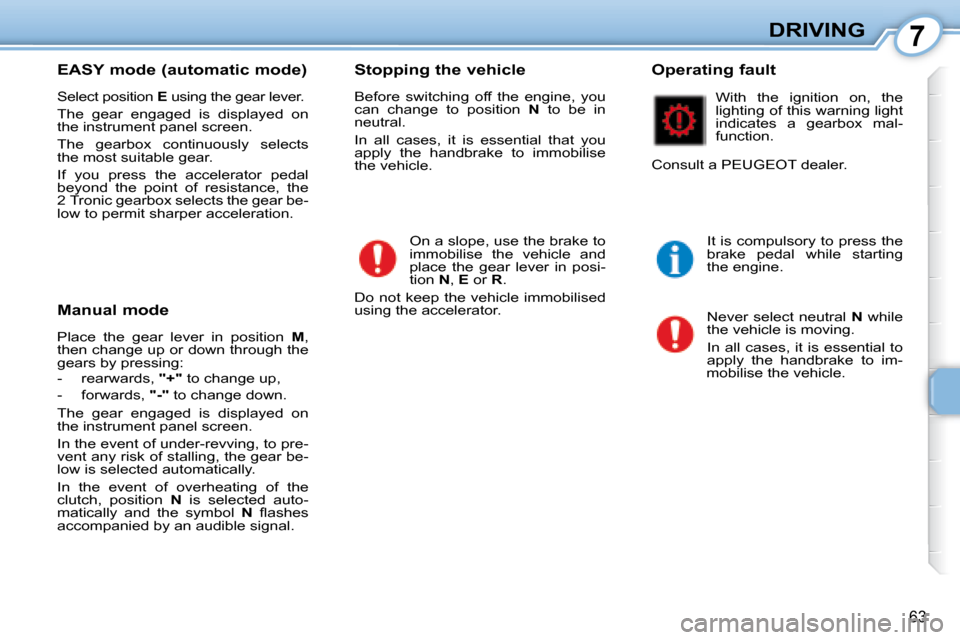

EASY mode (automatic mode)
Select position E u s i n g t h e g e a r l e v e r .
The gear engaged is displayed on
the instrument panel screen.
The gearbox continuously selects
the most suitable gear.
If you press the accelerator pedal
beyond the point of resistance, the
2 Tronic gearbox selects the gear be-
low to permit sharper acceleration.
Manual mode
P l a c e t h e g e a r l e v e r i n p o s i t i o n M ,
then change up or down through the
g e a r s b y p r e s s i n g :
- rearwards, "+" to change up,
- forwards, "-" to change down.
The gear engaged is displayed on
the instrument panel screen.
I n t h e e v e n t o f u n d e r - r e v v i n g , t o p r e -
v e n t a n y r i s k o f s t a l l i n g , t h e g e a r b e -
low is selected automatically.
I n t h e e v e n t o f o v e r h e a t i n g o f t h e
clutch, position N is selected auto-
matically and the symbol N fl a s h e s
accompanied by an audible signal. Operating fault
Stopping the vehicle
Before switching off the engine, you
can change to position N to be in
neutral.
In all cases, it is essential that you
apply the handbrake to immobilise
t h e v e h i c l e . With the ignition on, the
lighting of this warning light
indicates a gearbox mal-
function.
On a slope, use the brake to
i m m o b i l i s e t h e v e h i c l e a n d
p l a c e t h e g e a r l e v e r i n p o s i -
tion N , E or R .
D o n o t k e e p t h e v e h i c l e i m m o b i l i s e d
using the accelerator. It is compulsory to press the
brake pedal while starting
the engine.
N e v e r s e l e c t n e u t r a l
N while
t h e v e h i c l e i s m o v i n g .
In all cases, it is essential to
apply the handbrake to im-
m o b i l i s e t h e v e h i c l e .
C o n s u l t a P E U G E O T d e a l e r .
Page 70 of 97
8
64
CHECKS

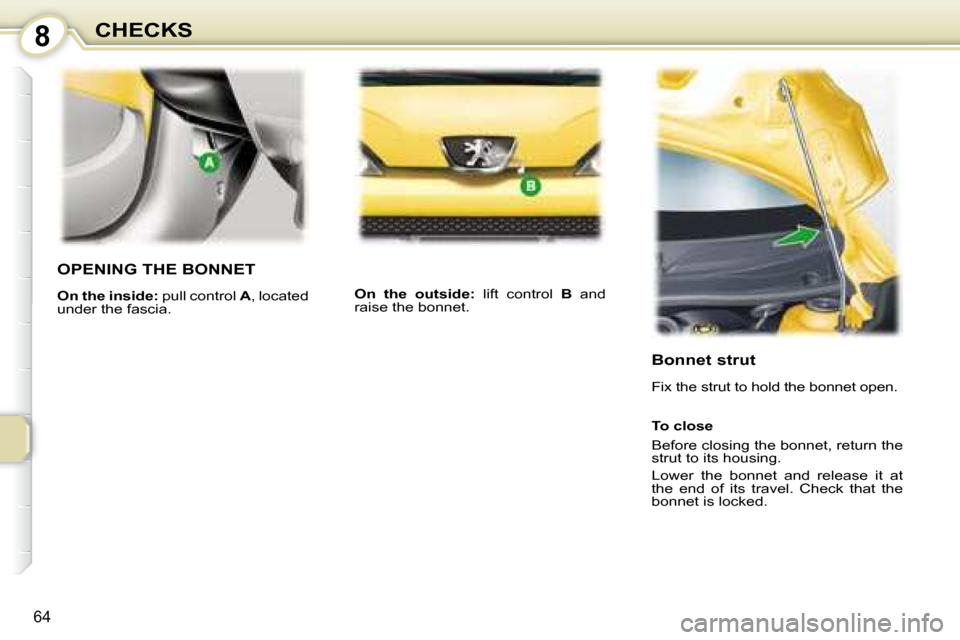

OPENING THE BONNET
On the inside : pull control A , located
under the fascia.
On the outside : lift control B and
raise the bonnet.
Bonnet strut
Fix the strut to hold the bonnet open.
To close
Before closing the bonnet, return the
strut to its housing.
Lower the bonnet and release it at
the end of its travel. Check that the
bonnet is locked.
Page 71 of 97
8
66
CHECKS
1.0 LITRE PETROL ENGINE
1. Coolant reservoir
2. Windscreen wash reservoir
3. B r a k e fl u i d r e s e r v o i r
4. Fuse box
5. Battery
6. A i r fi l t e r
7. Dipstick
8. E n g i n e o i l fi l l e r c a p
1.4 LITRE TURBO DIESEL HDI
ENGINE
1. Coolant reservoir
2. Windscreen wash reservoir
3. Priming pump
4. A i r fi l t e r
5. B r a k e fl u i d r e s e r v o i r
6. Fuse box
7. Battery
8. Dipstick
9. E n g i n e o i l fi l l e r c a p
Page 72 of 97
8
67
CHECKS
CHECKING THE LEVELS
There are two marks
on the dipstick:
A = maximum
I f y o u fi l l p a s t t h i s m a r k ,
contact a PEUGEOT
dealer.
B = minimum
Never allow the level
to fall below this mark.
Dipstick
Oil change
According to the information given in
the servicing booklet. Changing the brake fluid
T h e b r a k e fl u i d m u s t b e c h a n g e d a t
the intervals stated, according to the
manufacturer's servicing schedule.
U s e fl u i d s r e c o m m e n d e d b y t h e m a n -
u f a c t u r e r , w h i c h f u l fi l D O T 4 s t a n d a r d s .
Windscreen wash level
For best quality cleaning and for your
safety, we would advise that you
use products recommended by your
manufacturer.
Consult a PEUGEOT dealer.
Viscosity selection
In all cases, the oil selected must meet
the manufacturer's requirements. Cooling system
Used oil
Avoid prolonged contact of used oil
with the skin.
B r a k e fl u i d i s h a r m f u l t o h e a l t h a n d
very corrosive.
To maintain the reliability of
engines and emission control
systems, the use of additives
in engine oil is prohibited. Slacken the cap by 1/4 of a
turn to release the pressure
to prevent any risk of scald-
ing. When the pressure has
dropped, remove the cap and top up
the level. O n l y u s e t h e fl u i d r e c o m -
mended by the manufacturer.
Otherwise, you risk seriously
damaging your engine.
Do not dispose of used oil,
b r a k e fl u i d o r c o o l a n t i n t o
drains or into the ground.
Empty the used oil into the
containers provided for this
purpose in the PEUGEOT
network.
Oil level
Check the level regularly and top up
between changes. The maximum
consumption is 0.5 l per 600 miles
(1000 km).
Check the level with the vehicle level,
engine cold, using the dipstick.
When the engine is warm, the tem-
perature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
