Page 89 of 97
9
80
PRACTICAL INFORMATION

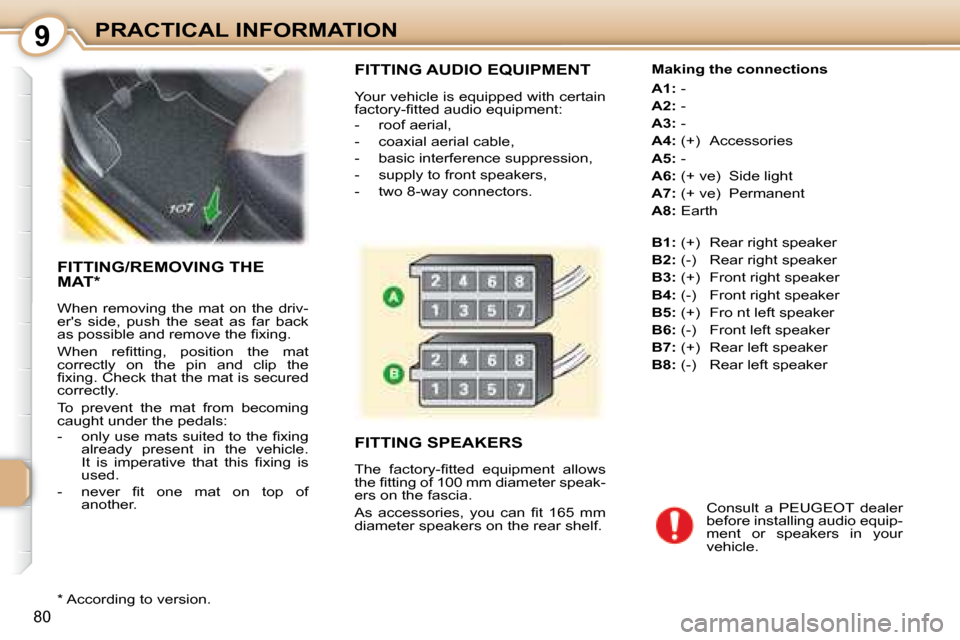

FITTING AUDIO EQUIPMENT
Your vehicle is equipped with certain
f a c t o r y - fi t t e d a u d i o e q u i p m e n t :
- roof aerial,
- coaxial aerial cable,
- basic interference suppression,
- supply to front speakers,
- two 8-way connectors.
FITTING SPEAKERS
T h e f a c t o r y - fi t t e d e q u i p m e n t a l l o w s
t h e fi t t i n g o f 1 0 0 m m d i a m e t e r s p e a k -
ers on the fascia.
A s a c c e s s o r i e s , y o u c a n fi t 1 6 5 m m
diameter speakers on the rear shelf. Making the connections
A1: -
A2: -
A3: -
A4: (+) Accessories
A5: -
A6: (+ ve) Side light
A7: (+ ve) Permanent
A8: Earth
Consult a PEUGEOT dealer
before installing audio equip-
ment or speakers in your
vehicle.
FITTING/REMOVING THE
MAT *
When removing the mat on the driv-
er's side, push the seat as far back
a s p o s s i b l e a n d r e m o v e t h e fi x i n g .
W h e n r e fi t t i n g , p o s i t i o n t h e m a t
correctly on the pin and clip the
fi x i n g . C h e c k t h a t t h e m a t i s s e c u r e d
correctly.
To prevent the mat from becoming
caught under the pedals:
- o n l y u s e m a t s s u i t e d t o t h e fi x i n g already present in the vehicle.
I t i s i m p e r a t i v e t h a t t h i s fi x i n g i s
used.
- n e v e r fi t o n e m a t o n t o p o f another.
* According to version.
B1: (+) Rear right speaker
B2: (-) Rear right speaker
B3: (+) Front right speaker
B4: (-) Front right speaker
B5: (+) Fro nt left speaker
B6: (-) Front left speaker
B7: (+) Rear left speaker
B8: (-) Rear left speaker
Page 90 of 97
9
81
PRACTICAL INFORMATION

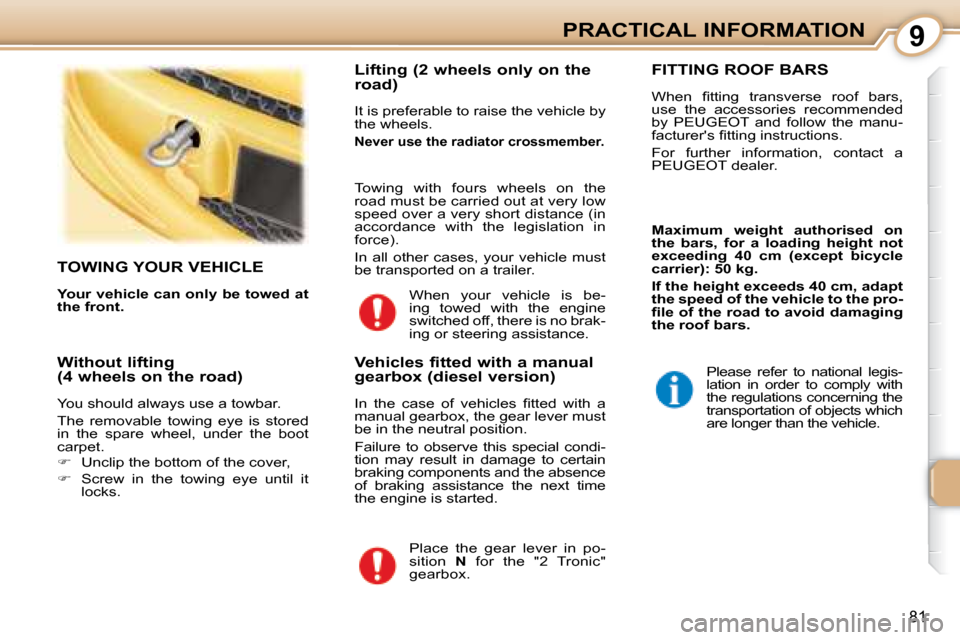

TOWING YOUR VEHICLE
Your vehicle can only be towed at
the front. Lifting (2 wheels only on the
road)
It is preferable to raise the vehicle by
the wheels.
Never use the radiator crossmember.
When your vehicle is be-
ing towed with the engine
switched off, there is no brak-
ing or steering assistance.
Without lifting
(4 wheels on the road)
You should always use a towbar.
The removable towing eye is stored
in the spare wheel, under the boot
carpet.
Unclip the bottom of the cover,
Screw in the towing eye until it
locks.
Place the gear lever in po-
sition N for the "2 Tronic"
gearbox.
FITTING ROOF BARS
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s ,
use the accessories recommended
by PEUGEOT and follow the manu-
f a c t u r e r ' s fi t t i n g i n s t r u c t i o n s .
For further information, contact a
PEUGEOT dealer.
Please refer to national legis-
lation in order to comply with
the regulations concerning the
transportation of objects which
are longer than the vehicle.
Towing with fours wheels on the
road must be carried out at very low
speed over a very short distance (in
accordance with the legislation in
force).
In all other cases, your vehicle must
be transported on a trailer.
Vehicles fitted with a manual
gearbox (diesel version)
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
manual gearbox, the gear lever must
be in the neutral position.
Failure to observe this special condi-
tion may result in damage to certain
braking components and the absence
of braking assistance the next time
the engine is started.
Maximum weight authorised on
the bars, for a loading height not
exceeding 40 cm (except bicycle
carrier): 50 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi l e o f t h e r o a d t o a v o i d d a m a g i n g
the roof bars.
Page 91 of 97
9
82
PRACTICAL INFORMATION
ACCESSORIES FOR YOUR
107
A wide range of accessories recom-
mended by PEUGEOT and original
parts is offered by the Network.
T h e y a l l b e n e fi t f r o m P E U G E O T ' s
recommendation.
These accessories and parts, having
been tested and approved for reli-
ability and safety, are all adapted to
your PEUGEOT vehicle.
This product range is structured
around 5 categories: T h e fi t t i n g o f e l e c t r i c a l e q u i p -
ment or accessories which
are not recommended by
PEUGEOT may result in a
failure of your vehicle's elec-
tronic system and excess consump-
tion.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories.
"Protection": anti-theft
a l a r m , fi r s t a i d k i t , w a r n -
ing triangle, high visibility
safety jacket, snow chains
and non-skid covers, fog
lamps kit, rear parking as-
sistance...
"Touring": mats, boot tray,
sun blinds, roof bars, arm-
rest, telephone support, CD
storage, glove box lid, child
seats and booster cush-
ions...
"In-Car Technology": blue-
tooth hands-free kit, audio
equipment, portable satellite
navigation system, CD chang-
er, auxiliary cable for audio
equipment (e.g.: connection
for portable MP3 player on au-
dio equipment), speakers...
"Styling": covers, 14 inch
alloy wheels, wheel trims,
s p o i l e r , s t a n d a r d m u d fl a p s ,
styling strips, door spoilers,
sill protectors, aluminium/
leather gear lever knob,
aluminium interior trim
kit, chromed exhaust tailpipe, anti-
scratch covers under the handles,
"Cristal" rear lights...
"Universal": windscreen
w a s h fl u i d , i n t e r i o r a n d e x -
terior cleaning and mainte-
nance products.
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f another.
You can obtain "Van" conver-
sion kits to convert a private
vehicle to a van.
Page 92 of 97
10
83
TECHNICAL DATA
PETROL ENGINES AND GEARBOXES
Model codes PM, PN CFAC CFAC/P
Engines
1 . 0 l i t r e ( ≈ 6 8 b h p )
Cubic capacity (cm 3
) 998
Bore x stroke (mm) 71 x 84
EU standard maximum power (kW) 50
Max power engine speed (rpm) 6 000
EU standard max torque (Nm) 93
Max torque engine speed (rpm) 3 600
Fuel Unleaded
Catalytic converter Yes
G e a r b o x Manual (5-speed) "2 Tronic" (5-speed)
Oil capacity (in litres)
Engine (with cartridge replacement) 3.2
Gearbox-Final drive 2
Page 93 of 97
10
84
TECHNICAL DATA
Fuel consumption values correct at time of printing. These consu mption values are established in accordance with EC
D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g u p o n c i r c u m s t a n c e s : h a n d l i n g o f t h e v e h i c l e , t r a f fi c a n d w e a t h e r
conditions, loading of the vehicle, vehicle maintenance and the use of accessories.

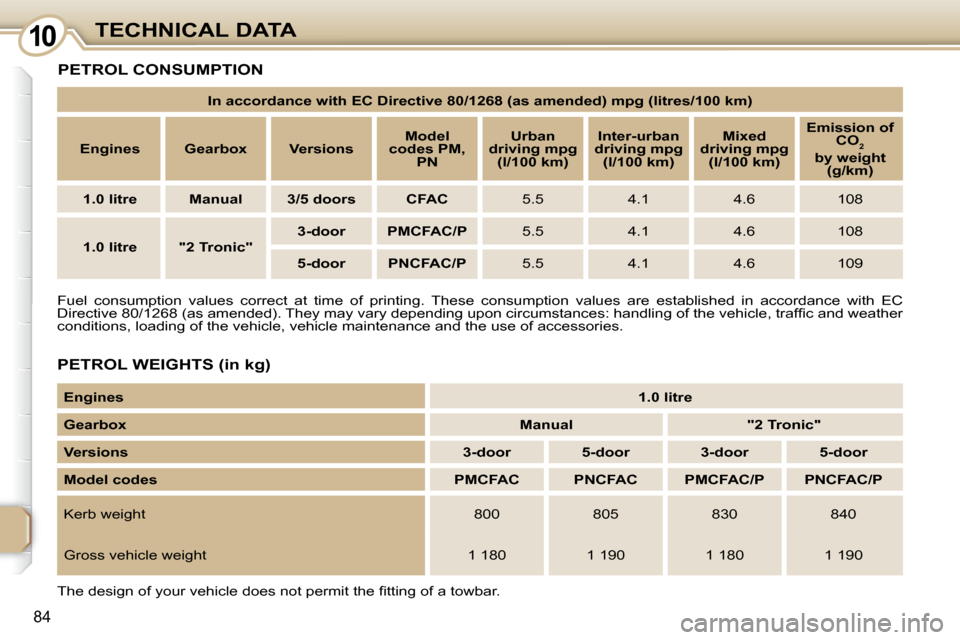

PETROL CONSUMPTION
P E T R O L W E I G H T S ( i n k g )
T h e d e s i g n o f y o u r v e h i c l e d o e s n o t p e r m i t t h e fi t t i n g o f a t o w b a r .
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) m p g ( l i t r e s / 1 0 0 k m )
Engines G e a r b o x Versions
Model
codes PM, PN
U r b a n
d r i v i n g m p g ( l / 1 0 0 k m )
I n t e r - u r b a n
d r i v i n g m p g ( l / 1 0 0 k m )
M i x e d
d r i v i n g m p g ( l / 1 0 0 k m )
E m i s s i o n o f
CO 2
b y w e i g h t ( g / k m )
1.0 litre Manual 3/5 doors CFAC 5.5 4.1 4.6 108
1.0 litre " 2 T r o n i c "
3-door PMCFAC/P 5.5 4.1 4.6 108
5-door PNCFAC/P 5.5 4.1 4.6 109
Engines
1.0 litre
G e a r b o x
Manual " 2 T r o n i c "
Versions
3-door 5-door 3-door 5-door
Model codes
PMCFAC PNCFAC PMCFAC/P PNCFAC/P
Kerb weight 800 805 830 840
Gross vehicle weight 1 180 1 190 1 180 1 190
Page 94 of 97
10
85
TECHNICAL DATA
DIESEL ENGINES AND GEARBOXES
Model codes PM, PN
8 H T C
Engines
1 . 4 l i t r e T u r b o H D I ( ≈ 5 4 b h p )
Cubic capacity (cm 3
) 1 398
Bore x stroke (mm) 73.7 x 82
EU standard maximum power (kW) 40
Max power engine speed (rpm) 4 000
EU standard max torque (Nm) 130
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Yes
P a r t i c l e e m i s s i o n fi l t e r No
G e a r b o x
M a n u a l ( 5 - s p e e d )
Oil capacity (in litres)
Engine (with cartridge replacement) 3.8
Gearbox-Final drive 1.9
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) m p g
( l i t r e s / 1 0 0 k m )
G e a r b o x U r b a n
d r i v i n g m p g ( l / 1 0 0 k m ) I n t e r - u r b a n
d r i v i n g m p g ( l / 1 0 0 k m ) M i x e d
d r i v i n g m p g ( l / 1 0 0 k m ) E m i s s i o n o f
2
b y w e i g h t ( g / k m )
" 2 T r o n i c "
Page 95 of 97
10
86
TECHNICAL DATA

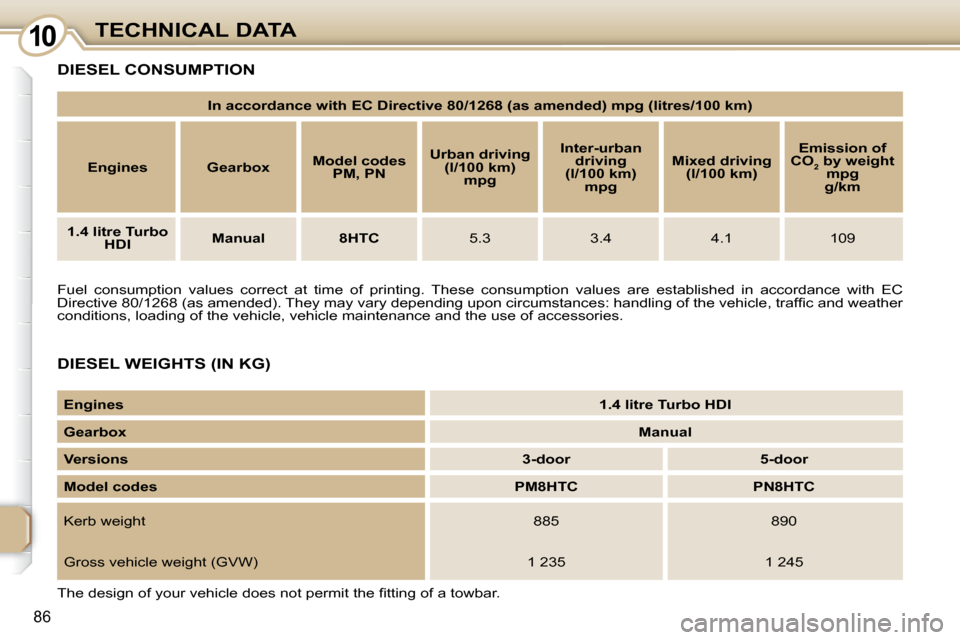

D I E S E L W E I G H T S ( I N K G )
DIESEL CONSUMPTION
Fuel consumption values correct at time of printing. These consu
mption values are established in accordance with EC
D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g u p o n c i r c u m s t a n c e s : h a n d l i n g o f t h e v e h i c l e , t r a f fi c a n d w e a t h e r
conditions, loading of the vehicle, vehicle maintenance and the use of accessories.
T h e d e s i g n o f y o u r v e h i c l e d o e s n o t p e r m i t t h e fi t t i n g o f a t o w b a r .
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) m p g ( l i t r e s / 1 0 0 k m )
Engines G e a r b o x
Model codes
PM, PN
U r b a n d r i v i n g
( l / 1 0 0 k m ) m p g
I n t e r - u r b a n
d r i v i n g
( l / 1 0 0 k m ) m p g
M i x e d d r i v i n g
( l / 1 0 0 k m )
E m i s s i o n o f
CO 2 b y w e i g h t
m p g
g / k m
1 . 4 l i t r e T u r b o
HDI
Manual 8 H T C 5.3 3.4 4.1 109
Engines
1 . 4 l i t r e T u r b o H D I
G e a r b o x
Manual
Versions
3-door 5-door
Model codes
P M 8 H T C P N 8 H T C
Kerb weight 885 890
Gross vehicle weight (GVW) 1 235 1 245
Page 96 of 97
10
87
TECHNICAL DATA

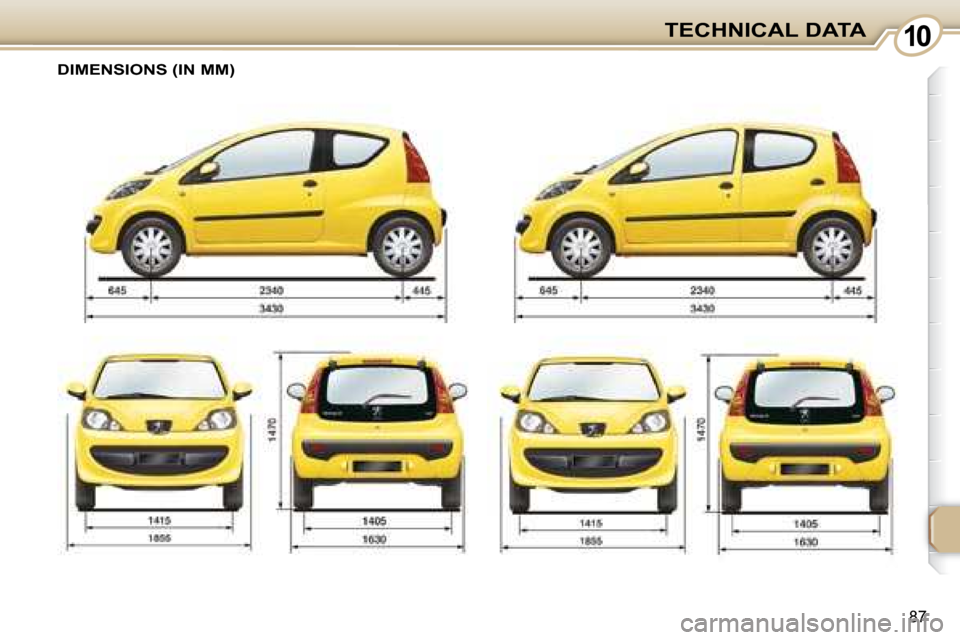

D I M E N S I O N S ( I N M M )
